Overview

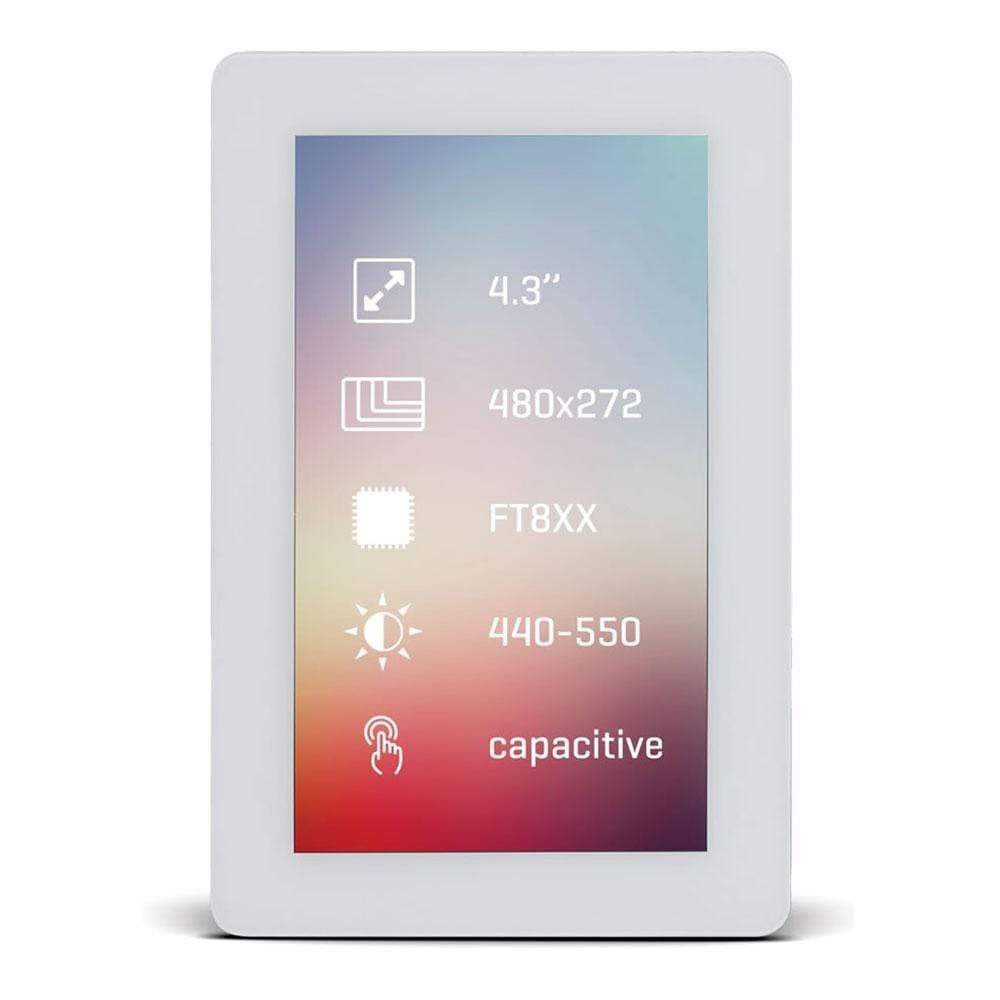

The Riverdi Display UXW is a high-quality cost-effective 4.3" TFT display with a projected capacitive touch screen and decorative cover glass (white bezel). Well integrated with MikroElektronika tools.
The 480x272px screen of the Riverdi is driven by an FT801 graphic controller which is supported in Visual TFT, the GUI design tool for rapid development of user interfaces.
The FT801 controller supports multitouch gestures with up to five touches as well as gesture detection for the capacitive touchscreen.
The connector uses an I2C/SPI interface. To use it with various MikroElektronika hardware, a Riverdi Click Board™ adapter board is available (interface between the connector on the display and a mikroBUSsocket).
| Overview | |
|---|---|
| Category | TFT |
| Key components | |
| Graphics controller | FT801 |
| Features | |
| Integration | White bezel |
| Interfaces | |
| Interface | I2C or SPI |
| Electrical | |
| Power supply | 3.3V |
| Display | |
| Display size | 4.3" |
| Resolution | 480x272px |
| Brightness | 500 |
| Touch screen | Capacitive |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-2167 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015079837 |
| Warranty | 12 months |
| Shipping weight | 0.15 kg |
-
1 ×
Riverdi Display 4.3" UXW
Contact us to confirm the full contents of the box.
