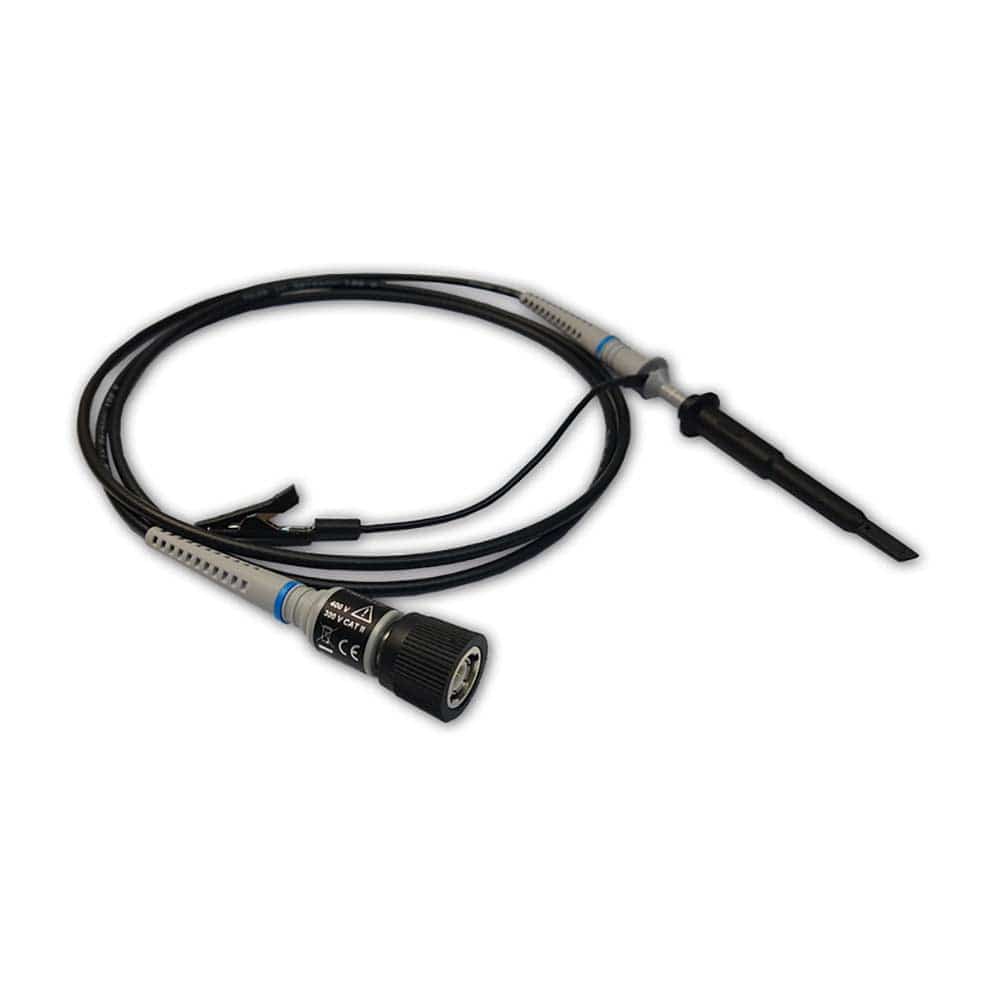

OMICRON Lab PML111O Passive 10:1-Sonde

OMICRON Lab PML111O Passive 10:1-Sonde

Konzipiert für den Einsatz mit dem Omicron-LAB Bode-100

SKU: B1666600

Normaler Preis
£235.00 exc VAT
£282.00 inc VAT
Normaler Preis Verkaufspreis
£235.00 exc VAT
£282.00 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
Check Availability before Ordering

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Key Features

Schützt die Eingangskanäle des Bode-100
Zur Durchführung hochpräziser Schleifenverstärkungsmessungen
Reduziert die kapazitive Belastung Ihrer Schaltung
1 MΩ || 12,5 pF Eingangsimpedanz für geringstes Rauschen
kompaktes 2,5 mm Sondendesign

Overview

The OMICRON Lab PML 111O is a passive 10:1 probe made by PMK and optimised for the ac-coupled inputs of the Bode 100, with the divider in the probe tip. Input impedance is 1 MΩ || 12.5 pF, system bandwidth 50 MHz, ratings 400 V rms CAT I and 300 V rms CAT II, with a 2.5 mm tip and 1.3 m cable. Use two with a B-WIT 100 for loop gain measurement; for higher voltages choose the PHV 1000-O.

Downloads

User Manuals

  • OMICRON Lab PML 111O Passive 10:1 Probe PDF1.8 MB · Oct 2017
    Details

The OMICRON Lab PML 111O is a passive 10:1 probe made by PMK and optimised for the Bode 100, with 1 MΩ || 12.5 pF input impedance, 50 MHz system bandwidth and a 2.5 mm probe tip. Its voltage divider sits in the probe tip, so it divides DC correctly into the Bode 100's ac-coupled inputs and protects them. Power supply designers use a pair of them for loop gain and stability measurements on DC/DC converters and voltage regulators.

Why the Bode 100 Needs a Matched 10:1 Probe

The Bode 100 inputs are ac-coupled. OMICRON Lab warns that a standard oscilloscope probe does not divide DC signals as expected on these inputs and can damage the analyser. The PML 111O places the divider in the probe tip, so the whole signal, DC included, is divided before it reaches the input channel. OMICRON Lab recommends it for highly accurate loop gain measurements and for reducing capacitive loading on the circuit under test.

Passive 10:1 Probe Specifications for Loop Gain Work

Attenuation is 10:1 ±2% at DC, system input resistance is 1 MΩ ±1% and input capacitance is 12.5 pF. System bandwidth is 50 MHz (passband, under -1 dB) and rise time is 7 ns, which covers the Bode 100's 1 Hz to 50 MHz range. Each probe is pre-compensated in production, and the compensation range of 40 pF to 55 pF lets you fine-tune it to the instrument input. Cable length is 1.3 m and the probe weighs 48 g.

Voltage Ratings and Safe Use

The probe is rated 400 V rms in measurement category I, with 1250 V transient overvoltage, and 300 V rms in CAT II. The maximum input voltage falls as signal frequency rises; the derating curve is in the manual. The ground lead is for earth ground only, so the PML 111O is not a floating or differential probe. For off-line power stages or higher bus voltages, choose the PHV 1000-O.

Specifications

Attenuation 10:1 ±2% at DC
System bandwidth 50 MHz (passband, < -1 dB)
Rise time 7 ns (10% to 90%)
Input resistance (system) 1 MΩ ±1%
Input capacitance (system) 12.5 pF
Compensation range 40 pF to 55 pF
Voltage coefficient 0.00025%/V at DC
Max. input voltage, CAT I 400 V rms (1250 V transient overvoltage)
Max. input voltage, CAT II 300 V rms
Probe tip diameter 2.5 mm
Cable length 1.3 m
Weight (probe only) 48 g
Operating temperature 0 °C to +50 °C
Non-operating temperature -40 °C to +71 °C
Operating altitude Up to 2,000 m
Safety standard IEC 61010-031:2008, pollution degree 2

Limitations

  • OMICRON Lab names only the Bode 100 for this probe. The Bode 500 uses N-type connectors where the Bode 100 uses BNC, so ask us before ordering for a Bode 500 setup.
  • The maximum input voltage derates with frequency. Check the curve in the manual before probing fast, high-amplitude nodes.
  • The supplied BNC adapter is rated 42 V peak (AC + DC), well below the probe's own rating.
  • Connect the ground lead to earth ground only. It is not for floating measurements.

Bode 100 Passive Probe Comparison

Feature PML 111O PHV 1000-O
Attenuation 10:1 100:1
Input impedance (system) 1 MΩ || 12.5 pF 50 MΩ || 7.5 pF
System bandwidth 50 MHz Not stated by OMICRON Lab or PMK
Max. input voltage 400 V rms CAT I, 300 V rms CAT II 2000 V peak (no measurement category), 1000 V CAT II
Compensation range 40 pF to 55 pF 10 pF to 50 pF
Probe tip diameter 2.5 mm 5 mm
Cable length 1.3 m 1.2 m
Weight (probe only) 48 g 67 g
BNC adapter in the box Yes No (optional PMK accessory)
Price £235 £535

Typical Applications

Loop gain and phase margin measurement on a DC/DC converter with a Bode 100 and a B-WIT 100, with one probe on each side of the injection resistor. Stability checks on linear regulators where the 12.5 pF input capacitance keeps loading of the feedback node low. Slow control loops such as PFC regulators, measured down to 1 Hz with the B-LFT 100 injection transformer.

The PML 111O suits Bode 100 owners measuring control loops at board-level voltages.

What's Included

  • PML 111O probe with gold-plated 0.5 mm spring tip (fitted) and protection cap
  • Solid probe tip, CuBe 0.5 mm
  • Ground lead, 15 cm
  • Ground spring contact
  • Sprung hook
  • BNC adapter
  • Isolation cap
  • PCB adapter kit
  • Colour-coding rings (3 each of 4 colours)
  • Printed user manual in English

The OMICRON Lab PML 111O is £235 ex VAT. A loop gain setup takes two probes, so check how many you need, or contact us for a formal quotation covering the Bode 100, injection transformer and probes. See all vector network analyser accessories in our range.

Frequently Asked Questions

Can I Use a Standard Oscilloscope Probe with the Bode 100 Instead?

OMICRON Lab advises against it. The Bode 100 inputs are ac-coupled, so a standard probe does not divide DC as expected and can damage the input. The PML 111O puts the divider in the tip to avoid this.

Answered by John Legg, Director, Debug Store

How Many Probes Do I Need for a Loop Gain Measurement?

Two. One probe measures each side of the injection resistor, and the Bode 100 calculates loop gain from the ratio of the two channels.

Answered by John Legg, Director, Debug Store

What Is the Maximum Voltage I Can Measure?

400 V rms in CAT I or 300 V rms in CAT II, derated with frequency. Above that, use the PHV 1000-O, rated 2000 V peak with no measurement category and 1000 V CAT II.

Answered by John Legg, Director, Debug Store

Last reviewed: 18 November 2026

Sources (2 manufacturer pages)
Ordering information
Part number (SKU)B1666600
ManufacturerOMICRON-Lab
EAN5055383624577
Warranty12 Monate
Shipping weight0.5 kg
  • 1 ×PML 111O probe with spring tip and protective cap
  • 1 ×Solid probe tip (CuBe 0.5 mm)
  • 1 ×Ground lead
  • 1 ×Ground spring contact
  • 1 ×Sprung hook
  • 1 ×BNC adapter
  • 1 ×Isolation cap
  • 1 ×PCB adapter kit
  • 12 ×Colour-coding rings (3 each of 4 colours)
  • 1 ×Printed user manual in English
