ZeroPlus LAP-C LogicCube Logic Analyser
- Vendor
- TT-LAP-C-16032
- ZeroPlus Technology Co Ltd
- Regular price
-
£228.00 inc. VAT£190.00 exc. VAT
- Sale price
- £190.00V
- Regular price
-
- Unit price
- /per
Adding product to your cart
The ZeroPlus LogicCube (LAP-C) Logic Analyser range is one of our most popular selling logic analysers. It is available with 16 or 32 channels and includes decoding over 120 protocols as standard.
The LAP-C LogicCube connects to a host PC and is powered via its USB interface. It is housed in a compact, lightweight enclosure, designed to grace the tidiest workbench!
The LAP-C includes a USB lead, test leads, ten grabber hooks and the latest software supplied on a USB Memory Stick.
TuffTest Package
The LogicCube is also available as a TuffTest package. The TuffTest package includes a rugged, waterproof carrying case and twenty grabber hooks.
Much more convenient than scope based LAs with every protocol you could imagine available at no extra cost (scope manufacturers take note). Excellent service from John, will use the Dubug Store again no doubt.
Although 'Entry level' this a powerful bit of kit! I bought it to analyze bursts of 30 bytes microwire eeprom transaction which it did with ease. Something I was unable to do on a digital oscilloscope costing ten times as much! The re-trigger option meant I didn't lose anything either
ZeroPlus LAP-C LogicCube Logic Analyser

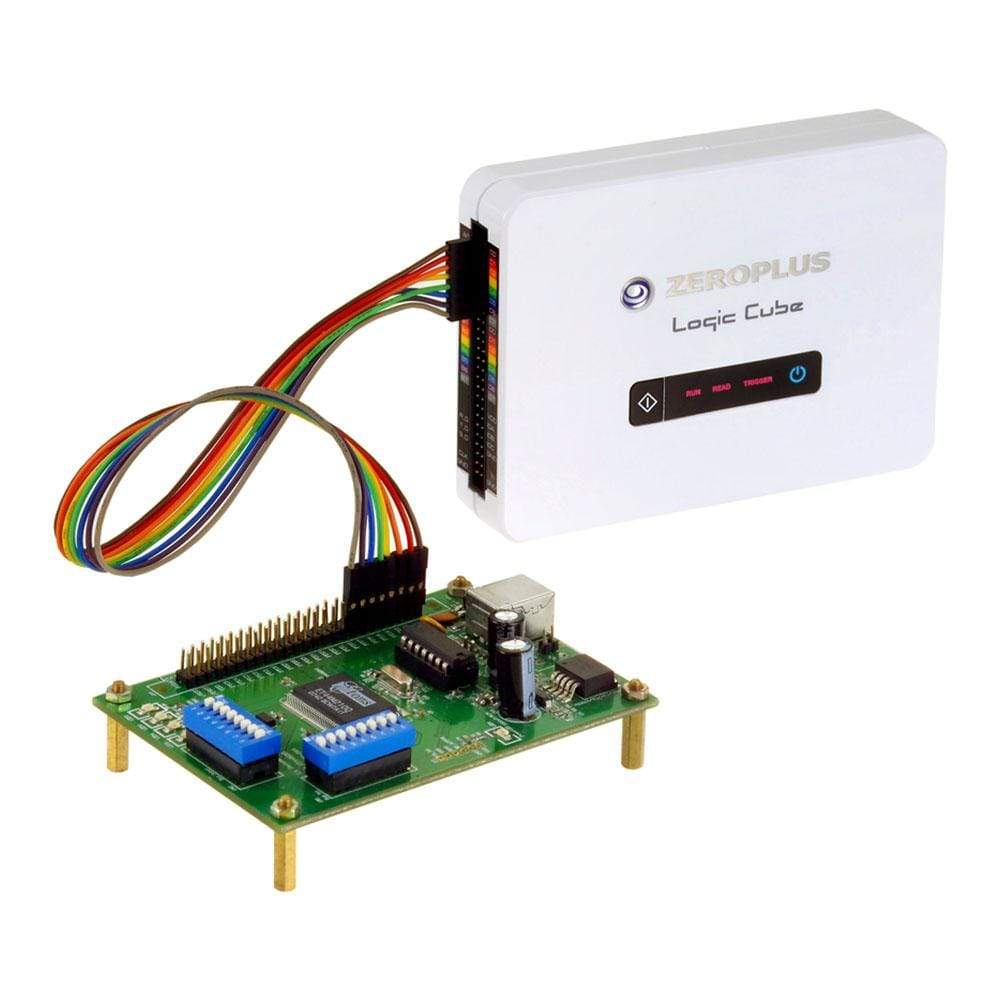

Very good also bought the Protocol Simulator Board; once I got used to the software all worked OK. The ZeroPlus Instruction videos are very good.
I bought the ZeroPlus as a replacement for a TotalPhase Aardvark I2C bus monitor as the recent Aardvark app no longer includes the I2C monitor function. The ZeroPhase has a quality feel and installation was trouble free on a 64 bit Windows 10 PC. The PC app isn't at all user friendly and intuitive so it took me a while to get started capturing and viewing signals. I then discovered that the capture depth is quite modest, so I couldn't capture as much bus traffic as I needed.
Having said that, it's still a pretty capable logic analyser at a very good price. I haven't compared it back to back with my PicoScope 3000 for functionality, but if your budget is tight it's definitely worth a look.
If they could improve the ease of use of the UI then it would be a real winner.
Hi Oliver
Many thanks for taking the trouble to leave a review.
The Aardvark I2C/SPI Host Adapter is not designed to be a bus monitor but it used to have minimal monitoring functions. The Beagle I2C/SPI Bus analyser is best suited for this purpose. It also offers real-time filtering which can ensure than only those I2C cycles that are needed are stored in the capture buffer.
The LAP-C(16032) is an entry-level logic analyser with a small 32K bits/ch capture buffer. Other models in the range are available with a larger capture buffers up to 2M bits/ch.
For the price, the LAP-C(16032) offers excellent value.
Kind regards
John Legg
Download Files
ZeroPlus LAP-C LogicCube Logic Analyser
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
Product Description

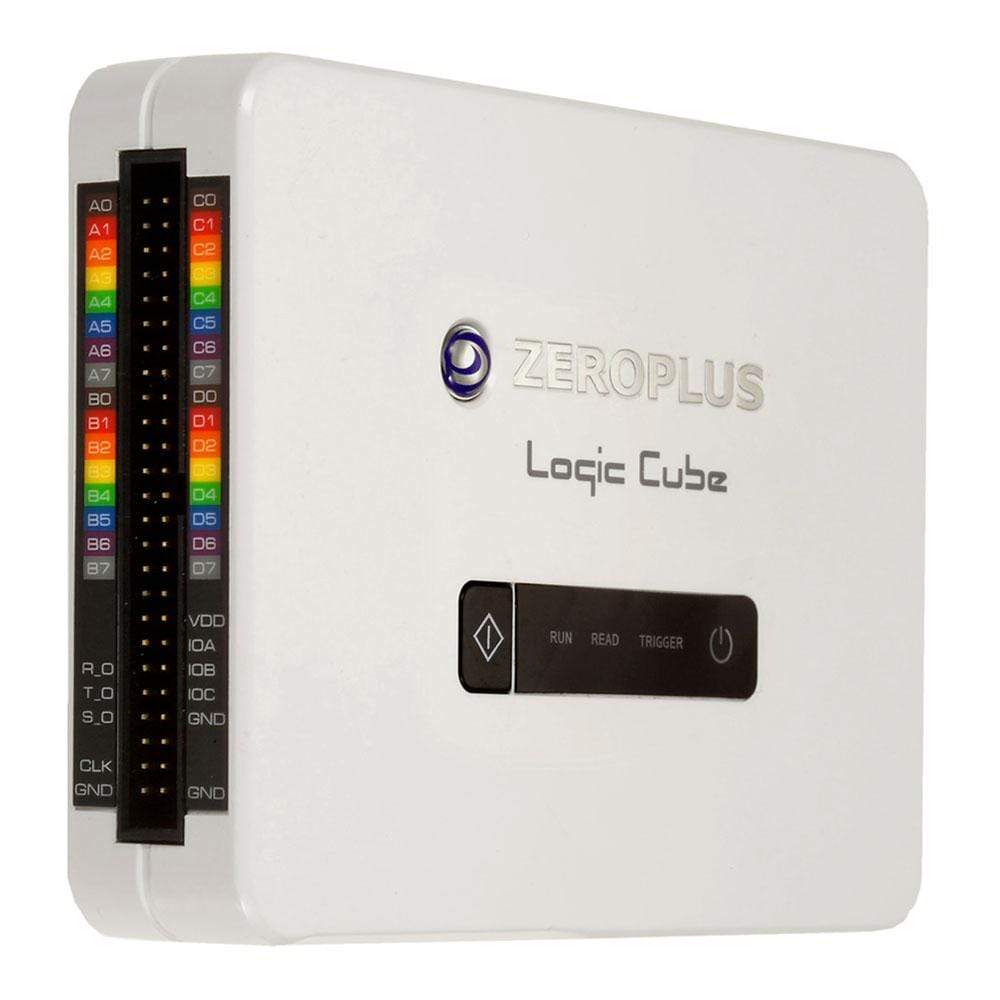

Extremely compact and lightweight, the ZeroPlus-LAP-C Logic Analyser, also known as LogicCube connects to any desktop or Laptop PC by USB, making it very portable and ideal for use in the field.
Logic Analyser Features
Start Button
The LAP-C has a START Button. When pressed, the capture of data starts. Data is then be captured quickly without having to use the software.
Data Compression
It is often challenging to capture a specific event, especially if it occurs infrequently. It is often needed to capture data for long periods until the event occurs. The capture buffer can fill up before the event occurs.
ZeroPlus employs its patented compression algorithm to avoid wasting capture buffer space.
Signal Filtering
Not all signals need to be captured. You can focus on which data needs to be captured by setting up a signal filter. This patented feature allows data to be captured only when a set of conditions are met.
The following filter conditions can be defined:
- The logic level of any input
- Specified serial data appears on a bus. A bus is a group of inputs.
Triggers
Captured data can be stored in a number of pages. This patented feature allows data to be stored on each page based on a trigger condition.
Trigger Count
It is possible to start capturing data after a Trigger Condition is met N times. This facility will help you focus on data capture more precisely.
Protocol Analysis Features
Over 120 different protocols can be analysed by the LAP-C logic analyser:
- 1-Wire (Adv) Interface
- 1-Wire Interface
- 3-Wire Interface
- 7-segment LED Interface
- AC97 Interface
- AES/EBU Interface
- AMD SVI2 Interface
- Arithmetic Logic
- BDM Interface
- BMS Interface
- CAN 2.0B Bus
- CCIR656 Interface
- CMOS Image Sensor Interface
- Compact Flash 4.1 Interface
- DALI Interface
- Differential Manchester Interface
- Digital Logic
- DMX512 Interface
- DP Aux Channel 1.1 Interface
- DSA Interface
- DSI Bus
- FlexRay 2.1A Bus
- FWH Interface
- GPIB/IEEE488 Interface
- HART Interface
- HDMI CEC Interface
- HDQ Interface
- HPI Interface
- I2C EEPROM 24L Memory Interface
- I2C EEPROM 24LCS Memory Interface
- I2C Interface
- I2S Interface
- ISO7816 UART Interface
- J-K Flip-flop
- JTAG 2.0 Interface
- KeeLoq Code Hopping Interface
- KNX Interface
- LCD12864 Display Interface
- LCD1602 Display Interface
- LED Pitch Array Interface
- LG4572 Interface
- LIN Bus 2.1
- Line Code
- LPT Interface
- Manchester Encoding
- Maxim DS1302 Interface
- Maxim DS18B20 Interface
- MDDI Interface
- MHL-CBus
- Microwire Bus
- Microwire EEPROM 93C
- MIDI Interface
- MII Interface
- Miller Interface
- MIPI CSI-2 Interface
- MIPI DSI Interface
- ModBus
- Modified Miller Interface
- Modified SPI Interface
- MVB
- NEC PD6122 Interface
- Opentherm 2.2 Interface
- PCM Interface
- PECI Interface
- Philips RC5 Interface
- Philips RC6 Interface
- ProfiBus
- PS/2 Interface
- PSB Interface
- PT2262/PT2272 Interface
- Quad SPI Interface
- RGB Interface
- S/PDIF Interface
- S2Cwire/AS2Cwire Interface
- Samsung K9 NAND Flash Interface
- SCCB Interface
- SDQ Interface
- Serial GPIO IBPI Interface
- SHT11 Interface
- Signia 6210 Interface
- Single Wire Debug (SWD) Interface
- SITI DM114/DM115 Interface
- SLE4442 Interface
- SMBus 2.0
- SPI (Atmel 25F EEPROM)
- SPI Interface
- SPI Plus Interface
- SSI Interface
- ST7669 Interface
- STBus
- SVID Interface
- UART (RS-232C/RS-422/RS-485) Interface
- UNI/O Interface
- Up/Down Counter
- USB v1.1 Interface
- WIEGAND Interface
- WTB Bus
- WWV-WWVH-WWVB Interface
- YK-5 Interface
Note: Some protocols require a fast internal clock speed. The maximum Internal Clock speed of the LAP-C(16032) is 100MHz. The LAP-C(32000) has a maximum internal clock speed of 200MHz, allowing it to decode faster bus signals.
Test Grabbers
LAP-C(16032)
Ten Test Grabbers are included with the logic Analyser. The standard LAP(16032) includes just 2 Grabbers but we have decided to include twenty (worth £45).
LAP-C(32000)
Thirty Six Test Grabbers are included with the logic Analyser.
Carrying Case
Please note that the ZeroPlus LAP-C(16032) does not include a carrying case as standard to keep the cost as low as possible. If you need a carry case, we offer the TuffTest version.
TuffTest

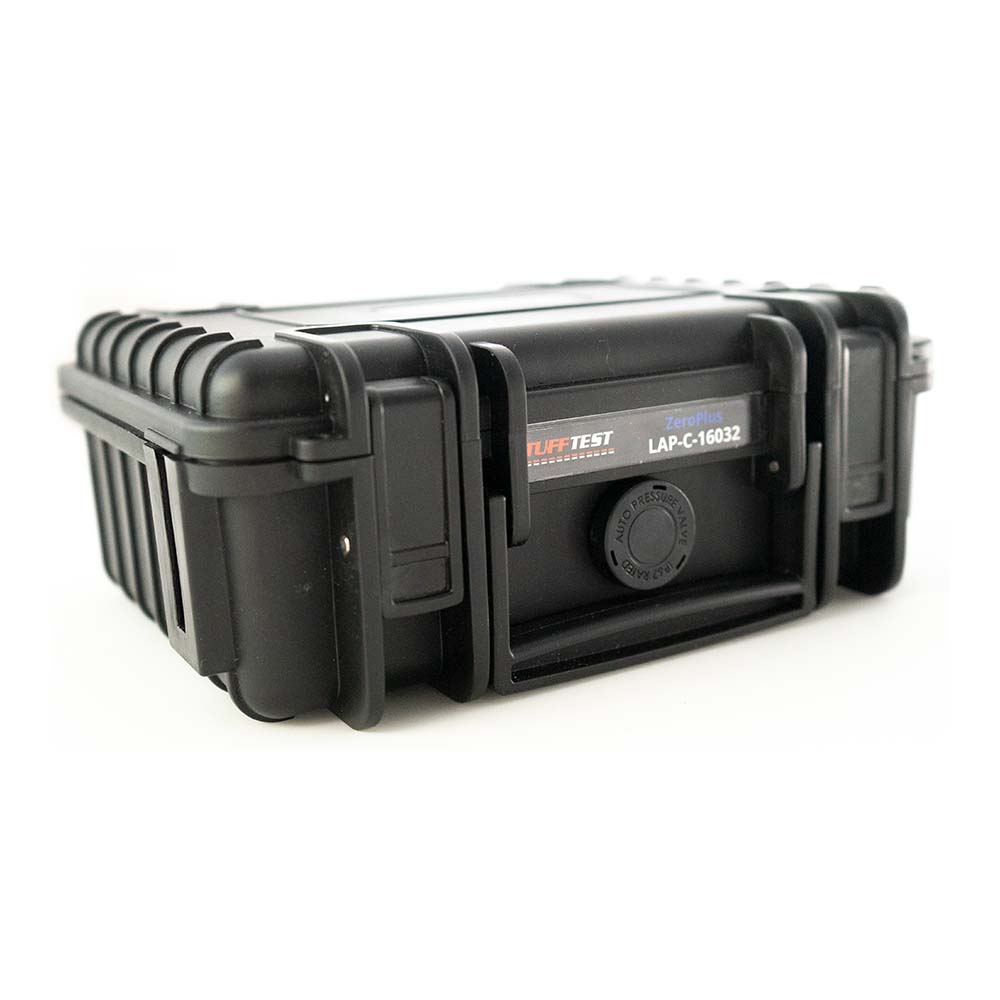

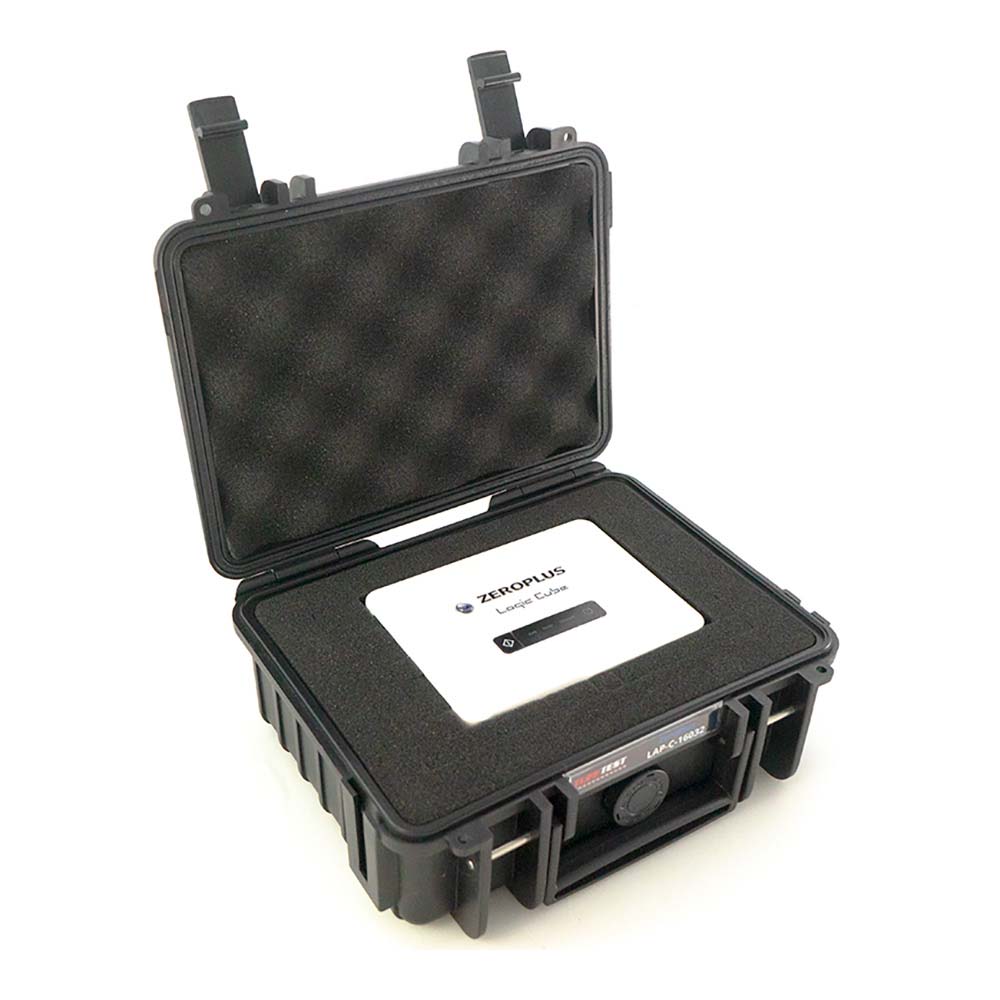

A professional version of the LogicCube is also available. The LogicCube is a sensitive piece of kit and needs to be looked after carefully. The TuffTest version of the LogicCube is fitted into a B&W rugged, waterproof case and protected by a foam insert to keep it safe from damage whilst being transported or stored.
The Tufftest version also includes twenty grabber hooks (worth £67).
