Total Phase USB Power Delivery Analyser
- Vendor
- TP350110
- Total Phase, Inc
- Regular price
-
£618.00 inc. VAT£515.00 exc. VAT
- Sale price
- £515.00V
- Regular price
-
£550.00 - Unit price
- /per
Sale
Sold out
Shipping calculated at checkout.
Adding product to your cart

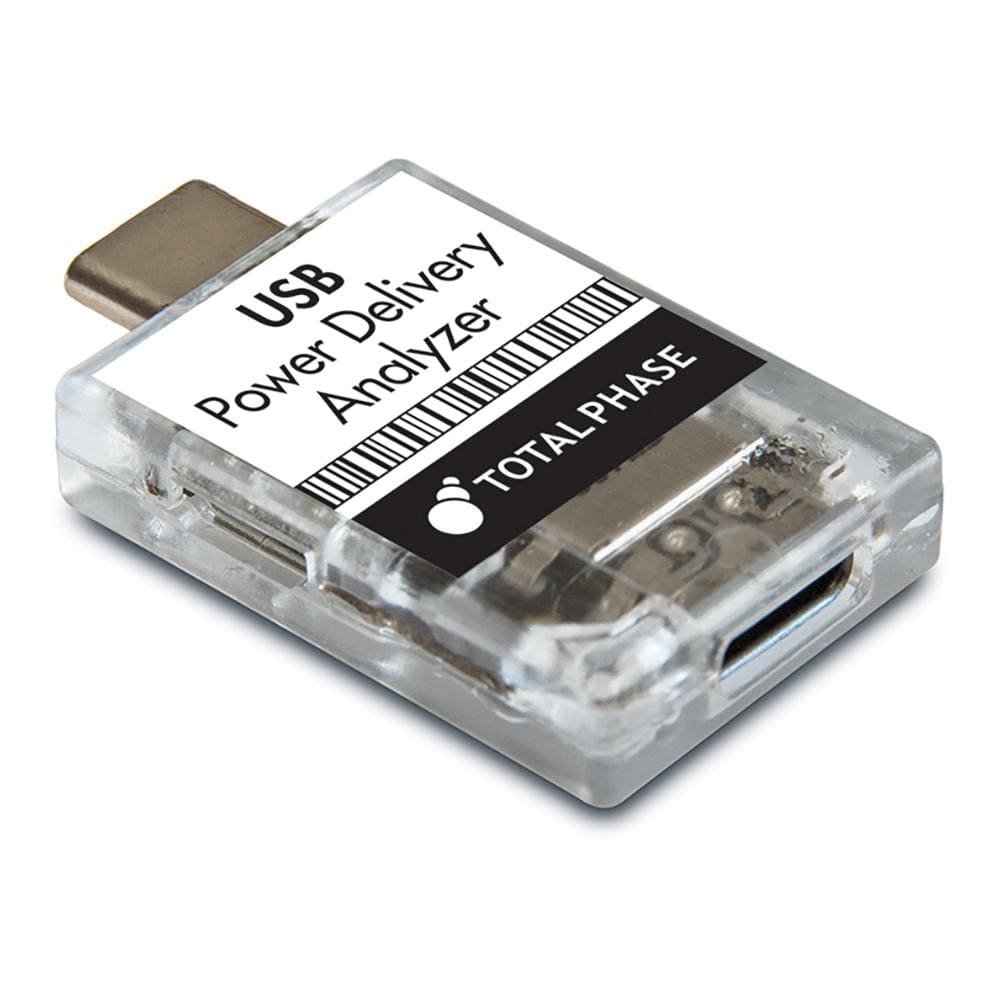

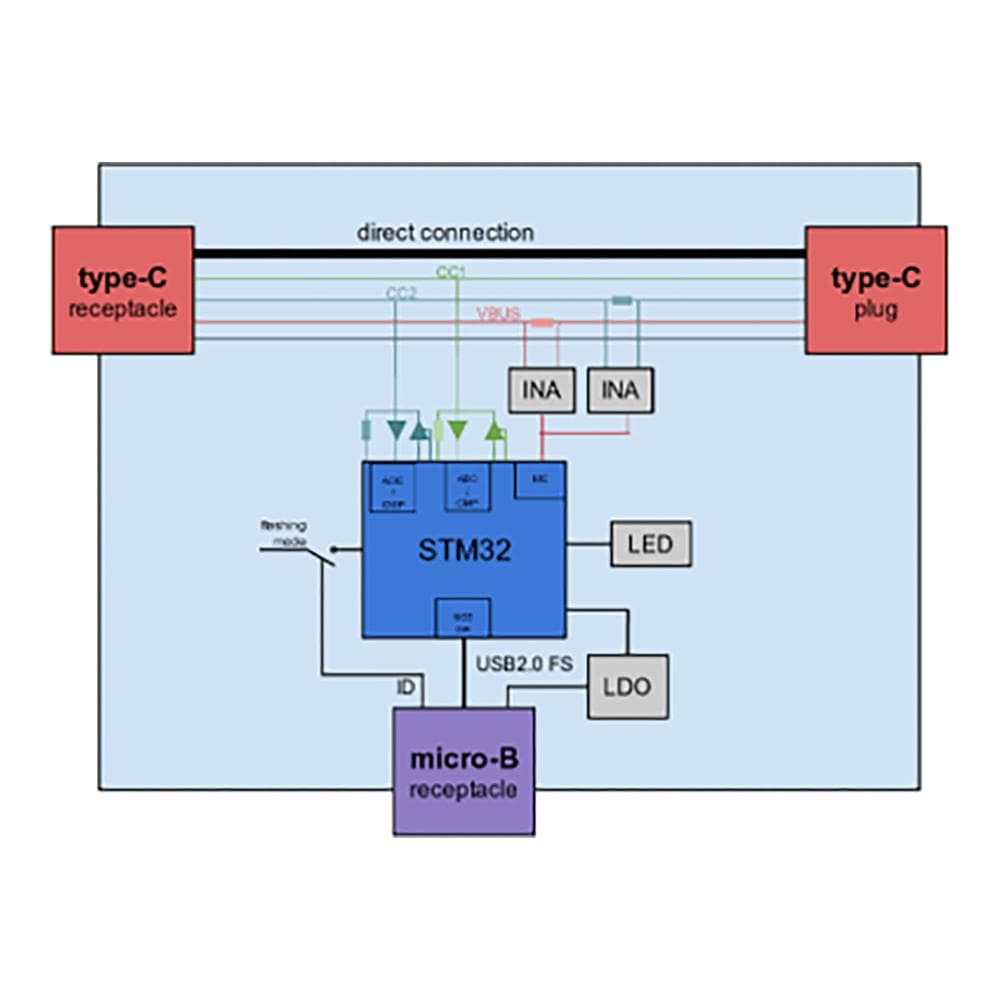

The Total Phase USB Power Delivery Analyzer is a small adapter for recording the Power Delivery protocol traffic on the USB Type-C connector. It connects in-line between two Type-C products, and passively captures all communication between them, on both the CC1 and CC2 signals. While connected, it does not disturb any USB 3.1 Gen 2 or USB 2.0 signals, enabling the capture of PD negotiation for power, USB data roles, and DisplayPort, or other Type-C Alternate Modes.

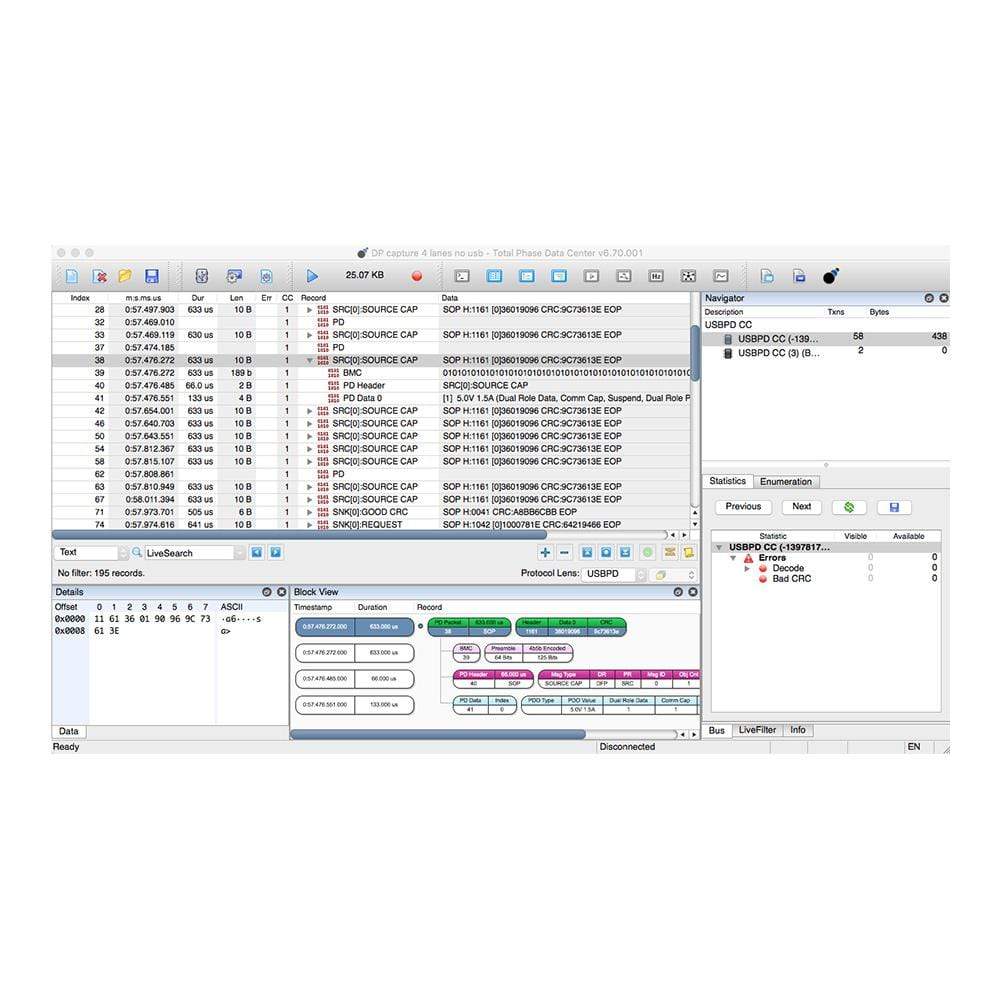

Data Center Software brings simultaneous capture and true real-time display and decoding of captured data. It runs on Windows, Mac OS X, and Linux.
Download Files
Download Files
FAQs
Ask a Question
Total Phase USB Power Delivery Analyser
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
Product Description
Product Description
Features
- Sniffing Power Delivery (PD) traffic on both Control Channel Lines (CC1/CC2)
- Message decoding, including power negotiation, alternate mode negotiation, VDM data display, etc.
- Capture and display PD 3.0 Extended Messages
- Decode DisplayPort VDMs
- Transparent interposing on a USB Type-C connection
USB Pass Through
- SuperSpeedPlus Generation 2, 10 Gbps
- SuperSpeed Generation 1, 5 Gbps
- Hi-Speed, 480 Mbps
- Full Speed, 12 Mbps
- Low Speed, 1.5 Mbps
VBus Support (maximum)
- 20 volts, 5 amps
Target Ports
- 1 x USB Type-C receptacle
- 1 x USB Type-C plug
Analysis Port (connects to PC)
- USB 2.0 Micro B receptacle
- Analyzer is bus-powered
Quality
- RoHS
- Six month warranty
- Manufacturing: ISO9001, ISO 13485, AS9100C, ITAR
Related Products
Related Products
What's Included?
What's Included
Total Phase USB Power Delivery Analyser
- USB Power Delivery Analyzer
- (1) 6 foot USB A to USB Micro-B cable
- (1) 6 inch Micro USB OTG Adaptor (Micro B male right-angle to Type A female)
- (1) 3 foot USB 2.0 Cable (Type A male to Type A male)
- Software (downloadable from Total Phase)
