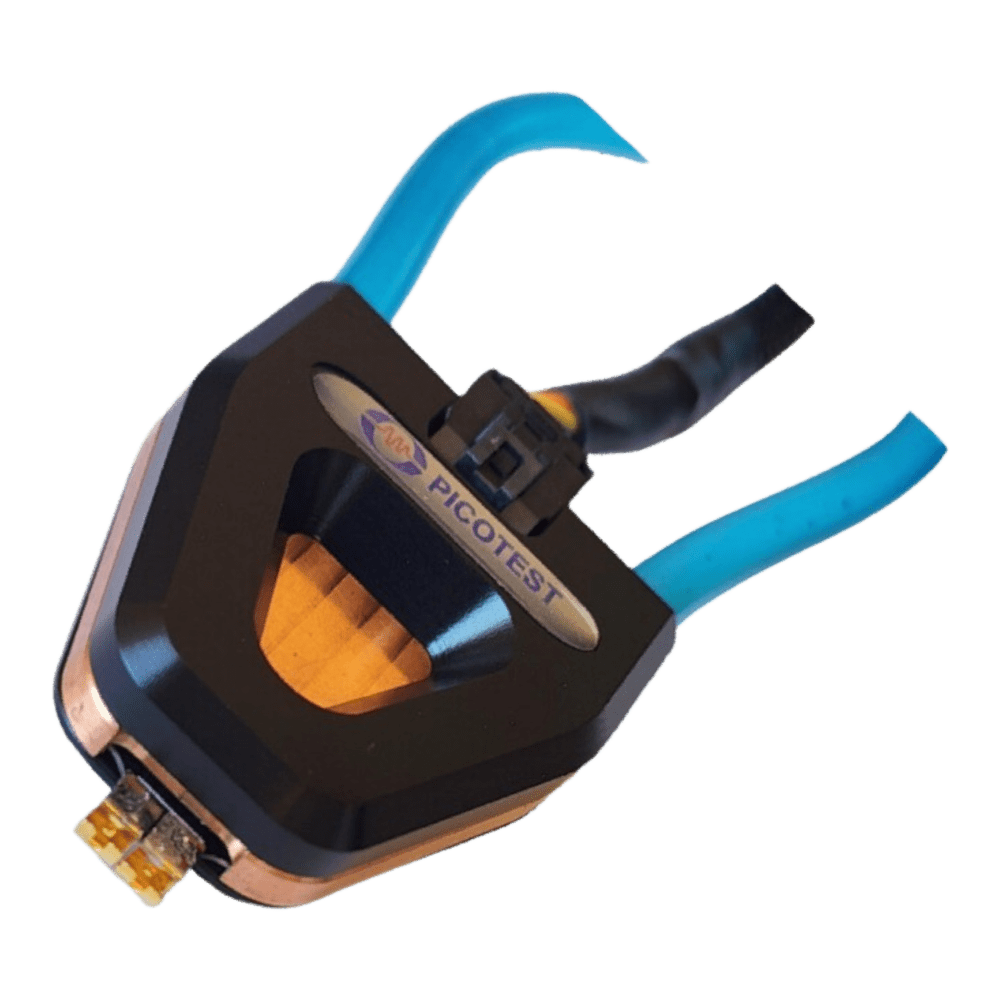

Picotest P2124A - High-Speed Line Modulator Probe for PSRR, PSMR, PSNR Analysis
Picotest P2124A - High-Speed Line Modulator Probe for PSRR, PSMR, PSNR Analysis
Couldn't load pickup availability
Key Features
- GaN Technology: Utilises GaN for high-speed power integrity analysis.
- Water-Cooled: Ensures minimal thermal drift for accurate measurements.
- High-Speed Response: Captures sub-nanosecond transients for precise analysis.
- Wide Frequency Range: Operates up to 100 MHz for comprehensive power supply noise rejection.
- User-Friendly Manual: Detailed instructions for setup, calibration, and maintenance.
- Industry Compatibility: Integrates seamlessly with standard oscilloscopes.
- Durability: Designed for both bench and field applications, extending probe life.
Overview
Introducing the Picotest P2124A High-Speed Line Modulator Probe – the ultimate solution for precision power integrity analysis. This advanced probe is engineered for professional design engineers, enabling unparalleled insight into Power Supply Ripple Rejection (PSRR), Power Supply Modulation Response (PSMR), and Power Supply Noise Rejection (PSNR) measurements.
Crafted with GaN technology and equipped with a water-cooled system, the P2124A ensures minimal thermal drift and superior performance under high-power conditions. Its high-speed capabilities allow for accurate capture of sub-nanosecond transient responses, making it an indispensable tool for evaluating power supply stability and noise rejection at frequencies up to 100 MHz.
The probe includes a user-friendly manual, providing detailed instructions for setup, calibration, and maintenance, ensuring optimal operation and longevity. Designed for integration with industry-standard oscilloscopes, the P2124A enhances your testing arsenal, offering a seamless experience from bench to field applications.
