Mikroelektronika d.o.o.

SKU: MIKROE-5760

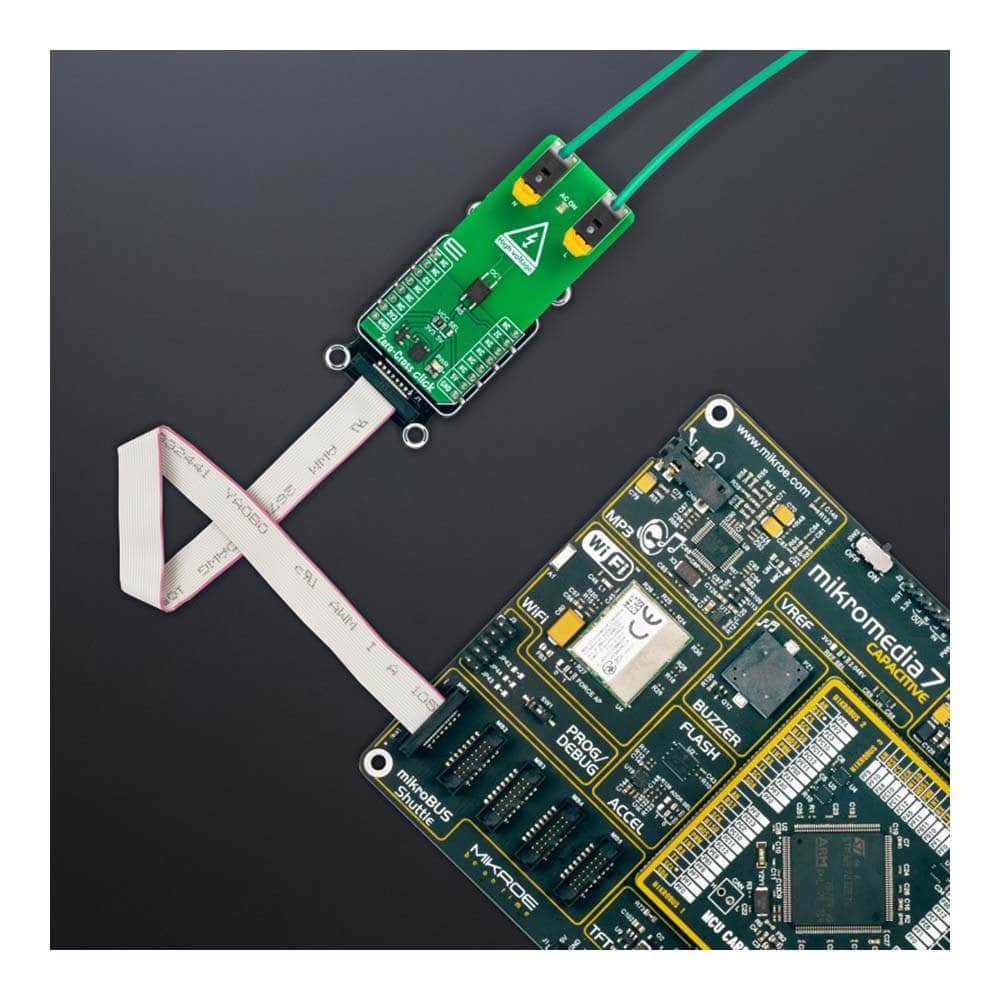

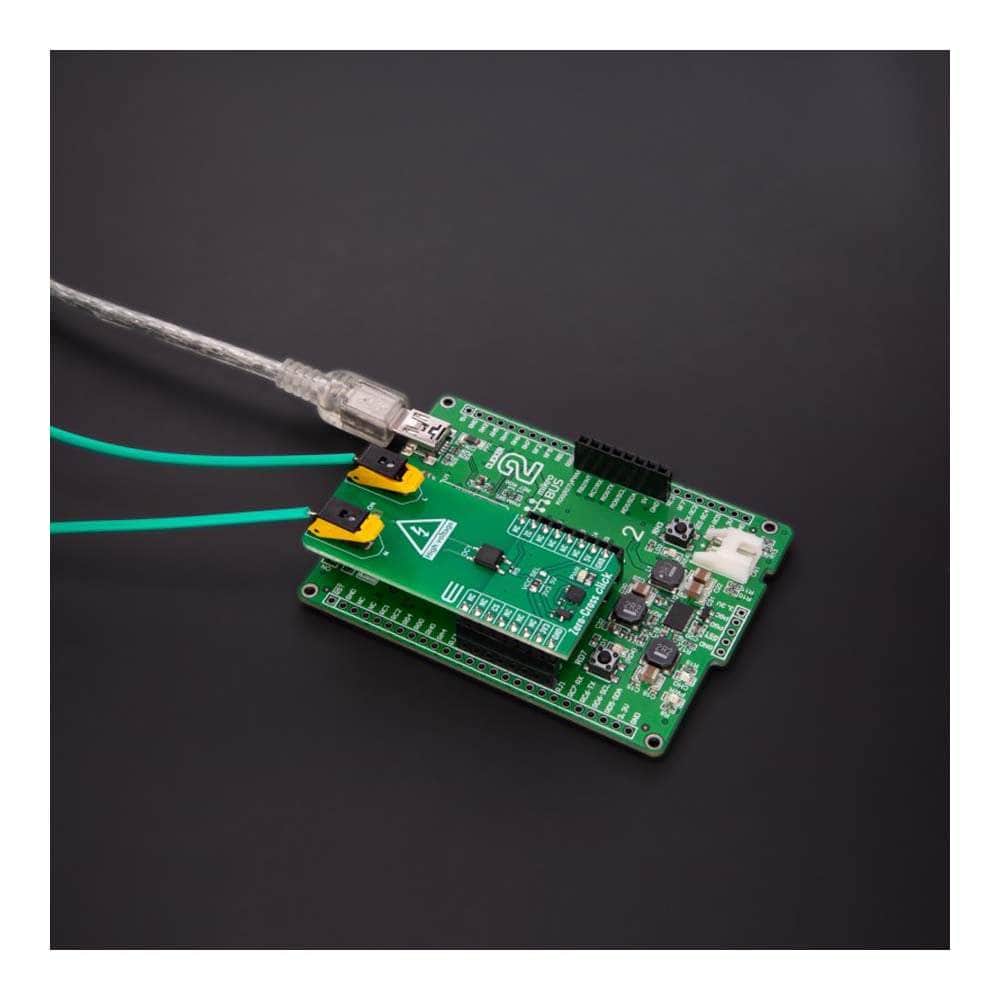

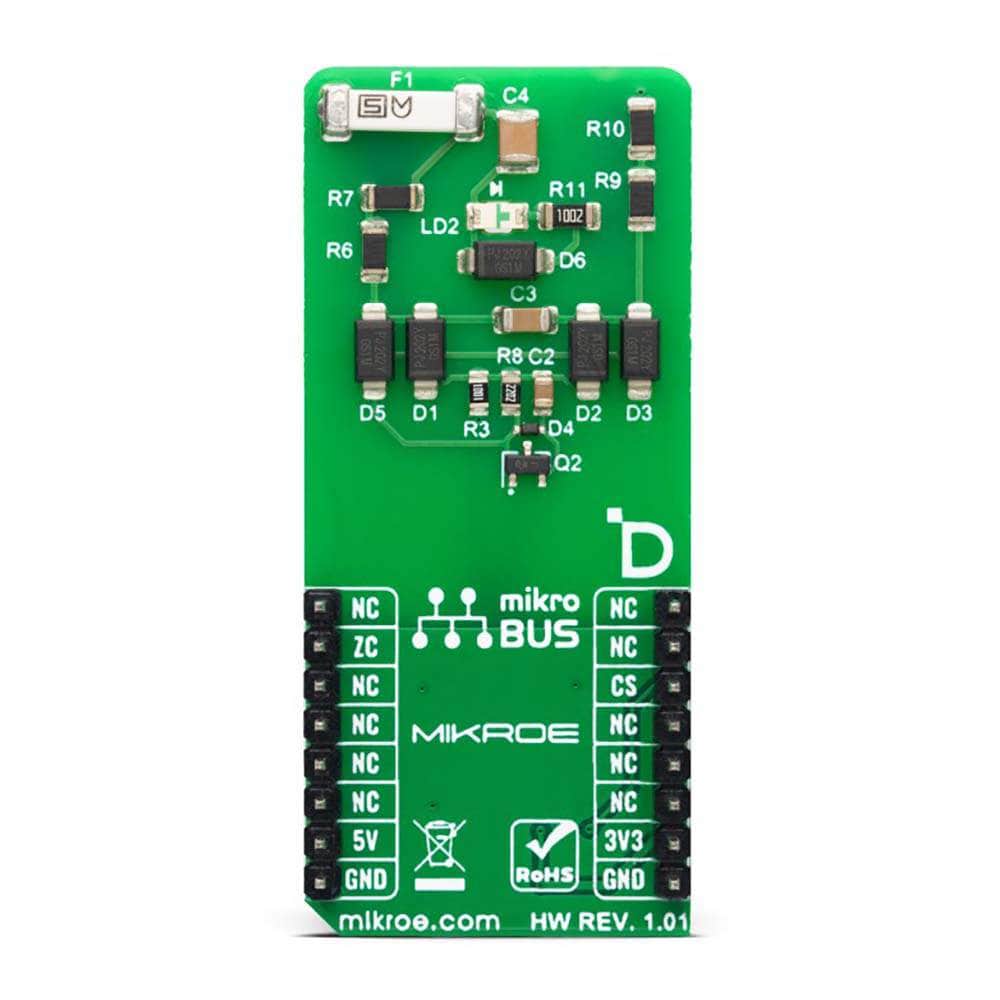

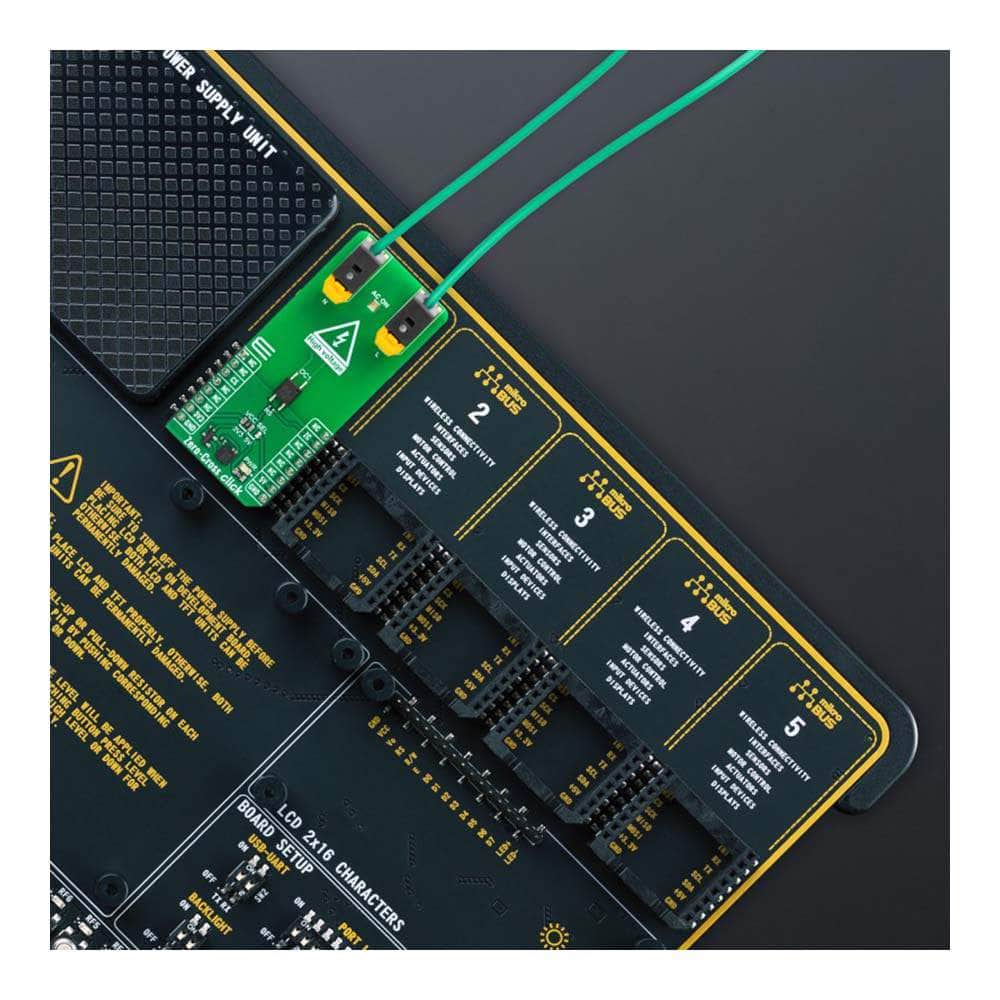

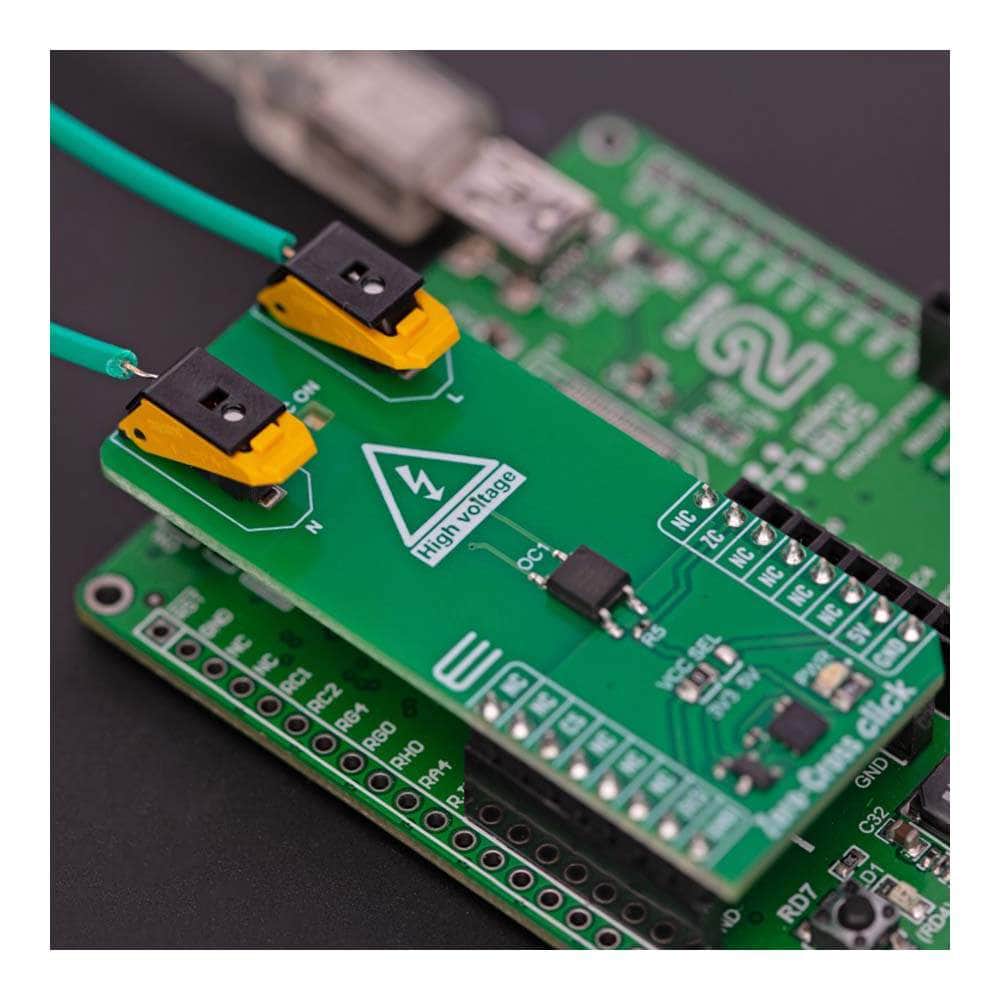

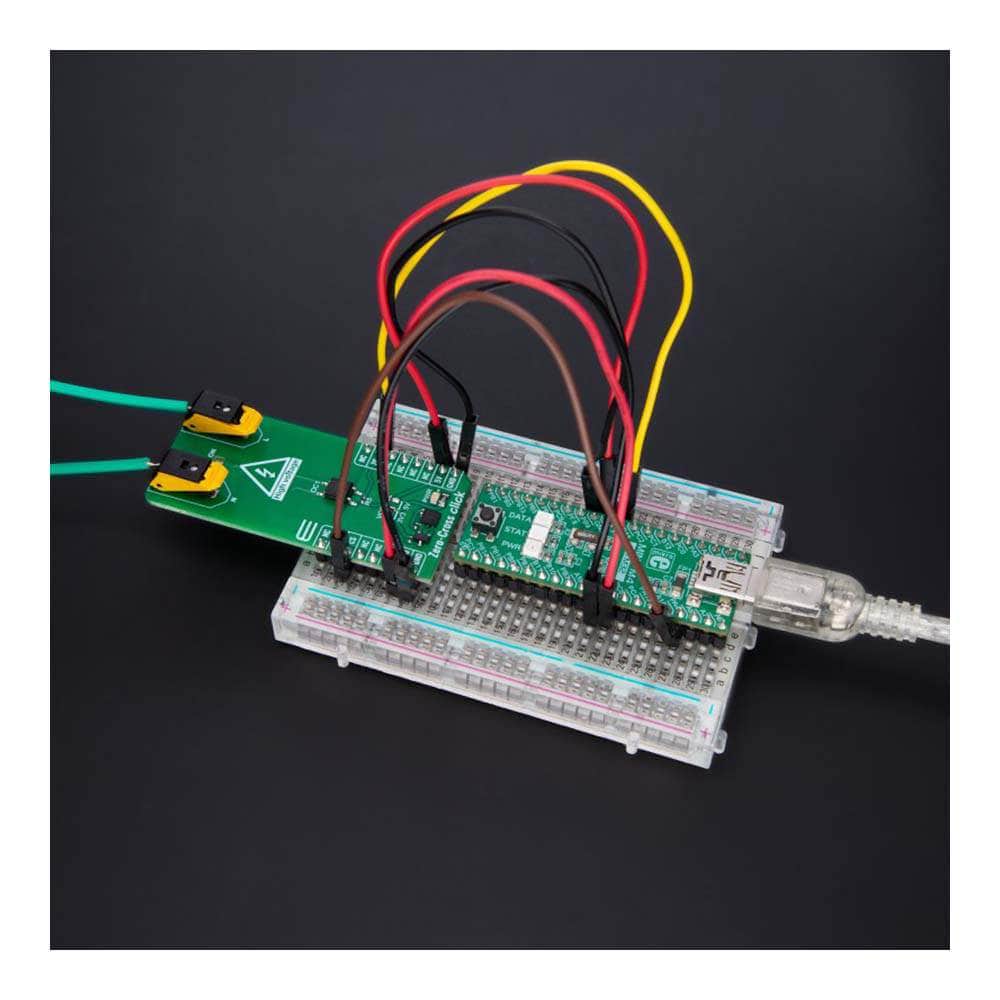

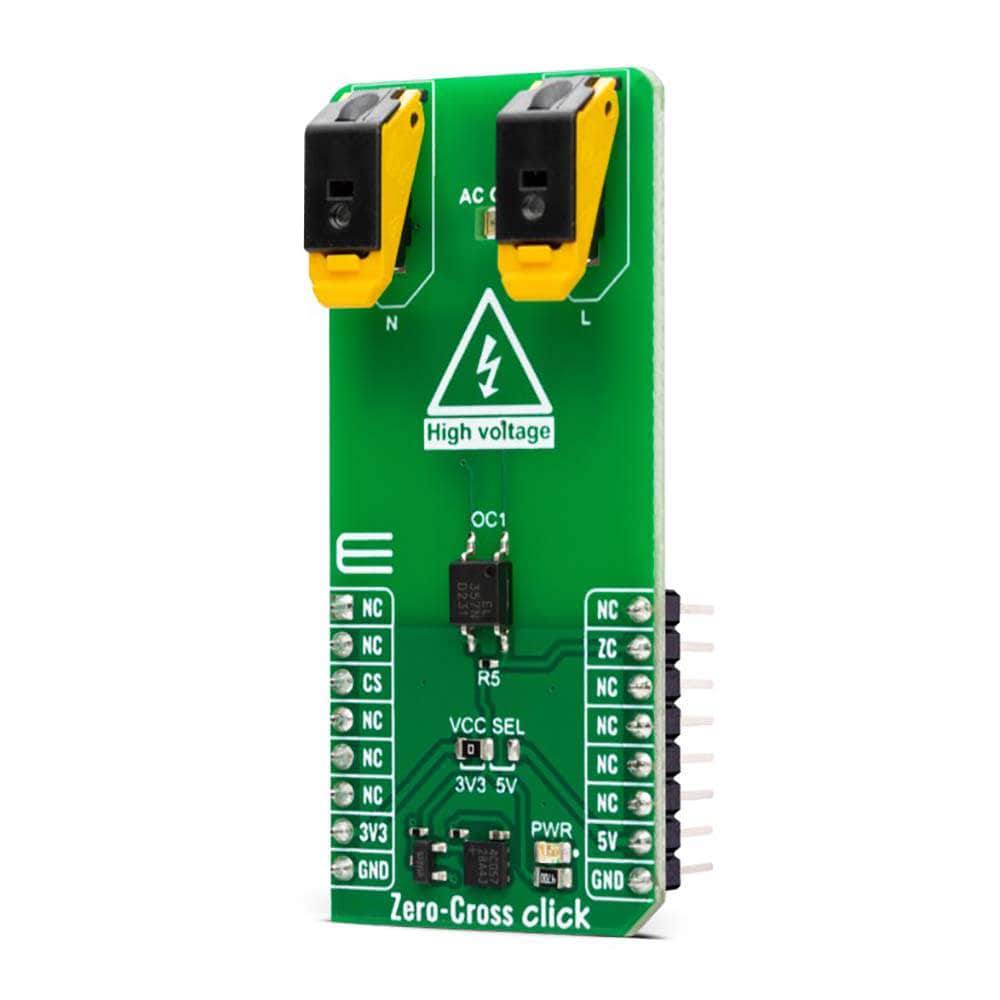

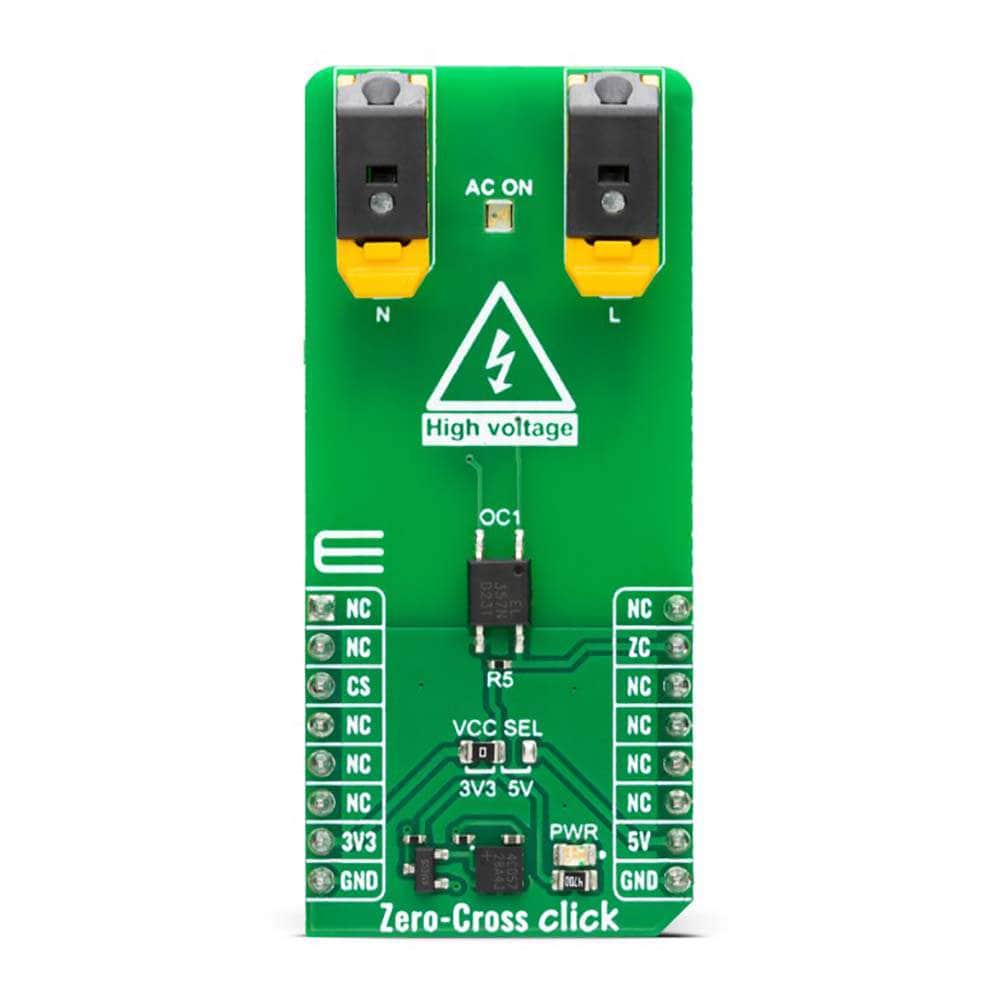

Zero-Cross Click Board

Zero-Cross Click Board

Isolated Zero-Crossing Detector
Regular price
£21.60 inc VAT
£18.00 exc VAT
Regular price Sale price
£21.60 inc VAT
£18.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
Order NOW to ship within 10 working days

Key Features

  • Square wave generator circuit, alternate current presence, zero crossing detection from positive to negative, and from negative to positive, block terminals for connecting high voltages, and more
  • Can be used for the development of frequency counters, phase meters, time-maker generators, and more

Introducing the Zero-Cross Click Board™ - Detect Sinusoidal Waveform Changes with Ease!

Discover the power of the Zero-Cross Click Board™ - a compact and efficient add-on board designed to detect a sinusoidal waveform's transition from positive to negative or negative to positive levels. This ingenious board has cutting-edge circuitry that provides Zero Crossing Detection (ZCD), ensuring smooth and precise operations for all your projects.

What is Zero Crossing Detection?

Whenever the sine wave crosses the ground potential, the Zero-Cross Click Board™ instantly shifts its output from HIGH logic to LOW or vice-versa. The output is a square wave, making this board a powerful square wave generator circuit. Harness the true potential of this versatile Click board™ in a wide range of applications, including frequency counters, phase meters, time marker generators, and so much more!

Features and Benefits

Compact and easy-to-use add-on board. Detects changes in sinusoidal waveforms seamlessly. Provides Zero Crossing Detection (ZCD) for precise results. Square wave output for enhanced versatility. Perfect for frequency counters, phase meters, time marker generators, and more.

mikroSDK-Compliant Library

Unlock the full potential of the Zero-Cross Click Board™ with the support of a mikroSDK-compliant library. Simplify your software development process and integrate this Click board™ effortlessly into your projects.

Tested and Ready for Action

Rest assured that the Zero-Cross Click Board™ is a fully tested and reliable product, ready to be deployed on any system equipped with the mikroBUS™ socket. Experience seamless performance and achieve outstanding results in your applications.

Upgrade your projects with the Zero-Cross Click Board™ and take your designs to new heights!
View full details
