SKU: MIKROE-5392SE051 Plug&Trust Click Board
SE051 Plug&Trust Click Board
Couldn't load pickup availability
Key Features
- Updatable extension of the EdgeLock™ SE050, Common Criteria EAL6+ certification, pre-installed IoT applet, SEMS Lite future-proof security, maximum flexibility, optional I2C Master to support new IoT security use cases, ISO14443 interface, Deep Power-Down Mode, and more
- Based on the SE051C2 - ready-to-use IoT secure element solution from NXP Semiconductor
- Can be used in IoT security use cases such as secure connection to public/private clouds, device-to-device authentication or protection of sensor data, attestation and proof of device origin, and more
- mikroBUS: I2C Interface

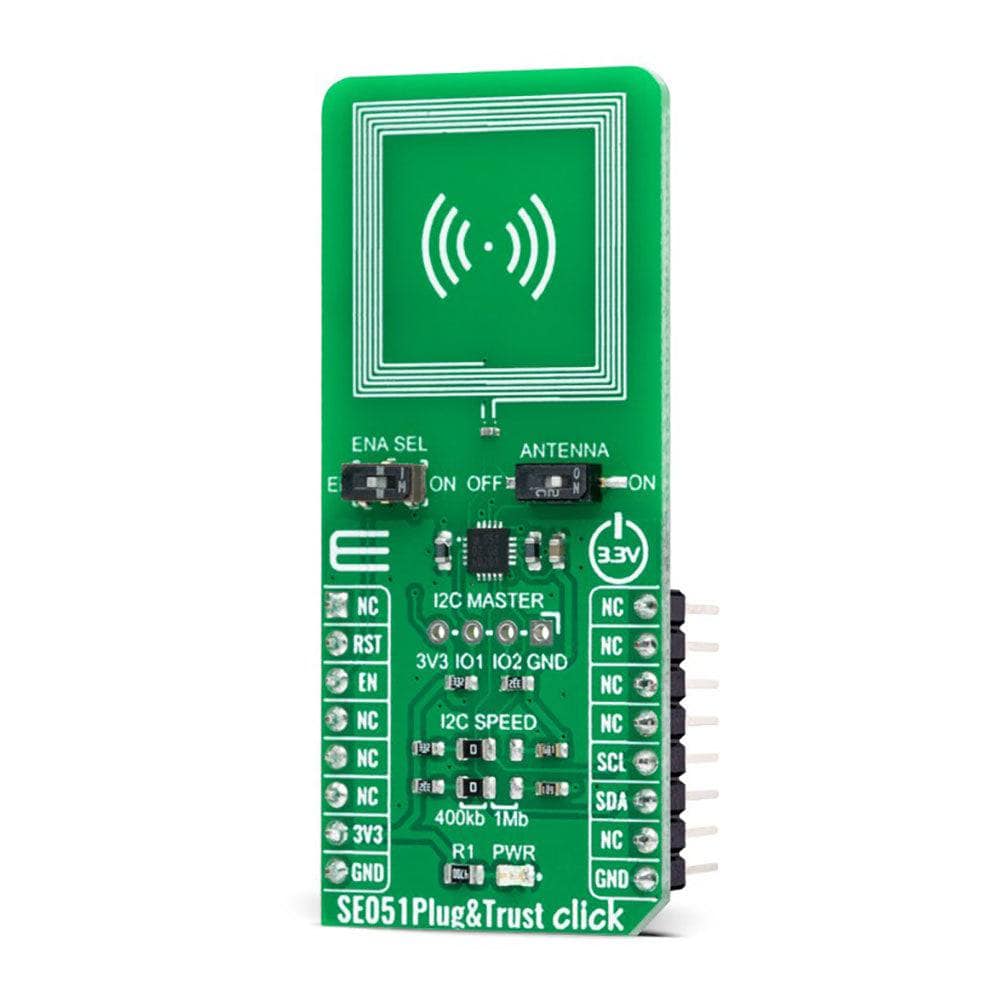

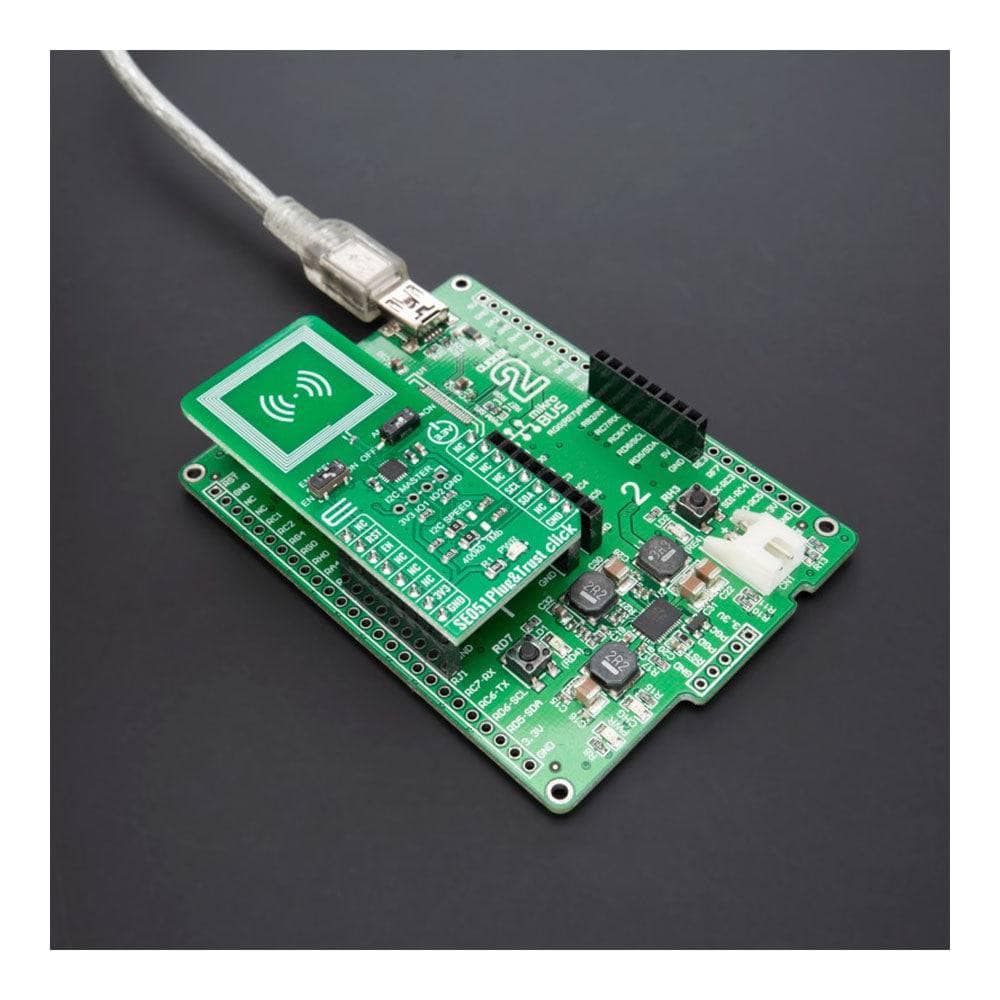

The SE051 Plug&Trust Click Board™ is a compact add-on board representing a ready-to-use IoT security solution. This board features the SE051C2, an updatable extension of the EdgeLock™ SE050 from NXP Semiconductor, which delivers proven security certified to CC EAL 6+, with AVA_VAN.5up to the OS level. Designed for the latest IoT security requirements, it allows securely storing and provisioning credentials performing cryptographic operations, giving edge-to-cloud security capability right out of the box. It also provides upgrade functionality of the IoT applet while preserving on-device credentials, alongside reconfiguration possibility. This Click board™ is versatile in IoT security use cases such as secure connection to public/private clouds, device-to-device authentication or protection of sensor data, attestation and proof of device origin, and many more.
The SE051 Plug&Trust Click Board™ is supported by a mikroSDK-compliant library, which includes functions that simplify software development. This Click board™ comes as a thoroughly tested product, ready to be used on a system equipped with the mikroBUS™ socket.

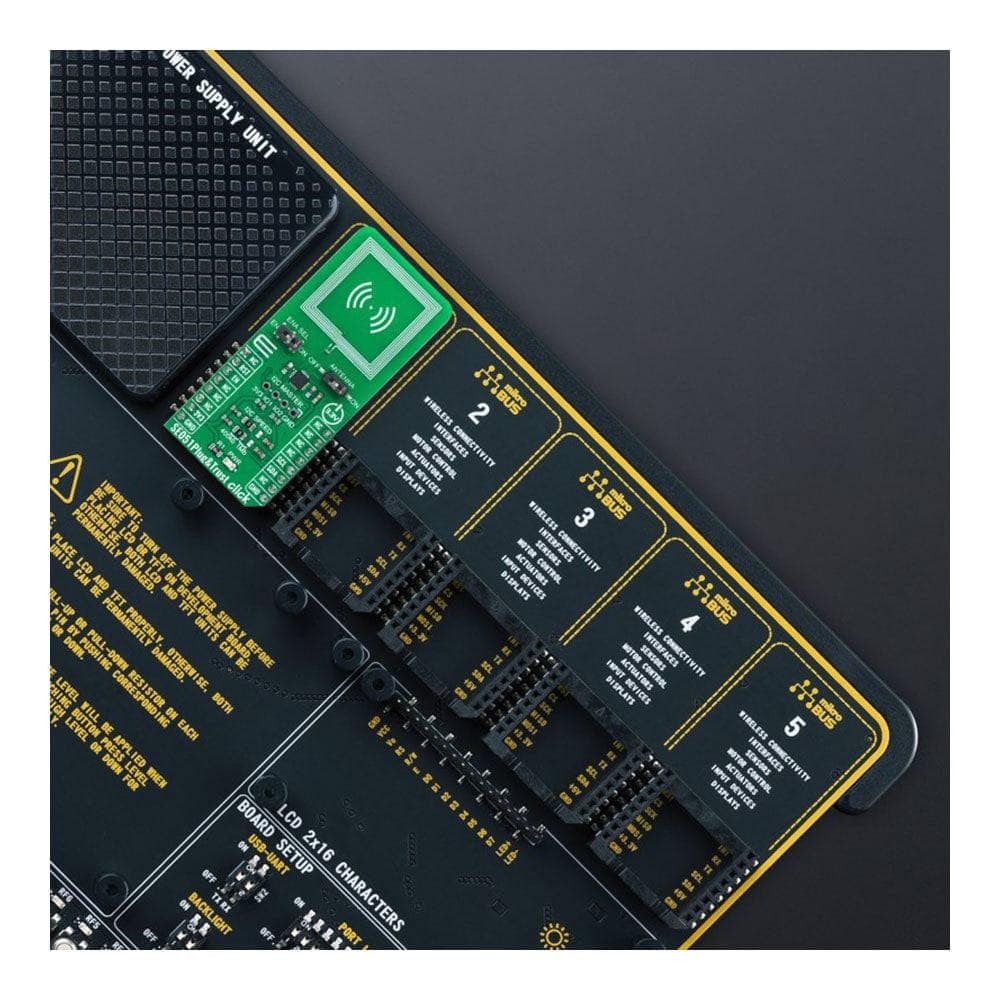

How Does The SE051 Plug&Trust Click Board™ Work?
The SE051 Plug&Trust Click Board™ is based on the SE051C2, a ready-to-use IoT secure element solution from NXP Semiconductor, providing a root of trust at the IC level and giving an IoT system state-of-the-art, edge-to-cloud security capability right out of the box. It has an independent Common Criteria EAL 6+ security certification up to OS level. It supports both RSA & ECC asymmetric cryptographic algorithms with high key length and future-proof ECC curves. Designed for the latest IoT security requirements, it allows for securely storing, provisioning credentials, and performing cryptographic operations for security-critical communication and control functions.
The SE051C2 represents a turnkey solution with a Java Card operating system and an updatable pre-installed applet optimized for IoT security use cases. Alongside the updatable IoT applet, it also possesses SEMS Lite and a PERSO applet that provides upgradability of the IoT applet while preserving on-device credentials and the possibility to reconfigure the SE051 device. The SEMS Lite represents a capability based on a subset of GlobalPlatform's Secure Element Management Service (SEMS), optimized for IoT use cases.

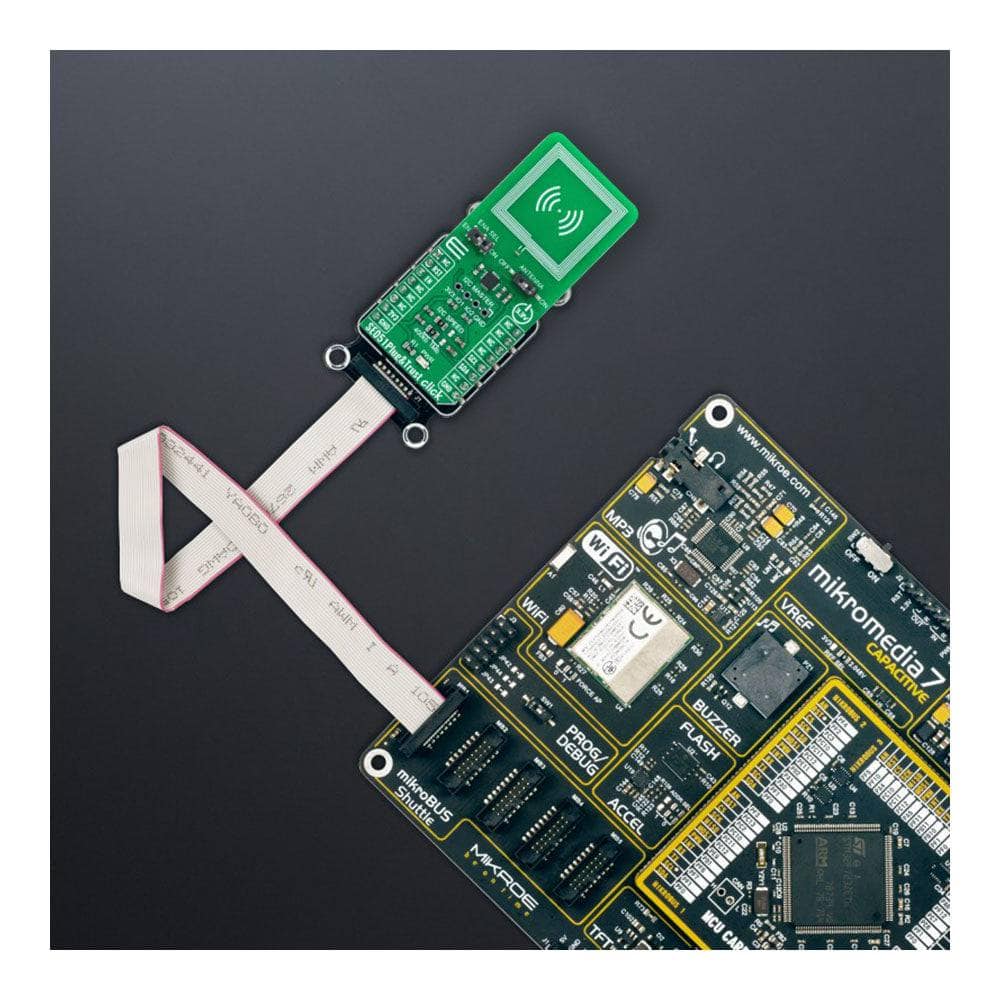

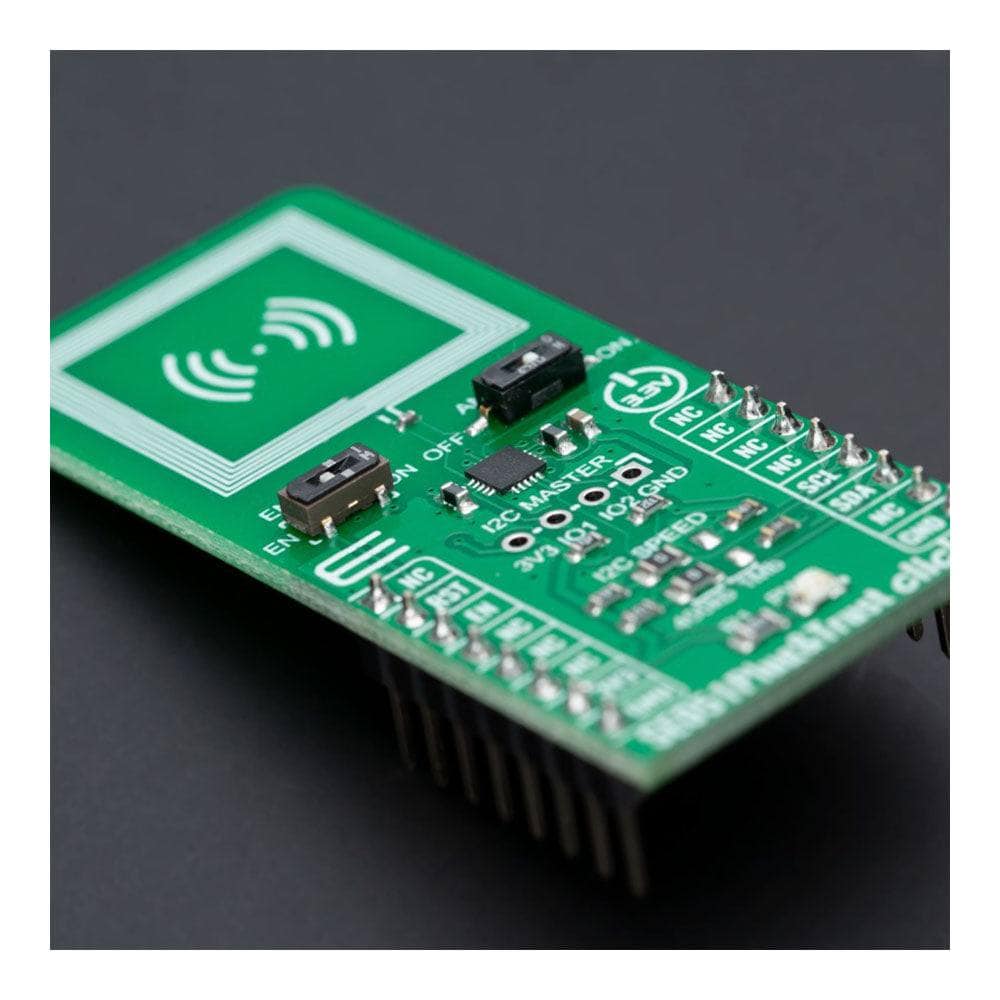

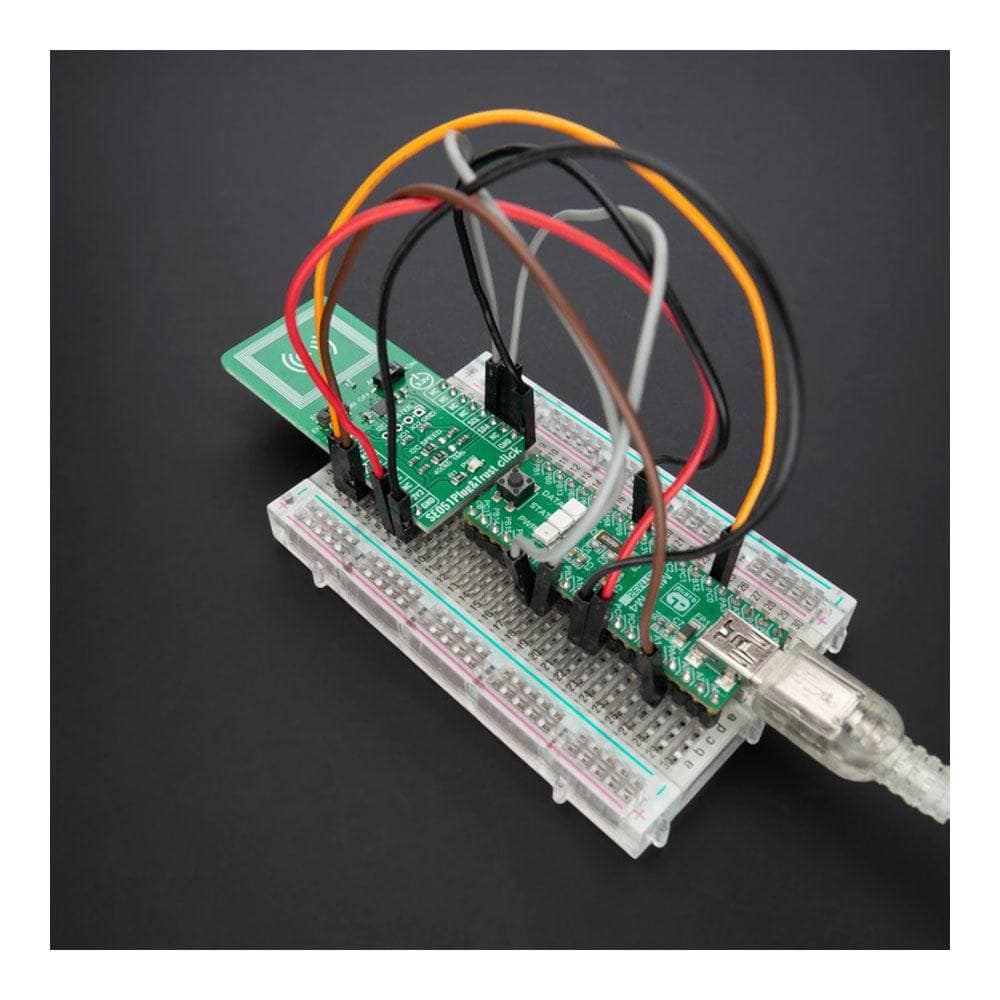

The SE051 Plug&Trust Click Board™ communicates with MCU using the standard I2C 2-Wire interface. Besides the mandatory connection to the host controller, this Click board™ can optionally be connected to a sensor node or similar element through separate I2C interface pins on the 1x4 male header labelled I2C Master. In this case, the SE051C2 device is the Controller device, and the sensor node represents the Target. This board also allows the user to select the appropriate I2C communication speed by onboard SMD jumpers labelled as I2C SPEED to a proper position marked as 400Kb and 1Mb. Note that all the jumpers must be lined to the same side, or else the Click board™ may become unresponsive.
Besides, the SE051C2 provides a special power-saving mode offering maximum power saving. The way of activation of this mode is realized with the onboard switch marked as ENA SEL. In this way, Power-Saving Mode can be activated via the EN pin, routed to the CS pin of the mikroBUS™ socket, primarily by placing the switch to the EN position and then pulling the EN pin to a logic zero level. By placing the switch in the second position marked as ON, the SE051C2 is in normal operation mode. The RST pin has no functionality in I2C Mode. It can only be used as an external reset source if the ISO7816 interface is enabled (not in generic SE051 configurations).
Also, the SE051 Plug&Trust Click Board™ has an onboard antenna, providing a wireless interface (ISO14443) to an external device like a smartphone, connected via a switch labelled as ANTENNA with SE051C2 allowing the activation of the antenna itself by setting it to the appropriate ON or OFF position.
The SE051 Plug&Trust Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Encryption,IoT security |
| Applications | Can be used in IoT security use cases such as secure connection to public/private clouds, device-to-device authentication or protection of sensor data, attestation and proof of device origin, and more |
| On-board modules | SE051C2 - ready-to-use IoT secure element solution from NXP Semiconductor |
| Key Features | Updatable extension of the EdgeLock™ SE050, Common Criteria EAL6+ certification, pre-installed IoT applet, SEMS Lite future-proof security, maximum flexibility, optional I2C Master to support new IoT security use cases, ISO14443 interface, Deep Power-Down Mode, and more |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V |

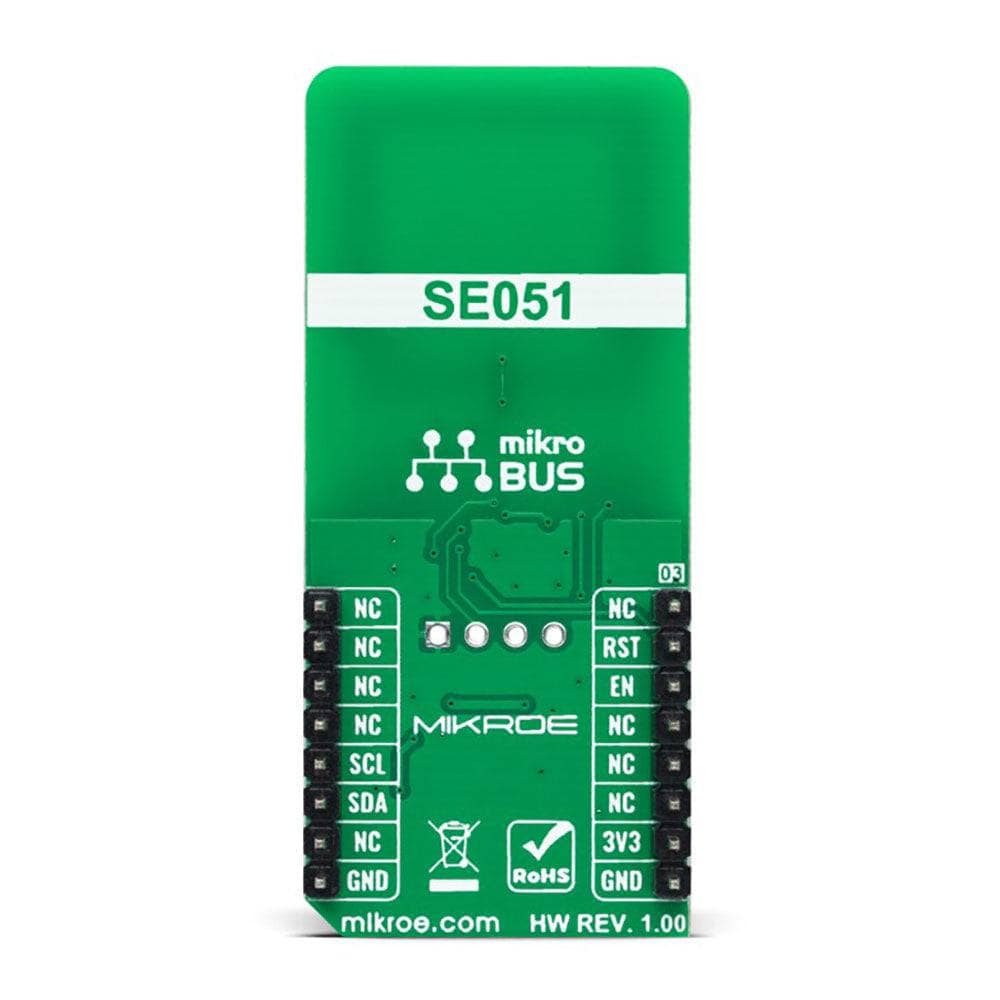

PINOUT DIAGRAM
This table shows how the pinout of the SE051 Plug&Trust Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| ISO7816 Reset | RST | 2 | RST | INT | 15 | NC | |
| Deep Power-Down Mode | EN | 3 | CS | RX | 14 | NC | |
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |

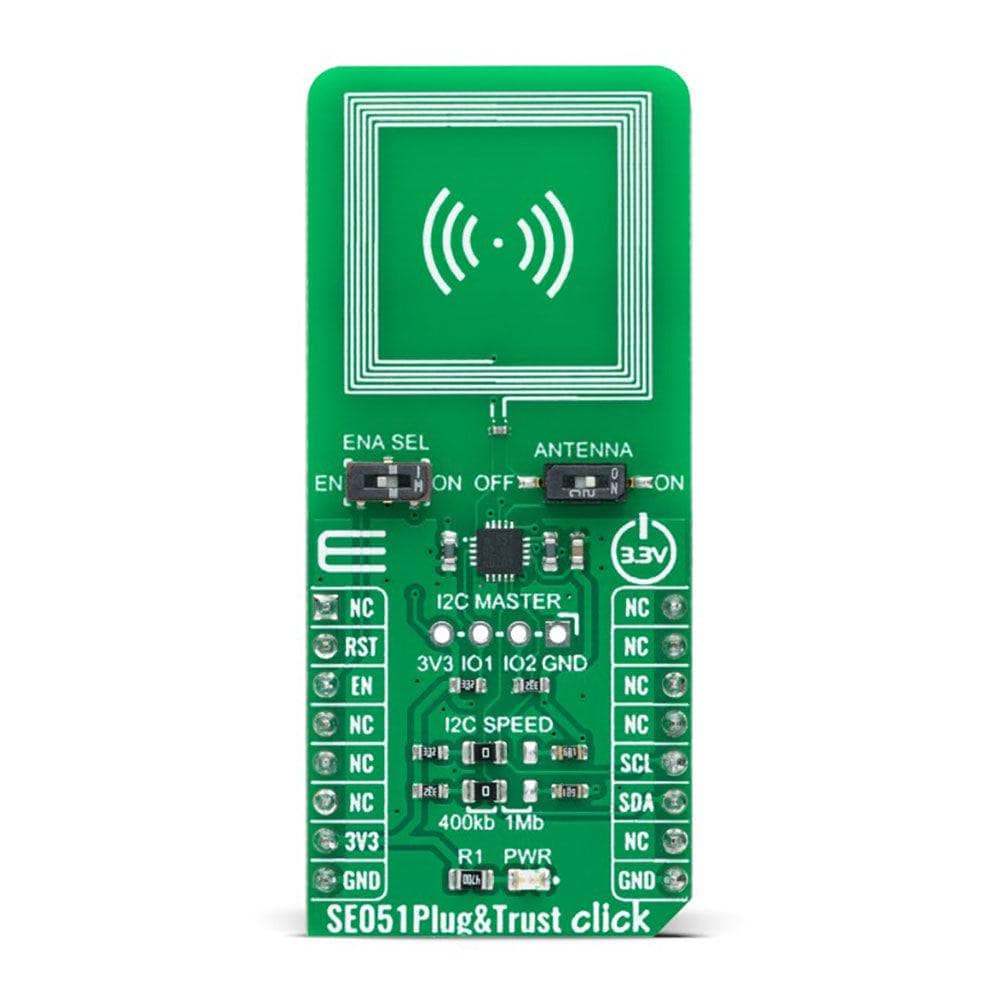

ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| JP1-JP2 | I2C SPEED | Left | I2C Speed Selection 400Kb/1Mb: Left position 400Kb, Right position 1Mb |
| SW1 | ANTENNA | Left | Antenna Activation Switch OFF/ON: Left position OFF, Right position ON |
| SW2 | ENA SEL | Left | Deep Power-Down Mode Activation Switch EN/ON: Left position EN, Right position ON |
| J1 | I2C MASTER | Unpopulated | I2C Master Connection Header |
SE051 PLUG&TRUST CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Receiver inputs voltage range | - | 3.3 | - | V |
| Antenna Operating Frequency | - | 13.56 | - | MHz |
| I2C Interface Speed | 400 | - | 1000 | kHz |
| Operating Temperature Range | -40 | +25 | +105 | °C |
Software Support
We provide a library for the SE051 Plug & Trust Click and a demo application (example), developed using MikroElektronikacompilers. The demo can run on all the main MikroElektronikadevelopment boards.
The package can be downloaded/installed directly from NECTO Studio. The package Manager (recommended), is downloaded from ourLibStock™or found onMikroE Github account.
Library Description
This library contains API for the SE051 Plug&Trust Click Board™ driver.
Key functions
-
se051plugntrust_apdu_writeThis function writes a @b frame_data to device. -
se051plugntrust_apdu_readThis function reads a @b frame_data from device. -
se051plugntrust_apdu_transferThis function writes a @b frame_data and then reads return data from device and stores it in @b frame_data.
Example Description
This application is showcasing basic functionality of SEthe SE051 Plug&Trust Click Board™. It gets identify data from device, selects card manager and applet. Then checks free memory, reads all objects and deletes not reserved ones. After that showcases a few of the functionality: Generating random data, Creating, reading and deleting binary objects, Creating AES symmetrical key and cipher with it; In the end it showcases funcionality in the endless loop.
void application_task ( void )
{
#define DATA_LEN 16
static uint8_t aes_value[ DATA_LEN ] = { 0x40, 0x41, 0x42, 0x43,0x44, 0x45, 0x46, 0x47,
0x48, 0x49, 0x4A, 0x4B,0x4C, 0x4D, 0x4E, 0x4F };
static uint32_t binary_id = 0xBBBBBBBB;
static uint32_t aes_id = 0xCCCCCCCC;
uint8_t random_data[ DATA_LEN ] = { 0 };
uint8_t read_data[ DATA_LEN ] = { 0 };
uint8_t encrypted_data[ DATA_LEN ] = { 0 };
uint32_t read_len = DATA_LEN;
if ( SE051PLUGNTRUST_OK == se051plugntrust_get_random_numbers( &se051plugntrust, random_data, DATA_LEN ) )
{
log_printf( &logger, " > Generated random data: 0x" );
log_buf_hex( random_data, DATA_LEN );
log_printf( &logger, "rn" );
}
else
{
log_error( &logger, " Random" );
}
Delay_ms( 2000 );
if ( SE051PLUGNTRUST_OBJECT_DOESNT_EXIST == se051plugntrust_check_object_exist( &se051plugntrust, binary_id ) )
{
log_printf( &logger, " Write random data to binary object...rn" );
if ( SE051PLUGNTRUST_OK != se051plugntrust_write_binary_object( &se051plugntrust, binary_id,
0, DATA_LEN, random_data ) )
{
log_error( &logger, " Write Binary" );
}
else
{
log_info( &logger, " Status OK" );
}
}
else
{
log_error( &logger, " Binary object already exist" );
}
Delay_ms( 2000 );
if ( SE051PLUGNTRUST_OBJECT_DOES_EXISTS == se051plugntrust_check_object_exist( &se051plugntrust, binary_id ) )
{
if ( SE051PLUGNTRUST_OK == se051plugntrust_read_object( &se051plugntrust, binary_id, 0, 0,
read_data, &read_len ) )
{
log_printf( &logger, " > Read data from binary object: 0x" );
log_buf_hex( read_data, read_len );
log_printf( &logger, "rn" );
}
else
{
log_error( &logger, " Read binray object" );
}
}
else
{
log_error( &logger, " Binary object doesn't exist" );
}
Delay_ms( 2000 );
log_printf( &logger, " Create AES key...rn" );
create_128_aes_key( aes_id, aes_value );
Delay_ms( 2000 );
if ( SE051PLUGNTRUST_OK == cipher_data_with_aes_key( aes_id, SE051PLUGNTRUST_P2_ENCRYPT_ONESHOT,
read_data, encrypted_data ) )
{
log_printf( &logger, " > Encrypted data: 0x" );
log_buf_hex( encrypted_data, DATA_LEN );
log_printf( &logger, "rn" );
}
else
{
log_error( &logger, " Encrypting data" );
}
Delay_ms( 2000 );
if ( SE051PLUGNTRUST_OK == cipher_data_with_aes_key( aes_id, SE051PLUGNTRUST_P2_DECRYPT_ONESHOT,
encrypted_data, read_data ) )
{
log_printf( &logger, " > Decrypted data: 0x" );
log_buf_hex( read_data, DATA_LEN );
log_printf( &logger, "rn" );
}
else
{
log_error( &logger, " Decrypting data" );
}
Delay_ms( 2000 );
log_printf( &logger, " Delete Binary and AES object...rn" );
if ( ( SE051PLUGNTRUST_OK != se051plugntrust_delete_object( &se051plugntrust, binary_id ) ) ||
( SE051PLUGNTRUST_OK != se051plugntrust_delete_object( &se051plugntrust, aes_id ) ) )
{
log_error( &logger, " Deleting objects" );
}
log_printf( &logger, "*****************************************************************************rn" );
Delay_ms( 5000 );
}
The complete application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from ourLibStock™or found onMikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.SE051PlugnTrust
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™,USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronikacompilers.
MIKROSDK
The SE051 Plug&Trust Click Board™ is supported withmikroSDK- MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the Ibstock and installed for the compiler you are using.
