Overview
The Barometer 7 Click Board™ is a compact add-on board used to measure air pressure in a specific environment. This board features the KP264XTMA1, a high-accuracy digital barometric air pressure sensor based on a capacitive principle from Infineon Technologies. The KP264XTMA1 is surface micromachined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology that converts pressure into a 10-bit digital value and sends the information via the SPI interface. It measures pressure from 40kPa up to 115kPa with an accuracy of ±1.5kPa over a wide operating temperature range.
The Barometer 7 Click Board™ is suited for various pressure-based applications, industrial, consumer, weather stations, and many more.

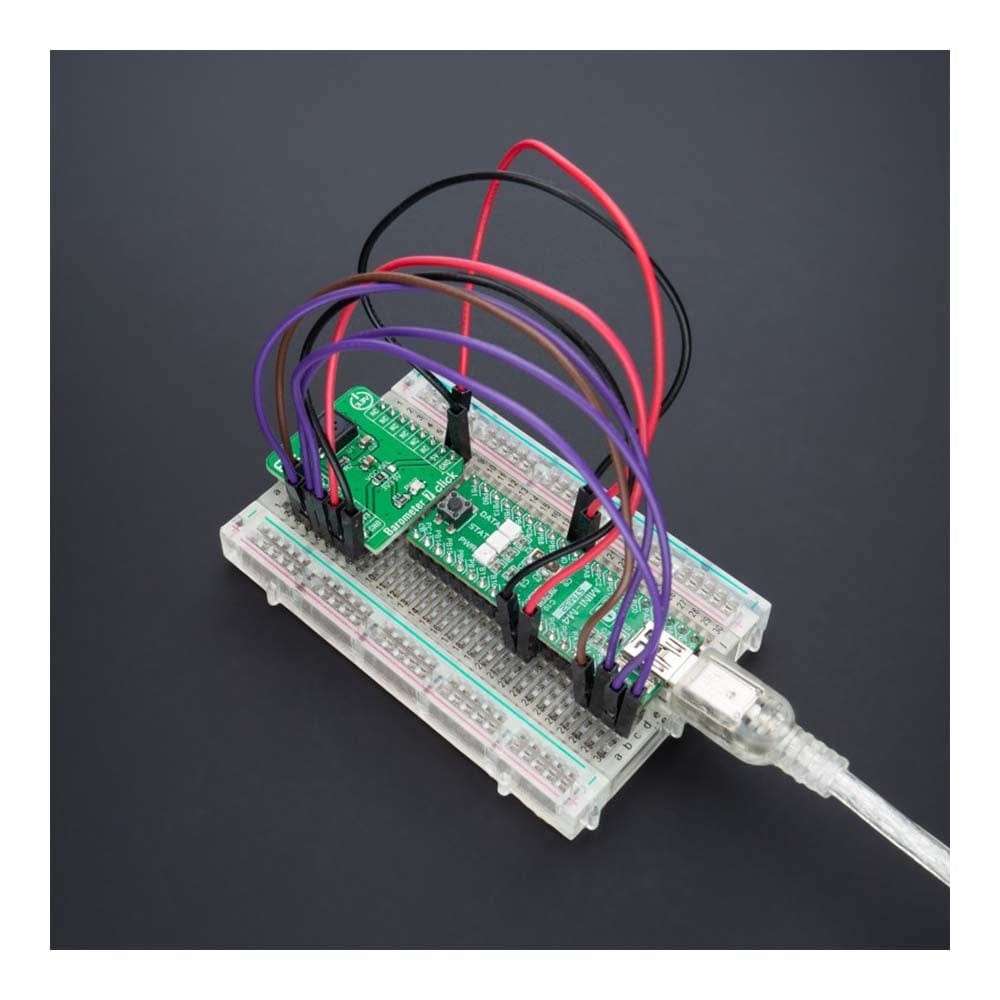

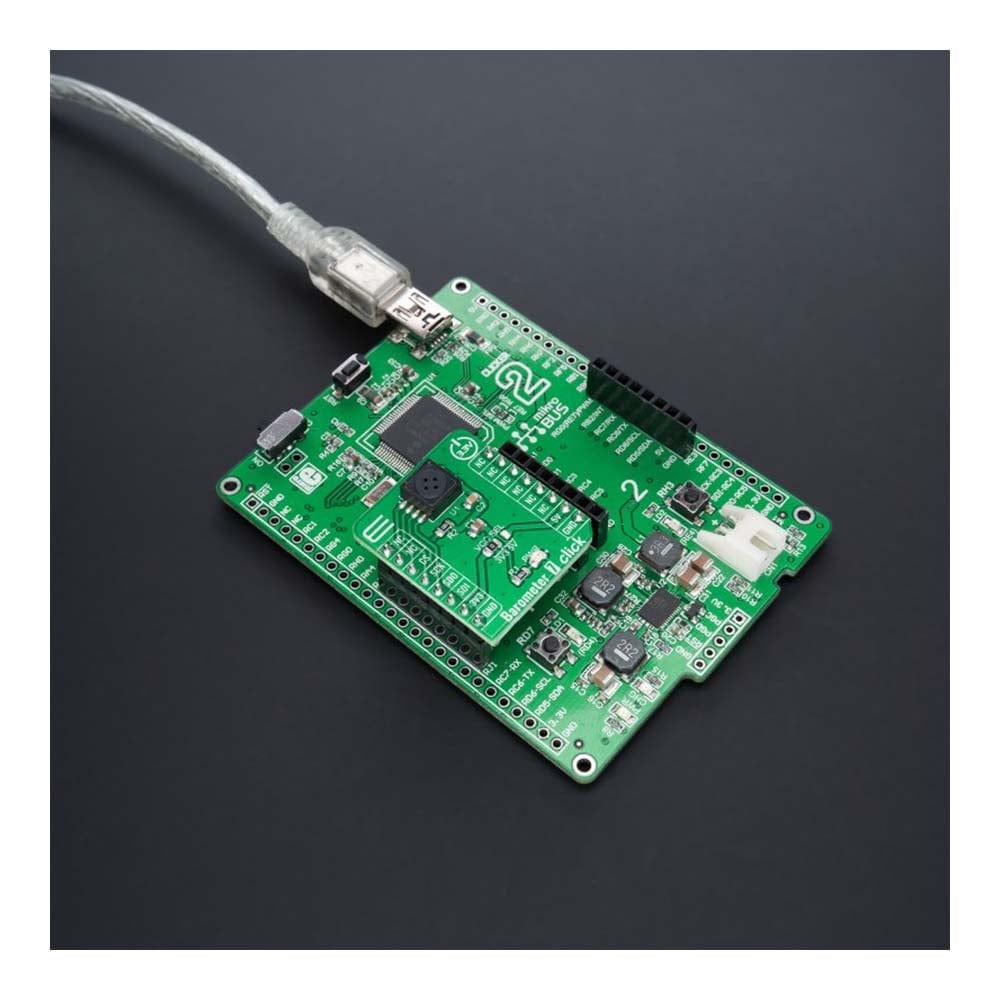

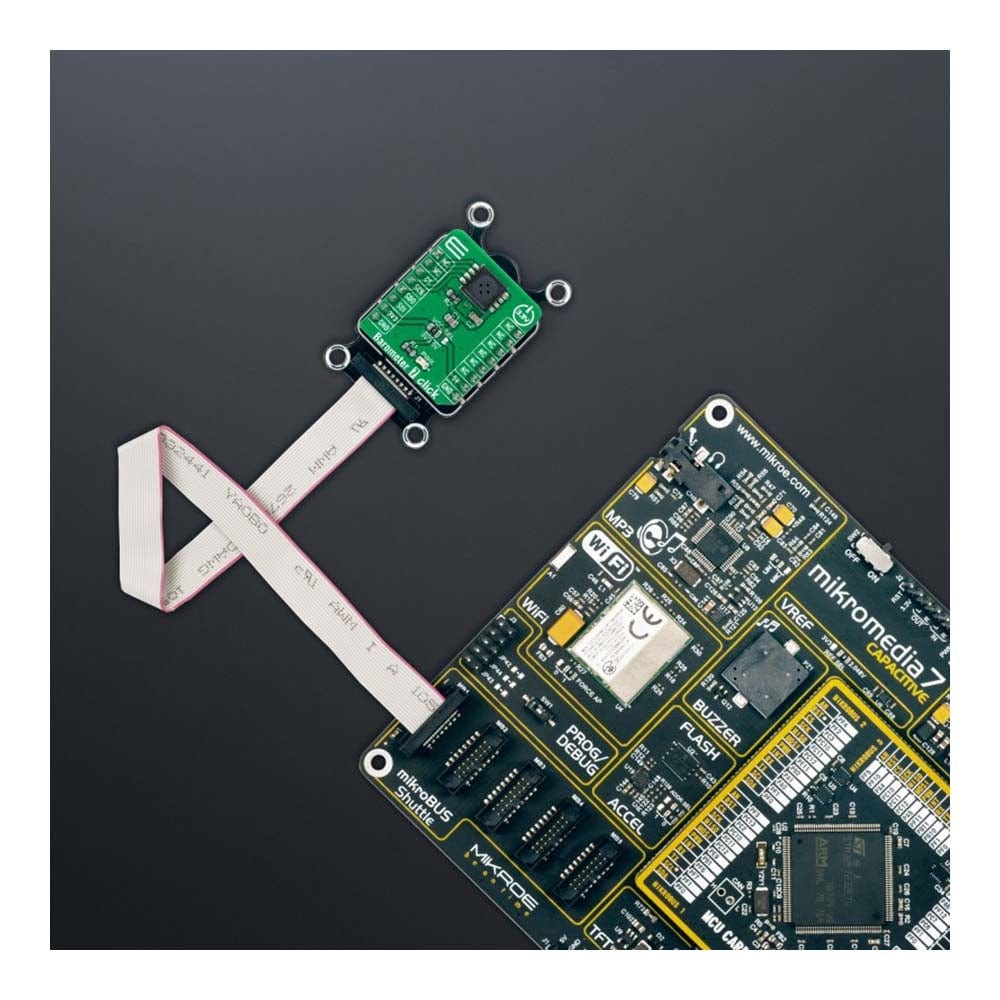

How Does The Barometer 7 Click Board™ Work?
The Barometer 7 Click Board™ as its foundation uses the KP264XTMA1, a high-accuracy digital barometric air pressure sensor from Infineon Technologies, to measure air pressure in a specific environment. The sensor is individually calibrated and temperature compensated, reducing software complexity by directly reading pressure and temperature. The KP264XTMA1 provides a fast startup time of less than 10ms, measures pressure in a range from 40kPa up to 115kPa with an accuracy of ±1.5kPa, ideally suited to the harsh environmental conditions prevalent in industrial and consumer applications.
The Barometer 7 Click Board™ communicates with MCU through a standard SPI interface that enables high clock speeds up to 5MHz. The KP264XTMA1 converts pressure into a 10-bit digital value and sends the information via the SPI interface. In addition, a temperature sensor is also integrated into this chip. The 10-bit temperature information will also be transmitted via the SPI interface based on the received SPI command.
The KP264XTMA1 is fully calibrated and has a linear transfer function between the applied pressure and the digital output signal. Its unique reliability feature is the integrated diagnostic mode, which tests the sensor cells and the signal path, triggered with an SPI command.
The Barometer 7 Click Board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. This way, it is allowed for both 3.3V and 5V capable MCUs to use the communication lines properly. However, the Click board™ comes equipped with a library that contains easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Pressure |
| Applications | The Barometer 7 Click Board™ be used for various pressure-based applications, industrial, consumer, weather stations, and many more |
| On-board modules | KP264XTMA1 - high-accuracy digital barometric air pressure sensor from Infineon Technologies |
| Key Features | Low power consumption, high accuracy, integrated temperature sensor, 10-bit pressure and temperature resolution, self-diagnosis features, and more |
| Interface | SPI |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

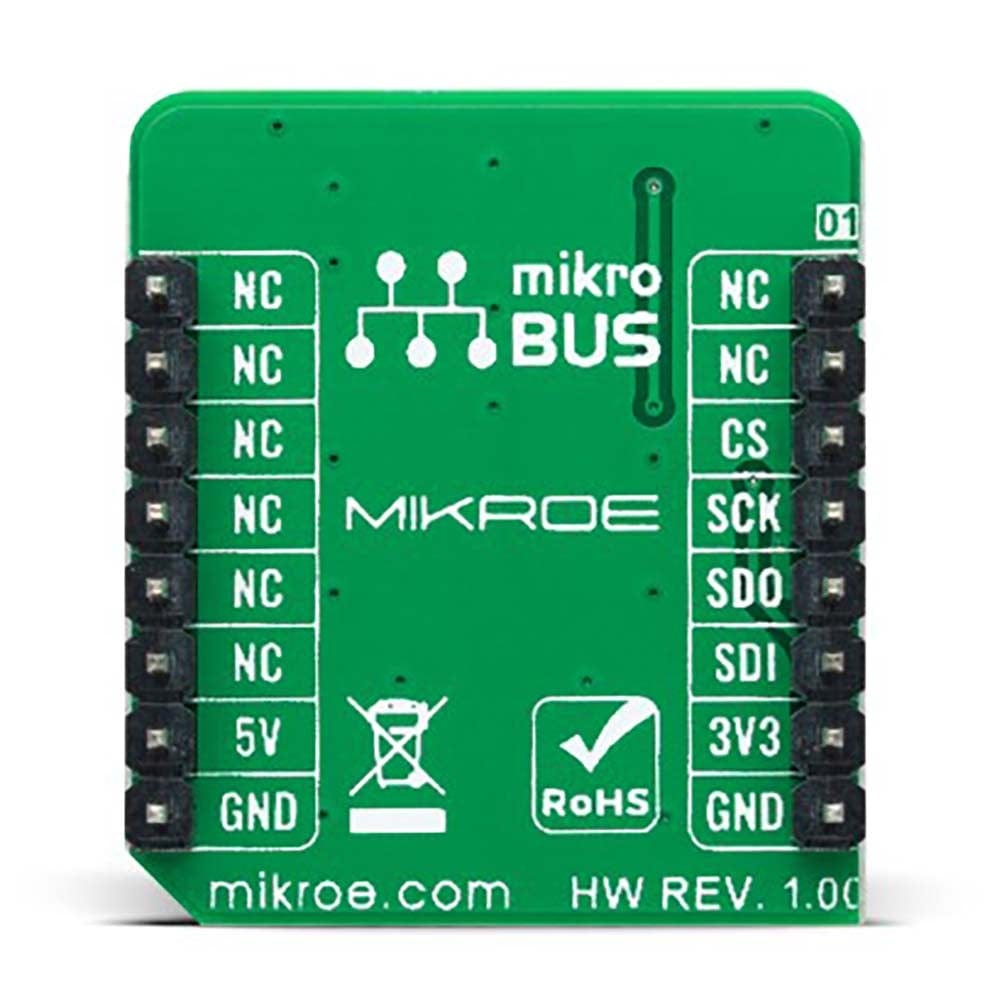

PINOUT DIAGRAM
This table shows how the pinout of the Barometer 7 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | NC | ||
| SPI Chip Select | CS | 3 | CS | RX | 14 | NC | |
| SPI Clock | SCK | 4 | SCK | TX | 13 | NC | |
| SPI Data OUT | SDO | 5 | MISO | SCL | 12 | NC | |
| SPI Data IN | SDI | 6 | MOSI | SDA | 11 | NC | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |

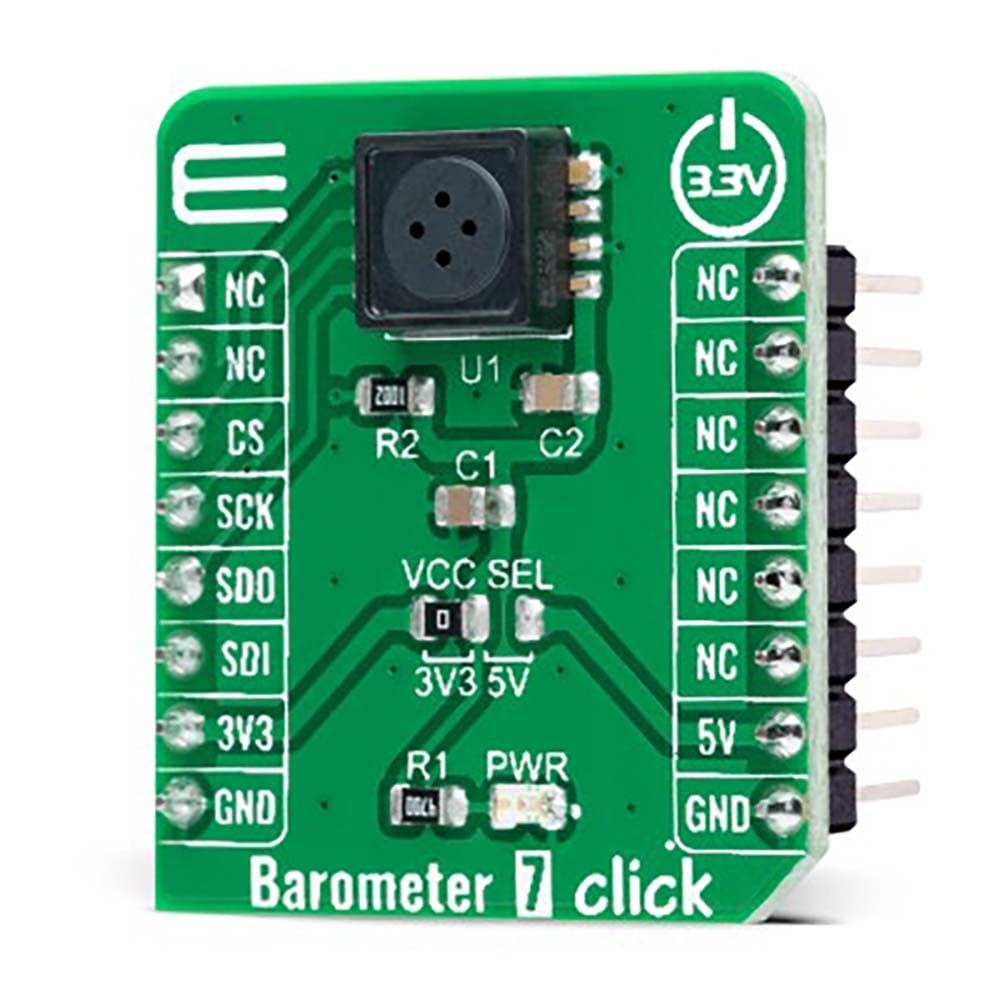

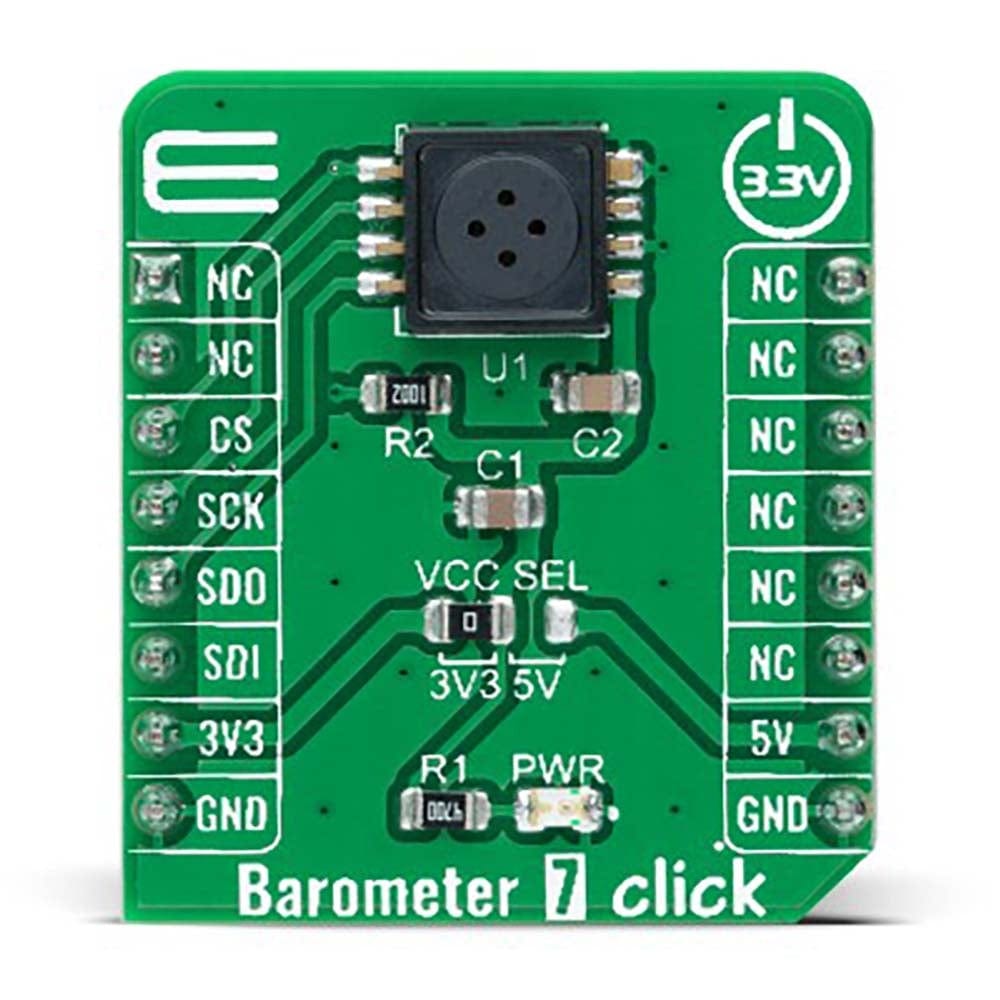

ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
BAROMETER 7 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | - | 5 | V |
| Operating Pressure Range | 40 | - | 115 | kPa |
| Accuracy (0 - 85°C) | -1.5 | - | +1.5 | kPa |
| Resolution | - | 10 | - | bits |
| Operating Temperature Range | -40 | +25 | +125 | °C |
Software Support
We provide a library for the Barometer 7 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on Mikroe Github account.
Library Description
This library contains API of the Barometer 7 Click Board™ driver.
Key functions
-
barometer7_get_pressureBarometer 7 get pressure function. -
barometer7_get_temperatureBarometer 7 get temperature function.
Example Description
This library contains API for the Barometer 7 Click Board™ driver. The demo application reads and calculates temperature and pressure data.
void application_task ( void )
{
static float pressure;
static float temperature;
barometer7_get_pressure( &barometer7, &pressure );
if ( BAROMETER7_NO_ERROR != barometer7.diagnosis )
{
display_error( );
}
log_printf( &logger, " Pressure : %.0f mbarrn", pressure );
barometer7_get_temperature( &barometer7, &temperature );
if ( BAROMETER7_NO_ERROR != barometer7.diagnosis )
{
display_error( );
}
log_printf( &logger, " Temperature : %.2f Crn", temperature );
log_printf( &logger, "--------------------------rn" );
Delay_ms( 2000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on Mikroe Github account.
Other Mikroe Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.Barometer7
Additional Notes and Information
Depending on the development board you are using, you may need a USB UART Click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The Barometer 7 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the Barometer 7 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on Mikroe Github account.
Library Description
This library contains API of the Barometer 7 Click Board™ driver.
Key functions
-
barometer7_get_pressureBarometer 7 get pressure function. -
barometer7_get_temperatureBarometer 7 get temperature function.
Example Description
This library contains API for the Barometer 7 Click Board™ driver. The demo application reads and calculates temperature and pressure data.
void application_task ( void )
{
static float pressure;
static float temperature;
barometer7_get_pressure( &barometer7, &pressure );
if ( BAROMETER7_NO_ERROR != barometer7.diagnosis )
{
display_error( );
}
log_printf( &logger, " Pressure : %.0f mbarrn", pressure );
barometer7_get_temperature( &barometer7, &temperature );
if ( BAROMETER7_NO_ERROR != barometer7.diagnosis )
{
display_error( );
}
log_printf( &logger, " Temperature : %.2f Crn", temperature );
log_printf( &logger, "--------------------------rn" );
Delay_ms( 2000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on Mikroe Github account.
Other Mikroe Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.Barometer7
Additional Notes and Information
Depending on the development board you are using, you may need a USB UART Click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The Barometer 7 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
