ISO ADC 5 Click Board
ISO ADC 5 Click Board

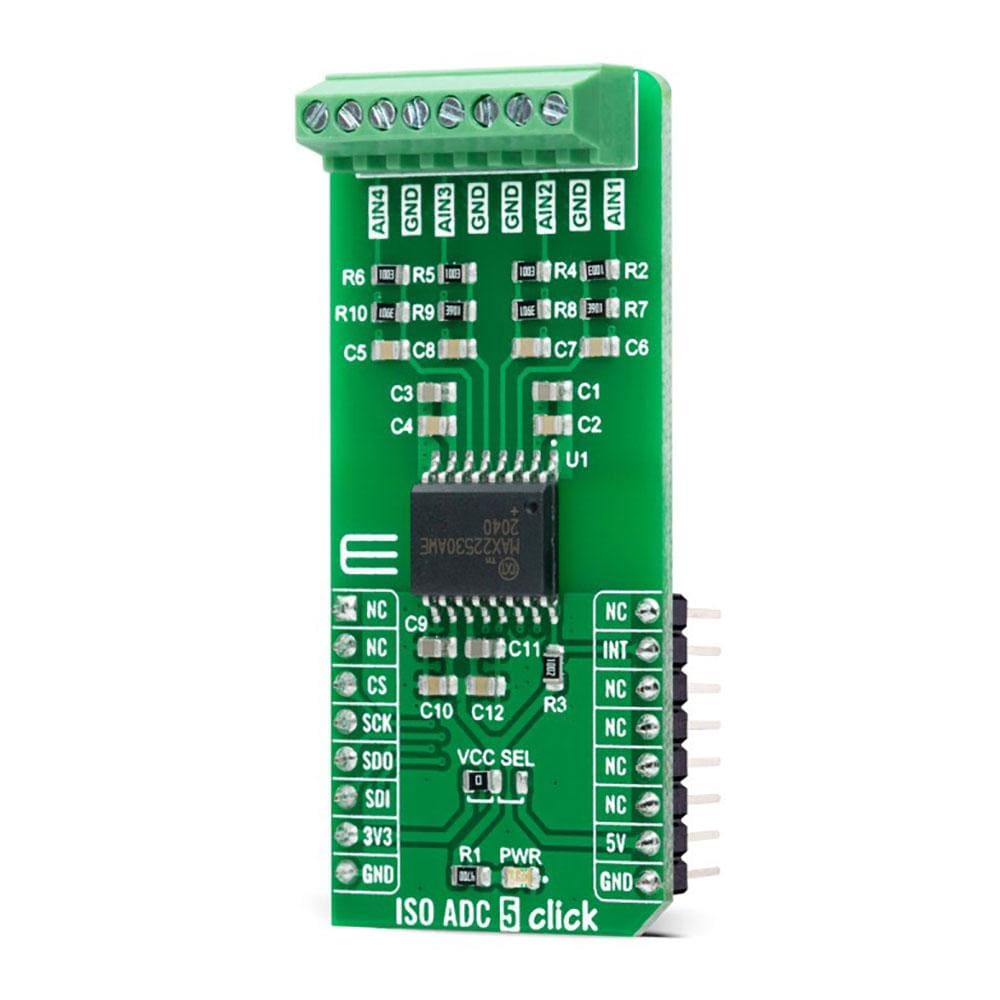

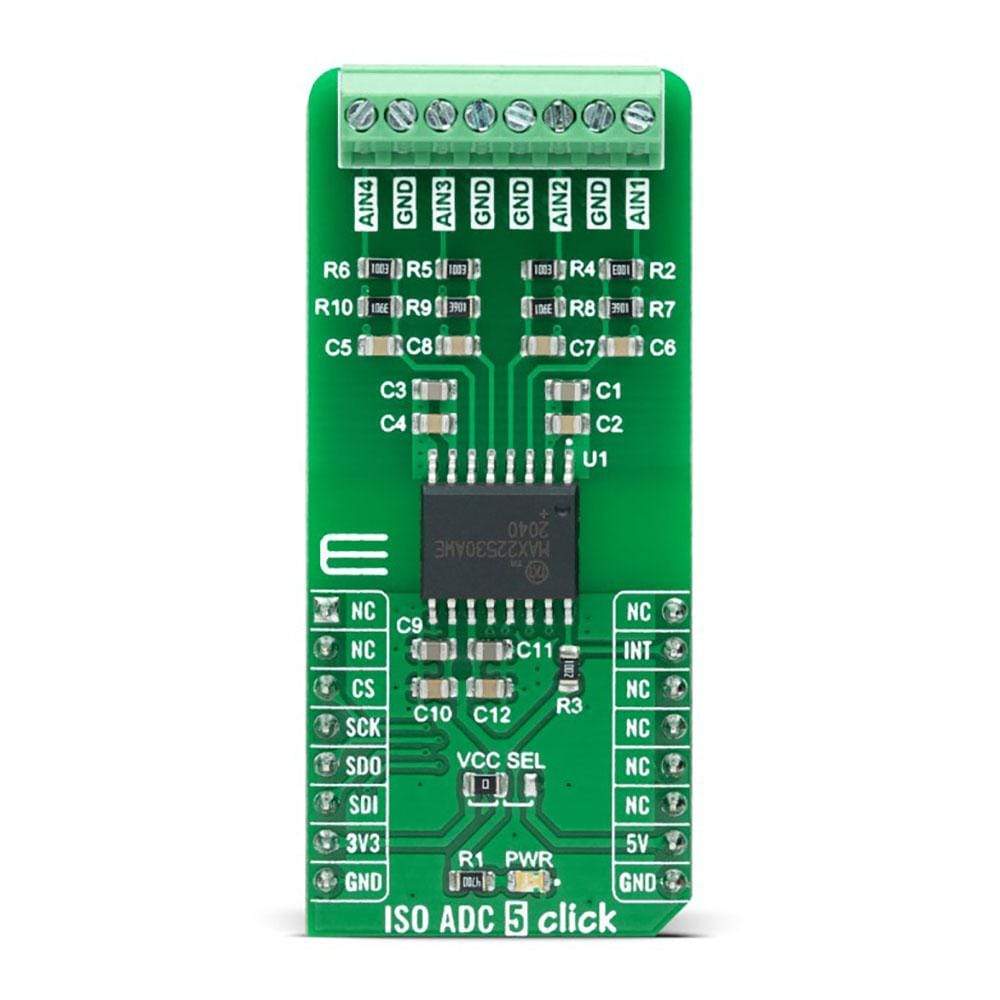

The ISO ADC 5 Click Board™ is a compact add-on board that contains quad-channel isolated ADC with field supply. This board features the MAX22530, galvanically isolated, 4-channel, multiplexed, 12-bit, analogue-to-digital converter (ADC), providing 5kVRMS isolation from Maxim Integrated. The ADC and all field-side circuits are powered by an integrated, isolated DC-DC converter that can verify field-side functionality even when there is no input signal or other field-side supply. The 12-bit ADC core has a sample rate of typically 20ksps per channel, where ADC data is available through the SPI interface. This Click Board™ is ideal for high-density, multi-range, group-isolated, binary-input modules and provides a complete solution to any system requiring monitoring inputs without a separate isolated power supply.
The ISO ADC 5 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click Board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

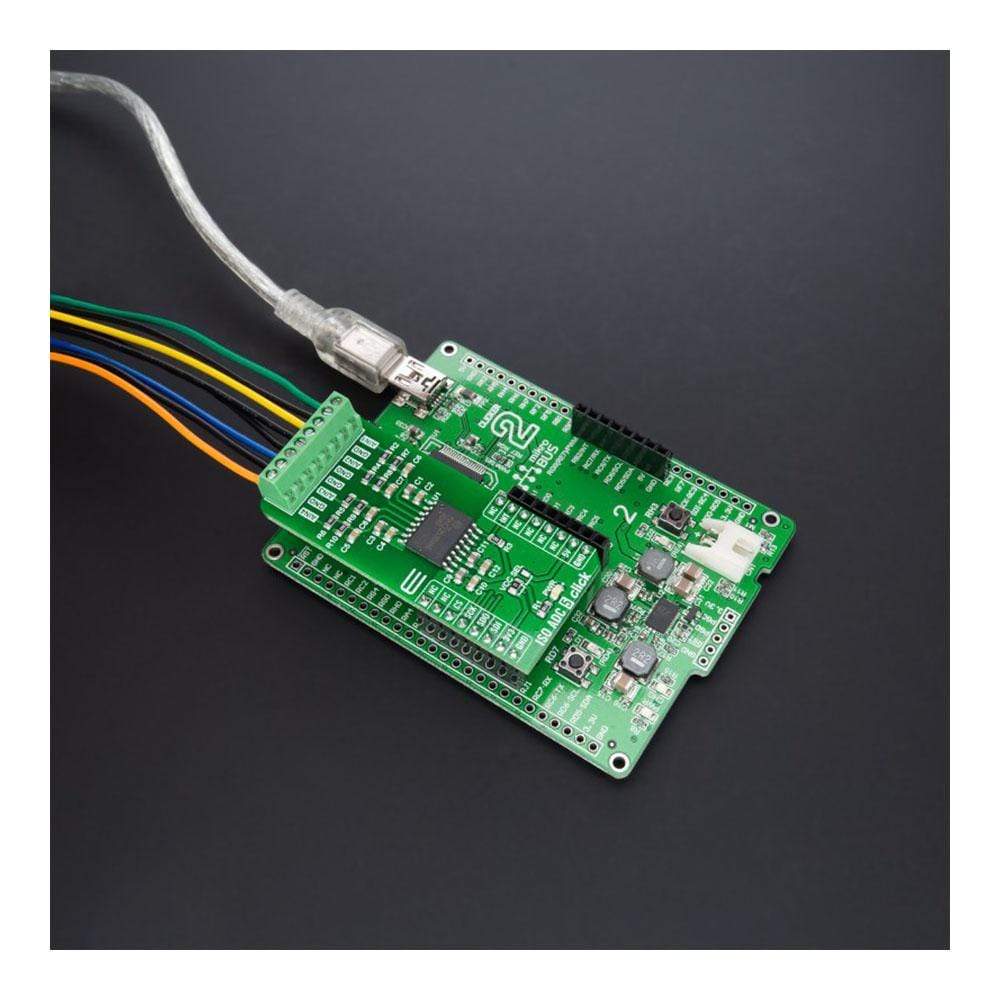

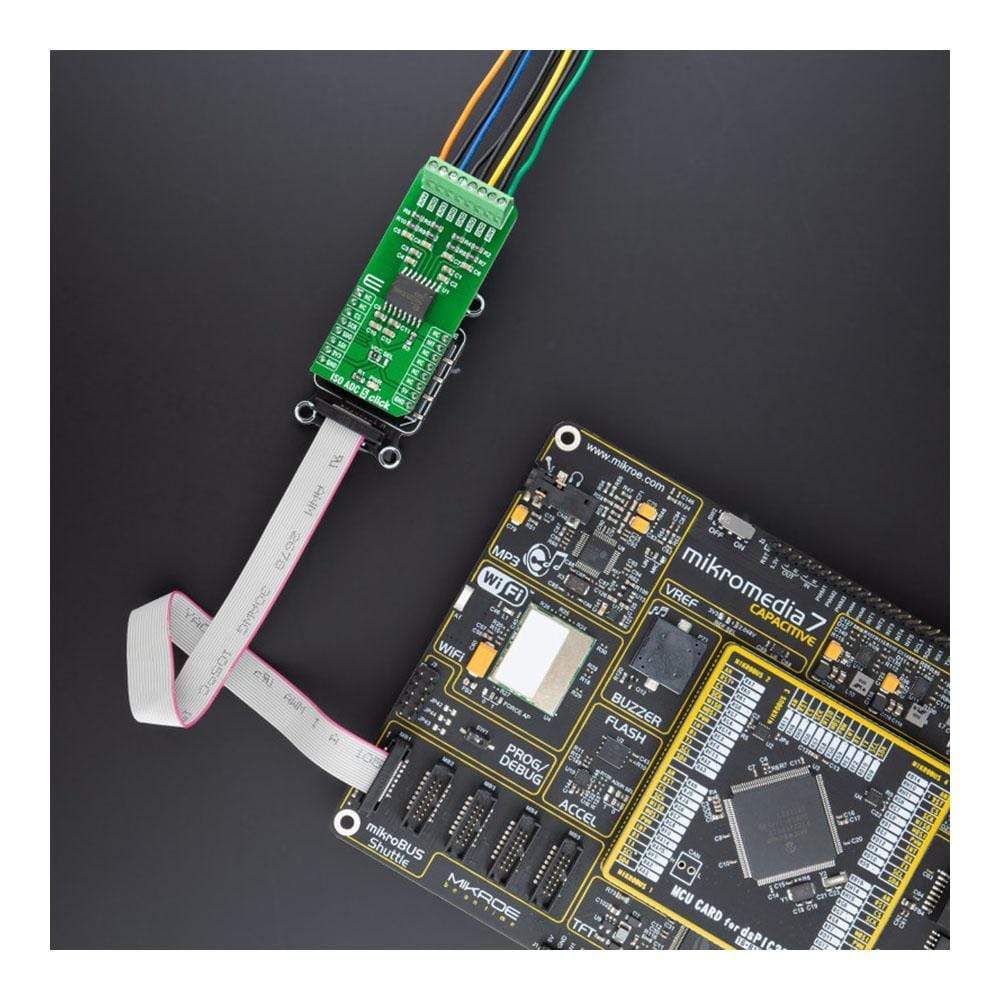

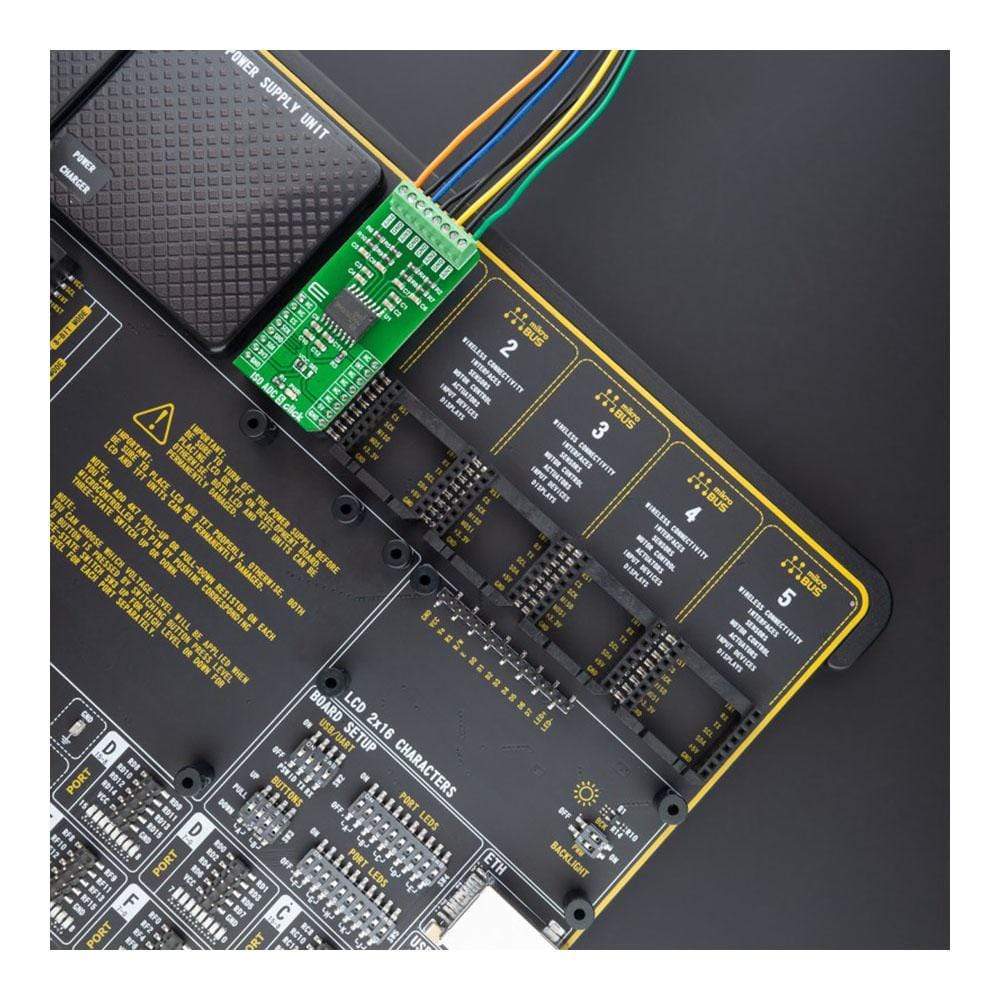

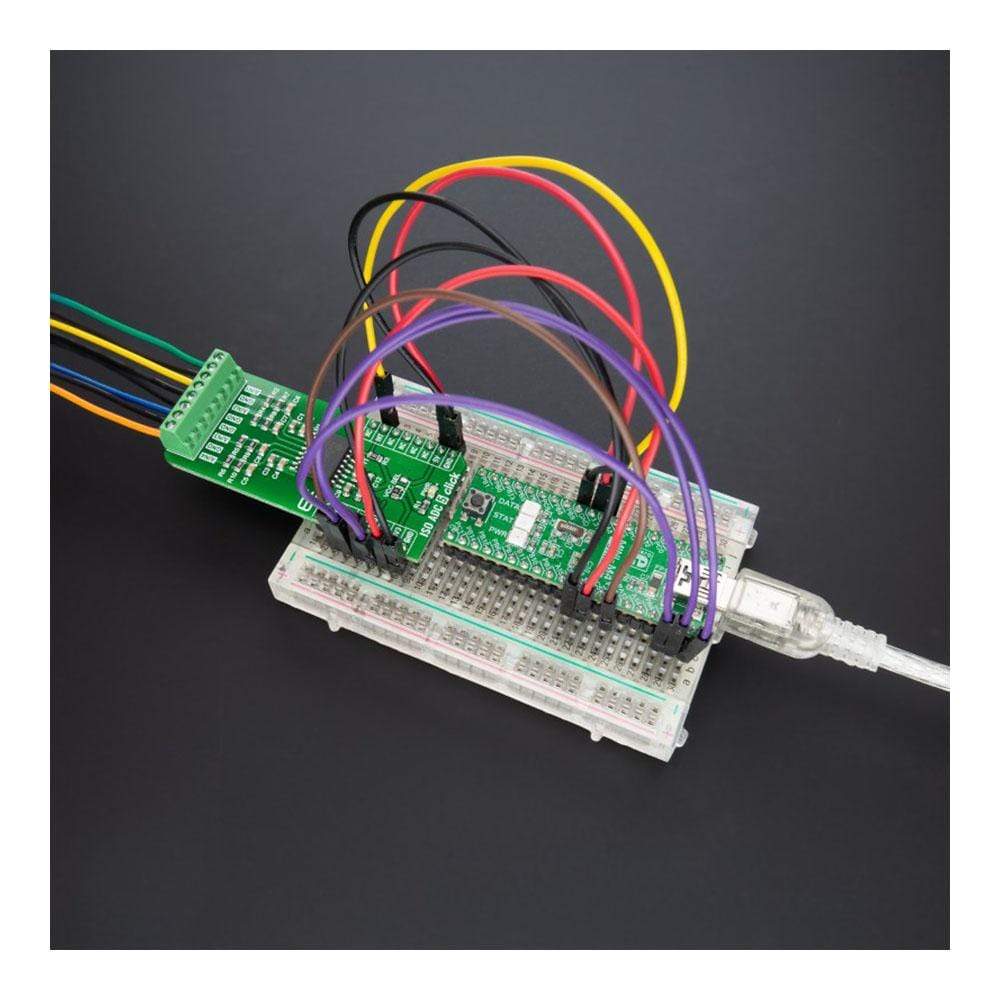

How Does The ISO ADC 5 Click Board™ Work?
The ISO ADC 5 Click Board™ as its foundation uses the MAX22530, a 12-bit, 4-channel ADC with a 5kVRMS isolated SPI interface from Maxim Integrated. The ADC and all field-side circuits are powered by an integrated, isolated DC-DC converter that can verify field-side functionality even when there is no input signal or other field-side supply. It continually digitizes the input voltage on the field-side of an isolation barrier, and it transmits the data across the isolation barrier to the logic-side of the devices, where the magnitude of the input voltage is compared to programmable thresholds.
The MAX22530 ADC employs a 12-bit SAR architecture with a nominal sampling rate of 20ksps per channel and has an input voltage of up to 1.8V. Placed voltage dividers make the proper ADC input voltage on the input analog channels, which, based on the input in the range from 0 to 48V, gives the required input to the ADC in its range from 0 to 1.8V. After Power-Up, the ADC runs continually at the nominal sampling rate. The MAX22530 also features a precision internal voltage reference of 1.8V with a maximum error of ±2% over the entire operating temperature range.
The MAX22530 communicates with MCU using the standard SPI serial interface with a maximum frequency of 10MHz. Besides, it continuously monitors multiple possible fault conditions such as ADC functionality error, SPI framing error, CRC errors from SPI communications, and internal isolated data stream loss. This hardware alert feature is provided through the interrupt pin, routed on the CS pin of the mikroBUS™ socket, which asserts low when an enabled fault is detected.
The ISO ADC 5 Click Board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. This way, it is allowed for both 3.3V and 5V capable MCUs to use the SPI communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
Type | ADC |
Applications | Can be used for high-density, multi-range, group-isolated, binary-input modules and provides a complete solution to any system requiring monitoring inputs without a separate isolated power supply |
On-board modules | MAX22530 - 12-bit, 4-channel ADC with a 5kVRMS isolated SPI interface from Maxim Integrated |
Key Features | Withstands 5kVRMS isolation for 60s, field-side self-powered with integrated DC-DC supply, 12-bit ADC with 20ksps per channel, flexible control and interface, and more |
Interface | SPI |
Compatibility | mikroBUS |
Click board size | L (57.15 x 25.4 mm) |
Input Voltage | 3.3V or 5V |

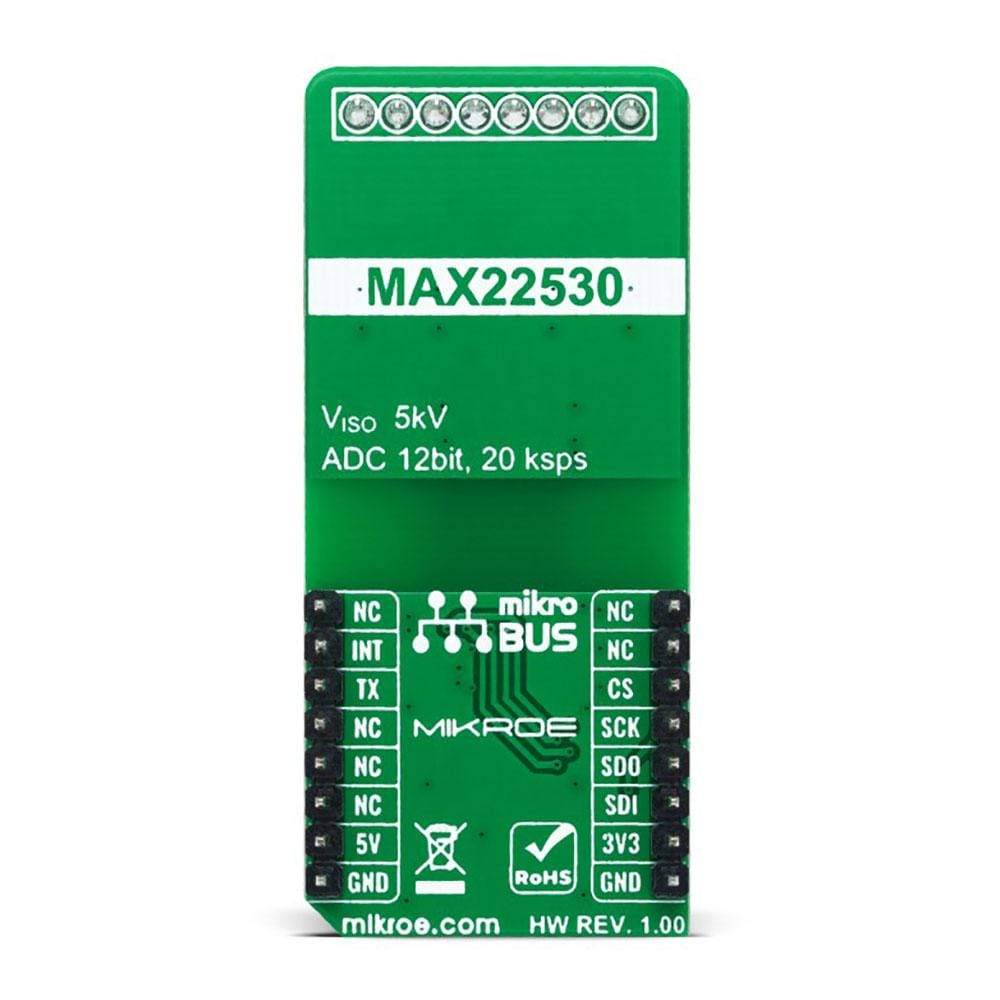

PINOUT DIAGRAM
This table shows how the pinout on ISO ADC 5 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Notes | Pin | Pin | Notes | ||||
---|---|---|---|---|---|---|---|
NC | 1 | AN | PWM | 16 | NC | ||
NC | 2 | RST | INT | 15 | INT | Interrupt | |
SPI Chip Select | CS | 3 | CS | RX | 14 | NC | |
SPI Clock | SCK | 4 | SCK | TX | 13 | NC | |
SPI Data OUT | SDO | 5 | MISO | SCL | 12 | NC | |
SPI Data IN | SDI | 6 | MOSI | SDA | 11 | NC | |
Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
ISO ADC 5 CLICK ELECTRICAL SPECIFICATIONS
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage VCC | 3.3 | - | 5 | V |
Analog Channels Input Range | 0 | - | 48 | V |
Maximum Withstanding-Isolation Voltage | - | - | 5 | KVrms |
ADC Resolution | 12 | - | - | bits |
Sample Rate | 18 | 20 | 22 | ksps |
Operating Temperature Range | -40 | +25 | +125 | °C |
Software Support
We provide a library for the ISO ADC 5 Click as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for ISO ADC5 Click driver.
Key Functions
isoadc5_cfg_setup
- Config Object Initialization function.isoadc5_init
- Initialization function.
Example Description
This example demonstrates the use of ISO ADC 5 Click Board™.
The demo application is composed of two sections :
void application_task ( void ) { float v_ain1 = 0, v_ain2 = 0, v_ain3 = 0, v_ain4 = 0; err_t error_flag = isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_1, &v_ain1 ); error_flag |= isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_2, &v_ain2 ); error_flag |= isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_3, &v_ain3 ); error_flag |= isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_4, &v_ain4 ); if ( ISOADC5_OK == error_flag ) { log_printf( &logger, " AIN 1 voltage: %.3f Vrn", v_ain1 ); log_printf( &logger, " AIN 2 voltage: %.3f Vrn", v_ain2 ); log_printf( &logger, " AIN 3 voltage: %.3f Vrn", v_ain3 ); log_printf( &logger, " AIN 4 voltage: %.3f Vrnrn", v_ain4 ); Delay_ms( 1000 ); } }
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Other mikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.ISOADC5
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the ISO ADC 5 Click as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for ISO ADC5 Click driver.
Key Functions
isoadc5_cfg_setup
- Config Object Initialization function.isoadc5_init
- Initialization function.
Example Description
This example demonstrates the use of ISO ADC 5 Click Board™.
The demo application is composed of two sections :
void application_task ( void ) { float v_ain1 = 0, v_ain2 = 0, v_ain3 = 0, v_ain4 = 0; err_t error_flag = isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_1, &v_ain1 ); error_flag |= isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_2, &v_ain2 ); error_flag |= isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_3, &v_ain3 ); error_flag |= isoadc5_read_voltage( &isoadc5, ISOADC5_ADC_FILTERED, ISOADC5_ADC_CHANNEL_4, &v_ain4 ); if ( ISOADC5_OK == error_flag ) { log_printf( &logger, " AIN 1 voltage: %.3f Vrn", v_ain1 ); log_printf( &logger, " AIN 2 voltage: %.3f Vrn", v_ain2 ); log_printf( &logger, " AIN 3 voltage: %.3f Vrn", v_ain3 ); log_printf( &logger, " AIN 4 voltage: %.3f Vrnrn", v_ain4 ); Delay_ms( 1000 ); } }
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Other mikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.ISOADC5
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
