SKU: MIKROE-417AVR Ready 2 Board
AVR Ready 2 Board
Couldn't load pickup availability

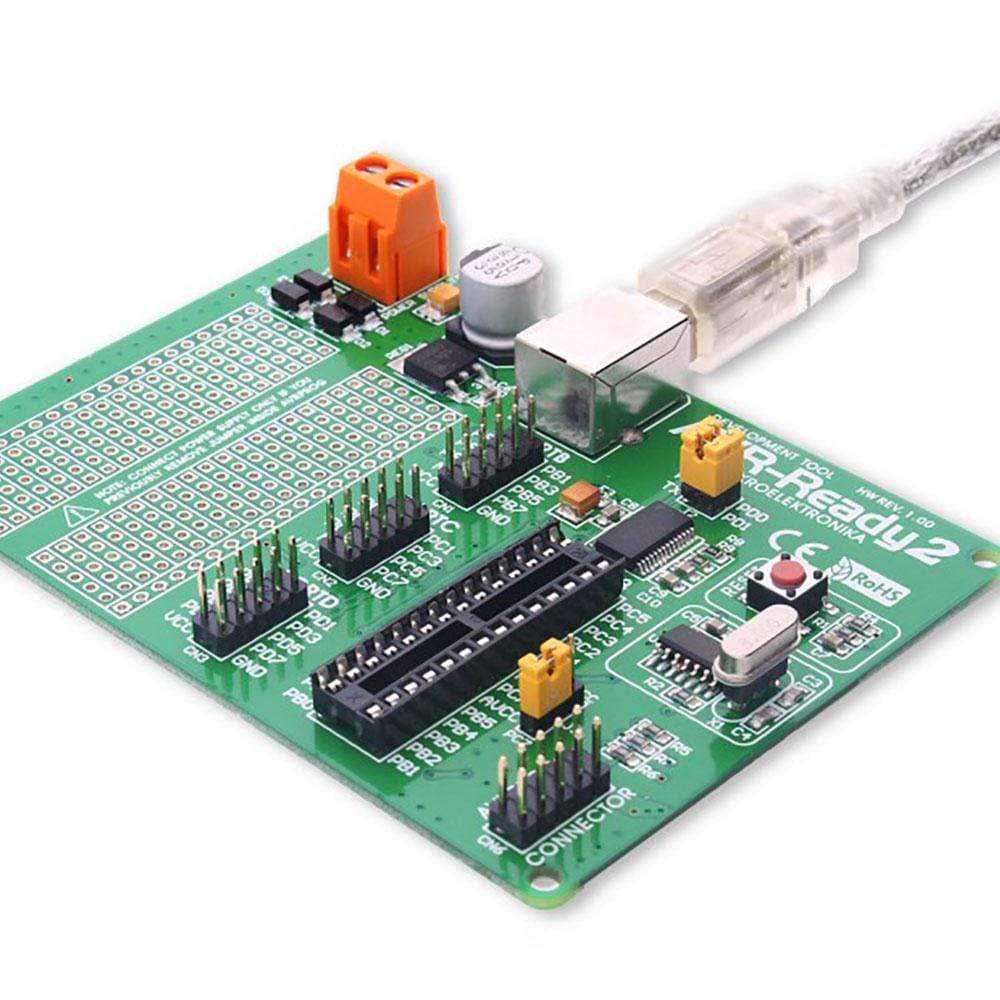

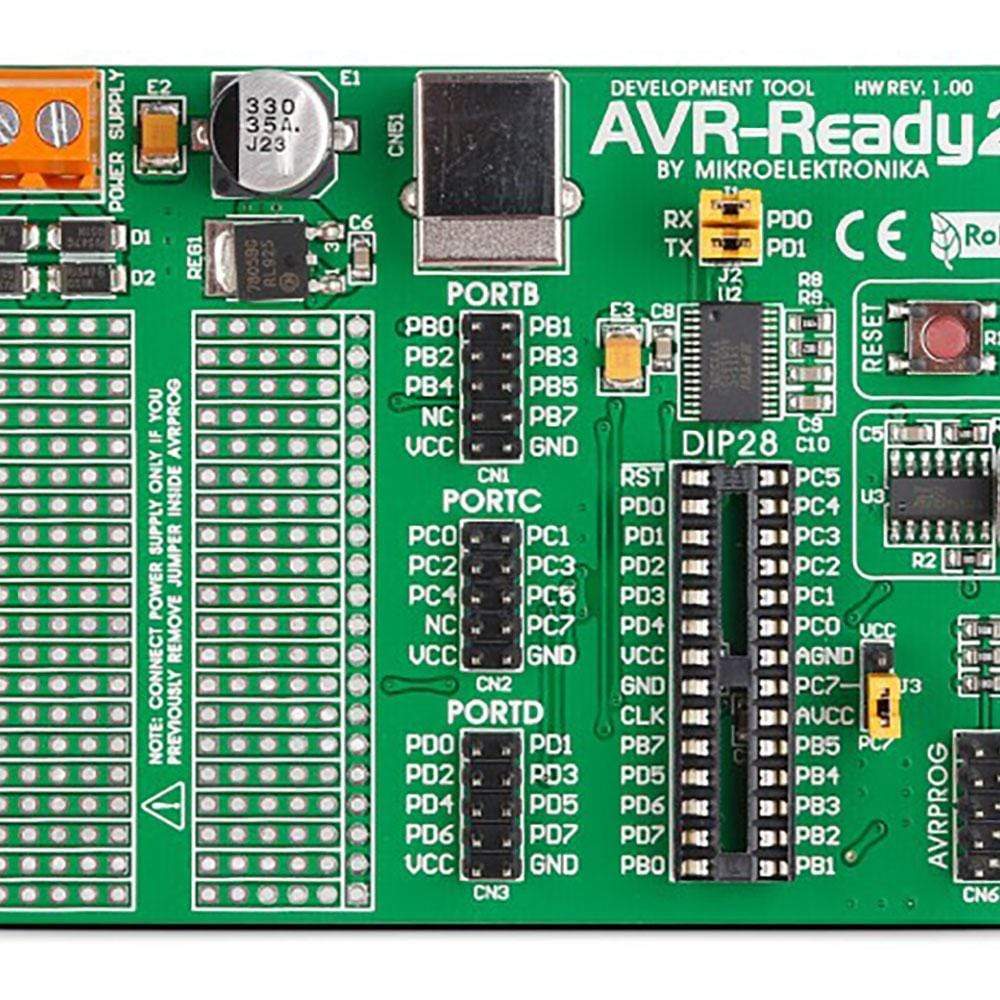

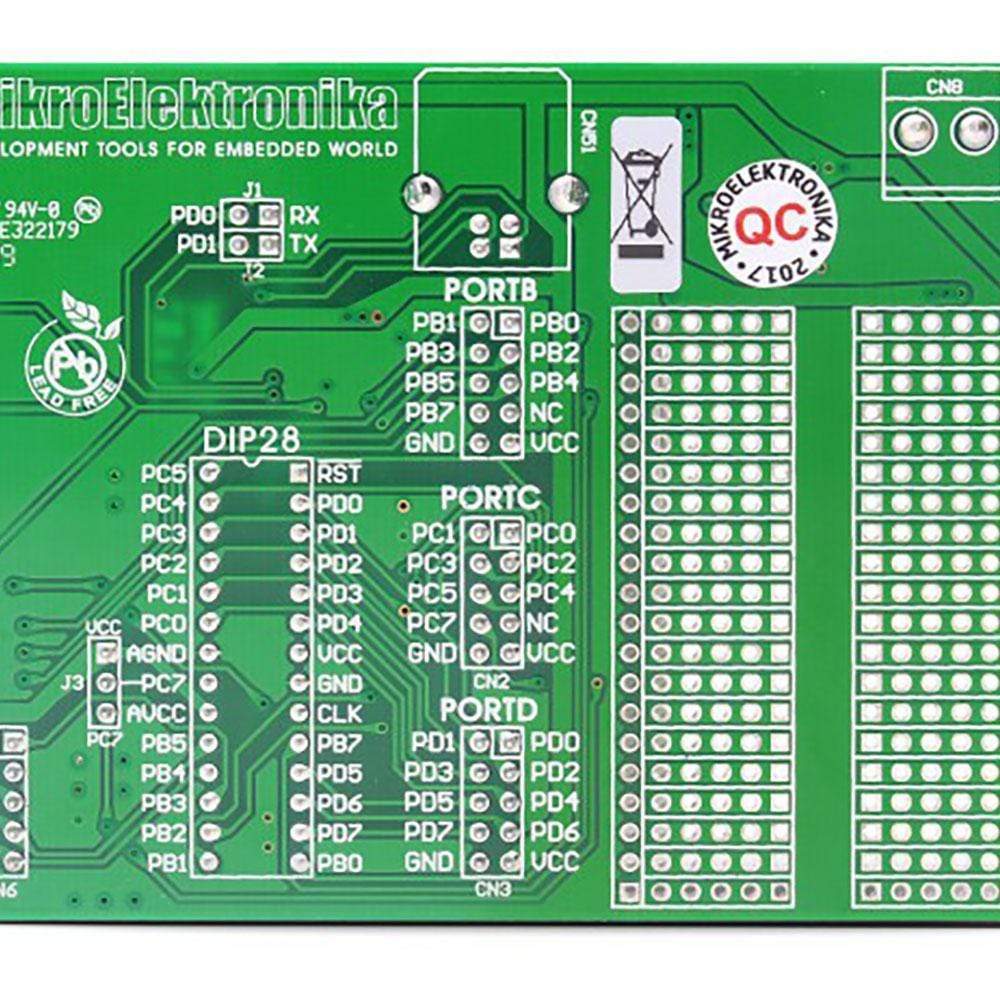

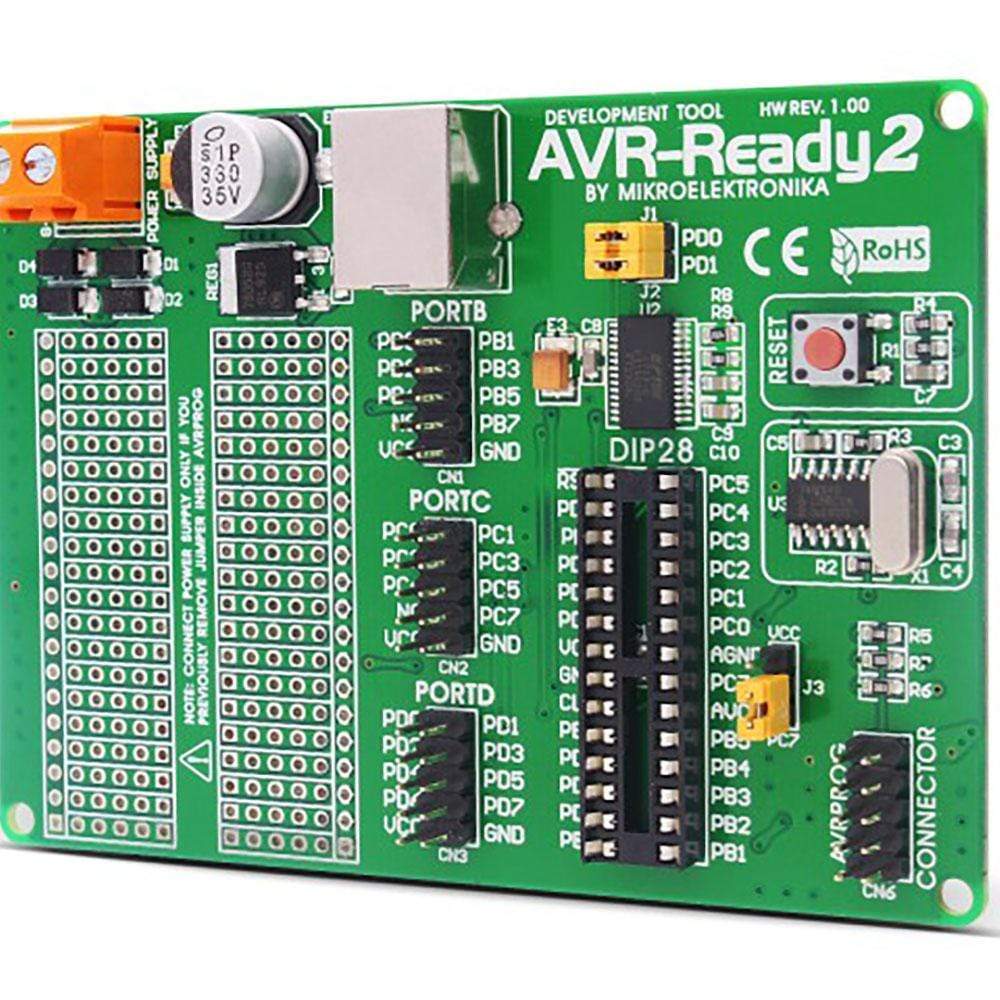

The AVR-Ready 2 Board is the best solution for the fast and simple development of 28-pin AVR microcontroller applications. It includes connectors for connecting the mikroProg for AVR in-system stand-alone programmer. This programmer enables you to program MCUs without any other additional device. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable peripheral modules to be connected to the board, so you can quickly assemble a functional working environment that perfectly suits your needs.
The AVR-Ready 2 Board features a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.
Note: AVR MCU and mikroPROG for AVR programmer are not included in the price!
The AVR-Ready2 Board is the best solution for fast and simple development of 28-pin AVR microcontroller applications.
28-pin AVR
A USB supported prototype board for 28-pin AVR microcontrollers with IDC10 extension (AVR CPU not included)
Power Supply
The board is powered by an external 8-16V AC/DC power supply connected via on-board connector.
Programming
The board can be programmed and debugged by using the mikroProg for AVR (not included)
AVR Ready 2 Board
