WiFi ESP Click Board

Product Description

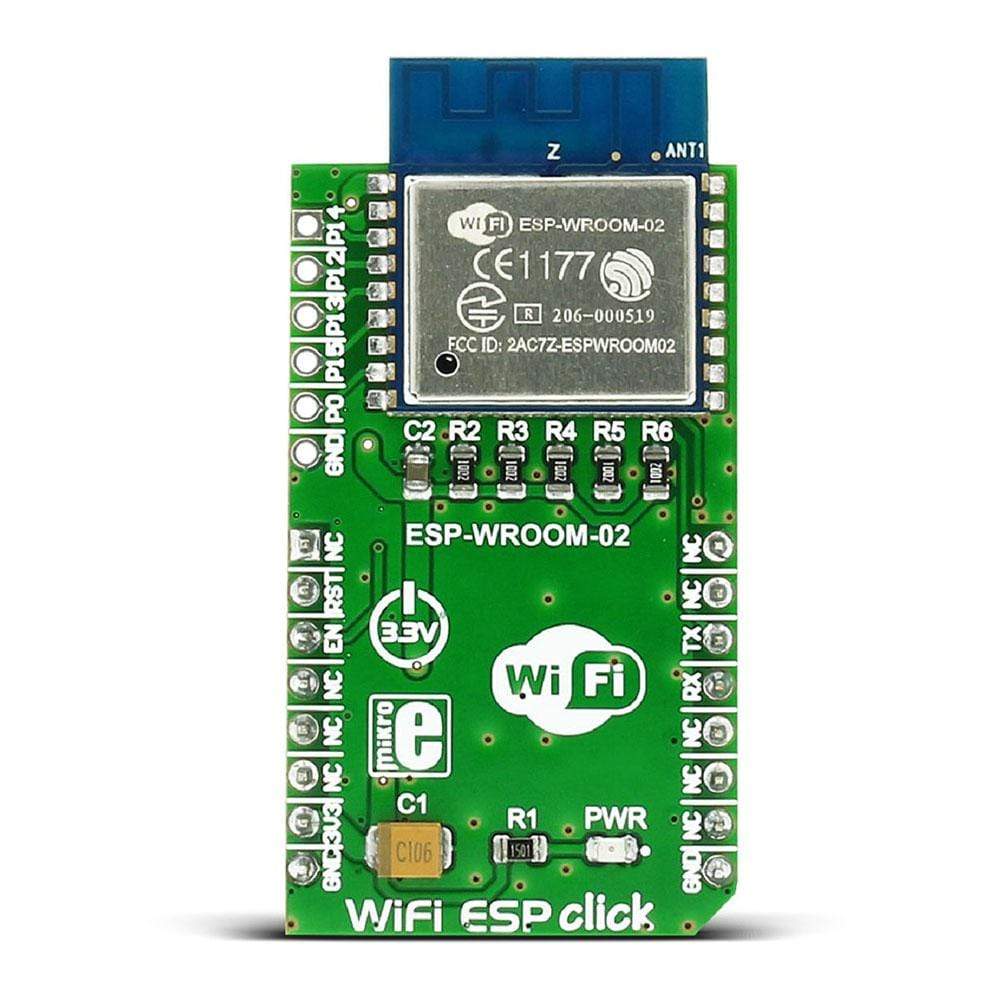

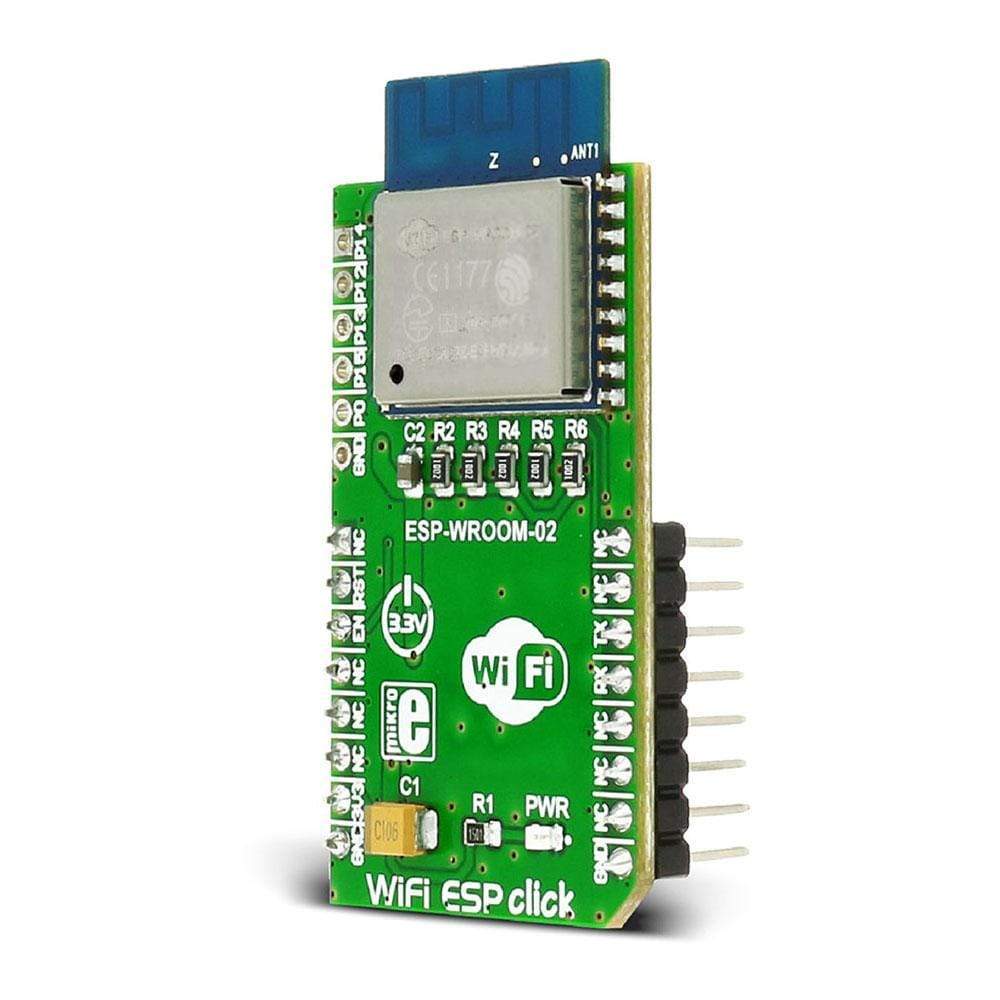

The WiFi ESP Click Board™ carries the ESP-WROOM-02 module that integrates ESP8266EX. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over UART interface and the following pins on the mikroBUS™ line: RST, CS.

ACCESS POINT AND WIFI CLIENT MODE

WiFi ESP click can function in both AP (Access Point) WiFi mode, as well as in WiFi client mode. The click brings easy implementation and usage.

The module supports the following network protocols: IPv4/TCP/UDP/HTTP/FTP. Thanks to this the click can operate as a client device requesting a file from a file server device (FTP - file transfer protocol) in local network systems, or request a web page via internet (IP/TCP/HTTP). It can also be used as a small web server, for example a wireless weather station prototype, etc.

Station mode is default when the click is in WiFi client mode.

ESP-WROOM-02 MODULE FEATURES

ESP-WROOM-02 carries ESP8266EX highly integrated Wi-Fi SoC solution to meet the continuous demands for efficient power usage, compact design and reliable performance in the industry.

Besides the Wi-Fi functionalities, ESP8266EX integrates an enhanced version of Tensilica’s L106 Diamond series 32-bit processor and on-chip SRAM. As well as antenna switches, RF balun, power amplifier, low noise receiver amplifier, filters and power management modules.

With the complete and self-contained Wi-Fi networking capabilities, it can perform as either a standalone application (WROOM module itself) or the slave to an MCU host which is the primary intention of the click board as a whole. So, this click board is applied to any microcontroller design as a Wi-Fi adaptor through UART interface (RX,TX lines on mikroBUS pin socket).

For more information see the datasheet.

ADVANCED USAGE

There are additional pad headers onboard (HSPI/GPIO interface of the module) for advanced usage.

For more information see the Documentation tab.

SPECIFICATIONS

PINOUT DIAGRAM

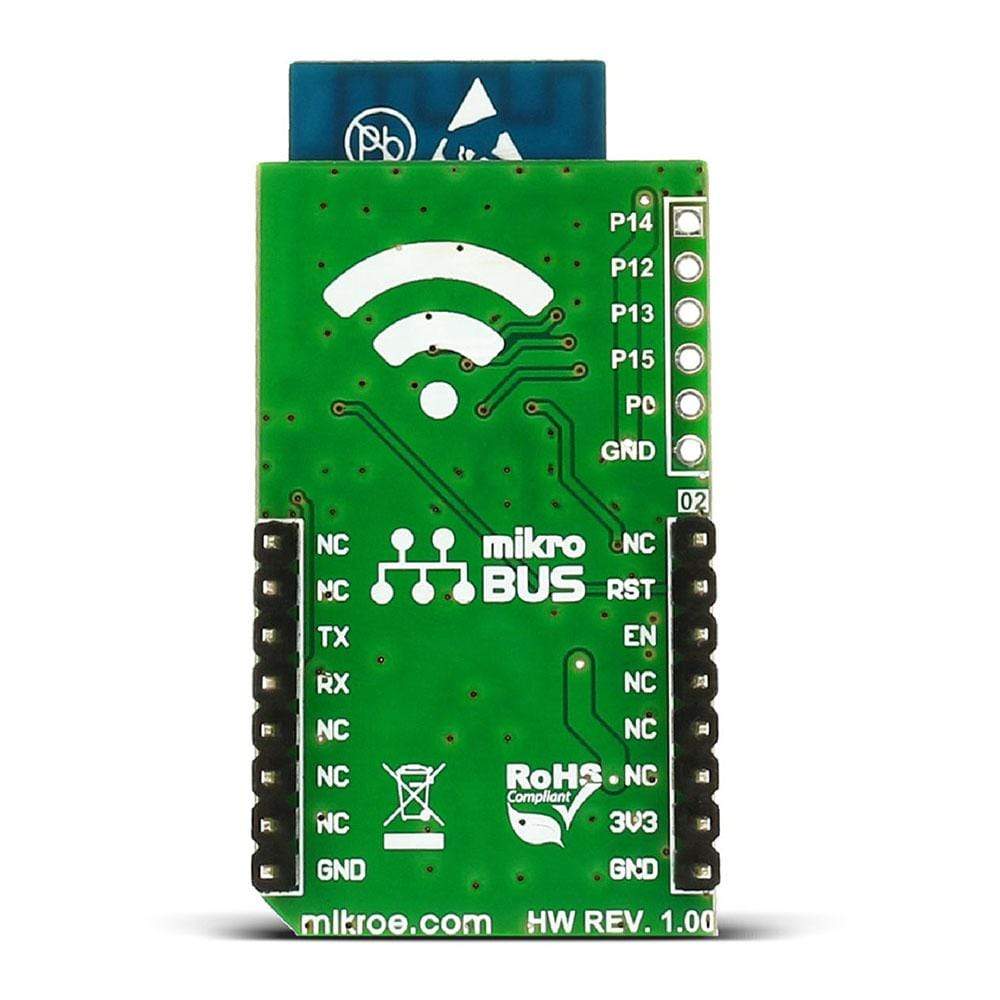

This table shows how the pinout of the WiFi ESP Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
NC	1	AN	PWM	16	NC
HW Reset	RST	2	RST	INT	15	NC
Chip enable (active high)	EN	3	CS	TX	14	TX	UART0_TXD / Transmit end in UART download (program) mode
NC	4	SCK	RX	13	RX	UART0_RXD / Receive end in UART download (program) mode
NC	5	MISO	SCL	12	NC
NC	6	MOSI	SDA	11	NC
Power supply	+3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

ADDITIONAL PINS

BUTTONS AND LEDS

Software Support

01 void main() {
02
03   // Initialize variables
04   length = 0;
05   state = 0;
06   response_rcvd = 0;
07   responseID = 0;
08   response = 0;
09   i = 0;
10
11   // GPIO Direction
12   GPIO_Digital_Input( &GPIOA_IDR, _GPIO_PINMASK_4 );
13   GPIO_Digital_Output( &GPIOD_BASE, _GPIO_PINMASK_13 );
14   GPIO_Digital_Output( &GPIOC_BASE, _GPIO_PINMASK_2 );
15   GPIO_Digital_Output( &GPIOA_ODR, _GPIO_PINMASK_0 );
16
17   // UART Initialization
18   UART3_Init_Advanced( 115200, _UART_8_BIT_DATA,
19                              _UART_NOPARITY,
20                              _UART_ONE_STOPBIT,
21                              &_GPIO_MODULE_USART3_PD89);
22
23   // Enable Interrupts
24   RXNEIE_USART3_CR1_bit = 1;
25   NVIC_IntEnable( IVT_INT_USART3 );
26   EnableInterrupts();
27
28   display_init();
29
30   // Initialize WiFI module
31   WiFi_Init();
32
33   // Setting WiFi Mode - SoftAP + station mode
34   WiFI_Configure();
35
36   state = 100;
37   i = 0;
38
39   TFT_Write_Text("Please connect to your STAIP...", 50, 100);
40   Delay_ms(20000);
41   WiFi3_Send();
42   TFT_Write_Text("Entering button toggling loop.", 50, 150);
43
44   LED_switching = 1;
45
46     while( 1 )
47     {
48       // detect logical one on PA4 pin
49       if (Button(&GPIOA_IDR, 4, 1, 1))
50       {
51        oldstate_A4 = 1;
52       }
53       // detect logical one-to-zero transition on PA4 pin
54       if (oldstate_A4 && Button(&GPIOA_IDR, 4, 1, 0))
55       {
56         if ( !strcmp(txt_state_A0, "OFF</p>" ))
57         {
58           strncpy( txt_state_A0, "ON </p>", 8 );
59           GPIOA_ODR.B0 = 1;
60         }
61         else
62         {
63           strncpy( txt_state_A0, "OFF</p>", 8 );
64           GPIOA_ODR.B0 = 0;
65         }
66         oldstate_A4 = 0;
67         A0_change = true;
68         WiFi3_Send();
69       }
70     }
71 }
