Overview

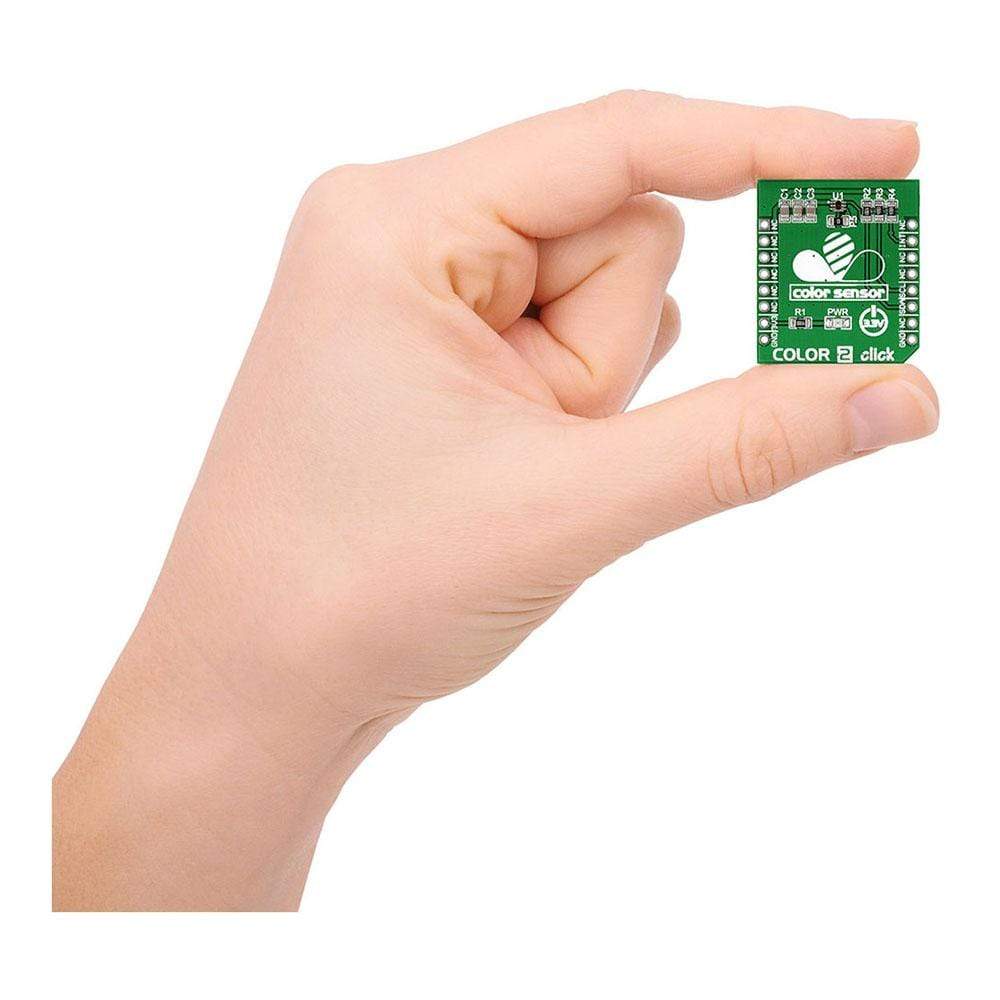

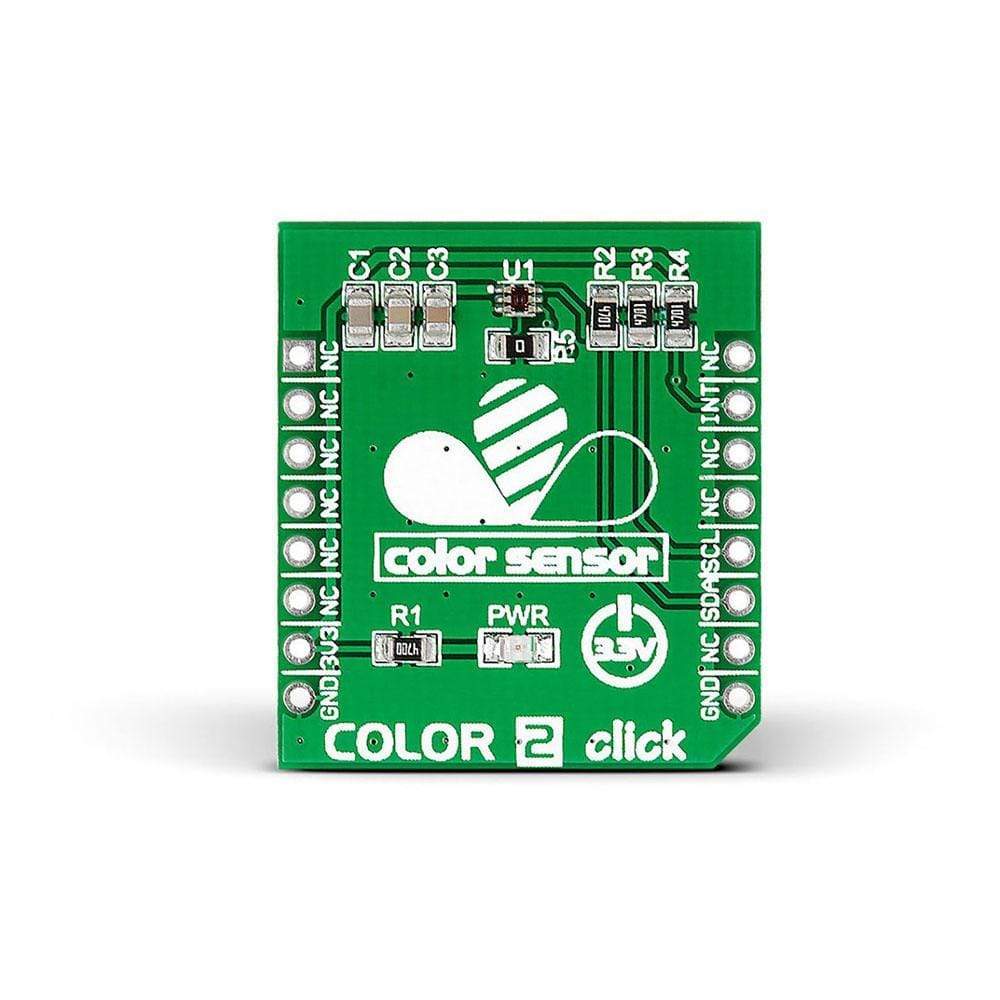

The Color 2 Click Board™ is a compact add-on board that allows the user to introduce colour sensing functionality to the design. It features an ISL29125 RGB colour light sensor that aids the user to detect red, green and blue in a variety of lighting conditions. It outputs data from 5.7m lux-10,000 lux, providing an accurate spectral response by converting colours into 12 or 16-bit data. The user can select the range (narrower vs. wider bandwidth) and output resolution (12 vs. 16 bit).

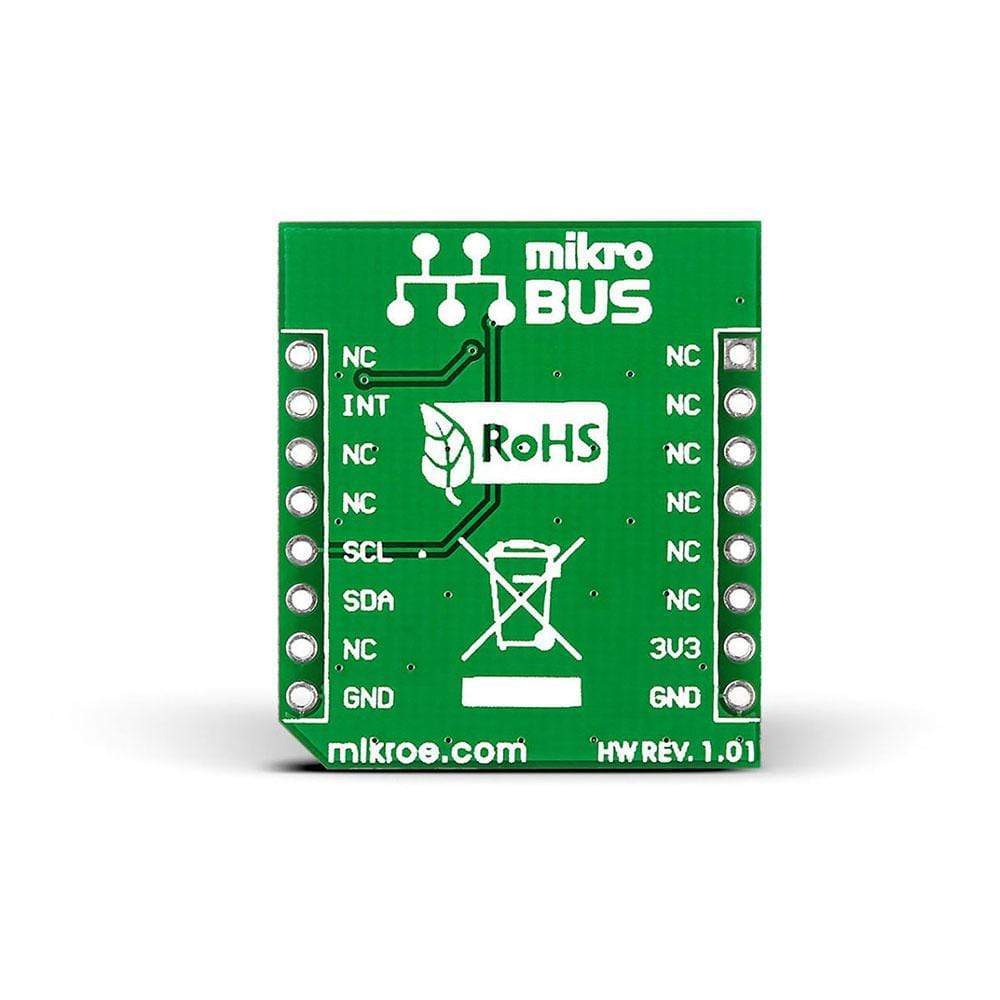

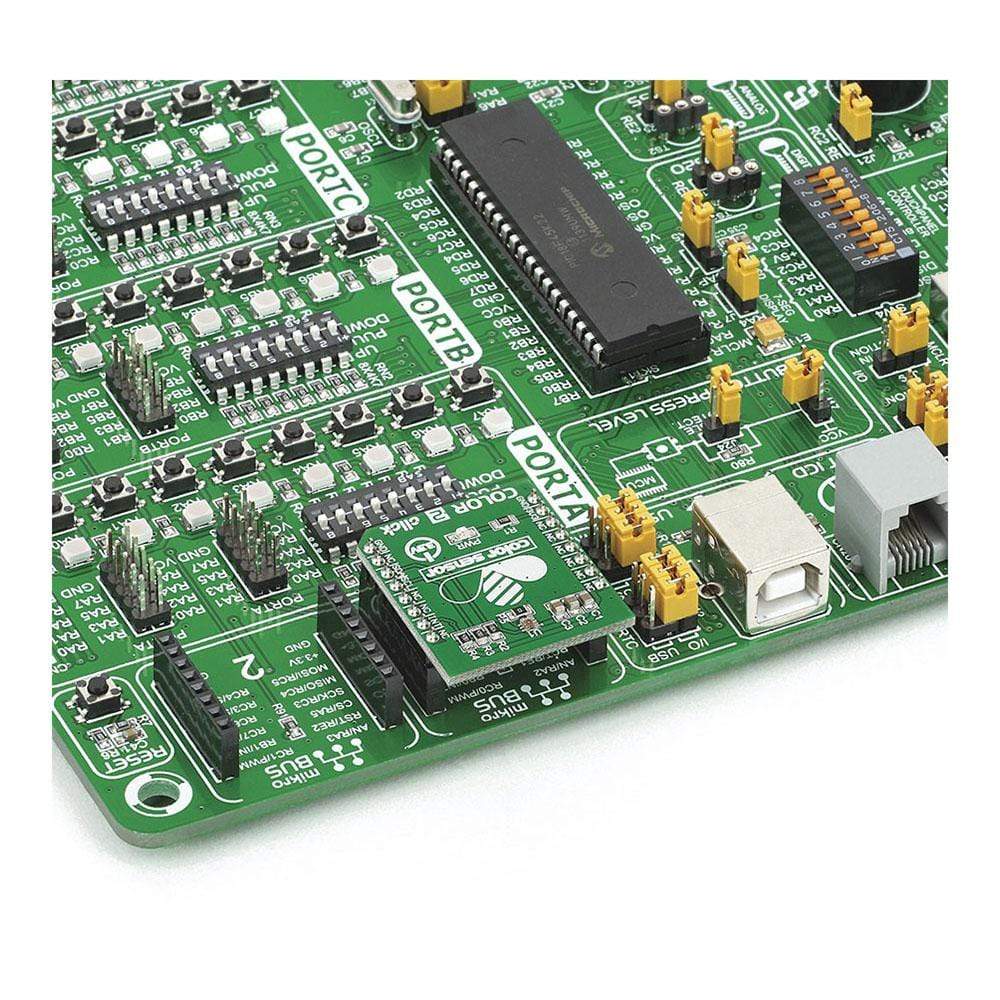

Featuring an integrated ADC, the Color 2 Click Board™ rejects 50Hz and 60Hz flicker from artificial light sources. Along with that, the ISL29125 chip has an IR blocking filter, which means it can reliably operate under dark glass covers. The Color 2 Click Board™ communicates with the target microcontroller through the MikroBUS I2C interface (SCL and SDA pins). A programmable interrupt pin provides additional functionality. It works using a 3.3V power supply only.

The Color 2 Click Board™ is an ideal choice for an ambient light colour detector, dynamic display colour balancing, OLED display ageing compensation, printer colour enhancement and much more.

Videos

Color 2 Click Example

MikroElektronika · 0:55 · 2015

Video notes

Color 2 Click uses the ISL29125 RGB colour light sensor over I2C. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

IC/Module: ISL29125 Digital RGB colour Light Sensor

ISL29125 is a low-power, high sensitivity RED, GREEN and BLUE colour light sensor that operates on an I2C interface. Its photodiode array offers an accurate RBG spectral response and excellent light source to light source variation. The ISL29125 is designed to reject IR in light sources that allows the device to operate in environments from sunlight to dark rooms.

Photodiodes and ADC

The Color 2 Click Board™ incorporates three photodiode arrays that convert light into current. After light is converted to current during the light to signal process, the current output is converted to a digital count by an on-chip Analog-to-Digital Converter (ADC). The ADC converter resolution is selectable from 12 or 16 bits. The ADC conversion time is inversely proportional to the ADC resolution.

Note: For a different sensor with similar functionality, check out the original Color Click Board™.

Overview
CategoryOptical
ApplicationsAmbient light color detector, dynamic display color balancing, OLED display aging compensation
Key components
On-board modulesISL29125 RGB color light sensor
Features
Key features16 bit RGB color sensor. 5.7 m lux -10,000 lux range. IR blocking filter
Interfaces
InterfaceI2C, GPIO
CompatibilitymikroBUS™
Electrical
Input voltage3.3V
Physical
Click board sizeS (28.6 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1988
ManufacturerMikroelektronika d.o.o.
EAN8606015077062
Warranty12 months
Shipping weight0.024 kg
  • 1 × Color 2 Click Board™

Contact us to confirm the full contents of the box.
