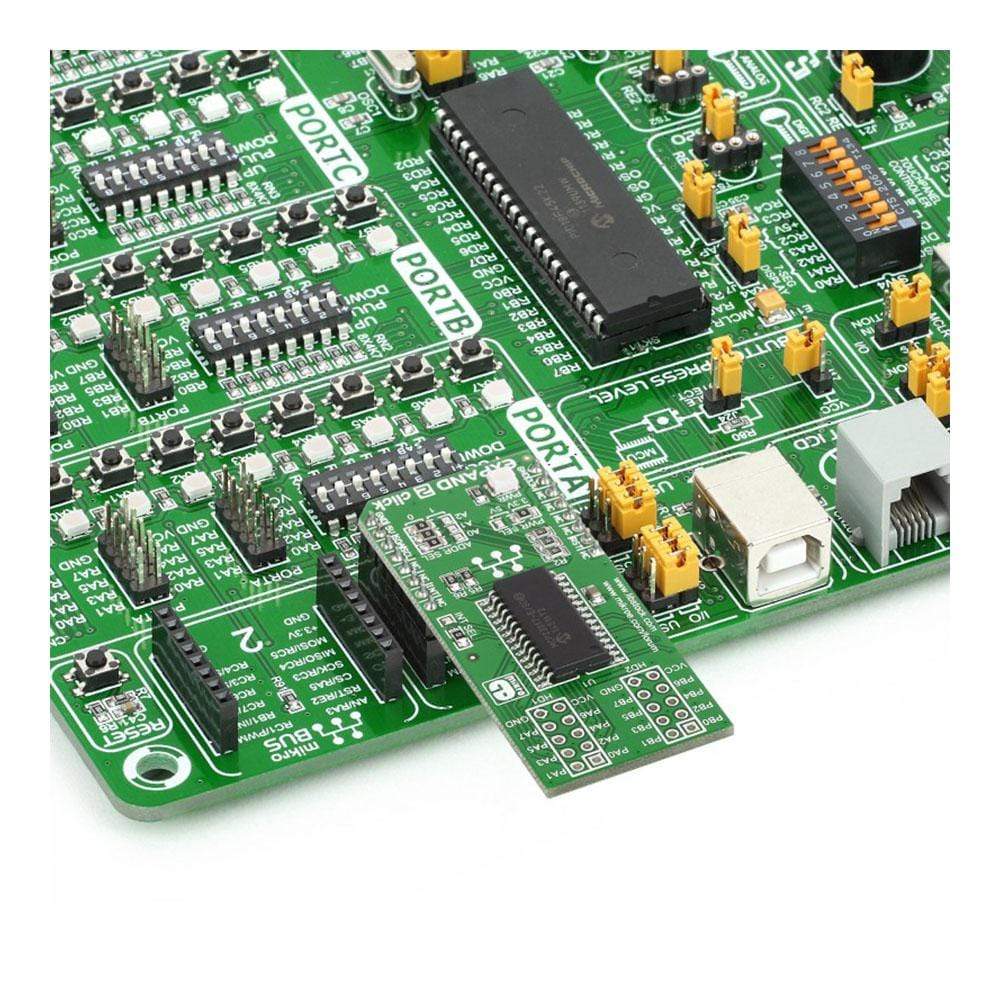

The Expand 2 Click Board™ is an accessory board in the mikroBUS form factor. It includes a 16-bit I/O expander MCP23017 with I°C clock speeds up to 10 MHz for higher throughput applications.
FAQs
Expand 2 Click Board
Frequently Asked Questions
Product Description
Product Description
IC/Module: MCP23017 Port Expander

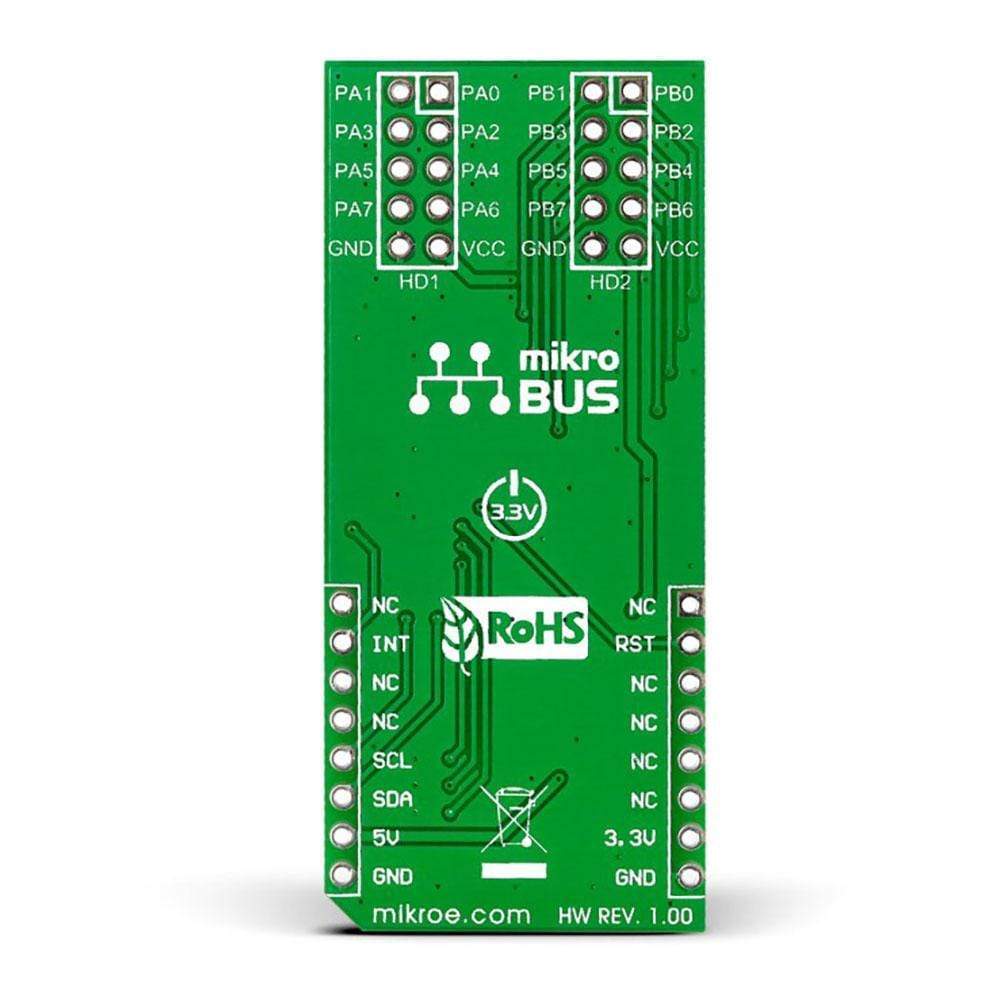

MCP23017 is a 16-bit remote bidirectional I/O port expander with configurable interrupt output pins. The 16 I/O port bits are divided into two 8-bit ports (marked HD1 and HD2). It has I2C clock speeds of 100 kHz, 400 kHz, or 1.7 MHz for higher throughput applications.
Expand 2 Click Board™ Vs Expand Click Board™
Expand 2 Click Board™ is introduced as the sequel to the original Expand Click Board™. Expand 2 Click Board™ uses MCP23017 expander whereas the original version includes the MCP23S17 chip. The only feature that differentiates these two versions is the use of I2C communication interface, instead of SPI.

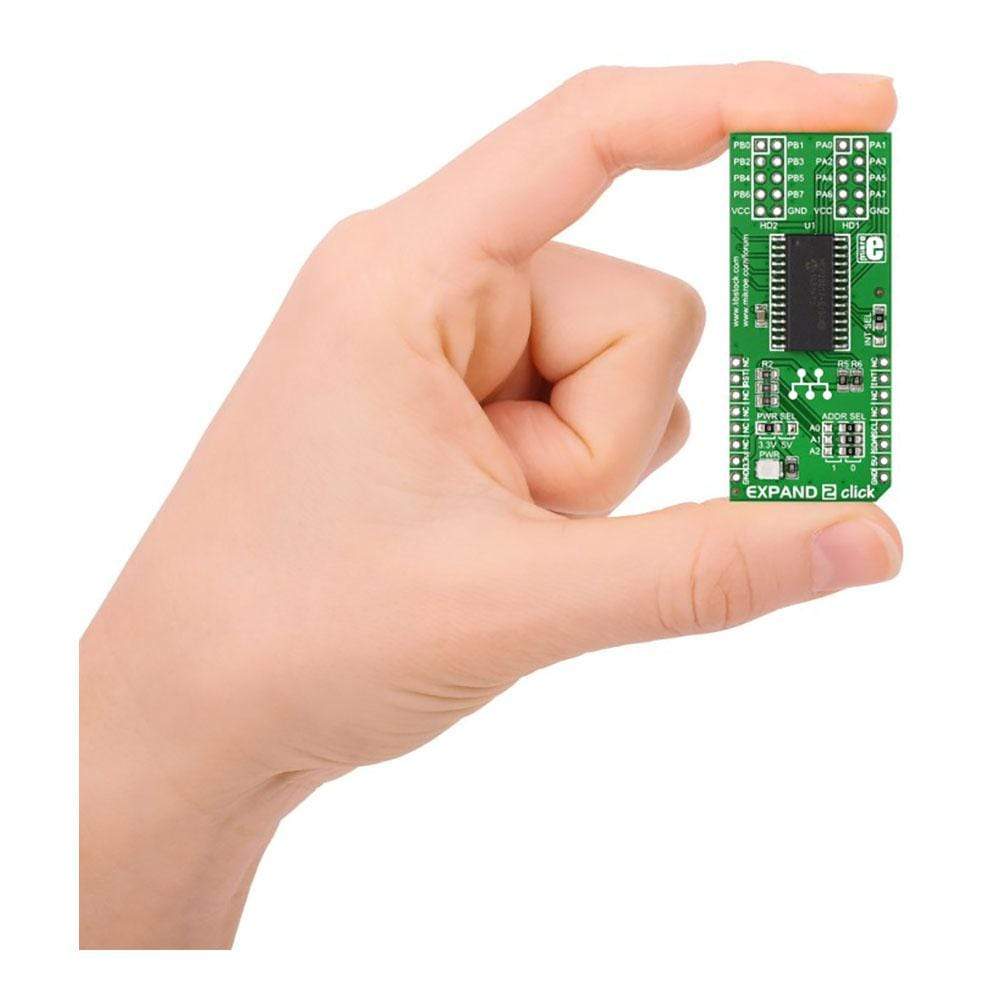

SMD Jumpers

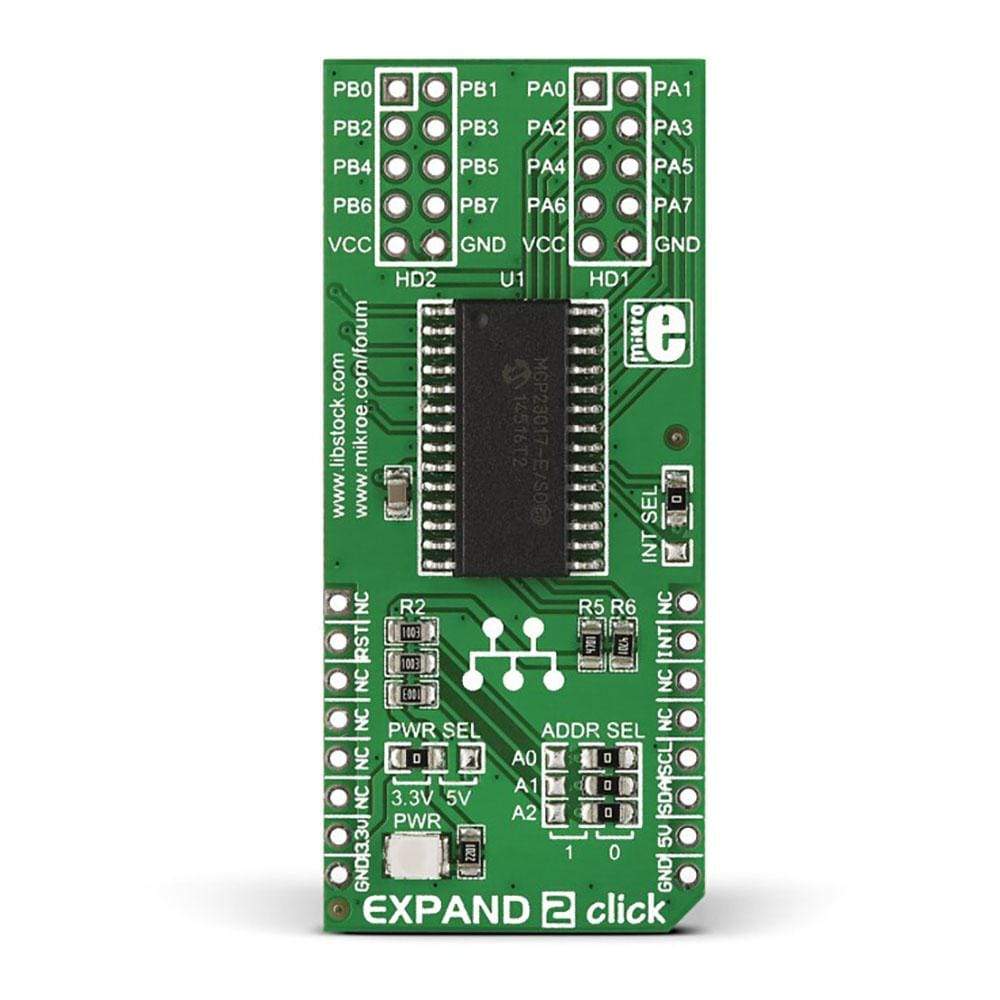

Expand 2 Click Board™ features four zero-ohm SMD jumpers. The PWR SEL is used to select between 5V or 3.3V power supply, and three hardware ADDR SEL allows the user to select the device address.
Key Features
- 16-bit I/O Expander with I2C Interface
- Can use the 3.3V or 5V Power Supply.
- mikroBUS: I2C Interface
