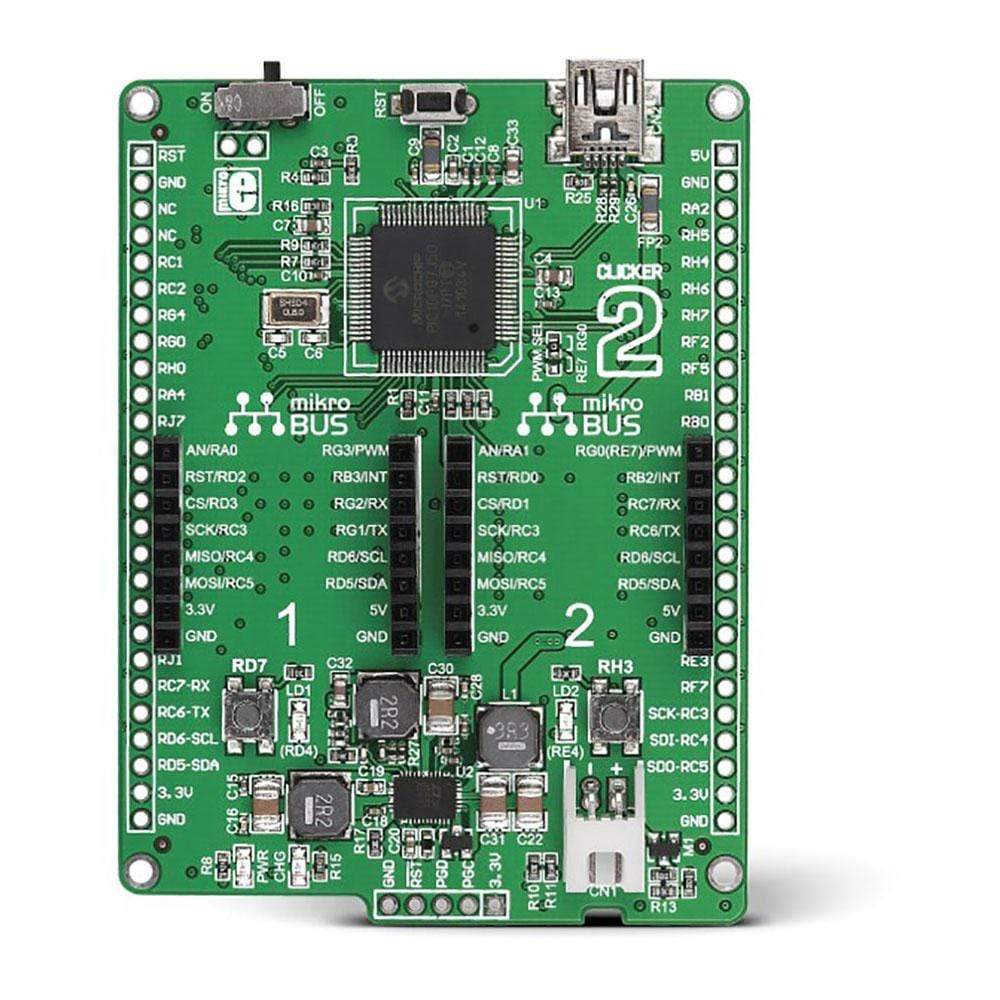

The Clicker Board™ 2 for PIC18FJ is a fast Click Board™ two-seater that lets the user move from idea to prototype and all the way to the final product. It has two MikroBUS sockets that are used to exploit the huge potential of Click Boards™.

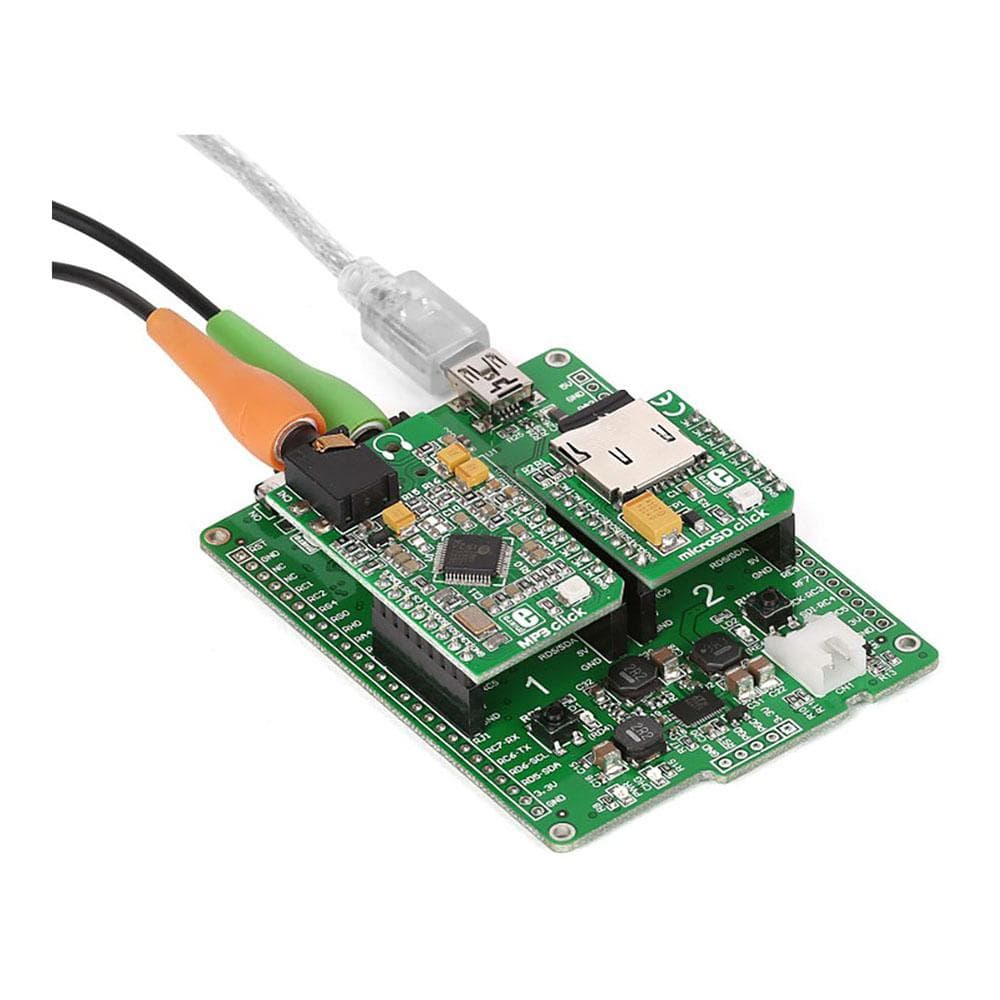

Add a new Click Board™ into the socket and you get new functionality added to the design. With a wide range of Click Boards™ available, the combination possibilities are numerous.
FAQs
Clicker Board 2 for PIC18FJ
Frequently Asked Questions
Product Description
Product Description
TECHNICAL SPECIFICATIONS
Thousands of possibilities with click boards
With two mikroBUS™ sockets on clicker 2, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 300 add-on boards. Blend different functionalities together and come up with new and original inventions. That’s just two clicks and your project is half-way done. Go ahead and play with a few ideas right away.
Programming
To make your prototyping experience as convenient as possible, clicker 2 for PIC18FJ is preprogrammed with a USB HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for PIC, dsPIC and PIC32 connector enables programming through external programmer/debugger.
Power Management
Clicker 2 for PIC18FJ features LTC®3586, a highly integrated power management and battery charger IC that includes a current limited switching PowerPath manager. LTC®3586 also enables battery charging over a USB connection. You can supply power to the board with a micro USB cable provided in the package. On-board voltage regulators provide the appropriate voltage levels to each component on the board.
POWERING YOUR INVENTIONS
Focus on your main idea because clicker 2 will take care of the details for you: your prototype already has a power management system in place. The onboard LTC®3586-2 IC will provide 3.3V or 5V to the clicks. It also turns the USB port into a battery charger. For convenience, clicker 2 for PIC18FJ features a reset button and an ON/OFF switch (you can also connect an external ON/OFF switch).
Processor
- PIC18F87J50, 12 MIPS of operation
- 128KB program memory
- 3.904 bytes RAM
Connectivity
- 52 programmable GPIOs
- 2 mikroBUS host sockets
- USB MINI-B connector
EXPANDING YOUR IDEAS

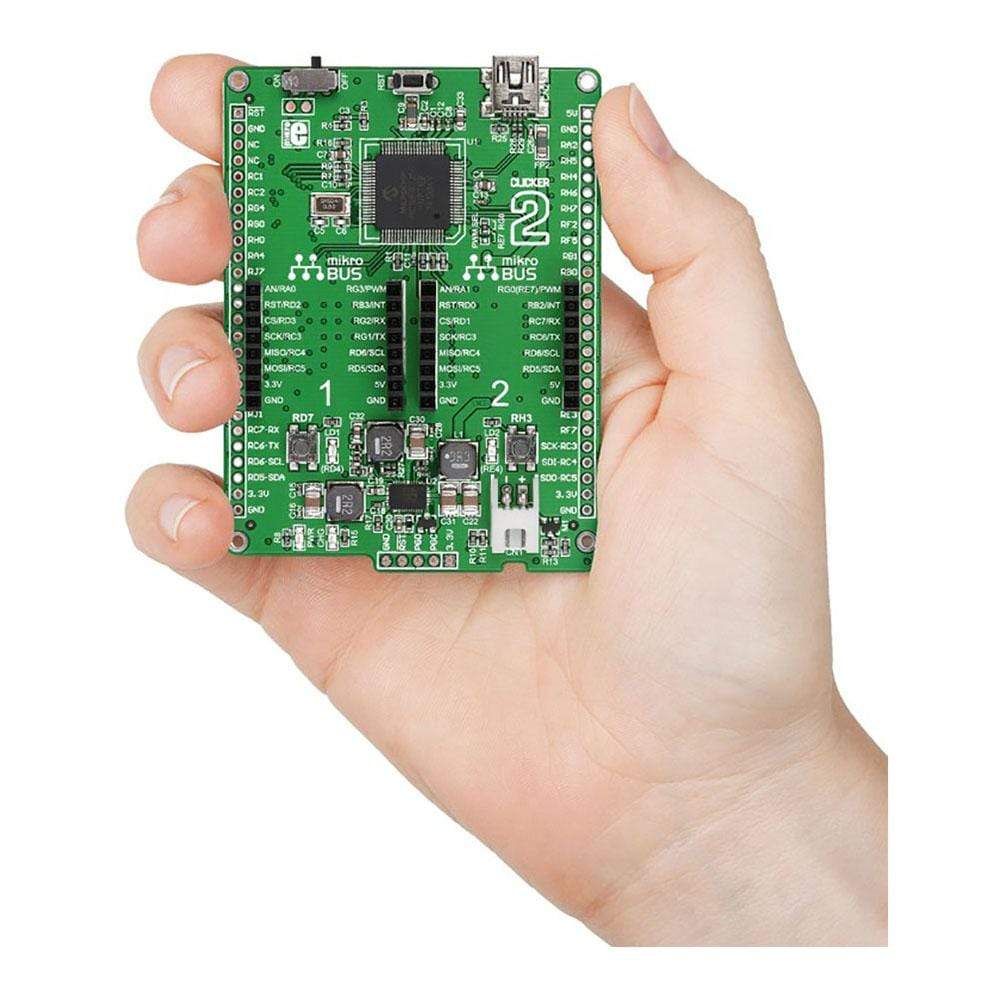

No idea is too big for clicker 2. Let your train of thought lead you anywhere. Consider all options, explore all directions. More click boards? Additional electronics? Done and done. clicker 2 has the same pocket-size form factor and the same pair of 1x26 connection pads as mikromedia boards. This makes it compatible with mikromedia shields letting you expand your device any way you want.
Efficiently eradicate any bugs and iron out your code until it’s wrinkle free and your clicker 2 device works perfectly—use mikroProg™ for PIC®. It’s a fast hardware debugger and programmer with outstanding performance. Especially when used together with our PIC® compilers.
To make your prototyping experience as convenient as possible, clicker 2 for PIC18FJ is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware.
HARDWARE DEBUGGING
Efficiently erradicate any bugs and iron out your code until it’s wrinkle free and your clicker 2 device works perfectly—use mikroProg™ for PIC®. It’s a fast hardware debugger and programmer with outstanding performance. Especially when used together with our PIC® compilers.
HID BOOTLOADER INSIDE
To make your prototyping experience as convenient as possible, clicker 2 for PIC18FJ is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware.
