Overview

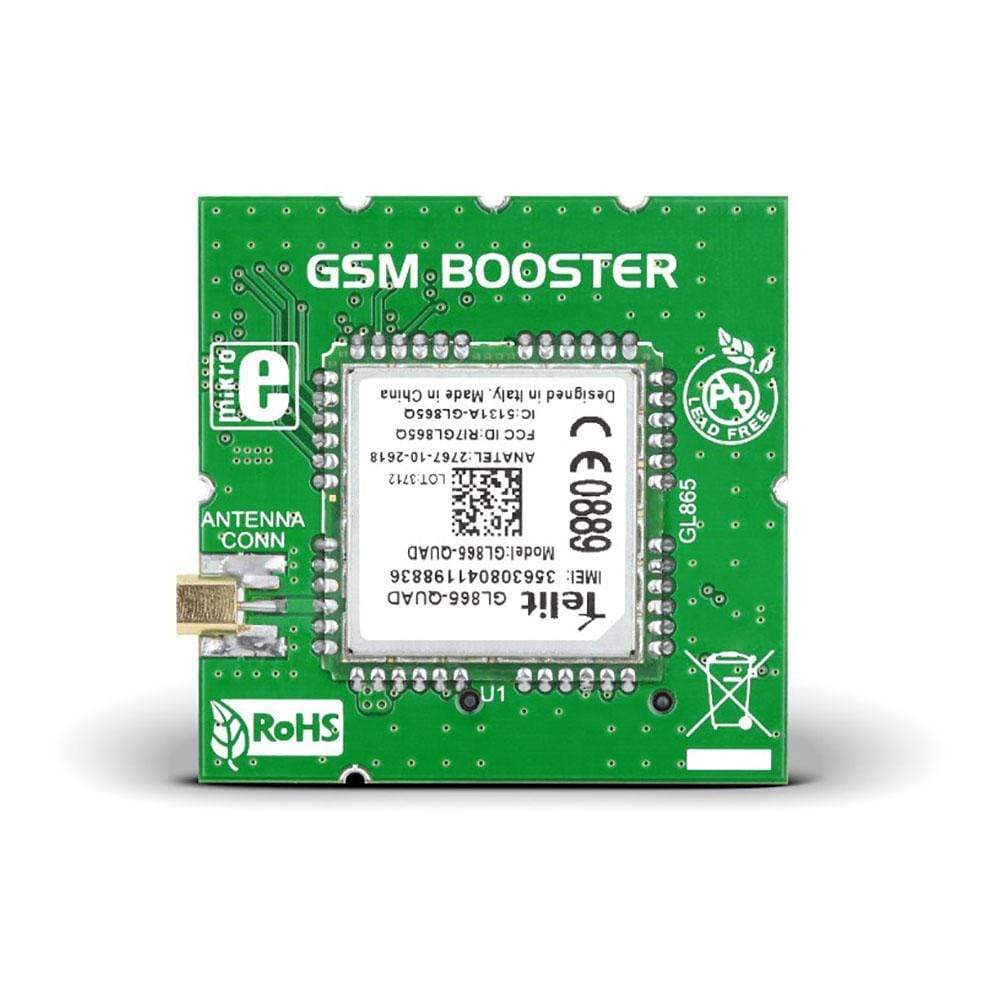

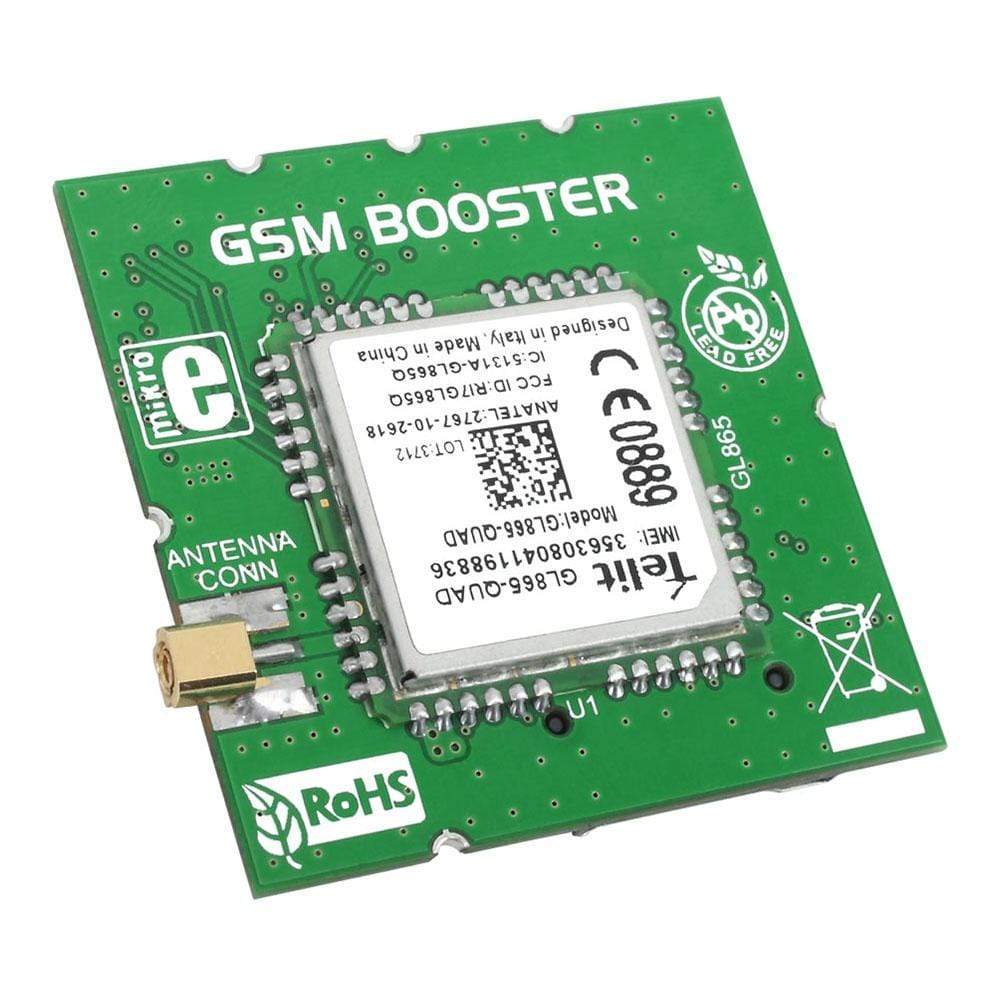

The GSM Booster Board is a pin-compatible replacement for the Telit GM862-QUAD module while retaining the same form factor of this popular module. GSM Booster contains Telit's new GL865-QUAD GSM module, MMCX GSM antenna connector, SIM card holder, etc.
The GSM Booster is a pin-compatible replacement for Telit GM862-QUAD module while retaining the same form factor of this popular, yet obsolete module. GSM Booster contains Telits new GL865-QUAD GSM module, MMCX GSM antenna connector, SIM card holder and CSTP 50 pin vertical SMD molex connector (male) for further connection. It can be used on MikroElektronika development boards such as SmartGM862, PICPLC16 v6, AVRPLC16 v6, PICPLC4 v6 or EasyGSM/GPRS GM862. There are four zero-ohm SMD jumpers used to select whether Hands-free (HF) or Handset (MT) audio pins are used. Jumpers are soldered in the HF position by default.
Please note that the SIM card and GSM antenna are not included in the package.
| Overview | |
|---|---|
| Applications | GSM Booster is a perfect choice to replace your obsolete GM862 with a new GL865-QUAD module, without having to change your existing designs |
| Product type | GSM/3G |
| Key components | |
| On-board modules | Telit’s GL865-QUAD GSM Highly Efficient Quad-band GSM/GPRS class 10 module, MMCX GSM antenna connector, SIM card holder and CSTP 50 pin vertical SMD molex connector (male) |
| Features | |
| Key features | Integrated TCP/IP protocol stack. Supports the m2mLOCATE Cell-ID based global-positioning feature. Compliant with eCall EU Directive. Pin-compatible replacement for Telit GM862-QUAD module |
| Key benefits | Compatible with existing MikroElektronika PLC and GSM/GPRS dev. boards |
| Interfaces | |
| Interface | GPIO |
| Electrical | |
| Power supply | 3.3V |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1428 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015074542 |
| Warranty | 12 months |
| Shipping weight | 0.01 kg |
-
1 ×
GSM Booster Board
Contact us to confirm the full contents of the box.
