Overview

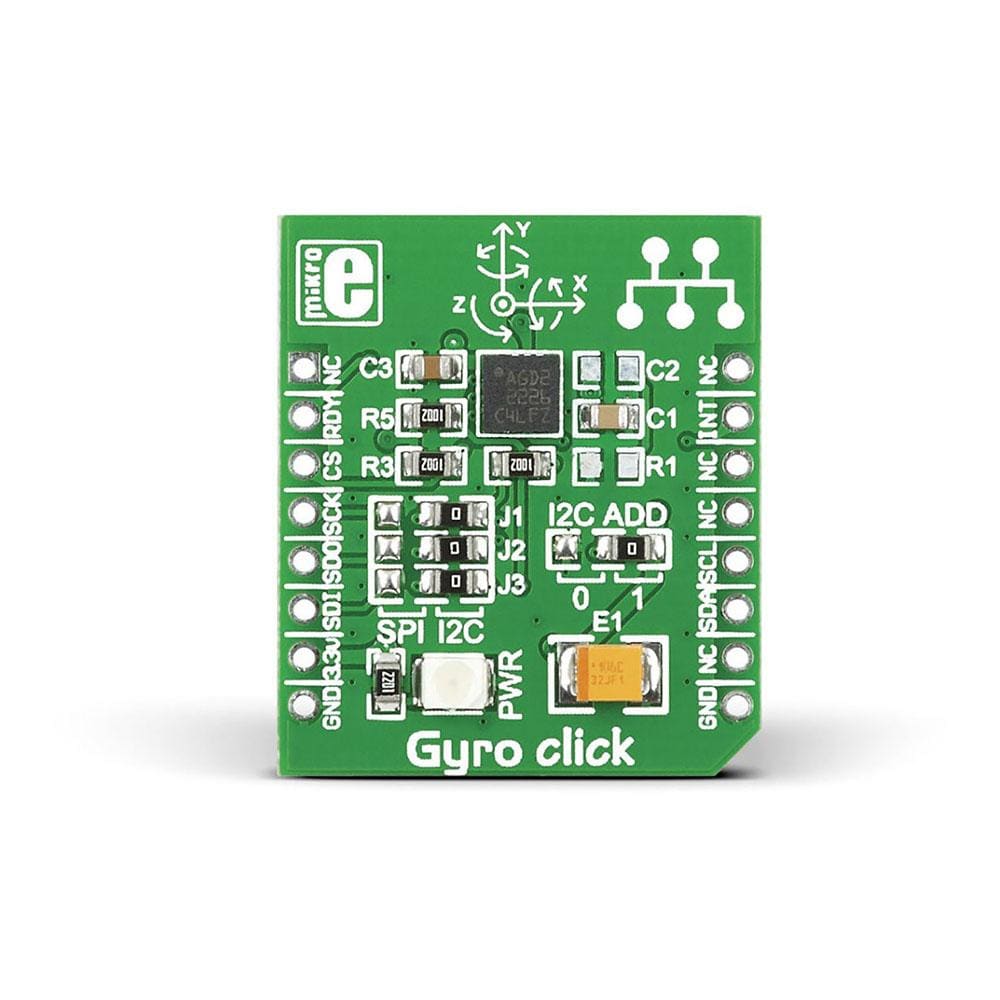

The Gyro Click Board™ is an add-on board in the mikroBUS form factor. It features an L3GD20 three-axis digital gyroscope module from ST capable of providing the measured angular rate, as well as ambient temperature.

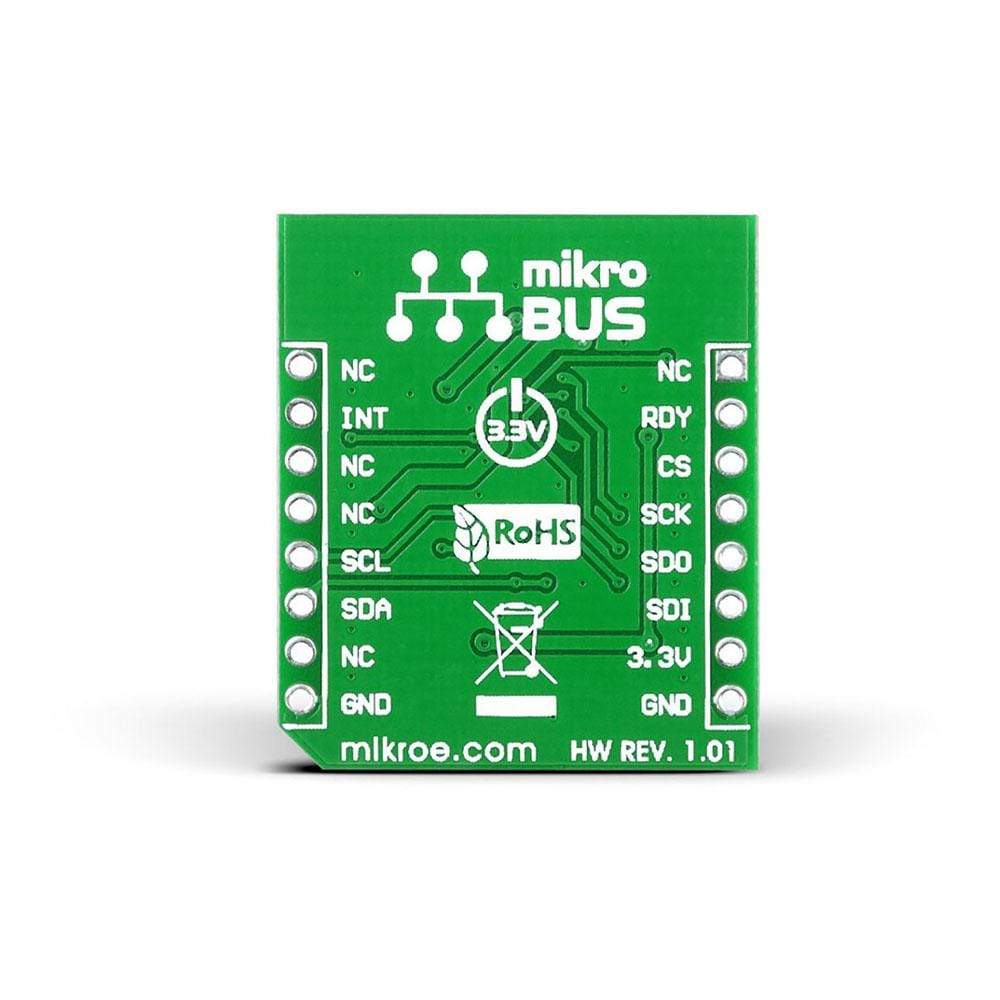

The Gyro Click Board™ is an add-on board in mikroBUS form factor. It features L3GD20 three-axis digital gyroscope module capable of providing the measured angular rate, as well as ambient temperature. The L3GD20 has a full scale of ±250 / ±500 / ±2000 dps and is capable of measuring rates with a user-selectable bandwidth. Gyro Click Board™ communicates with the target board microcontroller via mikroBUS SPI (MOSI, MISO, SCK, CS), I2C (SDA, SCL), INT and RST lines. The board is designed to use 3.3V power supply only. All these features make this board ideal for gaming and virtual reality input devices, motion control, GPS navigation systems and more.
| Overview | |
|---|---|
| Category | Motion |
| Applications | Board is an excellent choice for gaming and virtual reality input devices, motion control, GPS navigation systems and more |
| Key components | |
| On-board modules | L3GD20 three-axis digital gyroscope |
| Features | |
| Key features | 16 bit-rate value data output, 8-bit temperature data output. Three selectable full scales (250/500/2000 dps) |
| Interfaces | |
| Interface | I2C, GPIO, SPI |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |

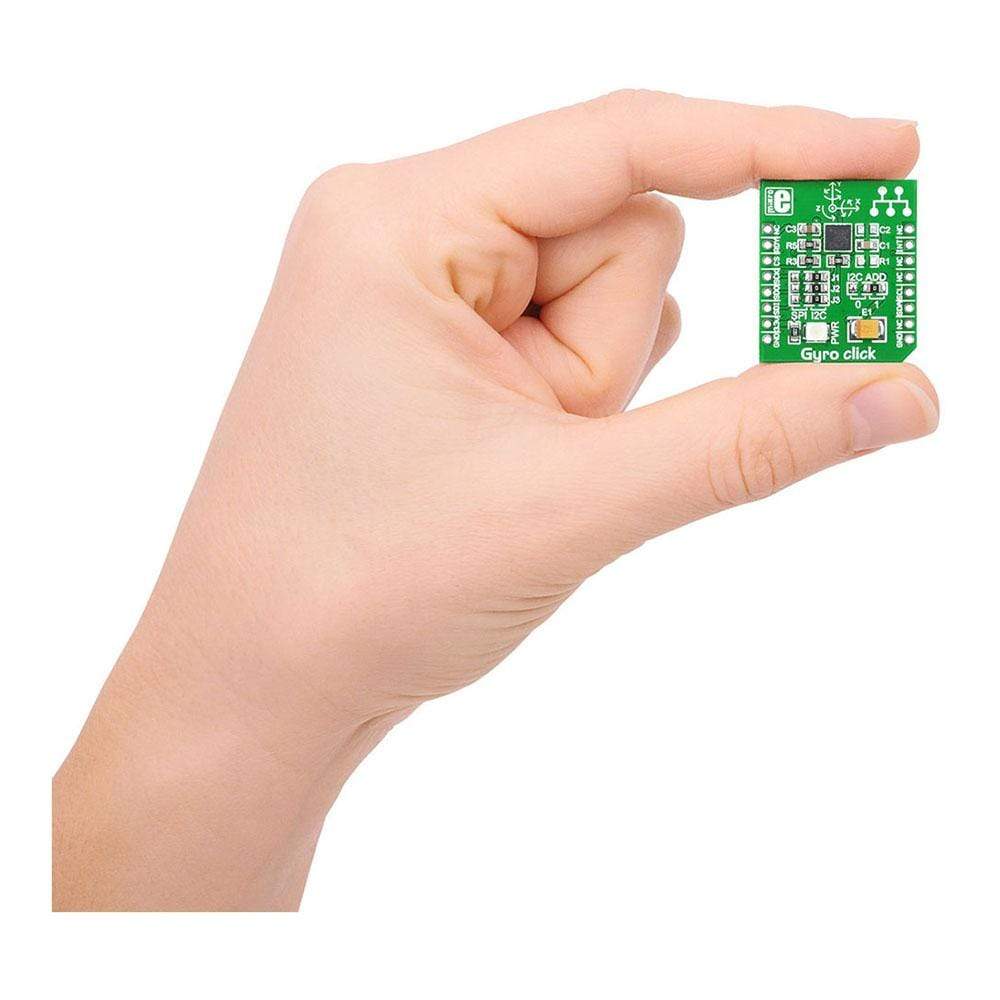

| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1379 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015074306 |
| Warranty | 12 months |
| Shipping weight | 0.03 kg |
-
1 ×
Gyro Click Board™
Contact us to confirm the full contents of the box.
