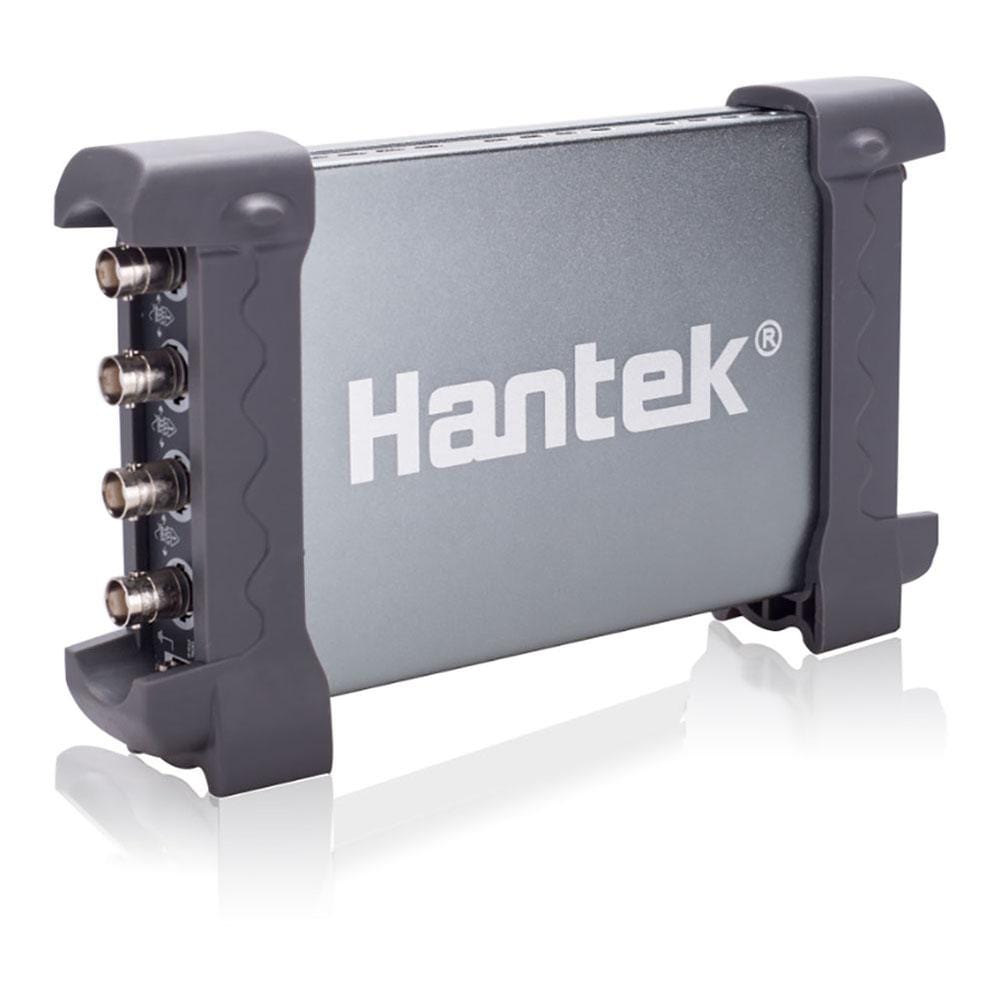

Hantek-6074BE 4-ch Automotive Oscilloscope

SKU: Hantek-6074BE

Product variants

£250.80 inc VAT

£209.00 exc VAT

£250.80 inc VAT

£209.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

If no stock shown above, Order NOW to ship within 10 working days

Order Quantity

The Hantek-6074BE USB oscilloscope is equipped with over 80 types of automotive measurement functions (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge). USB 2.0 interface plug and play, with no need for an extra power supply. Supports tablet PC; Support Win10/ Win8/Win7. Free software upgrades, higher cost performance; Support USBXI, easy to operate. 4 channels oscilloscope, 1GSa/s real-time sampling rate, 2mV-10V/DIV high input sensitivity and large input range. 70MHz high bandwidth, small size and easy to carry. Dynamic cursor tracking, waveform record and replay function.

View full details

Hantek 6074BE

Haven’t had chance use it properly yet but it seems ok for the money. The software seemed to crash every so often but maybe because I’m using Windows 10?

David, I suggest that you download the latest version of the software from the Hantek website. Windows 10 is supported by Hantek. Please get in touch with me if you are still having problems.

John Legg

Model	Hantek-6074BE
Bandwidth	70MHz
Automotive Measurement Function	Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition; Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position; CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus; Performer: Petrol/Diesel; Starter and charging circuits

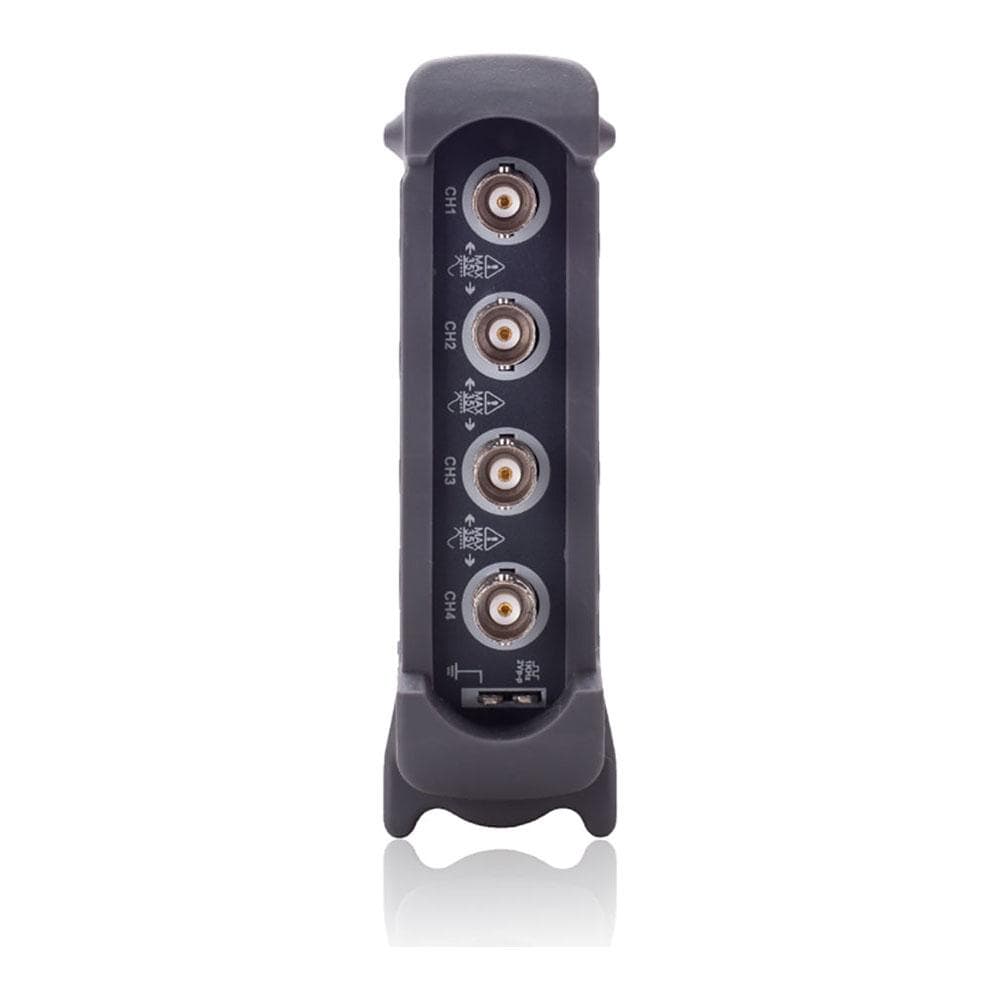

Channel	4-ch
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time Base Precision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div～10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe； 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth Limit	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume	175mm * 105mm * 25mm
Weight	0.9KG
Accessory	2 passive probes, 2 gator clip lines
