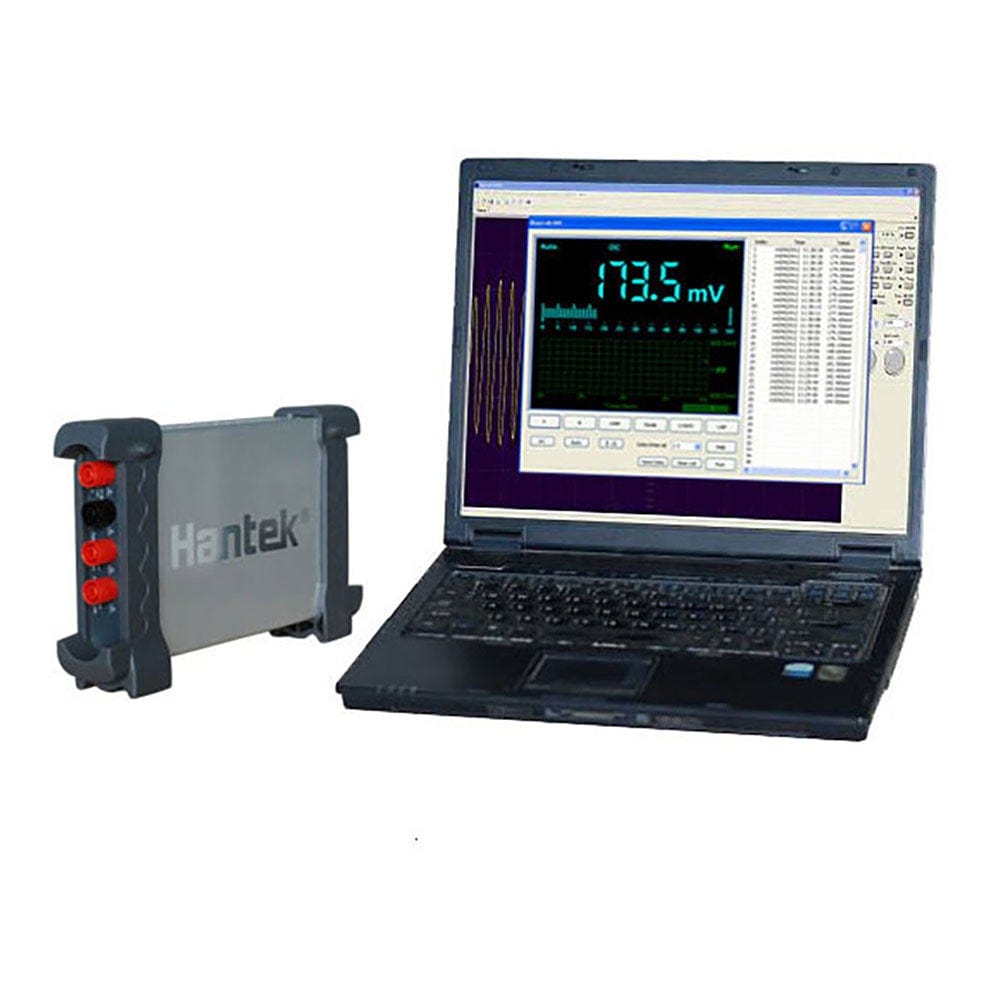

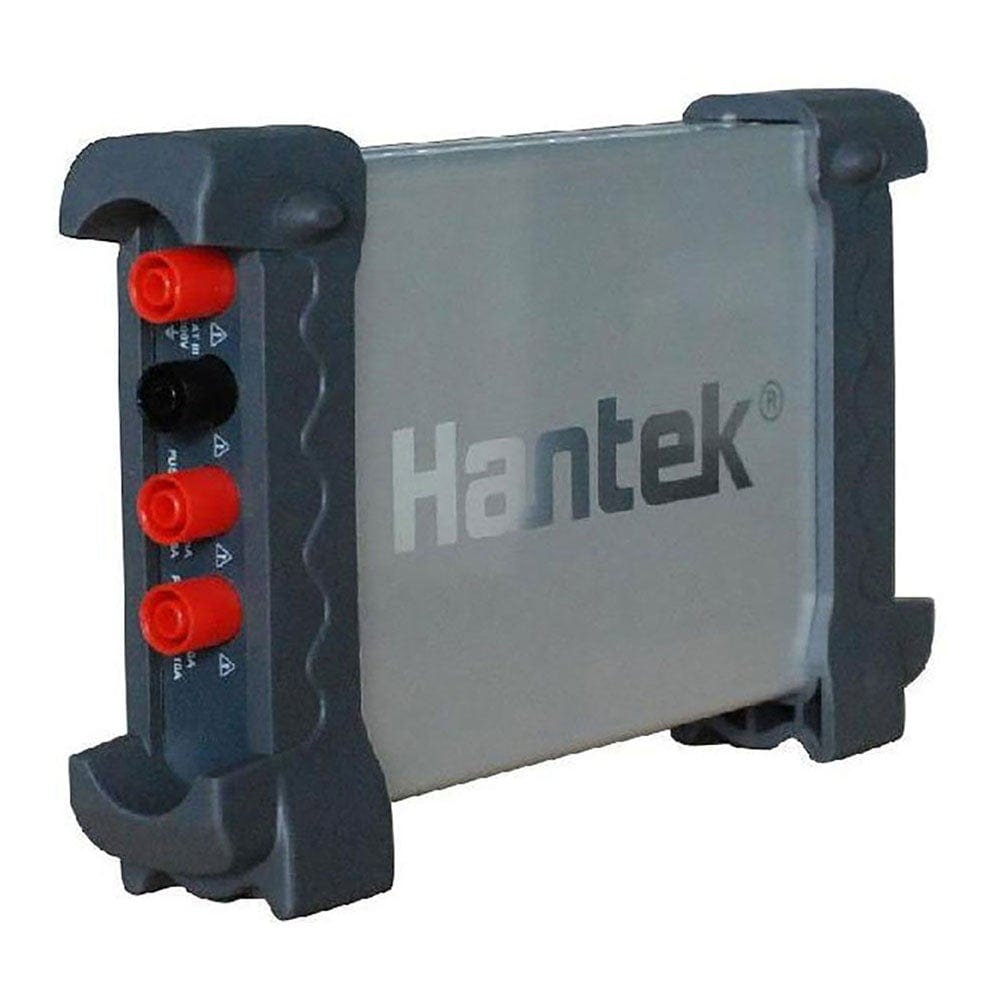

The Hantek-365B Data Logger will measure ac/dc voltage, ac/dc current, resistance and capacitance at regular, preset intervals and displays the result on a graph in the control software. This facilitates the identification of trends in data.

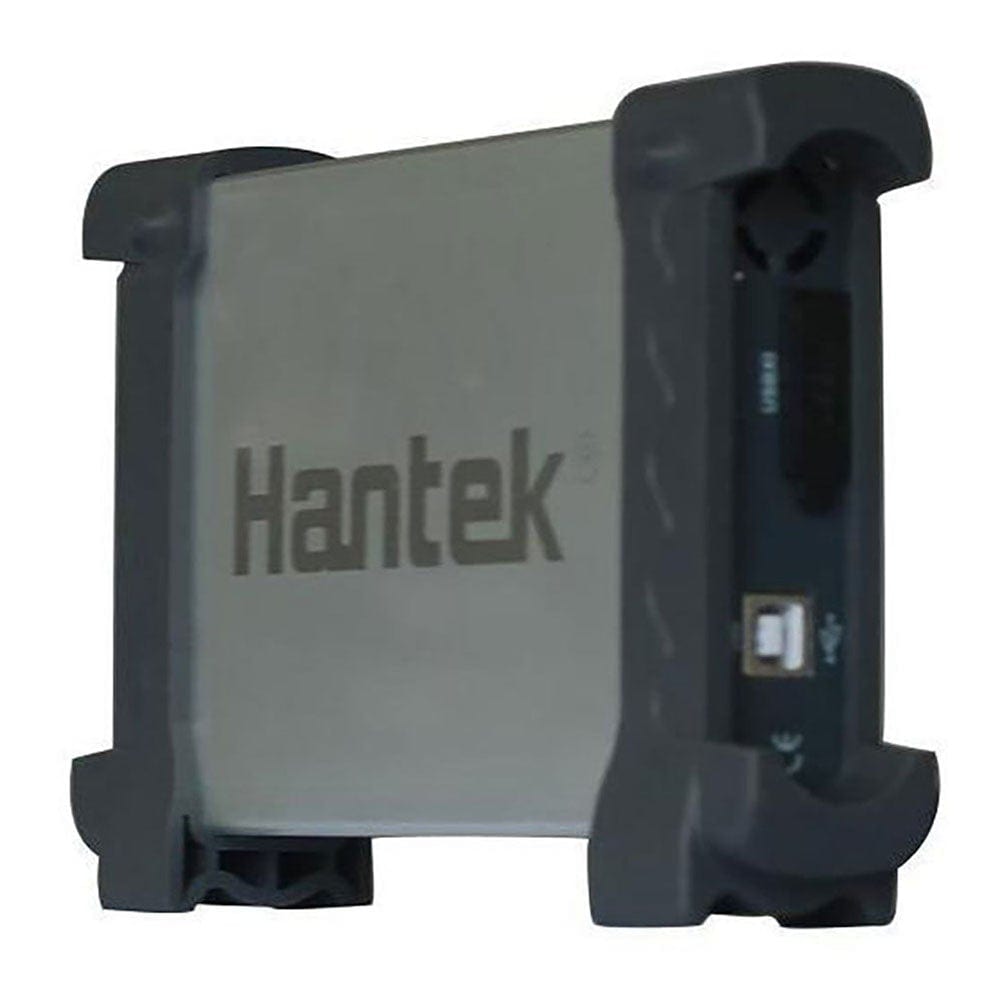

The unit takes its power from the USB cable.
The instrument is supplied with Windows software and communicates with the instrument via a USB cable.
The Hantek-365B also makes true RMS measurements of voltage and current.
FAQs
Hantek-365B USB Data Logger
Frequently Asked Questions
Product Description
Product Description
Specifications
| Function | Range | Accuracy | Resolution |
| DC Voltage | 60.00mV | ±1% ±1 digit | 10uV |
| 600.00mV | 100uV |
| 6.00V | 1mV |
| 60.00V | 10mV |
| 60.00V | 100mV |
| 800V | 1V |
| AC Voltage | 60.00mV | ±1%±3 digit | 10uV |
| 600.00mV | 100uV |
| 6.00V | 1mV |
| 60.00V | 10mV |
| 600.0V | 100mV |
| DC Current | 60.00mA | ±1.5%±1 digit | 10uA |
| 600.00mA | ±1%±1 digit | 100uA |
| 6.000A | ±1.5%±3 digit | 1mA |
| 10.00A | 10mA |
| AC Current | 60.00mA | ±1.5%±1 digit | 10uA |
| 600.00mA | ±1%±1 digit | 100uA |
| 6.000A | ±1.5%±3 digit | 1mA |
| 10.00A | 10mA |
| Resistance | 600 | ±1%±3 digit | 0.1Ω |
| 6.000 K | ±1%±1 digit | 1Ω |
| 60.00 K | 10Ω |
| 600.0 K | 100Ω |
| 6.000 M | 1KΩ |
| 60.00 M | ±1.5%±3 digit | 10KΩ |
| Capacitance | 40.00nF | ±1%±1 digit | 10pF |
| 400.00nF | 100pF |
| 4.000uF | 1nF |
| 40.00uF | 10pF |
| 400.0uF | 100pF |
| Attention: The smallest capacitance value that can be measured in 5nF |
| Diode | 0V~2.0V |
