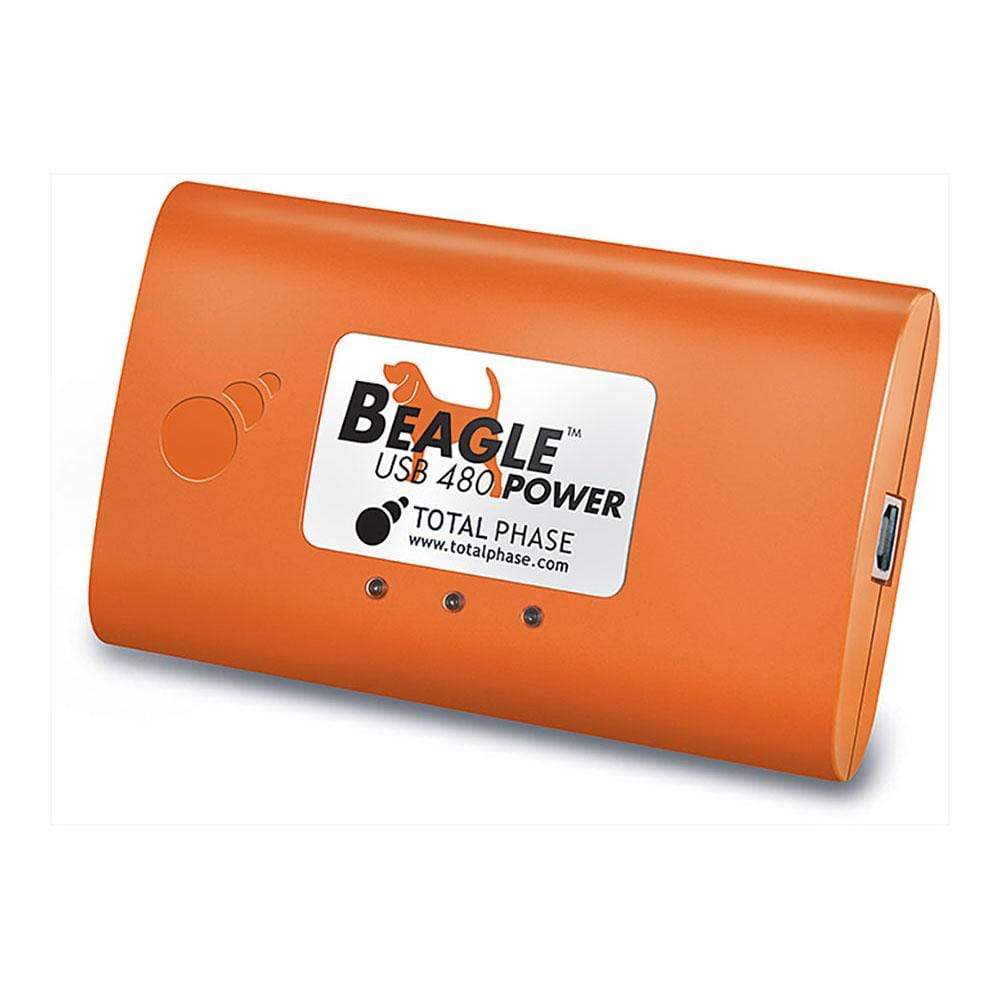

Total Phase Beagle USB 480 Power - Standard
Total Phase Beagle USB 480 Power - Standard
Note: The Total Phase Beagle USB 480 Power - Standard has been discontinued. It has been replaced by the Beagle USB 480 Power - Ultimate.

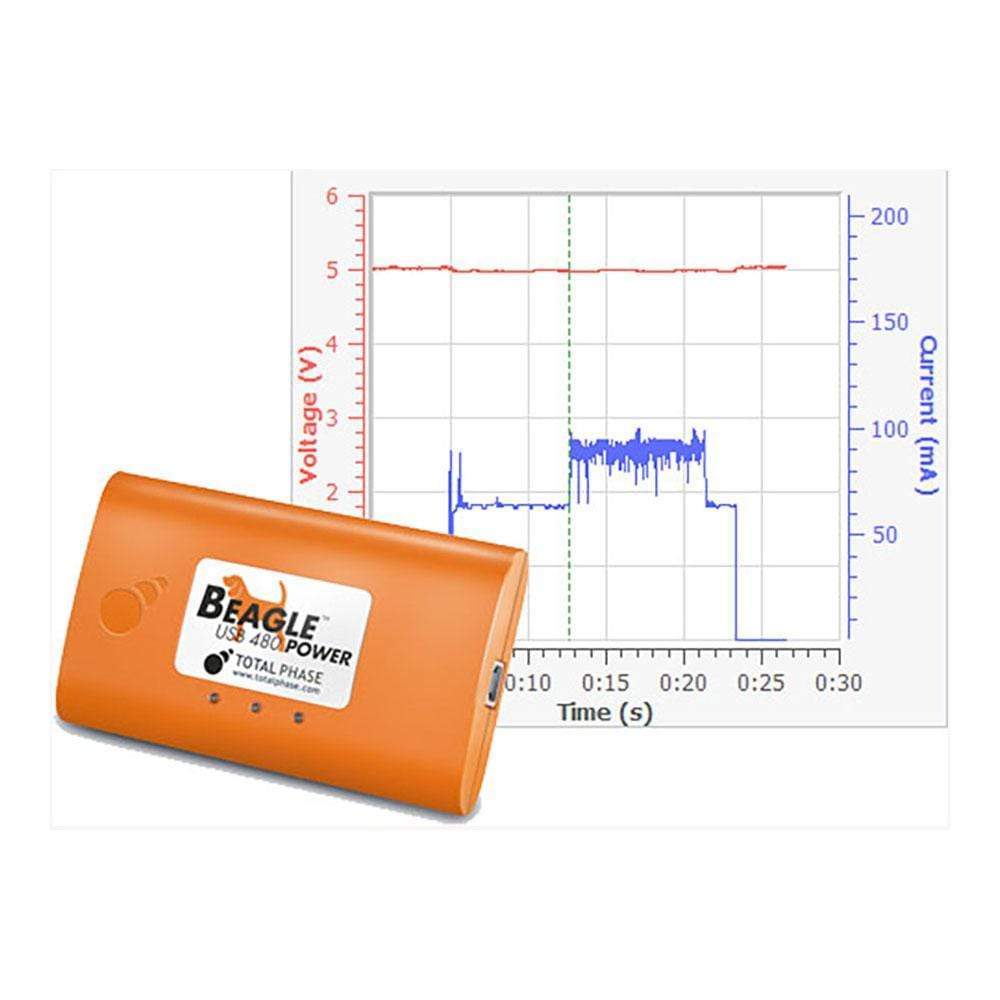

The Beagle™USB 480 Power Protocol Analyser - Standard from Total Phase is a cost-effective tool for every developer that requires unique, powerful features and a competitive edge over others. It has features like USB 2.0 advanced triggering (optional), extra-large hardware buffer, and one-Click Board™ correlation of protocol-level voltage and current measurement. This enables engineers to take advantage of the unique real-time data analysis and display, allowing them to debug the operation of connected embedded systems and optimise the power profile of their applications.
This Beagle™ Power Protocol Analyser has a large buffer capacity of 256 MB. However, the amount of data that can be captured depends on the RAM available on the computer used. It offers real-time class decoding of HID, Audio, Video, Still Image, Printer, Storage, Hub, Network, Mobile, and CDC data.
Total Phase Beagle USB 480 Power - Standard
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
What's Included
Total Phase Beagle USB 480 Power - Standard

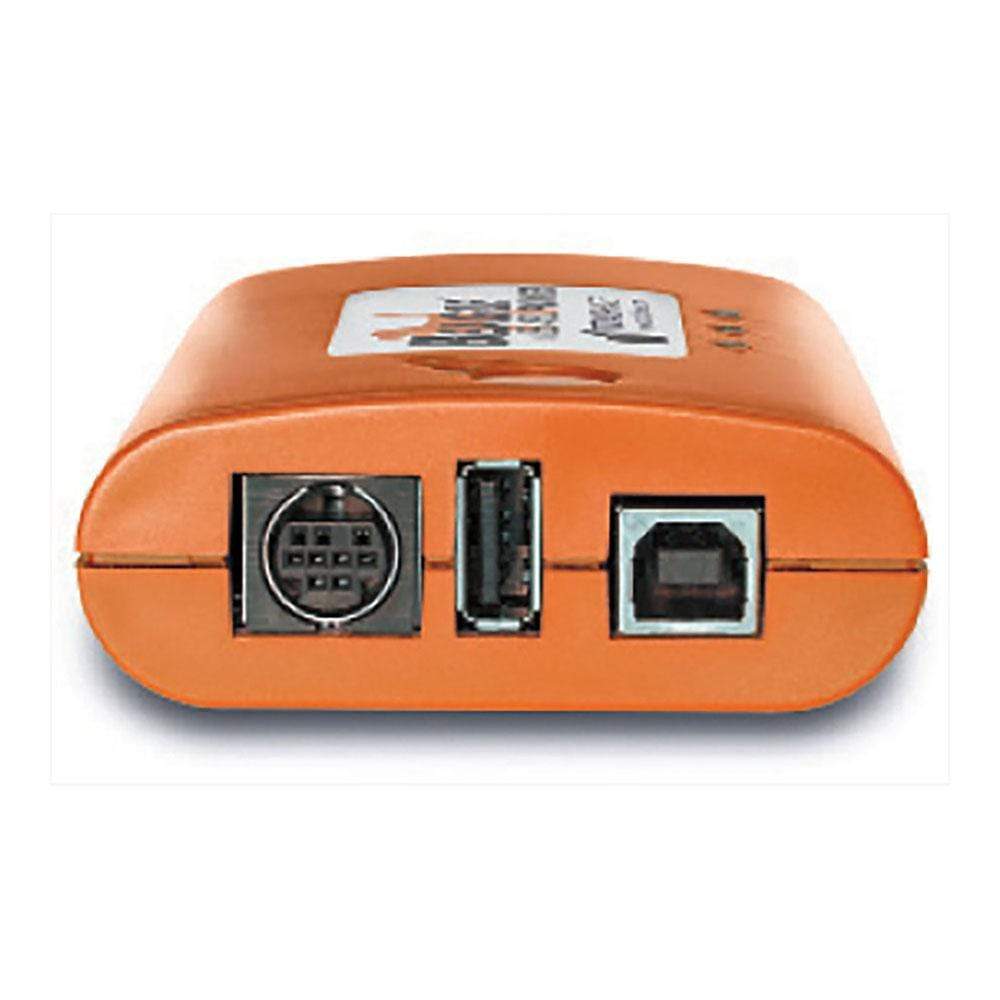

- Beagle USB 480 Power Protocol Analyzer unit
- (1) 6 foot USB A->B cable
- (1) 1 foot USB A->B cable
- (1) 1.5 foot Mini-DIN 9 Digital I/O cable
- Software: (downloadable from Total Phase)
