Total Phase TP500110 PROMIRA Serielle Plattform
Total Phase TP500110 PROMIRA Serielle Plattform
SKU: TP500110
Verfügbarkeit für Abholungen konnte nicht geladen werden
Key Features
Overview

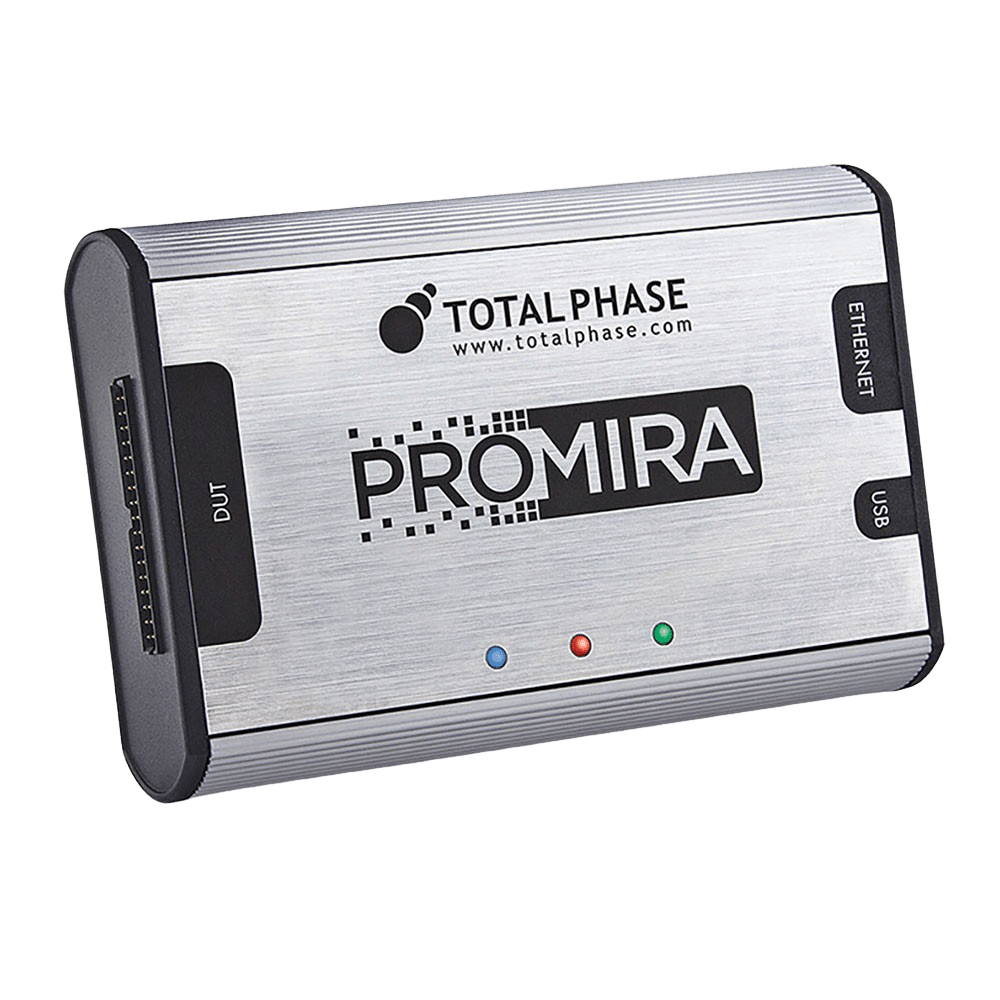

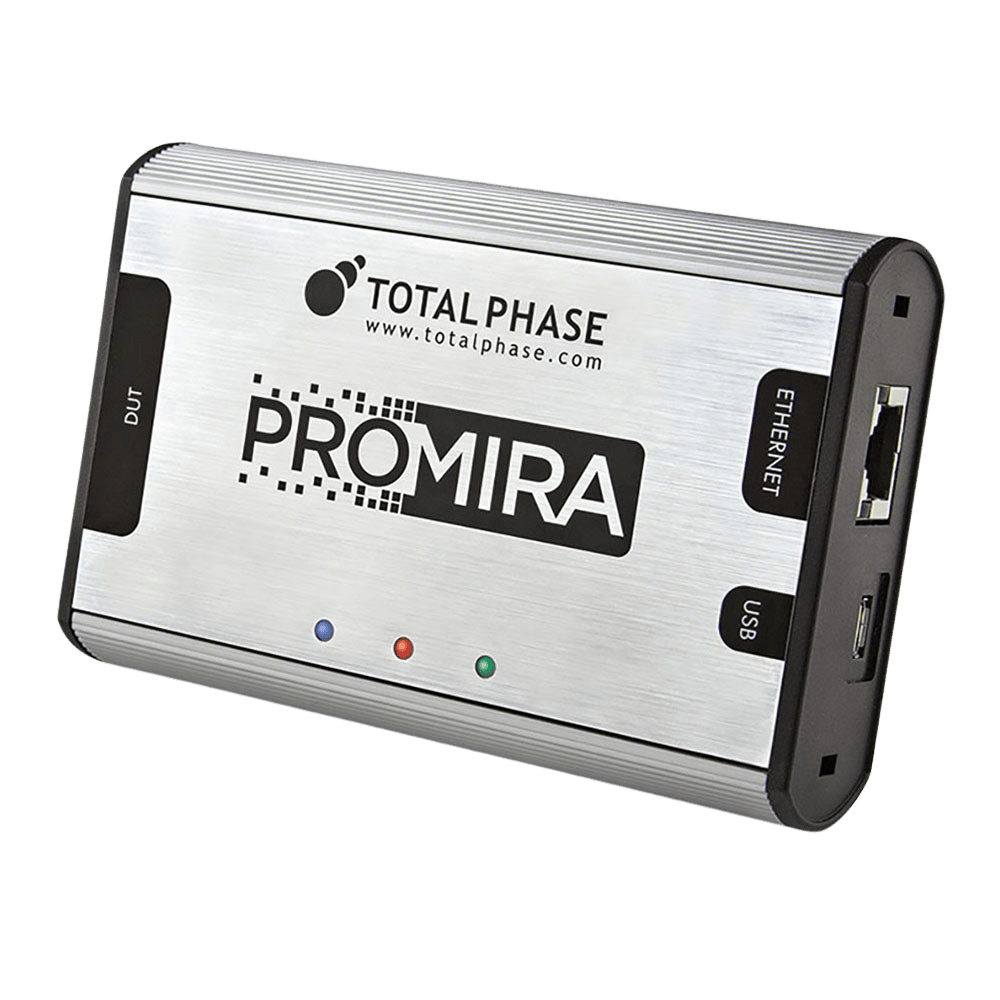

The Total Phase PROMIRA Serial Platform (TP500110) represents the pinnacle of serial interface development tools, delivering unparalleled versatility for I2C, SPI, and eSPI applications. This FPGA-based platform features integrated level shifting from 0.9 V to 5 V, eliminating the need for external adapters whilst supporting both USB 2.0 and Gigabit Ethernet connectivity for seamless integration into any development environment.

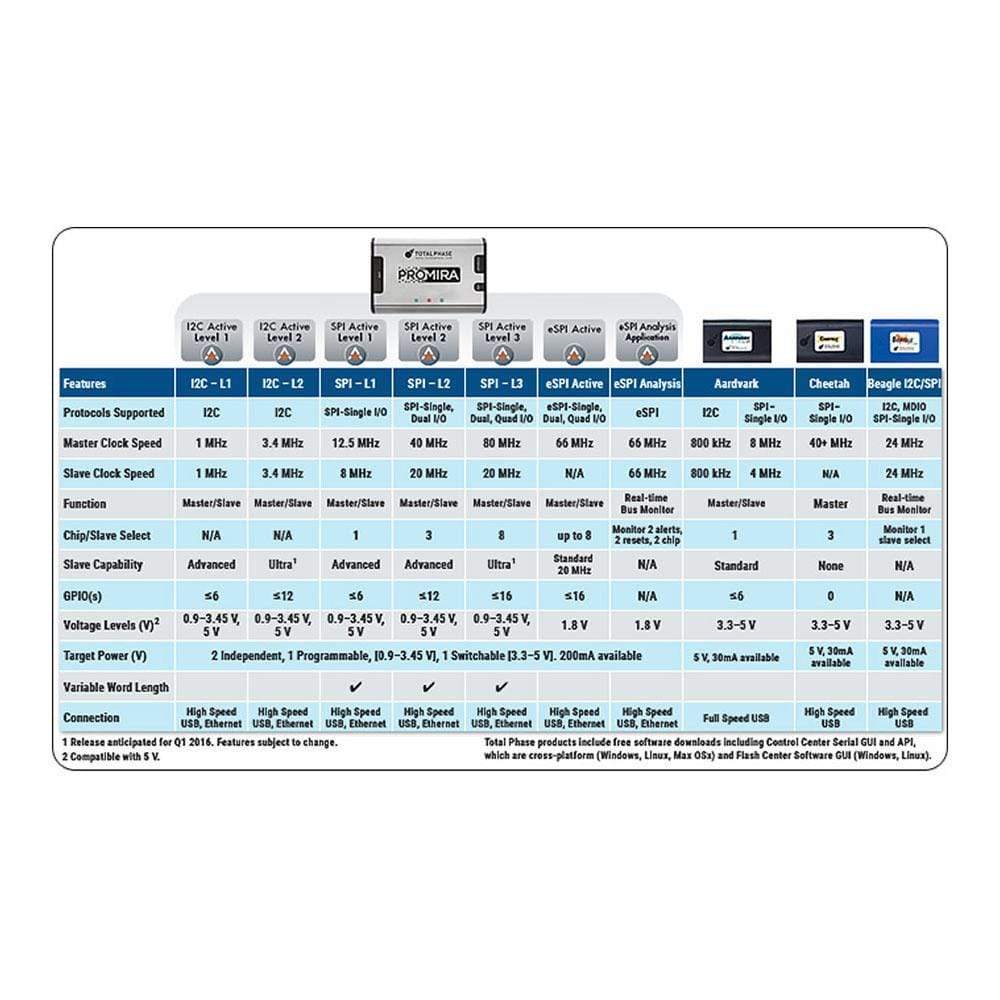

Built upon a modular, field-upgradeable architecture, the PROMIRA platform accepts downloadable applications that extend its capabilities without hardware modifications. Engineers can configure multiple protocol applications available from Debug Store's Total Phase catalogue:
I2C Applications
- I2C Active Level 1 Application (TP600110) – Delivers twice the programming speed of the Aardvark I2C/SPI Host Adapter with Fast Mode Plus support up to 1 MHz.
- I2C Active Level 2 Application (TP600210) – Provides I2C master/slave operation up to 3.4 MHz with High-Speed Mode specification compliance.
SPI Applications
- SPI Active Level 1 Application (TP600510) – Supports clock speeds up to 12.5 MHz master and 8 MHz slave functionality.
- SPI Active Level 2 Application (TP600610) – Enhanced performance with clock speeds up to 40 MHz master and 20 MHz slave operation with dual I/O support.
- SPI Active Level 3 Application (TP600710) – Premium performance delivering up to 80 MHz master and 20 MHz slave speeds with Quad I/O support.
eSPI and Specialised Applications
- PROMIRA eSPI Analysis Application (TP601010) – Monitors eSPI communication across data lines, alert lines, and reset signals up to 66 MHz. Explore more eSPI analysers at Debug Store.
- A2B Bus Monitor Level 1 Application – Real-time capture and analysis of Analog Devices Automotive Audio Bus traffic with superframe decoding and multi-channel audio monitoring.
- Advanced Cable Tester Level 1 Application – Critical safety testing for USB Type-C cables including continuity, power handling, and E-Marker verification.
- Advanced Cable Tester Level 2 Application – Enhanced cable testing with data throughput measurement up to 12 Gbps and signal integrity validation.
Complete software suites including Control Center, Data Center, and Flash Center provide intuitive operation, whilst comprehensive APIs support C, Python, Visual Basic, and C# for custom automation. The platform's 200 mA supplemental power capability and cross-platform compatibility with Windows, Linux, and macOS ensure reliable operation across diverse engineering workflows. Additional accessories include the PROMIRA eSPI Bus Analyser Kit (TP601100), Advanced Cable Tester v2 (TP800210), and the I2C/SPI Activity Board (TP240310) for complete development solutions.
Each application includes one year of software maintenance with automatic extension when purchasing additional applications, ensuring continuous support and updates for your complete PROMIRA ecosystem available through Debug Store.
THIS PRODUCT IS NOT AVAILABLE FOR DELIVERY TO THE USA
Downloads
Why Engineers Choose The Total Phase TP500110 PROMIRA Serielle Plattform
Unmatched Protocol Versatility
Professional-Grade Performance Standards
Future-Proof Investment Protection
Die Total Phase PROMIRA™ Serial Platform ist das fortschrittlichste serielle Hostgerät von Total Phase. Die Funktionalität des Geräts wird durch separat lizenzierte Firmware-Anwendungen bestimmt, die bei Bedarf erworben werden können.
DIESES PRODUKT IST NICHT FÜR DIE LIEFERUNG IN DIE USA VERFÜGBAR
Wichtig
Wenn Sie eine Bestellung für Total Phase PROMIRA und Anwendungen aufgeben, muss PROMIRA von Total Phase in deren US-Fabrik konfiguriert werden. Bitte rechnen Sie mit 5 Werktagen, bevor wir es Ihnen vom Debug Store aus zusenden können.
| General Information | |
|---|---|
Part Number (SKU) |
TP500110
|
Manufacturer Manufacturer of the product
|
|
| Physical and Mechanical | |
Weight |
0.5 kg
|
| Other | |
EAN |
5055383686889
|
Questions and Answers
-
Can I Purchase Additional Options (levels) for PROMIRA at a Later Time? What Is the Procedure for That?
Yes. You can buy PROMIRA licence keys at any time and install them yourself.
This video explains how to install licence keys: https://www.youtube.com/watch?v=JW8WnnNROWg
-
What Connectivity Options Are Available on the PROMIRA Serial Platform?
The platform has high-speed USB 2.0 and Gigabit Ethernet, for local benchtop use or remote automation over a network.
-
What Software Is Included with the PROMIRA Serial Platform?
The platform includes:
- Control Center (I2C/SPI control)
- Data Center (eSPI analysis)
- Flash Center (memory programming)
- APIs supporting multiple programming languages
-
What Operating Systems Are Compatible with PROMIRA Software?
Control Center Serial, Data Center and the APIs run on Windows, Linux and macOS; Flash Center runs on Windows and Linux.
-
Can the PROMIRA Platform Supply Power to Target Devices?
Yes. The Promira can supply up to 200 mA to a target: up to 100 mA at 5 V, and up to 100 mA at the selected signalling voltage between 0.9 V and 3.3 V.
-
What Are the Maximum Supported I2C and SPI Speeds?
PROMIRA supports I2C master and slave speeds up to 3.4MHz, SPI master up to 80MHz and SPI slave up to 20MHz.
-
Can PROMIRA Operate as Both a Master and a Slave Device?
Yes, PROMIRA can act as both master and slave for I2C and SPI.
-
How Is PROMIRA Connected to the Host System and What Are Its Power Requirements?
PROMIRA connects via USB 2.0 or Gigabit Ethernet. It supports signalling voltages from 0.9V to 3.3V (5V tolerant) and can supply up to 200mA to power target devices.
-
Can I Add Additional Protocol Options After Purchase?
Yes. You can buy and install additional PROMIRA application licences (such as higher I2C/SPI levels or eSPI analysis) at any time. Licence keys are delivered electronically and you install them yourself, without returning the device.
-
How Do I Update the PROMIRA Firmware or Install a New License?
Use the PROMIRA Update Utility or Control Center Serial software. During the update the device appears as an external storage drive, and you copy the firmware or licence file onto it. Then safely eject the device and reboot it to complete the update.
-
What Operating Systems Does PROMIRA Support?
PROMIRA works with Windows, Linux and Mac OS X.
-
What Protocols Does the Total Phase PROMIRA Serial Platform Support?
The PROMIRA Serial Platform supports I2C master/slave up to 3.4 MHz, SPI master up to 80 MHz and SPI slave up to 20 MHz, and eSPI analysis up to 66 MHz via the eSPI Analysis application, with eSPI master simulation through free example files on an SPI Active licence.
-
How Does the PROMIRA Platform Handle Different Voltage Requirements?
The platform has integrated level shifting with signalling from 0.9 V to 3.3 V, and its inputs are 5 V fault tolerant, so most low-voltage targets need no external level shifter. It does not drive 5 V signal levels.
-
Can Additional Protocol Capabilities Be Added to the PROMIRA Platform Later?
Yes. PROMIRA is field-upgradeable, so you can download and install new application licences for additional protocols without hardware changes.
