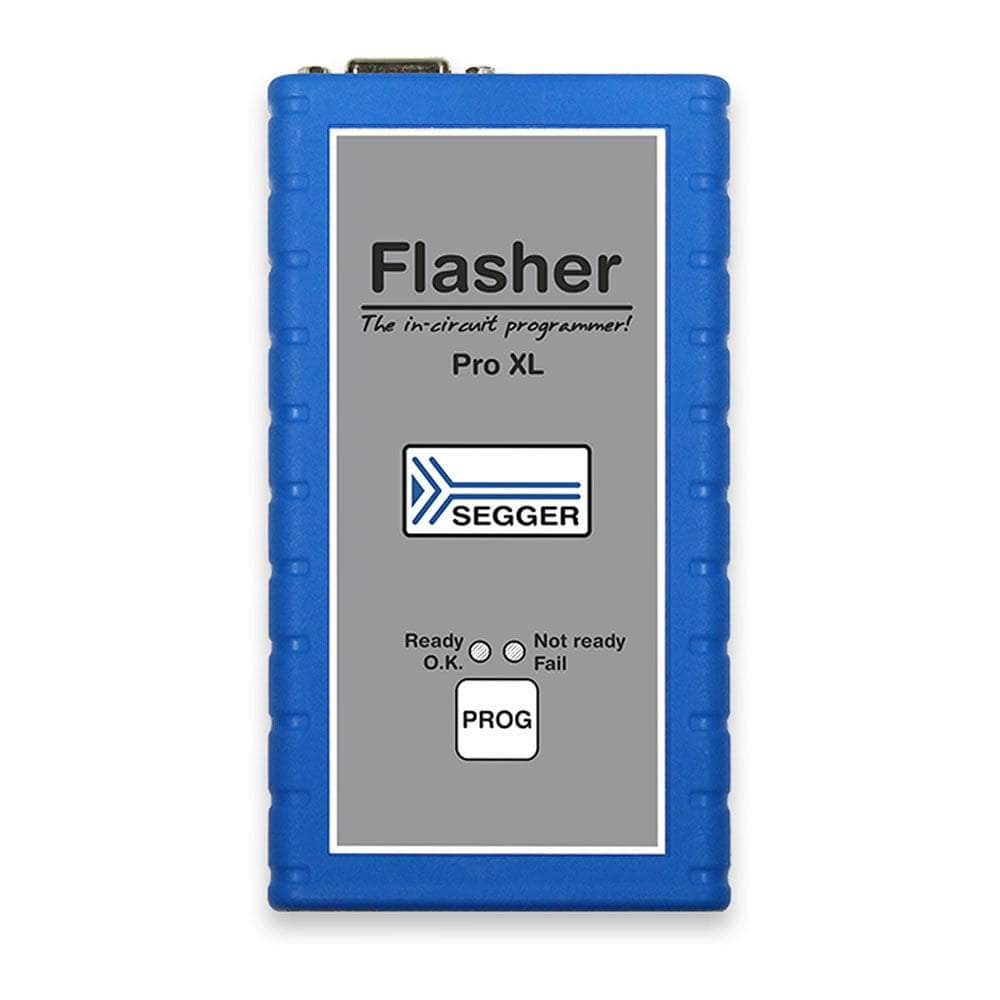

SEGGER Flasher PRO XL Programmierer

Overview

Introducing SEGGER Flasher PRO XL: The Ultimate In-System Programming Tool

Unlock the true potential of your PCB with SEGGER's Flasher PRO, the cutting-edge in-system programming (ISP) tool designed to unleash the power of non-volatile memory. Say goodbye to limitations and hello to seamless programming as we redefine the way you interact with microcontrollers and SoCs. Discover the ISP revolution, also known as ICP or in-circuit programming.

Unleash the Power of Flash Memory

With SEGGER Flasher PRO, you have the ultimate freedom to program a wide range of memories. From the internal flash memory of microcontrollers and SoCs to external parallel flash memory (CFI Flashes), and (Q)SPI flashes, our ISP tool handles it all with precision and ease. (Q)SPI flashes can be directly programmed by connecting to the pins, ensuring a seamless experience.

Fast, Robust, Reliable: Your Trustworthy Programming Companion

Designed to meet and exceed industry standards, the Flasher PRO is fast, robust, and reliable. Count on its superior performance to easily handle your Flash programming requirements. Whether you need stand-alone mode or prefer to operate through your PC, the Flasher PRO adapts to your needs effortlessly.

Versatile Connectivity Options

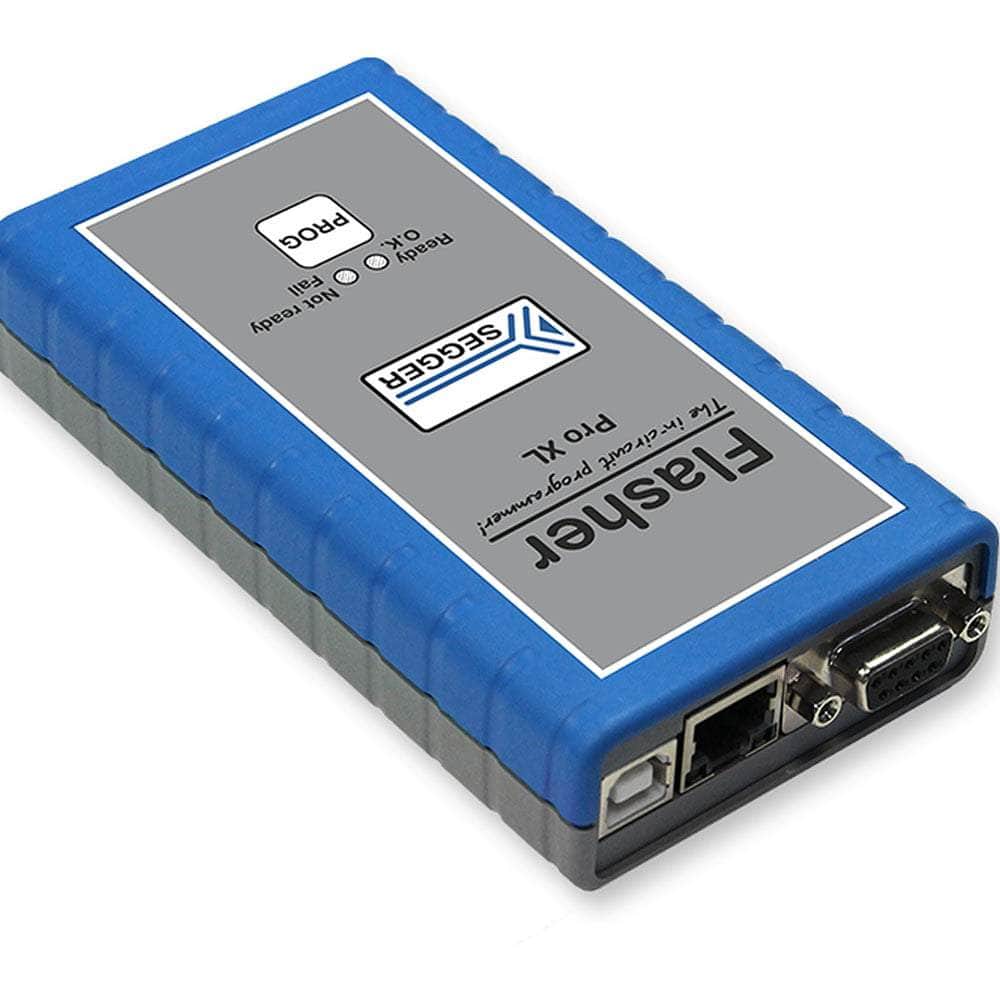

Embrace versatility with Flasher PRO's flexible connectivity options. Connect via USB, Ethernet, or an RS232 interface, depending on your setup and requirements. Enjoy the convenience of seamless data transfer, making your programming tasks efficient and hassle-free.

Store More, Program More

The Flasher PRO XL is the extra-large memory version of SEGGER’s Flasher PRO. With all the same features of the Flasher PRO, the XL expands upon the original’s 128 MB memory with 2 gigabytes—16 times as much as the internal flash memory. This memory can be used to store a variety of large program images.

Adaptability at Its Best

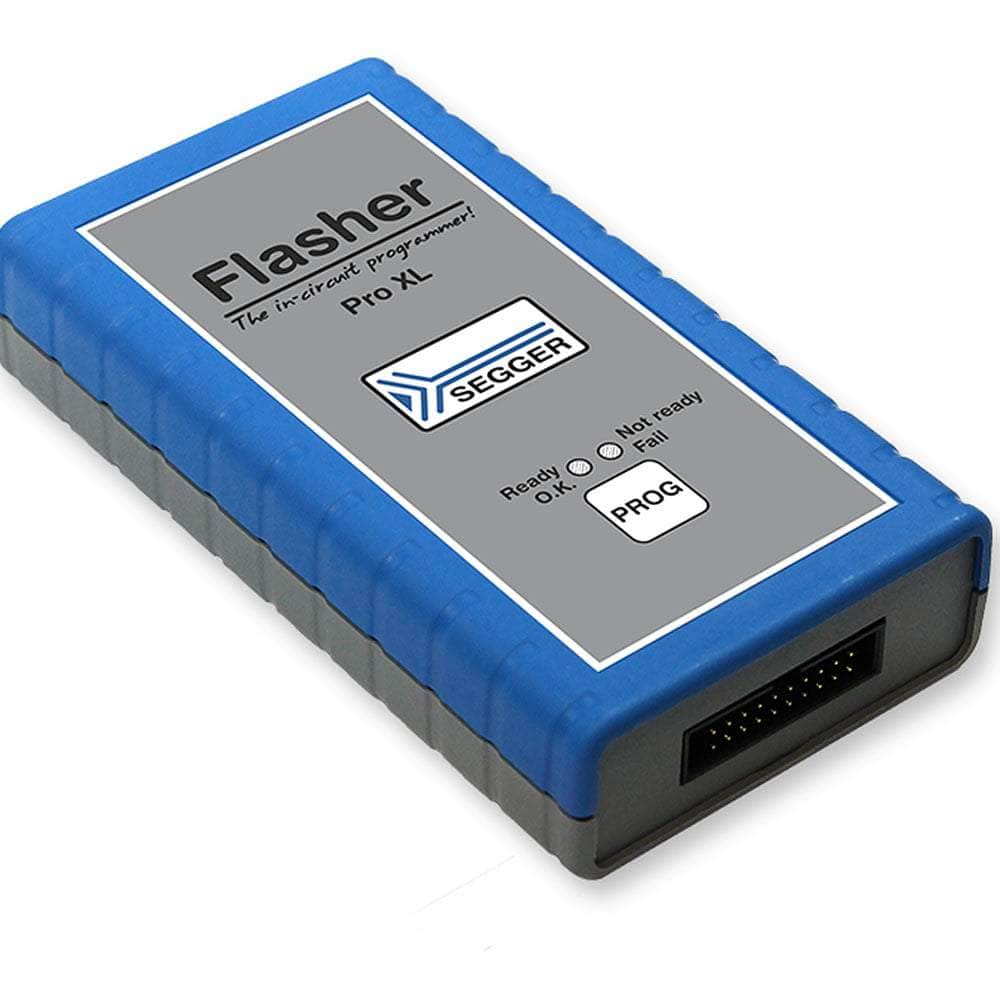

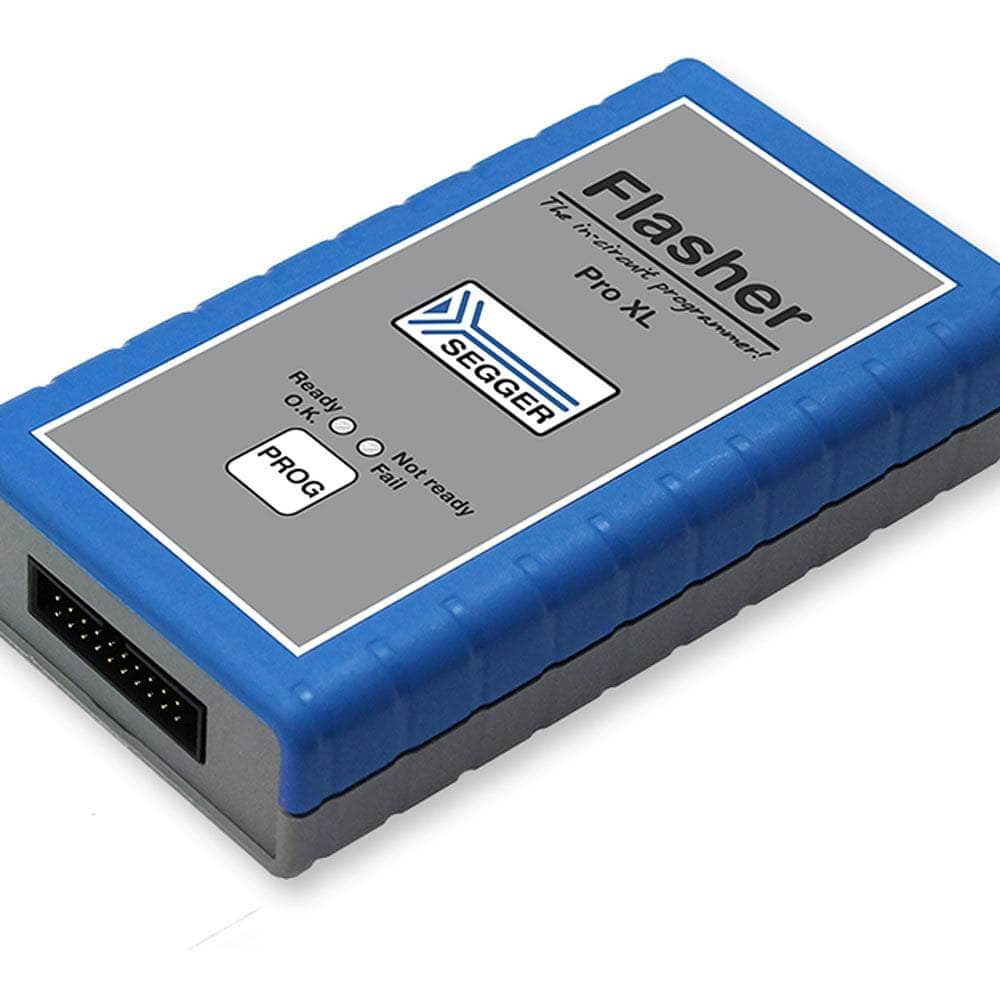

The 20-pin target connector seamlessly adapts to multiple standard and proprietary connectors through various adapters from SEGGER. Say goodbye to compatibility concerns and experience smooth, uninterrupted programming.

Wide Device Support

Don't let device compatibility limit your aspirations. The Flasher PRO supports a large number of CPU cores and an even greater number of different devices from various vendors. Whatever your project demands, our ISP tool is ready to handle it.

How it connects

This Flasher uses SEGGER's standard 20-pin 0.1" (2.54 mm) connector. For JTAG and SWD targets the pin assignment is the same as J-Link: VTref (pin 1), SWDIO/TMS (pin 7), SWCLK/TCK (pin 9), nRESET (pin 15) and GND (pin 4). Other target interfaces use interface-specific assignments, so check the SEGGER Flasher manual for your interface. Full JTAG, SWD and SPI pin tables: SEGGER J-Link 20-pin connector pinout.
