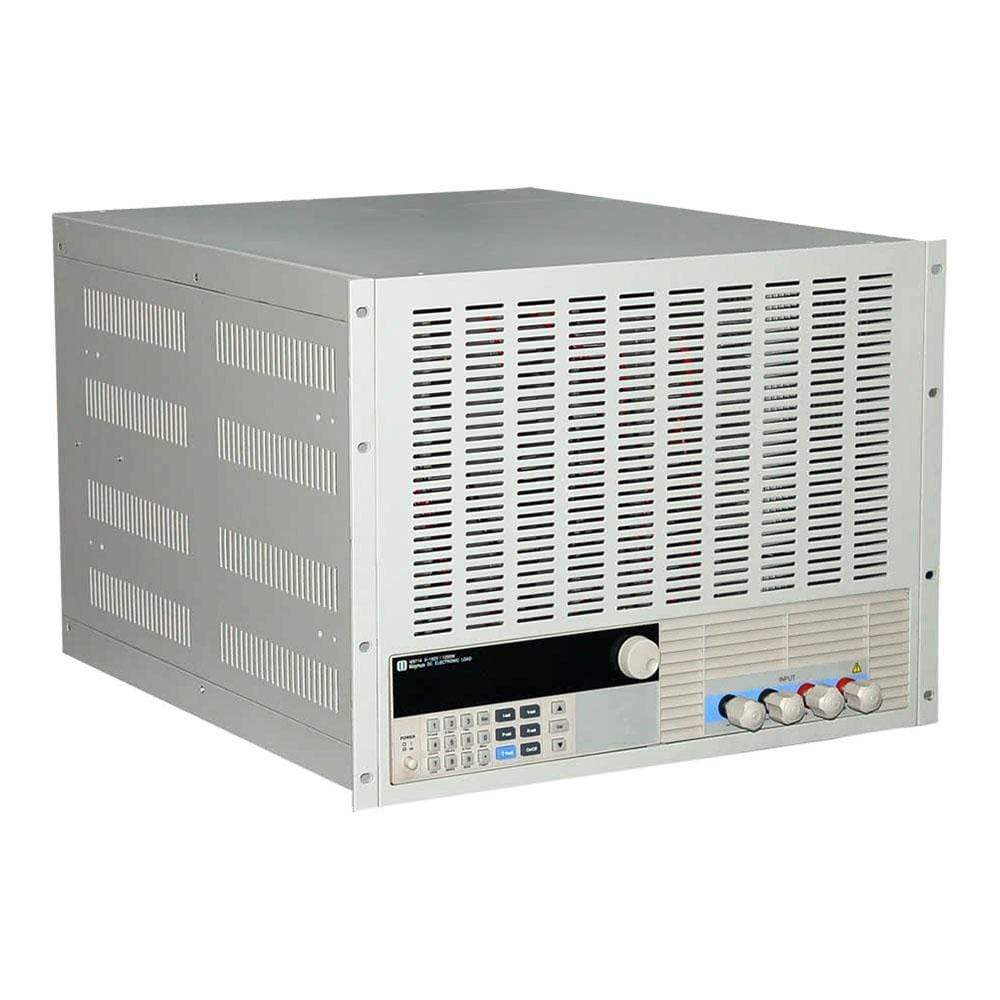

Maynuo M9718 DC 6000W, 0-240A, 0-150V Elektronische Last
Maynuo M9718 DC 6000W, 0-240A, 0-150V Elektronische Last
SKU: M9718
Normaler Preis
£5,445.00 GBP
exc tax
Normaler Preis
Verkaufspreis
Grundpreis
pro
£5,445.00 GBP
exc tax
Versand wird beim Checkout berechnet
Check Availability before Ordering
Verfügbarkeit für Abholungen konnte nicht geladen werden
Key Features
Maximale Verlustleistung: 6000 W
Spannungsbereich: 0 bis 150 V
Strombereich: 0 bis 240 A
Overview
The Maynuo M9718 DC Programmable Electronic Load is designed to dissipate 6KW and is ideal for battery, solar cell, power driver and power supply testing.
Die programmierbare elektronische DC-Last Maynuo M9718 ist für die Ableitung von 6 kW ausgelegt und eignet sich ideal zum Testen von Batterien, Solarzellen, Leistungstreibern und Stromversorgungen.
| Input ratings | |
|---|---|
| Voltage range | M9718: 0 to 150 V; M9718B: 0 to 500 V; M9718D: 0 to 500 V; M9718E: 0 to 600 V; M9718F: 0 to 150 V |
| Current range | M9718: 0 to 240 A; M9718B: 0 to 120 A; M9718D: 0 to 240 A; M9718E: 0 to 120 A; M9718F: 0 to 480 A |
| Maximum power | 6000 W (all models) |
| Modes | |
| Dynamic mode | 0 to 25 kHz; T1/T2 60 µs to 999 sPublished for M9718 and M9718B |
| Battery test / OCP / OPP functions | Battery test: input 0.5 to 120 V, 0.1 mA resolution, 1 s to 16 hPublished for M9718 and M9718B |
| Performance | |
| Resolution | Voltage: 1 mV (low range), 10 mV (high range)Published for M9718 and M9718B |
| Accuracy (readback) | Voltage 0.1% + 0.1% FS; current 0.015% + 0.03 to 0.05% FSPublished for M9718 and M9718B |
| Slew rate | 5 A/µsThe manual overview quotes a basic rise speed of 2.5 A/µs; published for M9718 and M9718B |
| Control | |
| Remote interface | GPIB, RS-232, RS-485, USBPublished for M9718 and M9718B |
| Communication protocol | ModbusPublished for M9718 and M9718B |
| Physical | |
| Dimensions | 575 × 465 × 355 mm (W × H × D)Published for M9718 and M9718B |
| Environmental | |
| Operating temperature | 0 to 40 °CPublished for M9718 and M9718B |
| Storage temperature | -10 to 70 °CPublished for M9718 and M9718B |
| Ordering information | |
| Part number (SKU) | M9718 |
| Manufacturer | Maynuo Elektronik Co Ltd |
| EAN | 5055383698387 |
| Warranty | 12 Monate |
| Shipping weight | 66.0 kg |
-
1 ×
Maynuo M9718 DC 6000W, 0-240A, 0-150V Elektronische Last(0-150V / 0-240A)
Contact us to confirm the full contents of the box.
