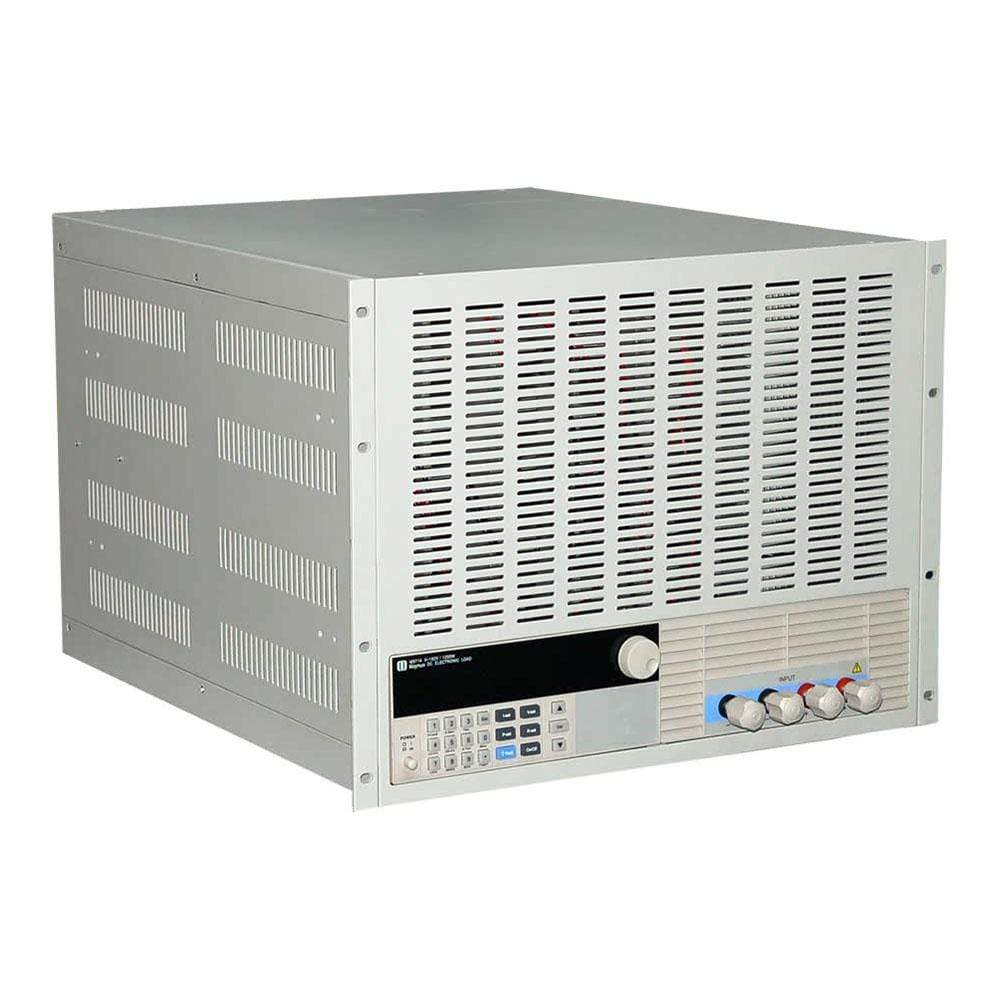

Maynuo M9717 DC 3600W, 240A, 150V Elektronische Last
Maynuo M9717 DC 3600W, 240A, 150V Elektronische Last
SKU: M9717
Normaler Preis
£4,070.00 GBP
exc tax
Normaler Preis
Verkaufspreis
Grundpreis
pro
£4,070.00 GBP
exc tax
Versand wird beim Checkout berechnet
Check Availability before Ordering
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview
The Maynuo M9717 DC Programmable Electronic Load is designed to dissipate 3.6KW and is ideal for battery, solar cell, power driver and power supply testing.
Die programmierbare elektronische DC-Last Maynuo M9717 ist für die Ableitung von 3,6 kW ausgelegt und eignet sich ideal zum Testen von Batterien, Solarzellen, Leistungstreibern und Stromversorgungen.
| Input ratings | |
|---|---|
| Voltage range | M9717: 0 to 150 V; M9717B: 0 to 500 V; M9717C: 0 to 150 V |
| Current range | M9717: 0 to 240 A; M9717B: 0 to 120 A; M9717C: 0 to 480 A |
| Maximum power | 3600 W (all models) |
| Modes | |
| Dynamic mode | 0 to 25 kHz; T1/T2 60 µs to 999 sPublished for M9717 and M9717B |
| Battery test / OCP / OPP functions | Battery test: input 0.5 to 120 V, 0.1 mA resolution, 1 s to 16 hPublished for M9717 and M9717B |
| Performance | |
| Resolution | Voltage: 1 mV (low range), 10 mV (high range)Published for M9717 and M9717B |
| Accuracy (readback) | Voltage 0.1% + 0.1% FS; current 0.015% + 0.03 to 0.05% FSPublished for M9717 and M9717B |
| Slew rate | 5 A/µsThe manual overview quotes a basic rise speed of 2.5 A/µs; published for M9717 and M9717B |
| Control | |
| Remote interface | GPIB, RS-232, RS-485, USBPublished for M9717 and M9717B |
| Communication protocol | ModbusPublished for M9717 and M9717B |
| Physical | |
| Dimensions | 575 × 465 × 355 mm (W × H × D)Published for M9717 and M9717B |
| Environmental | |
| Operating temperature | 0 to 40 °CPublished for M9717 and M9717B |
| Storage temperature | -10 to 70 °CPublished for M9717 and M9717B |
| Ordering information | |
| Part number (SKU) | M9717 |
| Manufacturer | Maynuo Elektronik Co Ltd |
| EAN | 5055383698394 |
| Shipping weight | 66.0 kg |
- Warranty: 12 Monate
