Maynuo M8874 Programmierbares 0-100V, 0-11A Netzteil

Maynuo M8874 Programmierbares 0-100V, 0-11A Netzteil

SKU: M8874

Normaler Preis
£2,450.00 exc VAT
£2,940.00 inc VAT
Normaler Preis Verkaufspreis
£2,450.00 exc VAT
£2,940.00 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
Check Availability before Ordering

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

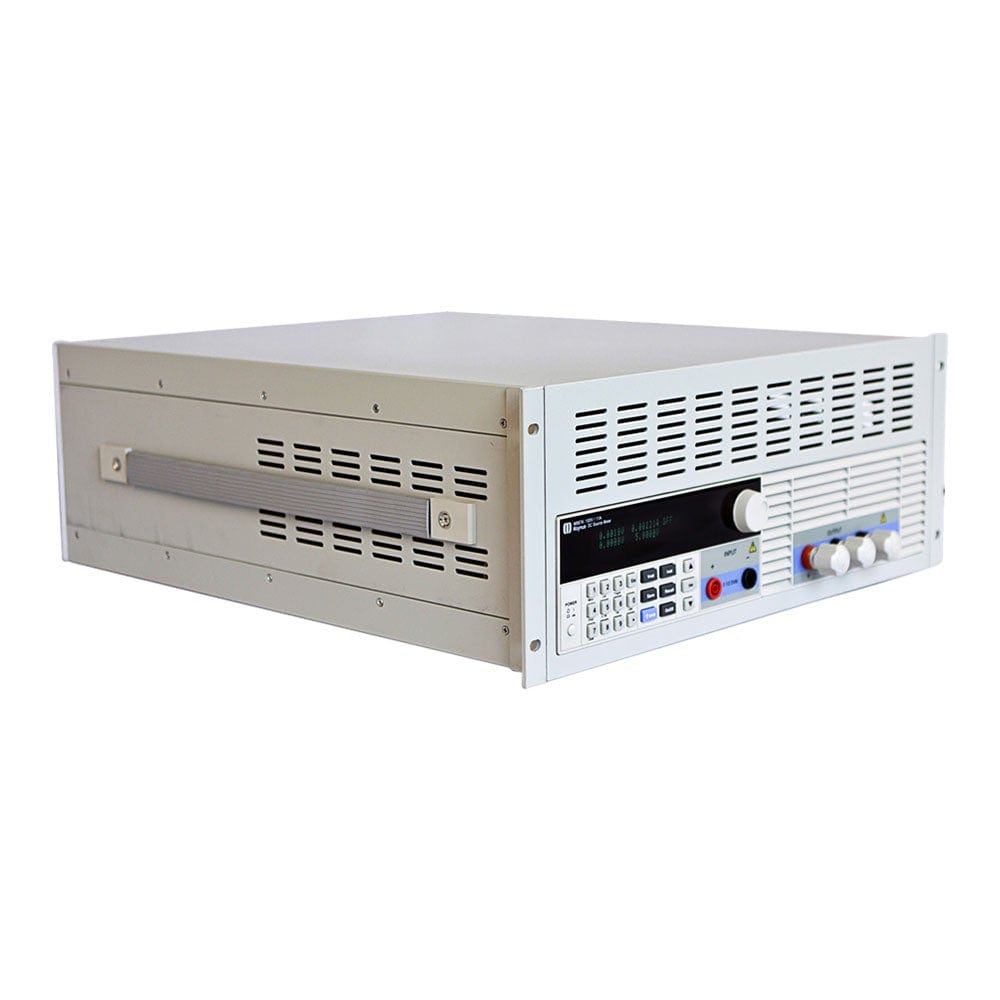

The Maynuo M8874 is a 1200W, 0-100V, 0-11A Programmable power supply. M88 series power supplies are high performance single-output programmable DC power supplies with a communication interface, possessing the character of fast rise speed.

Das Maynuo M8874 ist ein programmierbares Netzteil mit 1200 W, 0–100 V, 0–11 A. Die Netzteile der Serie M88 sind leistungsstarke, programmierbare Gleichstromnetzteile mit Einzelausgang und Kommunikationsschnittstelle, die sich durch eine schnelle Anstiegsgeschwindigkeit auszeichnen.

Output
Output voltage0 to 100 V
Output current0 to 11 A
Performance
Load regulationVoltage < 0.01% + 1 mV; current < 0.01% + 0.1 mA
Setting resolutionVoltage 2 mV; current 0.2 mA
Readback resolution, voltage1 mV
Setting accuracyVoltage 0.01% + 15 mV; current 0.05% + 1 mA
Readback accuracy, voltage0.03% + 25 mV
RippleVoltage 8 mVp-p; current 2.5 mA rms
Measurement
Voltmeter accuracy, 0 to 12 V0.02% + 2 mV
Milliohmmeter accuracy, 0 to 1000 mΩ0.2% + 3 mΩ
Milliohmmeter accuracy, 1000 to 10000 mΩ0.2% + 6 mΩ
Input
AC supply frequency50 Hz or 60 Hz
Interfaces
Computer interfacesRS232, RS485 and USB
Command setSCPI
External triggerInput and output supported
Remote voltage compensationSupported
Environmental
Operating temperature0 to 40 °C
Operating humidity0 to 90% RH
Ordering information
Part number (SKU)M8874
ManufacturerMaynuo Elektronik Co Ltd
EAN5055383688821
Warranty12 Monate
Shipping weight15.0 kg
  • 1 × Maynuo M8874 Programmierbares 0-100V, 0-11A Netzteil

Contact us to confirm the full contents of the box.
