Key Features
Three independently isolated output channels: ch1 & ch2: 32v/3.2a each ch3: 8v/5a
High resolution of 1mv/1ma for precise control
Fast transient response time of ≤50µs
Low ripple noise: <350µvrms/2mvpp
Comprehensive protection features (ovp, ocp, opp, otp)
Usb and lan interfaces with scpi support
4.3" colour display for clear readings
Overview

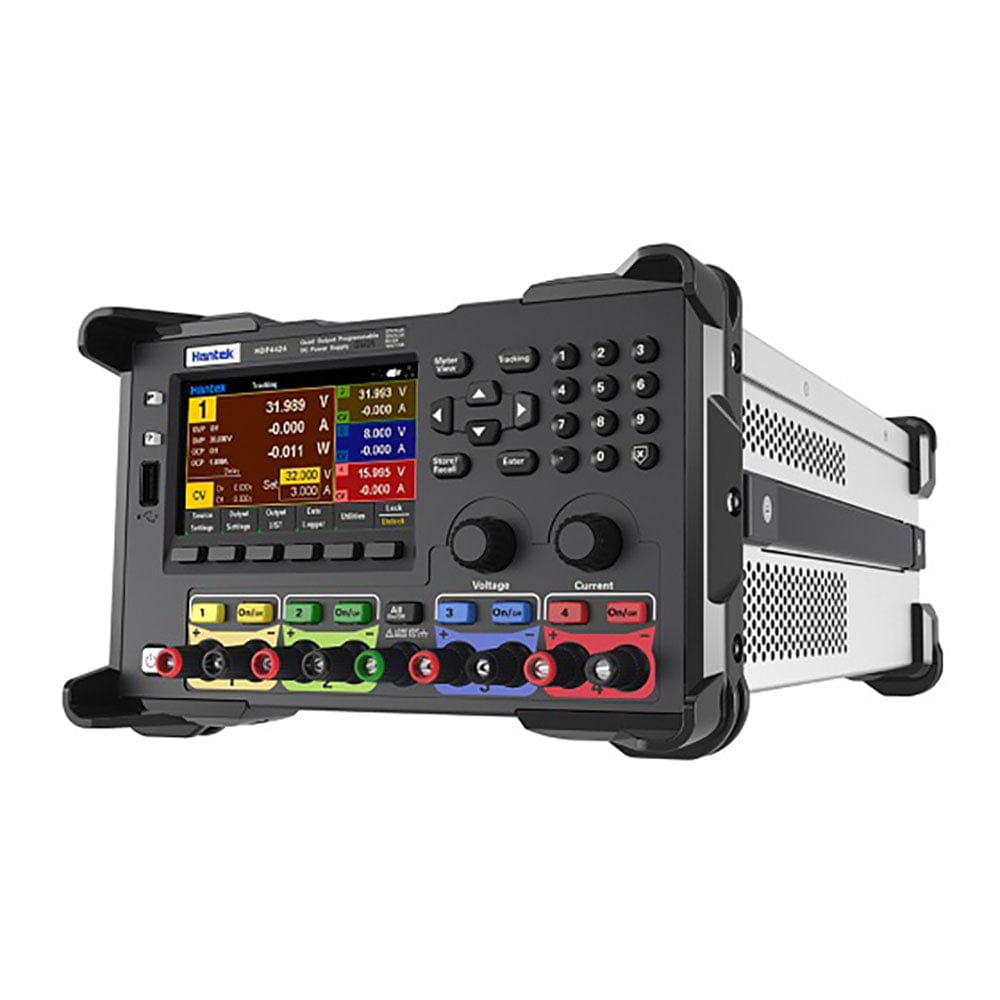

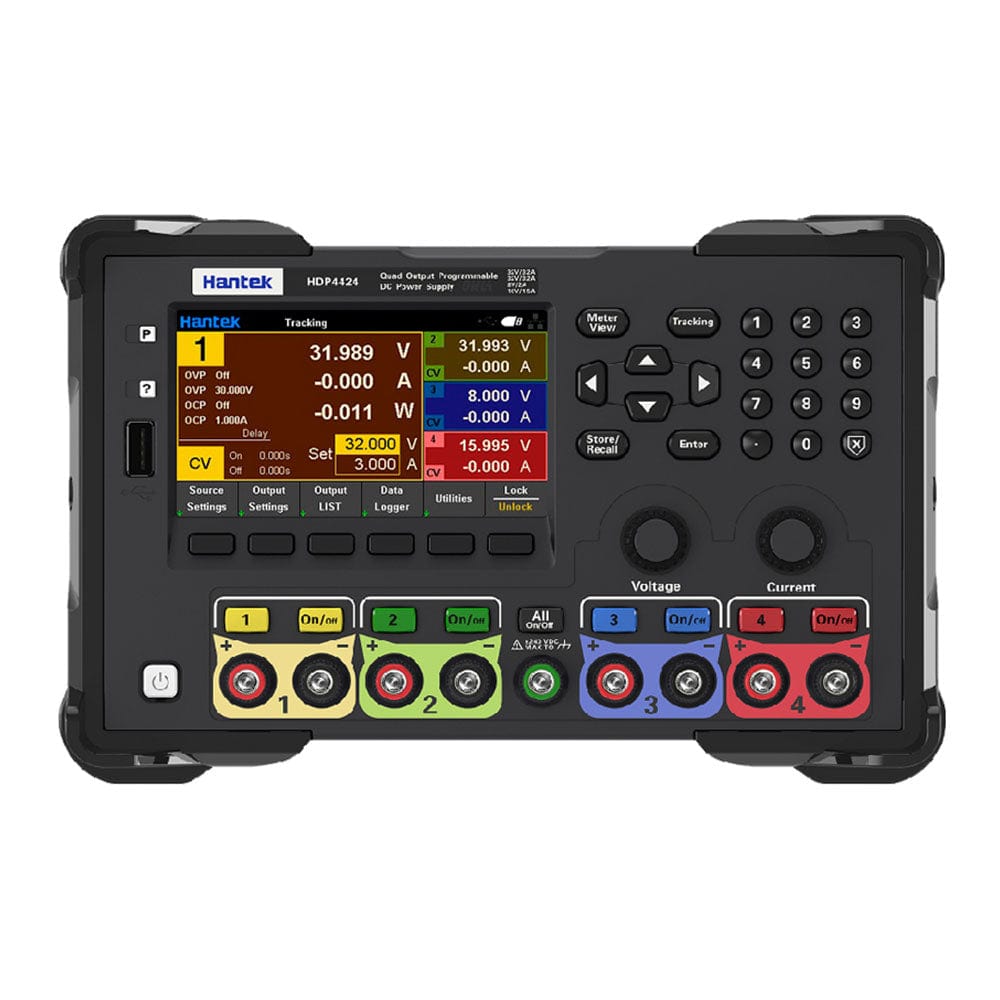

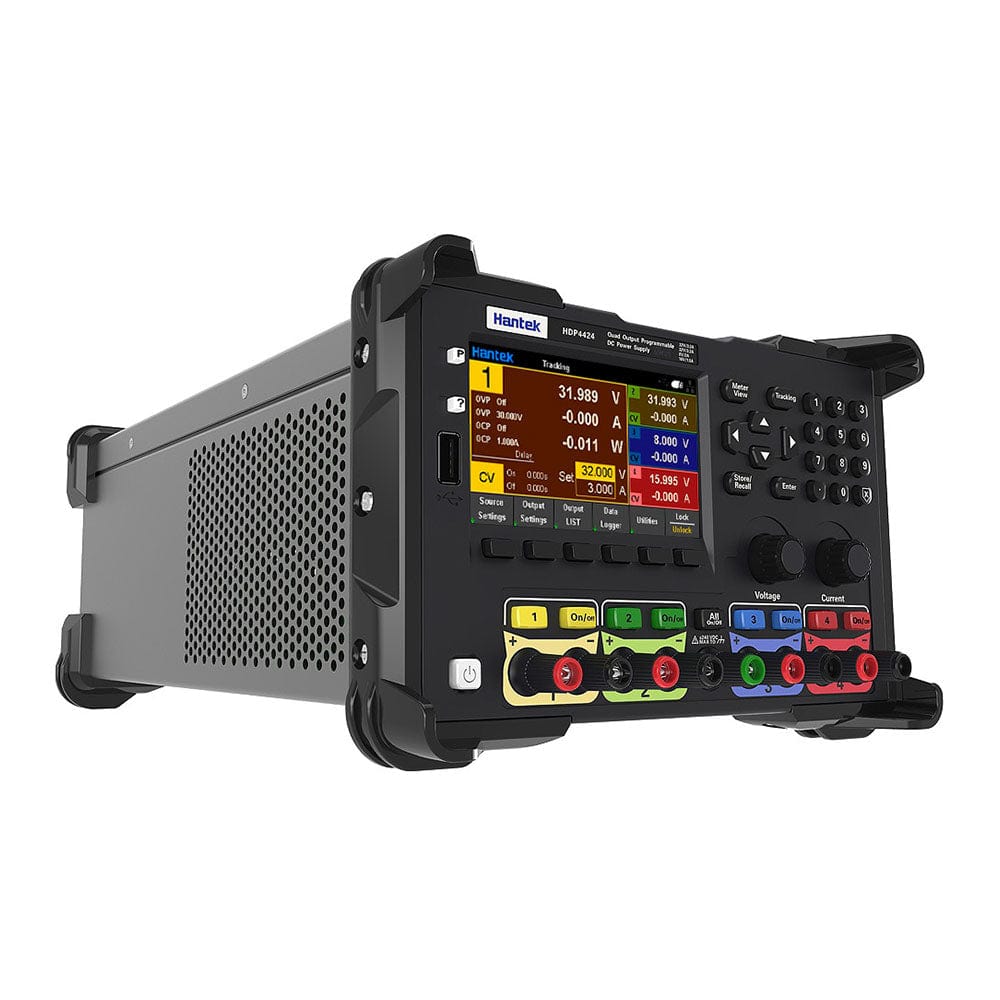

Das 3-Kanal-Netzteil Hantek HDP-4324 verfügt über drei isolierte Kanäle mit vollem Überspannungs-, Überstrom-, Übertemperatur- und Kurzschlussschutz.
Das Netzteil ist mit einem 4,3-Zoll-Farbdisplay ausgestattet, das Spannung, Strom und Leistung jedes Kanals zusammen anzeigt.
General Information | |
---|---|
Part Number (SKU) |
HDP-4324
|
Physical and Mechanical | |
Weight |
5.0 kg
|
Other | |
Country of Origin |
|
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
5055383605446
|
Models | Interface | Channels | Total Power(W) | Resolution | Noise | Power regulation rate | Load regulation rate |
HDP4324 | USB HOST, USB DEVICE, Digital I/O, LAN | 3 | 245 | 1 mV, 1 mA | <350μVrms / 2mVpp | Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA |
Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
HDP4324B | USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485 | 3 | 245 | 1 mV, 1 mA | <350μVrms / 2mVpp | Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA |
Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
HDP4324H | USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485, GPIB | 3 | 245 | 1 mV, 1 mA | <350μVrms / 2mVpp | Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA |
Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
