Overview

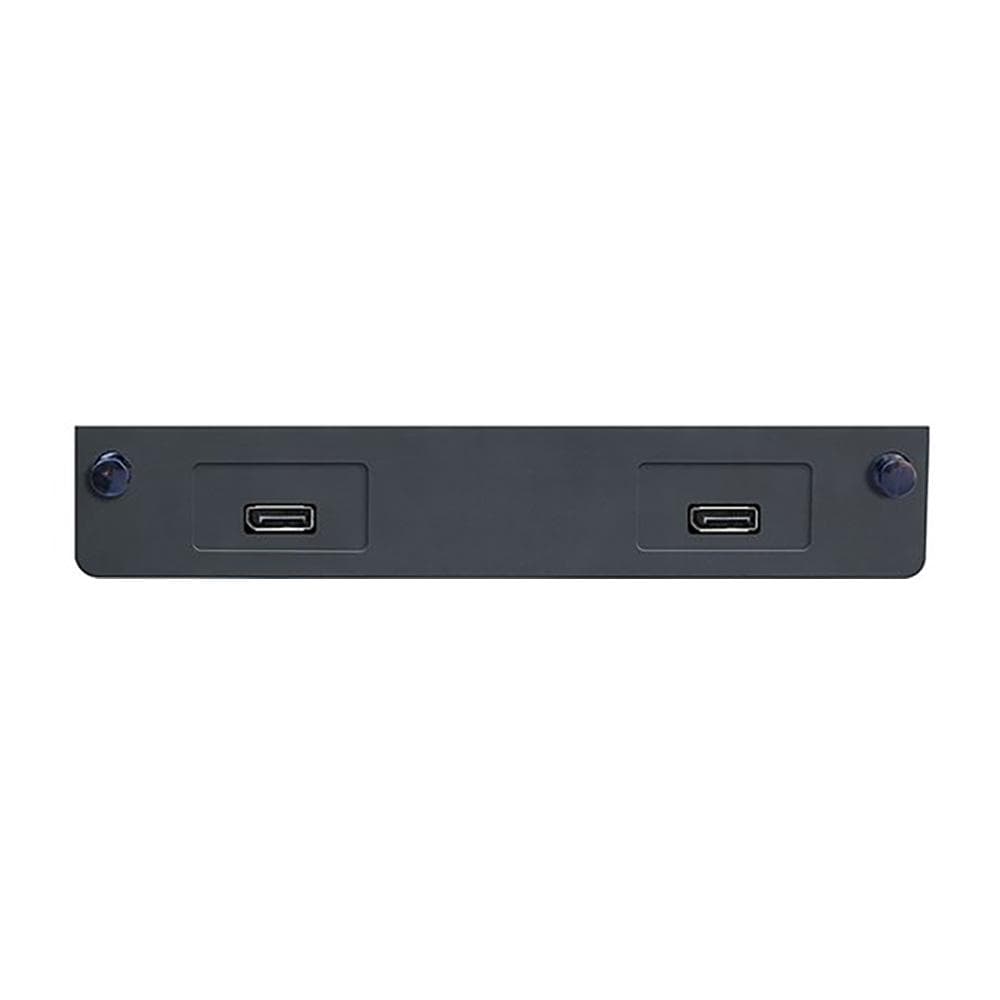

The DisplayPort to DisplayPort Module has been designed to allow the Total Phase Advanced Cable Tester to test DisplayPort cables.
The module facilitates testing of the DisplayPort connectors and cable
- Short testing - Dynamic visualization of test results
- Open testing - Dynamic visualization of test results
- Continuity testing - Dynamic visualization of test results
- DC resistance measurement for most wires, with milliohm precision on ground and power wires, ohm resolution on most other wires, continuity check only on high-speed data lines
- Signal integrity testing of data lines to 12.8 Gbps per channel

Test Pass: Diagram for DP 1.4 at 10 Gbps per lane.

Test Fail: Diagram for DP 1.4 at 10 Gbps per lane
Das DisplayPort-zu-DisplayPort-Modul wurde entwickelt, um dem Total Phase Advanced Cable Tester das Testen von DisplayPort-Kabeln zu ermöglichen.
Das Modul erleichtert das Testen der DisplayPort-Anschlüsse und -Kabel
- Kurztesten - Dynamische Visualisierung der Testergebnisse
- Offenes Testen - Dynamische Visualisierung von Testergebnissen
- Durchgangsprüfung - Dynamische Visualisierung der Prüfergebnisse
- Gleichstromwiderstandsmessung für die meisten Leitungen, mit Milliohm-Präzision auf Erdungs- und Stromleitungen, Ohm-Auflösung auf den meisten anderen Leitungen, Durchgangsprüfung nur auf Hochgeschwindigkeitsdatenleitungen
- Signalintegritätsprüfung von Datenleitungen bis 12,8 Gbit/s pro Kanal

Test bestanden: Diagramm für DP 1.4 bei 10 Gbit/s pro Lane.

Test fehlgeschlagen: Diagramm für DP 1.4 bei 10 Gbit/s pro Lane
| Ordering information | |
|---|---|
| Part number (SKU) | TP821110 |
| Manufacturer | Total Phase, Inc |
| EAN | 5055383620548 |
| Warranty | 12 Monate |
| Shipping weight | 1.0 kg |
-
1 ×
DisplayPort auf DisplayPort – Erweitertes Kabeltestermodul
Contact us to confirm the full contents of the box.
DisplayPort auf DisplayPort – Erweitertes Kabeltestermodul compared with USB Typ-C auf USB Typ-C – Erweitertes Kabeltestermodul , USB Typ-C auf USB 3.1 Standard-A - Erweitertes Kabeltestermodul and USB Typ-C auf USB 3.1 Standard-B - Erweitertes Kabeltestermodul on 7 specifications.
| Specification | This product
DisplayPort auf DisplayPort – Erweitertes KabeltestermodulTP821110Available to order |
USB Typ-C auf USB Typ-C – Erweitertes KabeltestermodulTP820110Available to order |
USB Typ-C auf USB 3.1 Standard-A - Erweitertes KabeltestermodulTP820210Available to order |
USB Typ-C auf USB 3.1 Standard-B - Erweitertes KabeltestermodulTP820610Available to order |
|---|---|---|---|---|
| Connector A | DisplayPort | USB Type-C | USB Type-C | USB Type-C |
| Connector B | DisplayPort | USB Type-C | USB 3.1 Standard-A | USB 3.1 Standard-B |
| Cable standards | DisplayPort 1.4 and earlier | USB 3.2/3.1/3.0/2.0, PD 2.0, PD 3.0 | USB 3.2, USB 3.1 and USB 2.0 | USB 3.2, USB 3.1 and USB 2.0 |
| Signal integrity test rate | Up to 12.8 Gbps per channel | Up to 12.8 Gbps per channel | Up to 12.8 Gbps per channel | Up to 12.8 Gbps per channel |
| DC resistance test | All wires except high-speed data lines | VBUS and GND wires; VBUS and GND Type-C pins | VBUS and GND wires; VBUS and GND Type-C pins | VBUS and GND wires; VBUS and GND Type-C pins |
| E-marker verification | Not listed | Supported | Not applicable | Not applicable |
| Apple MFi tests | Not listed | Not listed | Not listed | Not listed |
| Price | £435 | £435 | £435 | £435 |
