USB Typ-C auf USB Typ-C – Erweitertes Kabeltestermodul

USB Typ-C auf USB Typ-C – Erweitertes Kabeltestermodul

SKU: TP820110

Normaler Preis
£435.00 exc VAT
£522.00 inc VAT
Normaler Preis Verkaufspreis
£435.00 exc VAT
£522.00 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
Check Availability before Ordering

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

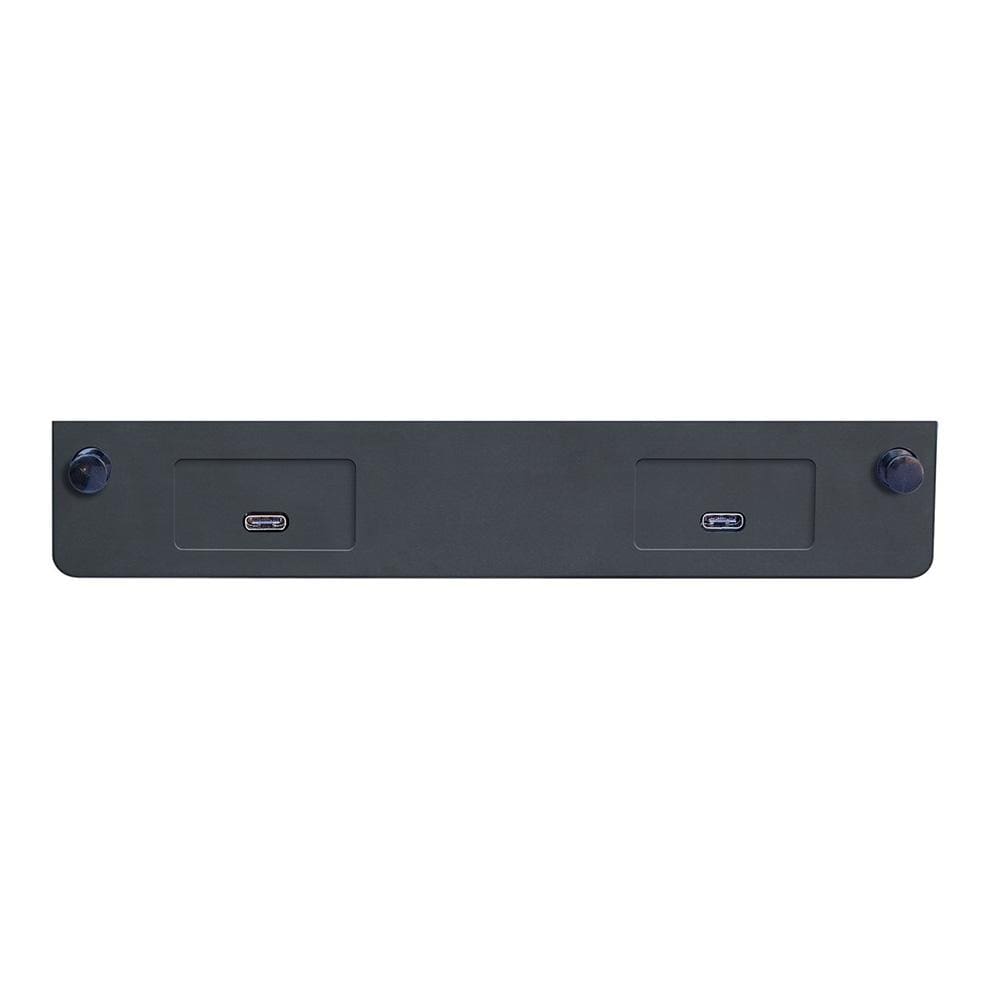

The USB Type-C to USB Type-C Module has been designed to allow the Total Phase Advanced Cable Tester to test USB Type-C to USB Type-C cables.

The module facilitates testing of the USB Type-C connectors and cable

  • Short testing - Dynamic visualization of test results
  • Open testing - Dynamic visualization of test results
  • Continuity testing - Dynamic visualization of test results
  • DC resistance measurement for most wires, with milliohm precision on ground and power wires, ohm resolution on most other wires, continuity check only on high-speed data lines
  • Signal integrity testing of data lines to 12.8 Gbps per channel

Das USB Type-C-zu-USB Type-C-Modul wurde entwickelt, um dem Total Phase Advanced Cable Tester das Testen von USB Type-C-zu-USB Type-C-Kabeln zu ermöglichen.

Das Modul erleichtert das Testen der USB Type-C-Anschlüsse und -Kabel

  • Kurztesten - Dynamische Visualisierung der Testergebnisse
  • Offenes Testen - Dynamische Visualisierung von Testergebnissen
  • Durchgangsprüfung - Dynamische Visualisierung der Prüfergebnisse
  • Gleichstromwiderstandsmessung für die meisten Leitungen, mit Milliohm-Präzision auf Erdungs- und Stromleitungen, Ohm-Auflösung auf den meisten anderen Leitungen, Durchgangsprüfung nur auf Hochgeschwindigkeitsdatenleitungen
  • Signalintegritätsprüfung von Datenleitungen bis 12,8 Gbit/s pro Kanal

Ordering information
Part number (SKU)TP820110
ManufacturerTotal Phase, Inc
EAN5055383620555
Warranty12 Monate
Shipping weight1.0 kg
  • 1 × USB Typ-C auf USB Typ-C – Erweitertes Kabeltestermodul

Contact us to confirm the full contents of the box.

USB Typ-C auf USB Typ-C – Erweitertes Kabeltestermodul compared with USB Typ-C auf USB 3.1 Standard-A - Erweitertes Kabeltestermodul , USB Typ-C auf USB 3.1 Micro-B – Erweitertes Kabeltestermodul and USB Typ-C auf USB 3.1 Standard-B - Erweitertes Kabeltestermodul on 7 specifications.

Specifications of USB Typ-C auf USB Typ-C – Erweitertes Kabeltestermodul compared with USB Typ-C auf USB 3.1 Standard-A - Erweitertes Kabeltestermodul , USB Typ-C auf USB 3.1 Micro-B – Erweitertes Kabeltestermodul and USB Typ-C auf USB 3.1 Standard-B - Erweitertes Kabeltestermodul
SpecificationThis product USB Typ-C auf USB Typ-C – Erweitertes KabeltestermodulTP820110Available to order USB Typ-C auf USB 3.1 Standard-A - Erweitertes KabeltestermodulTP820210Available to order USB Typ-C auf USB 3.1 Micro-B – Erweitertes KabeltestermodulTP820310Available to order USB Typ-C auf USB 3.1 Standard-B - Erweitertes KabeltestermodulTP820610Available to order
Connector A USB Type-CUSB Type-CUSB Type-CUSB Type-C
Connector B USB Type-CUSB 3.1 Standard-AUSB 3.1 Micro-BUSB 3.1 Standard-B
Cable standards USB 3.2/3.1/3.0/2.0, PD 2.0, PD 3.0USB 3.2, USB 3.1 and USB 2.0USB 3.2, USB 3.1 and USB 2.0USB 3.2, USB 3.1 and USB 2.0
Signal integrity test rate Up to 12.8 Gbps per channelUp to 12.8 Gbps per channelUp to 12.8 Gbps per channelUp to 12.8 Gbps per channel
DC resistance test VBUS and GND wires; VBUS and GND Type-C pinsVBUS and GND wires; VBUS and GND Type-C pinsVBUS and GND wires; VBUS and GND Type-C pinsVBUS and GND wires; VBUS and GND Type-C pins
E-marker verification SupportedNot applicableNot applicableNot applicable
Apple MFi tests Not listedNot listedNot listedNot listed
Price£435 £435 £435 £435
