Tag-Connect TC2070-IDC-NL-2MM 14-Pin No-Legs Cable, 2mm IDC
Tag-Connect TC2070-IDC-NL-2MM 14-Pin No-Legs Cable, 2mm IDC
SKU: TC2070-IDC-NL-2MM
Couldn't load pickup availability
Key Features
Overview

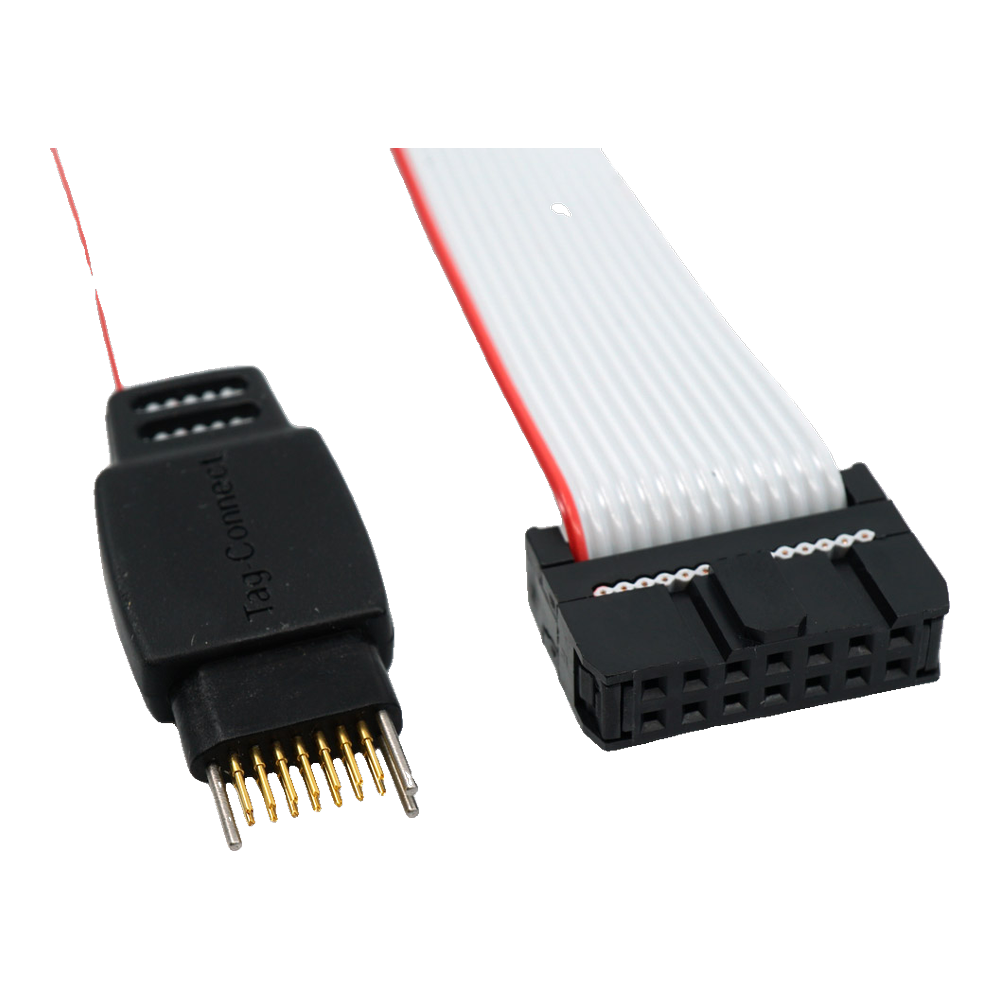

The TC2070-IDC-NL-2MM is a 14-pin Plug-of-Nails programming cable, no-legs version, fitted with a standard 14-pin (2x7) 2 mm pitch IDC connector. There is about 200 mm (8 inches) of ribbon between the connectors.
The no-legs footprint is smaller than the legged TC2070 footprint: contact pads and three alignment holes, with no connector fitted. The cable is held in place by hand or in a fixture, and a TC2070-CLIP board can attach to the alignment pins from under the PCB to hold the cable in place temporarily.
Tag-Connect describes it as similar to the 0.1-inch TC2070-IDC-NL apart from the 2 mm connector and cable, so the TC2070-IDC-NL datasheet applies. For snap-in retention, see the legged TC2070-IDC-2MM.
Downloads
Why Engineers Choose the Tag-Connect TC2070-IDC-NL-2MM 14-Pin No-Legs Cable, 2mm IDC
Fits 2 mm Tools
Small Footprint
Zero Cost per Board
Specifications
| Parameter | Value |
|---|---|
| Target end | TC2070 14-pin Plug-of-Nails, no legs |
| Tool end | 14-pin (2x7) 2 mm pitch IDC connector |
| Ribbon length | About 200 mm (8 in) |
| PCB footprint | TC2070-NL footprint (see the TC2070-IDC-NL datasheet below) |
| Retention | Hand-held or fixture; optional TC2070-CLIP from under the board |
Which TC2070 Cable?
| Cable | Target end | Tool end | Best for |
|---|---|---|---|
| TC2070-IDC-NL-2MM (this cable) | No legs; a TC2070-CLIP or fixture holds it for longer operations | 14-pin 2 mm IDC | Xilinx Platform Cable II where board space matters most |
| TC2070-IDC-2MM | Legged: clips in hands-free | 14-pin 2 mm IDC | Xilinx Platform Cable II, hands-free development work |
| TC2070-IDC-NL | No legs | 14-pin 0.1-inch IDC | 0.1-inch 14-pin tools where board space matters most |
| TC2070-IDC | Legged: clips in hands-free | 14-pin 0.1-inch IDC | 0.1-inch 14-pin tools, hands-free development work |
Product photos may show a different pitch IDC connector from the 2 mm one fitted. Which cable fits your debugger? See our Tag-Connect cable guide.
| General Information | |
|---|---|
Part Number (SKU) |
TC2070-IDC-NL-2MM
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
9 g
|
Questions and Answers
-
Which Datasheet Applies?
The TC2070-IDC-NL datasheet for the 0.1-inch version. Tag-Connect says the 2 mm cable is similar apart from the 2 mm connector and cable.
-
How Do I Hold a No-Legs Cable in Place?
By hand or in a fixture. A TC2070-CLIP board can also attach to the three alignment pins from under the PCB to hold the cable temporarily.
-
How Long Is the Cable?
About 200 mm (8 inches) of ribbon between the connectors.
-
Is There a Legged Version?
Yes, the TC2070-IDC-2MM, which clips into the board for hands-free use and needs the legged TC2070 footprint.
