Xeltek, Inc
SKU: SuperPro-6000Xeltek SuperPro 6000 Fast Universal Programmer

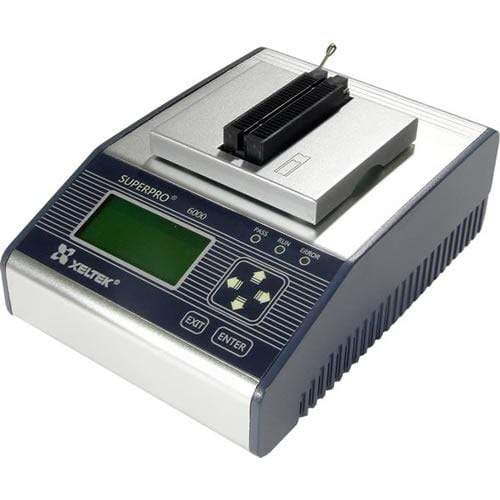

Xeltek SuperPro 6000 Fast Universal Programmer
Universal Programmer
Regular price
€1.109,95 EUR
exc tax
Regular price
Sale price
Unit price
per
€1.109,95 EUR
exc tax
Shipping calculated at checkout.
This item is no longer available
Couldn't load pickup availability
The Xeltek SuperPro 6000 is a USB-interfaced ultra-fast stand-alone universal programmer based on an ARM9 CPU, with built-in 144 universal pin drivers and support for NAND devices up to 256GB.
USB Interfaced Ultra-Fast 144pin Stand-Alone Universal Programmer
- 88,000+ devices supported by 314 IC Manufacturers.
- ARM9 32 Bit MCU + Linux for algorithm processing.
- Supports NAND / eMMC devices up to 256 GB .
- Stand-alone (no PC required) and PC hosted mode.
- Built-in 144 universal pin-driver.
Expanded Features
- Support devices with Vcc from 1.2V - 5V.
- 30% faster-programming speed compared to SuperPro-5000 with ARM9 MCU Processor + Linux ultra-fast algorithm processing engine.
- Support files up to 256 GBytes.
- Built with 144 universal pin-drivers. Universal adapters are available for various package types up to 144 pins. More efficient for new device support.
- Stand-alone mode (No PC required) and PC hosted mode.
- Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
- Under stand-alone mode, the programmer is controlled via the 6-KEY keypad and the 20 characters 4 line LCD display.
- A CF (compact flash) card is used to store the project files.
- Cluster 1-15 units for flexible volume production. Operate multiple units to construct a concurrent multi-programming system.
- Over-current and over-voltage protection for safety of the chip and programmer hardware.
- Compatible with Windows XP / Vista / 7 / 8 (32/64 bit)
- Only IC manufacturer approved programming algorithms are used for high reliability.
- Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
- Advanced and powerful software functions:
- Production mode starts chip operation the moment the chip is inserted properly.
- Project function simplifies processes such as Device Selection, File Loading, Device Configuration Setting, Program Option, and Batch File Setting into one step.
- Password for project files can be set for volume production control
- Batch command combines device operations like Program, Verify,and Security into a single command at any sequence.
- Serial numbers generators are available as standard or customer-specific functions. A Log file is useful for quality tracking.
