VCP-Monitor-Click-Platine
VCP-Monitor-Click-Platine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview

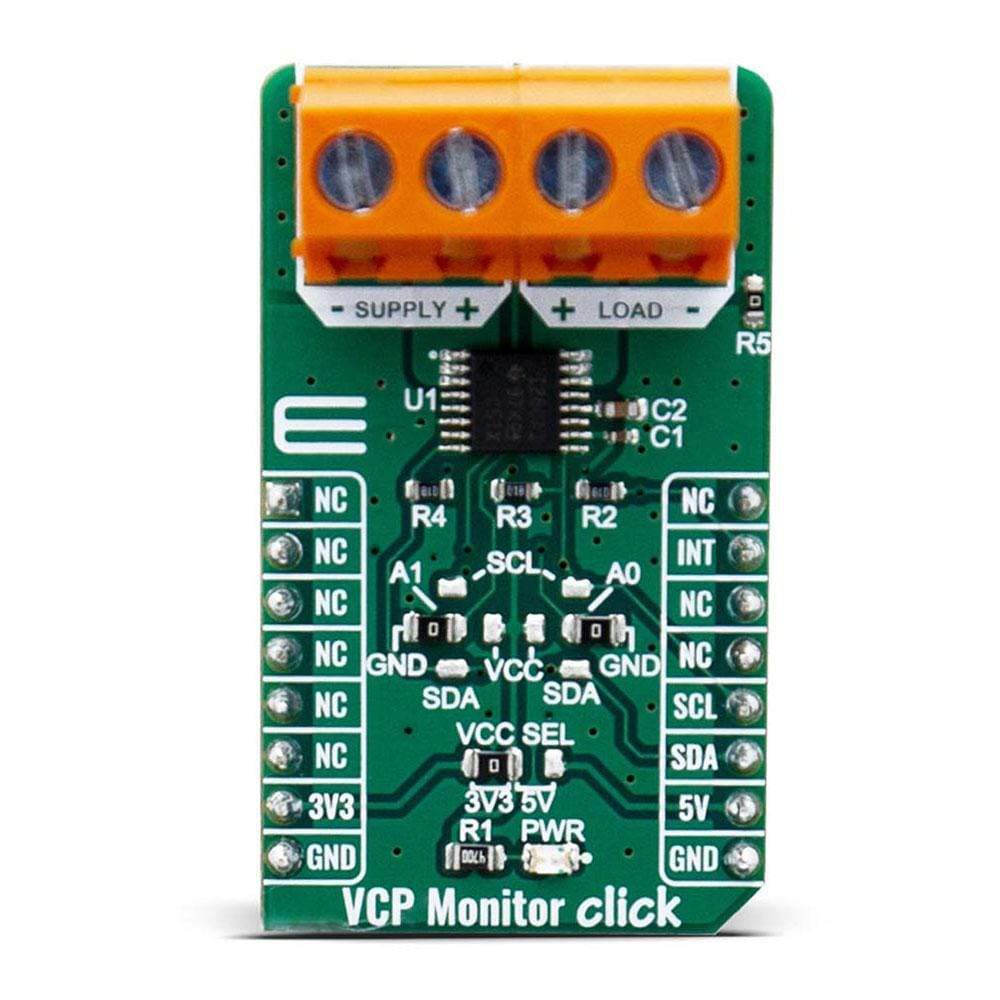

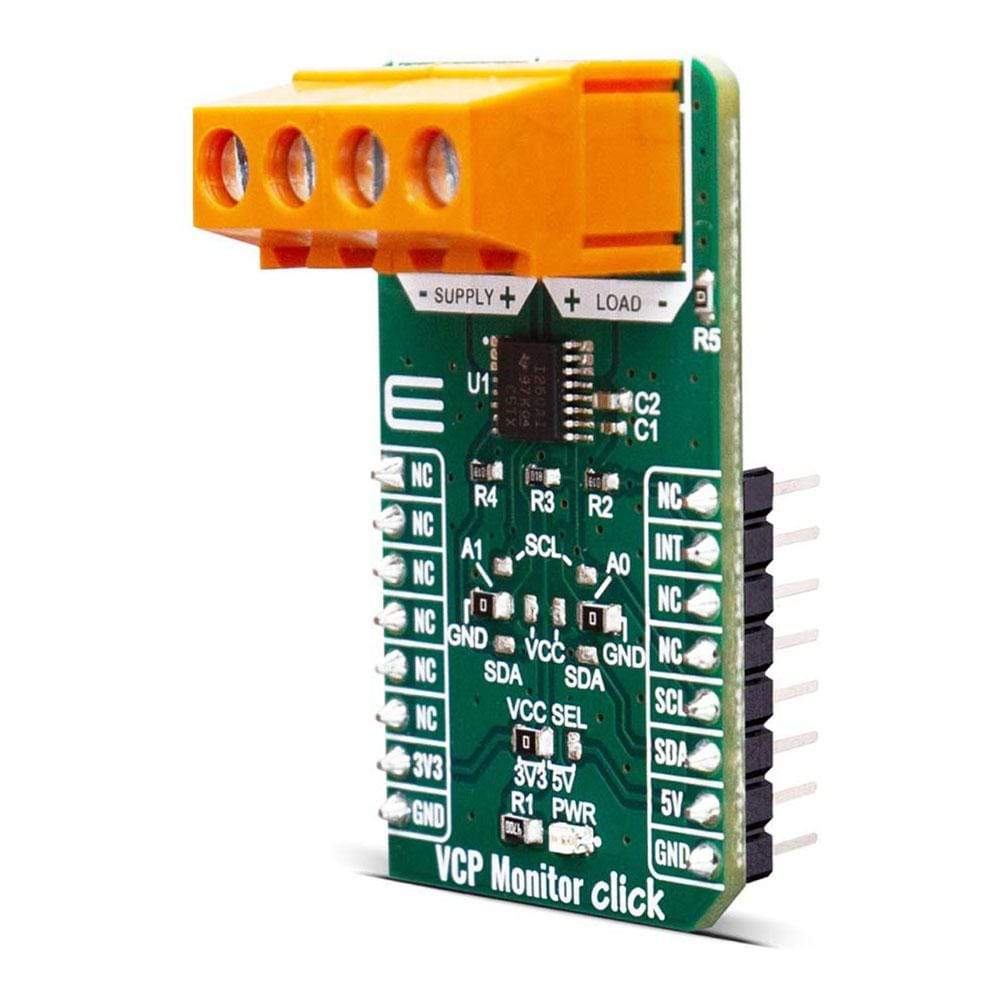

Das VCP Monitor Click Board™ ist ein Zusatzplatinen-Stromüberwachungssystem. Dieses Click Board™ basiert auf INA260AIPWR – einem präzisen digitalen Strom- und Leistungsmonitor mit geringem Drift und integriertem Präzisions-Shunt-Widerstand von Texas Instruments. Daher können mit VCP Monitor Click Strom, Spannung und Leistung überwacht werden. Der integrierte Strommesswiderstand gewährleistet Messstabilität über die Temperatur hinweg und vereinfacht die bei hochpräzisen Strommessmessungen häufig auftretenden Schwierigkeiten beim Leiterplattenlayout.
Der VCP-Monitor-Klick wird durch eine mikroSDK-kompatible Bibliothek unterstützt, die Funktionen enthält, die die Softwareentwicklung vereinfachen. Dieses Click Board™ wird als vollständig getestetes Produkt geliefert und ist bereit für den Einsatz auf einem System, das mit der mikroBUS™-Buchse ausgestattet ist.
How Does The VCP Monitor Click Board™ Work?
The VCP Monitor Click Board™ is power monitor system, which includes precision measurement of current, voltage and power with low-drift. The main IC on the VCP Monitor click is INA260AIPWR. The current-sensing resistor is designed as a 4 wire connected resistor that enables accurate measurements through a force-sense connection. The INA260AIPWR is internally calibrated to ensure that the current-sensing resistor and current-sensing amplifier are both precisely matched to one another.
The INA260AIPWR device performs two measurements on power supply bus. The current measurement on LOAD connector, is internally calculated by measuring the voltage developed across a known internal shunt resistor. The features is a physical shunt resistance that is able to withstand current levels higher than the continuous handling limit of 15 A without sustaining damage to the current-sensing resistor or the current-sensing amplifier if the excursions are very brief. The voltage measurement on SUPPLY connector witch is calculated by measuring the voltage from the external VBUS pin to ground. The voltage monitored range from 0V to 36V
The INA260AIPWR device performs two measurements on power supply bus. The current measurement on LOAD connector, is internally calculated by measuring the voltage developed across a known internal shunt resistor, and voltage measurement on SUPPLY connector wich is calculated by measuring the voltage from the external VBUS pin to ground.
The VCP Monitor click is compatibility with I2C communication protocol. The INA260AIPWR has two slave address selection pins, A0 and A1. For I2C slave address selection, VCP Monitor click has two cross-shape jumpers, first for set pin A0 and second for set A1 pin. One cross-shape jumper has four position for select address pin which can be selected with a SMD 0 ohm resistor, address pin can be connected to GND, VS, SCL or SDA pins. The VCP Monitor click with the two separate jumper on Click board™ user can to set the desired address. The INA260AIPWR provides the opportunity of the 16 possible different I2C addresses.
I2C SLAVE ADDRESS SELECTION
| A1 | A0 | Slave address |
|---|---|---|
| GND | GND | 1000000 |
| GND | VS | 1000001 |
| GND | SDA | 1000010 |
| GND | SCL | 1000011 |
| VS | GND | 1000100 |
| VS | VS | 1000101 |
| VS | SDA | 1000110 |
| VS | SCL | 1000111 |
| SDA | GND | 1001000 |
| SDA | VS | 1001001 |
| SDA | SDA | 1001010 |
| SDA | SCL | 1001011 |
| SCL | GND | 1001100 |
| SCL | VS | 1001101 |
| SCL | SDA | 1001110 |
| SCL | SCL | 1001111 |
The INA260AIPWR is supported with ALERT pin, which is connected to the INT pin on mikroBUS™, in order to interrupt the ongoing MCU routine in case of the alert condition. INT pin can be programmed to respond to a user-defined event or to a conversion ready notification.
The voltage level of the logic section can be selected via VCC SEL jumper, between 3.3V and 5V. This allows for both 3.3V and 5V capable MCUs to use the I2C communication lines properly.
SPECIFICATIONS
| Type | Current sensor |
| Applications | VCP Monitor click click is a perfect solution for the development of the Power Managment system, Battery Chargers and Power Supplies. |
| On-board modules | NA260AIPWR, a digital-output, current, power, and voltage monitor with an I2C and SMBus™-compatible interfacefrom Texas Instruments |
| Key Features | Current Sense Resistance: 2 mΩ, Tolerance Equivalent to 0.1%, 15-A Continuous From –40°C to +85°C, 16 Programmable Addresses. |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

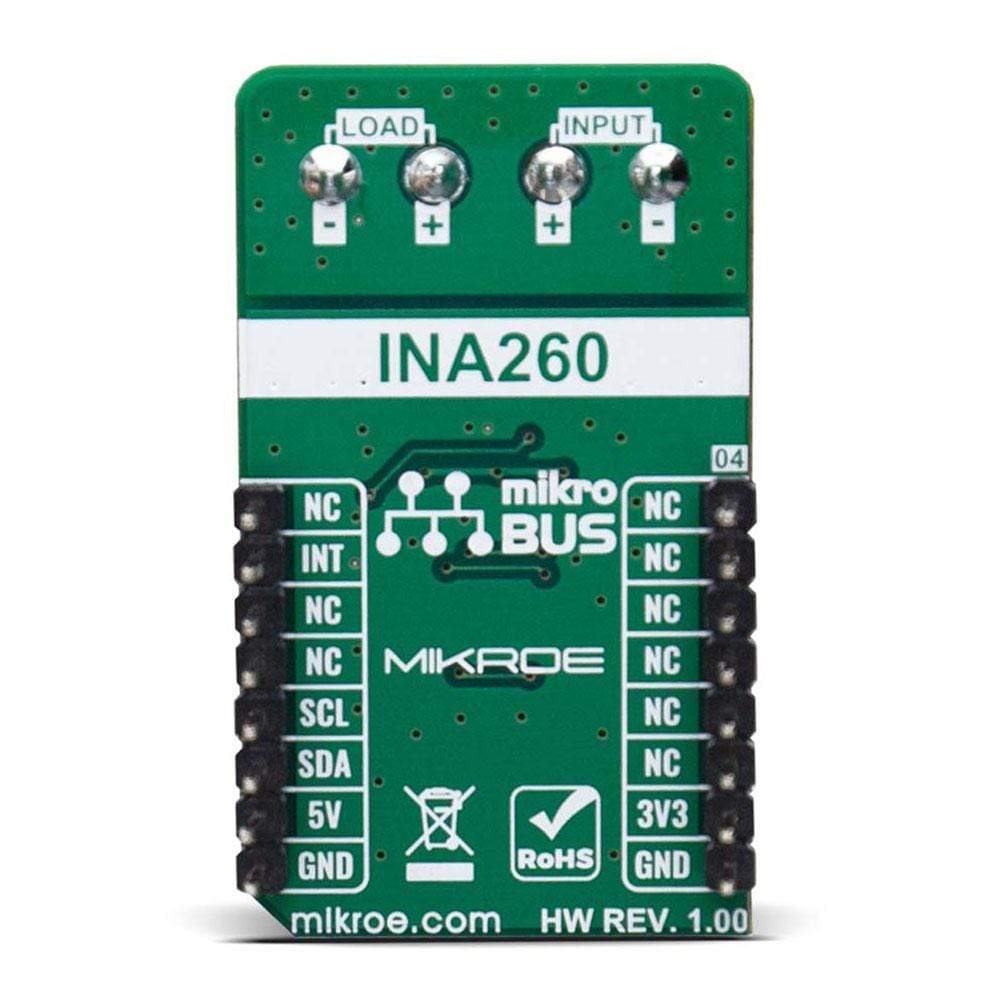

PINOUT DIAGRAM
This table shows how the pinout on VCP Monitor click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | INT | Interrupt OUT | |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| PWR | PWR | - | Power LED Indicator |
| JP1 | VCC SEL | Left | Power supply voltage selection 3v3/5v: left position 3v3, right position 5v |
| JP2,JP3 | ADD A0 | Left | 4-position I2C address Selection toward host mcu: left - GND; Right - VCC; Up - SCL; Down - SDA |
| JP4,JP5 | ADD A1 | Right | 4-position I2C address Selection toward host mcu: left - GND; Right - VCC; Up - SCL; Down - SDA |
VCP MONITOR CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Input voltage (SUPPLY terminal) | 0 | 36 | V | |
| Out voltage (LOAD terminal) | 0 | 36 | V | |
| OUT Current (LOAD terminal) | -15 | 15 | A |
Software Support
We provide a library for the VCP Monitor Click on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library contains basic communication with the module and allows the user to read and write data to the module. The user can read the current data of current, voltage and power measured by the sensor.
Key Functions
float vcpmonitor_get_voltage ( void )- Reads voltage data in mVfloat vcpmonitor_get_current ( void )- Reads current data in mAfloat vcpmonitor_get_power ( void )- Reads power data in mW
Example Description
The application is composed of three sections :
- System Initialization - Initializes I2C module and INT pin on INPUT
- Application Initialization - Initializes driver init, check device ID and manufacture ID, start default configuration.
- Application Task - Reads Current, Voltage and Power data. This data logs to USB UART every 1500ms.
void application_task ( )
{
float current_data;
float voltage_data;
float power_data;
current_data = vcpmonitor_get_current( );
IntToStr( current_data, demo_text );
mikrobus_logWrite( ">> Current data: ", _LOG_TEXT );
mikrobus_logWrite( demo_text, _LOG_TEXT );
mikrobus_logWrite( " mA", _LOG_LINE );
voltage_data = vcpmonitor_get_voltage( );
IntToStr( voltage_data, demo_text );
mikrobus_logWrite( ">> Voltage data: ", _LOG_TEXT );
mikrobus_logWrite( demo_text, _LOG_TEXT );
mikrobus_logWrite( " mV", _LOG_LINE );
power_data = vcpmonitor_get_power( );
IntToStr( power_data, demo_text );
mikrobus_logWrite( ">> Power data: ", _LOG_TEXT );
mikrobus_logWrite( demo_text, _LOG_TEXT );
mikrobus_logWrite( " mW", _LOG_LINE );
mikrobus_logWrite( " ------------------------------- ", _LOG_LINE );
Delay_ms( 1500 );
}
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- I2C Library
- Conversions library
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the VCP Monitor Click on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library contains basic communication with the module and allows the user to read and write data to the module. The user can read the current data of current, voltage and power measured by the sensor.
Key Functions
float vcpmonitor_get_voltage ( void )- Reads voltage data in mVfloat vcpmonitor_get_current ( void )- Reads current data in mAfloat vcpmonitor_get_power ( void )- Reads power data in mW
Example Description
The application is composed of three sections :
- System Initialization - Initializes I2C module and INT pin on INPUT
- Application Initialization - Initializes driver init, check device ID and manufacture ID, start default configuration.
- Application Task - Reads Current, Voltage and Power data. This data logs to USB UART every 1500ms.
void application_task ( )
{
float current_data;
float voltage_data;
float power_data;
current_data = vcpmonitor_get_current( );
IntToStr( current_data, demo_text );
mikrobus_logWrite( ">> Current data: ", _LOG_TEXT );
mikrobus_logWrite( demo_text, _LOG_TEXT );
mikrobus_logWrite( " mA", _LOG_LINE );
voltage_data = vcpmonitor_get_voltage( );
IntToStr( voltage_data, demo_text );
mikrobus_logWrite( ">> Voltage data: ", _LOG_TEXT );
mikrobus_logWrite( demo_text, _LOG_TEXT );
mikrobus_logWrite( " mV", _LOG_LINE );
power_data = vcpmonitor_get_power( );
IntToStr( power_data, demo_text );
mikrobus_logWrite( ">> Power data: ", _LOG_TEXT );
mikrobus_logWrite( demo_text, _LOG_TEXT );
mikrobus_logWrite( " mW", _LOG_LINE );
mikrobus_logWrite( " ------------------------------- ", _LOG_LINE );
Delay_ms( 1500 );
}
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- I2C Library
- Conversions library
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
