Overview
Das Thermo 2 Click Board™ ist eine Messzubehörkarte, die DS1825 enthält, ein 1-Draht-Digitalthermometer mit programmierbarer Auflösung. Das Digitalthermometer bietet 9- bis 12-Bit-Temperaturmessungen in Celsius und kommuniziert über einen 1-Draht-Bus.
Der DS1825-Chip verfügt über einen einzigartigen 64-Bit-Seriencode, der es dem Benutzer ermöglicht, mehrere DS1825s anzuschließen, damit sie auf demselben 1-Wire-Bus funktionieren.

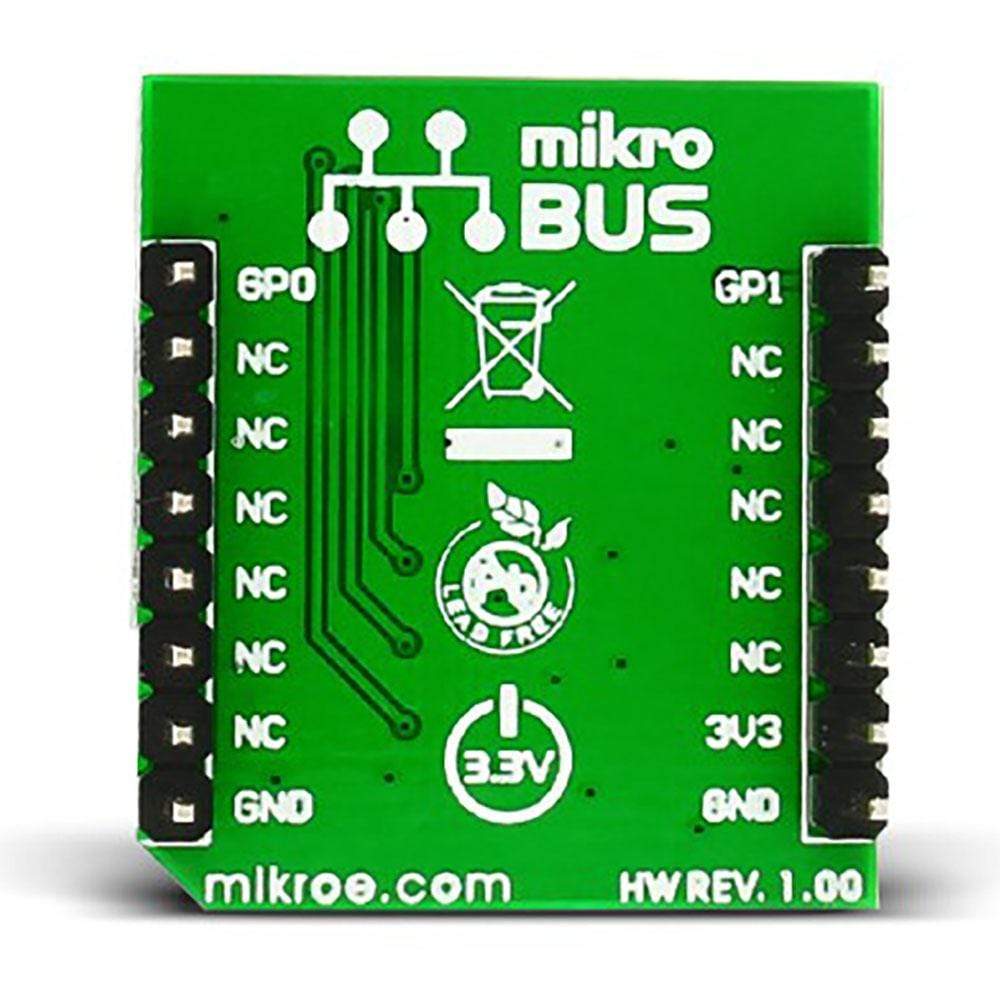

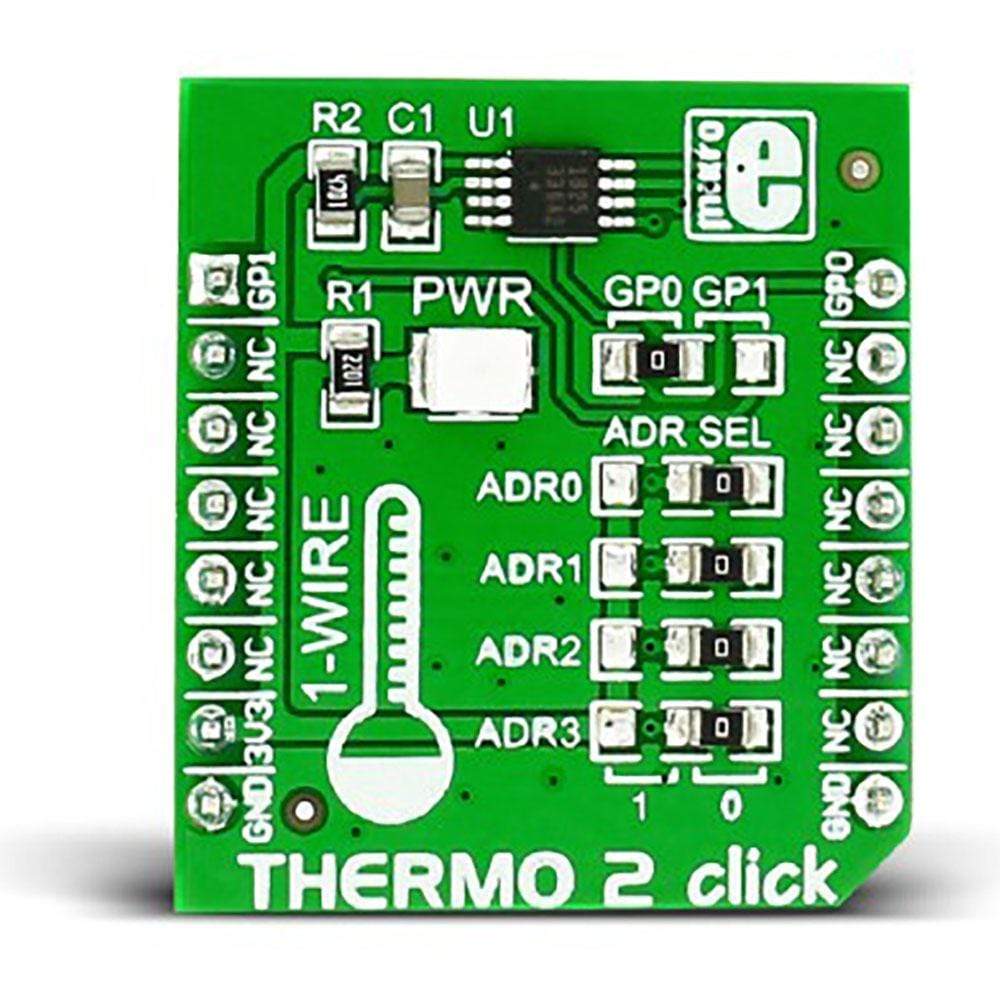

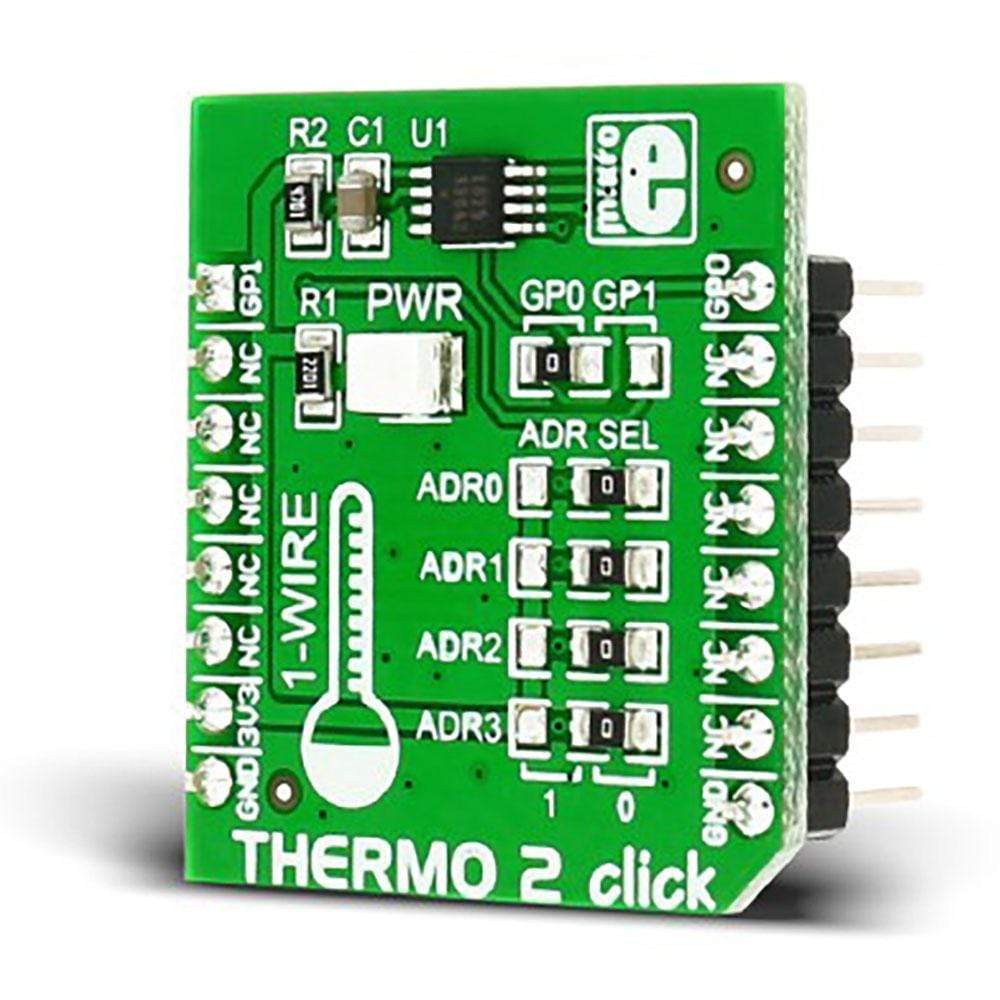

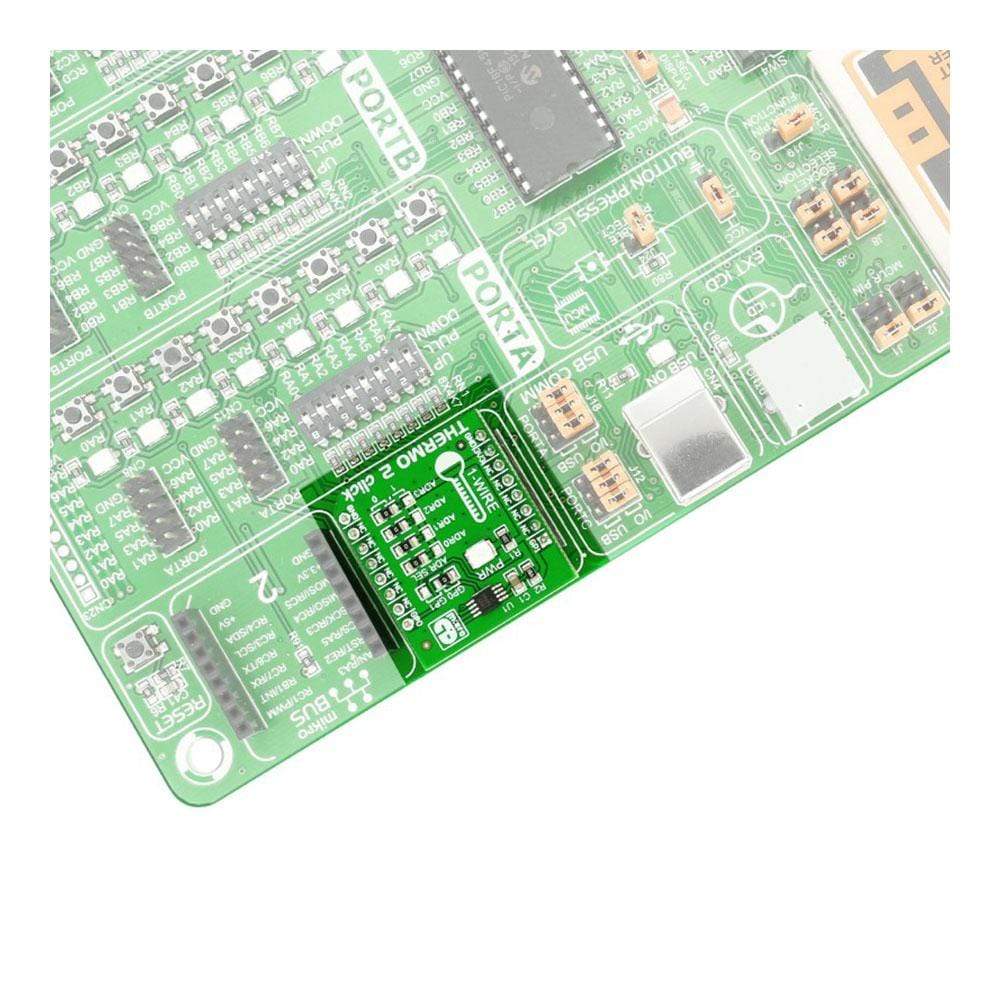

The Thermo 2 Click Board™ carries DS1825, a programmable resolution digital thermometer IC with a unique 64-bit address. The click is designed to run on a 3.3V power supply. The board communicates with the target microcontroller through a 1-wire interface. Using the onboard jumper you can select between two outputs: GP1 (default mikroBUS™ AN pin), and GPO (default PWM pin).
Temperature range
The sensor aboard the Thermo 2 Click Board™ measures temperature within a range from –10°C to 85°C with ±0.5°C accuracy .
DS1825 Digital Thermometer
You can specify the resolution of the measurements, from 9 to 12-bit, depending on the application. Because each DS1825 has a unique 64-bit serial code, many of them can function on the same 1-wire bus.
The 4-bit location address lets you set up a unique ID for up to 16 sensors that operate on a single 1-Wire bus.
Onboard jumpers
The board features a set of four onboard jumpers (zero ohm resistors) for specifying a unique address for the sensor.
A separate jumper lets you select the sensor's output between GP1 and GP0 pins.
The Thermo 2 Click Board™ also features four Address Select jumpers for setting a unique ID for the sensor (allowing for up to 16 sensors to operate on a single 1-Wire bus).
Key Features
- DS1825 digital thermometer
- ±0.5°C accuracy from -10°C to +85°C
- Thermometer Resolution is User-Selectable from 9 to 12 Bits
- Alarm function (user-programmable)
- Interface: AN, PWM
- 3.3V power supply
