Overview
Die SmartADAPT 2-Platine ist eine Zusatzplatine, mit der Sie 16 I/O-Pins durch einfaches Verschieben der integrierten Jumper neu anordnen können, um Ihren spezifischen Anforderungen gerecht zu werden. Diese Platine ist ideal für die Konfiguration der I/O-Pins Ihres Prototypgeräts.

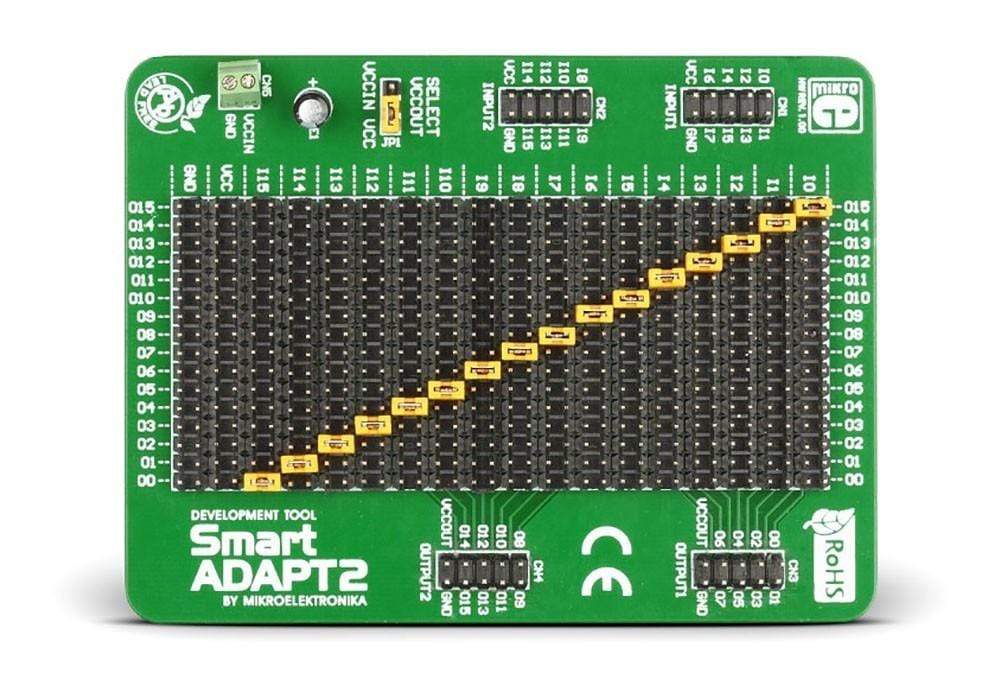

The SmartADAPT 2 Board is an accessory board used to rearrange 16 I/O pins just by moving on-board jumpers in order to meet the specified needs. This board is ideal for configuring the prototype device I/O pins. This patch panel board is designed to be compatible with MikroElektronikas development systems and prototyping boards. The SmartADAPT2 Board comes with two 8-bit I/O ports to be reconfigured to aid attaching peripherals and other hardware. It has 32x16 header matrix with 16 jumpers that allow user to adjust desired input lines to appropriate output headers. The user is provided with on-board screw terminals that enable use of external power supply in place of using input headers. The output VCC pin can be configured using a jumper. The SmartADAPT2 Board supports use with 3.3V and 5V systems.
Board Connections
The SmartADAPT 2 Board is connected to the development system using 2x5 connectors CN1 and CN2, which is connected to the development systems ports using a flat cable with IDC10 connectors. For connection with another accessory board or device, use a 2x5 connector CN3 and CN4. The VCCout pin voltage can be selected using the jumper JP1.
