Riverdi-Display 5"
Riverdi-Display 5"
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview
Das Riverdi Display ist ein hochwertiges, kostengünstiges 5-Zoll-TFT-Display mit einem Metallmontagerahmen zur einfacheren Integration. Einfach zu verwenden mit den Entwicklungstools von MikroElektronika.
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-2169
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.145 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
8606015079813
|

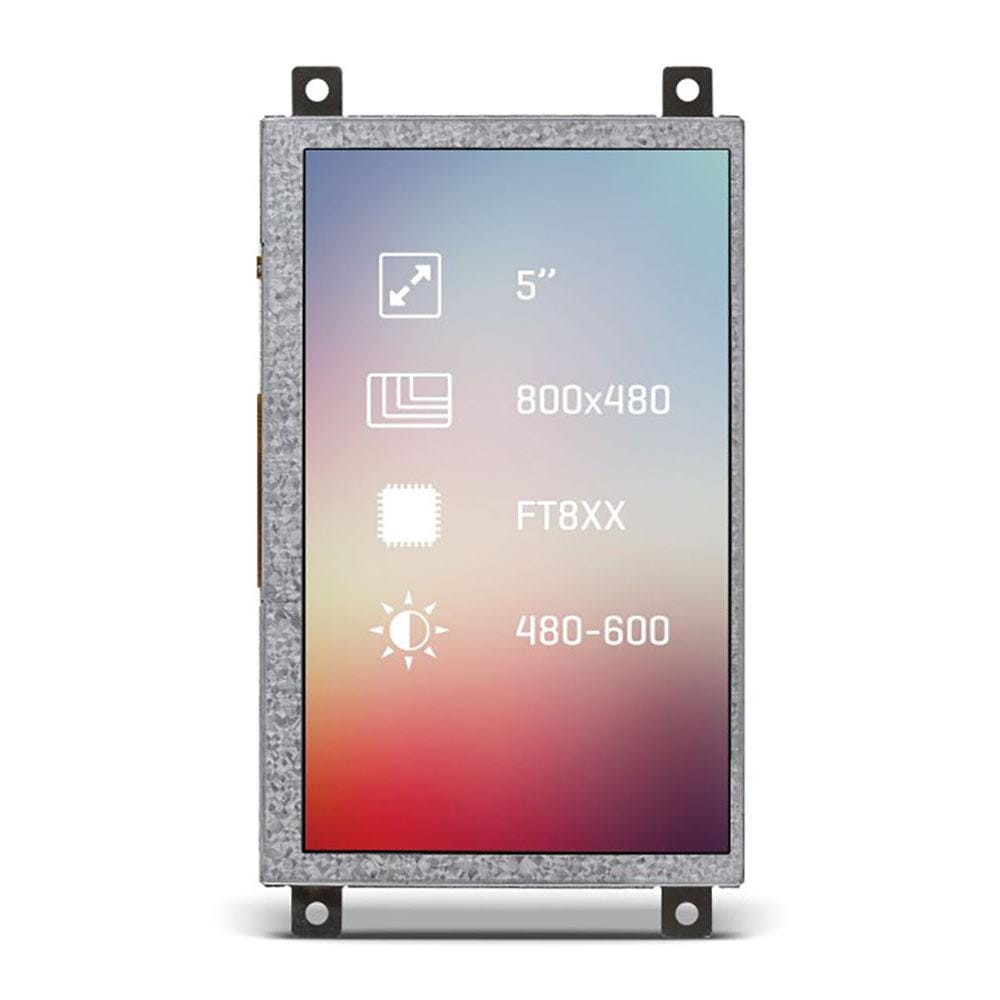

The Riverdis 800x480px screen is driven by an FT812 graphic controller which is supported in Visual TFT, the GUI design tool for rapid development of user interfaces.
This model doesnt have a touchscreen layer which results in increased brightness 600 cd/m2. The addition of anti-glare surface treatment makes further increases clarity.

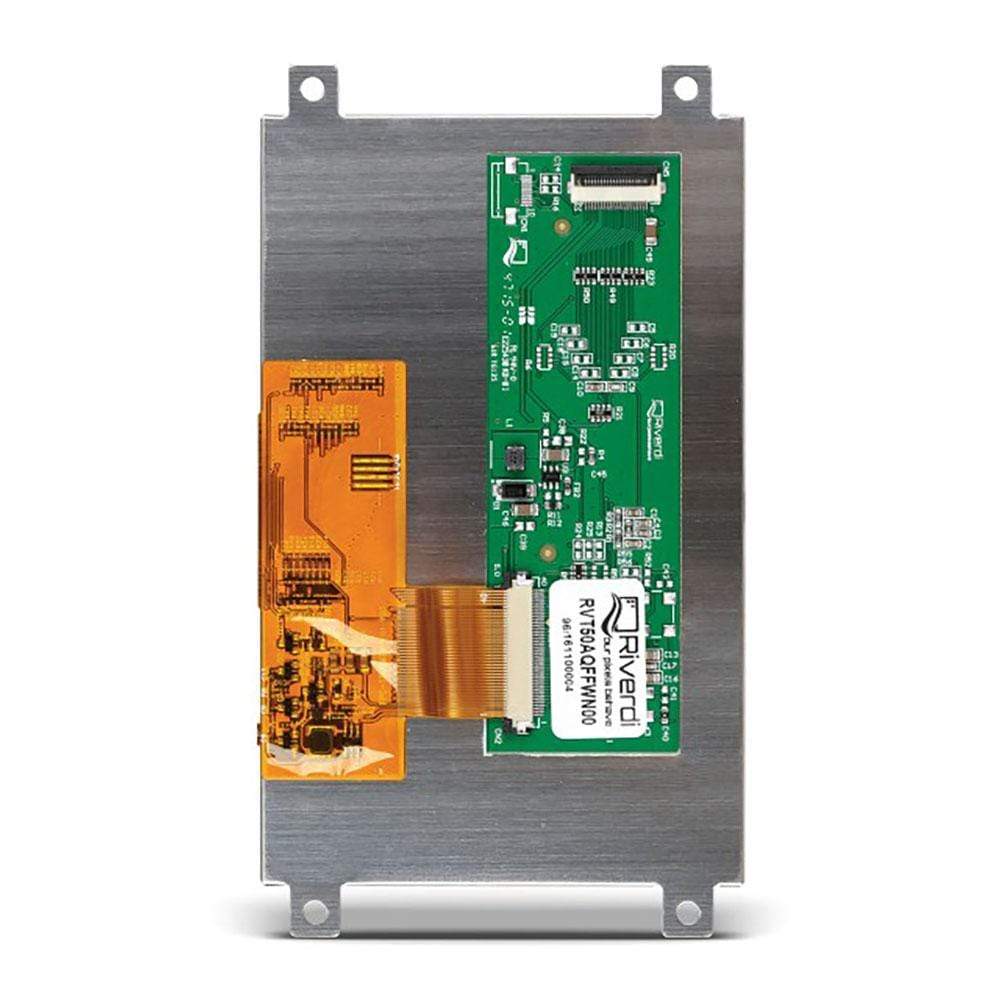

The connector uses an SPI/QSPI interface. To use it with various MikroElektronika hardware, a Riverdi Click Board™ adapter board is available (interface between the connector on the display and a mikroBUS socket).
