Mikroelektronika d.o.o.

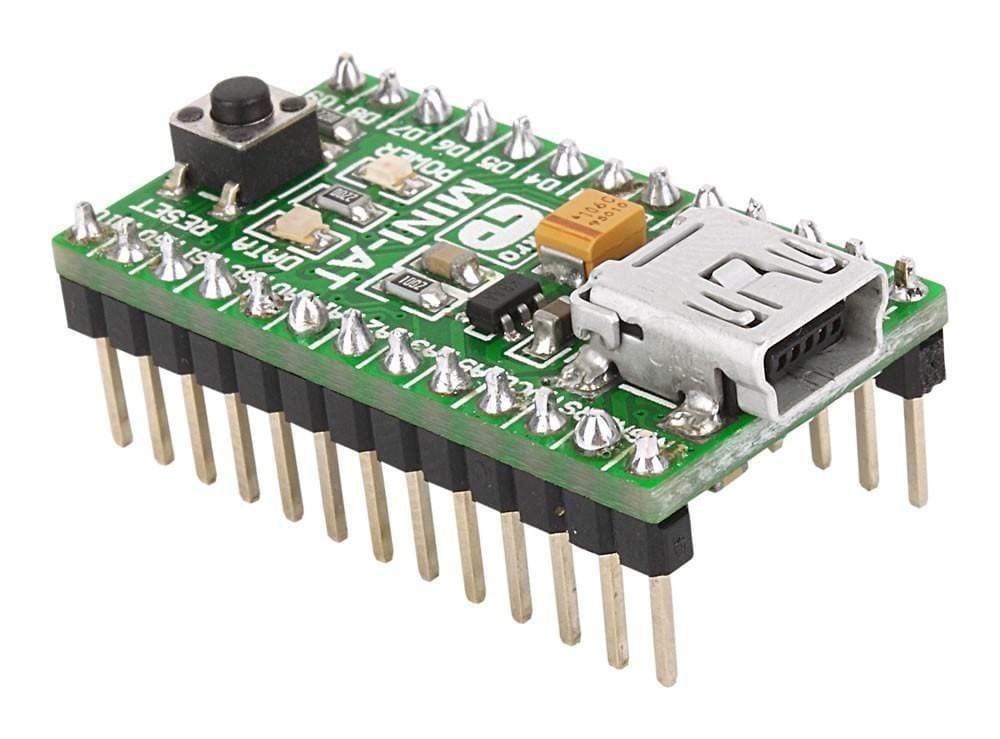

MINI-AT-Platine – 3,3 V

MINI-AT-Platine – 3,3 V

SKU: MIKROE-672

Normaler Preis
£33.00 exc VAT
£39.60 inc VAT
Normaler Preis Verkaufspreis
£33.00 exc VAT
£39.60 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

Believe it or not, this board is a small development system. It barely fits on your finger, but the MINI-AT Board 3.3V features ATmega328, USB-UART, reset circuit and LED indicators. It's compatible with standard DIP26 sockets. The onboard voltage regulator allows the board to be powered directly from the USB cable. It features a 16MHz SMD crystal oscillator.

Both come preprogrammed with a fast UART bootloader with 57600 bps operation, so no external programmers are needed for development.

Ob Sie es glauben oder nicht, dieses Board ist ein kleines Entwicklungssystem. Es passt kaum auf Ihren Finger, aber das MINI-AT Board 3.3V verfügt über ATmega328, USB-UART, Reset-Schaltung und LED-Anzeigen. Es ist mit Standard-DIP26-Sockeln kompatibel. Der integrierte Spannungsregler ermöglicht die direkte Stromversorgung des Boards über das USB-Kabel. Es verfügt über einen 16-MHz-SMD-Quarzoszillator.

Beide sind mit einem schnellen UART-Bootloader mit 57600 bps-Betrieb vorprogrammiert, sodass für die Entwicklung keine externen Programmierer erforderlich sind.

Overview
ArchitectureAVR (8-bit)
Key components
MCUATmega328
MCU speed8MIPS, 8MHz
MCU memory32Kb of Flash, 2KB of RAM
On-board modules1 x Reset Button, USB-UART connector
Features
IntegrationCompatible with standard DIP sockets for easier integration
Interfaces
ProgrammingComes preprogrammed with UART bootloader
Electrical
Power supply5V (via USB) or 3.3V (via external source)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-672
ManufacturerMikroelektronika doo
EAN8606015070155
Warranty12 Monate
Shipping weight0.006 kg
  • 1 × MINI-AT-Platine – 3,3 V
