Mikroelektronika d.o.o.

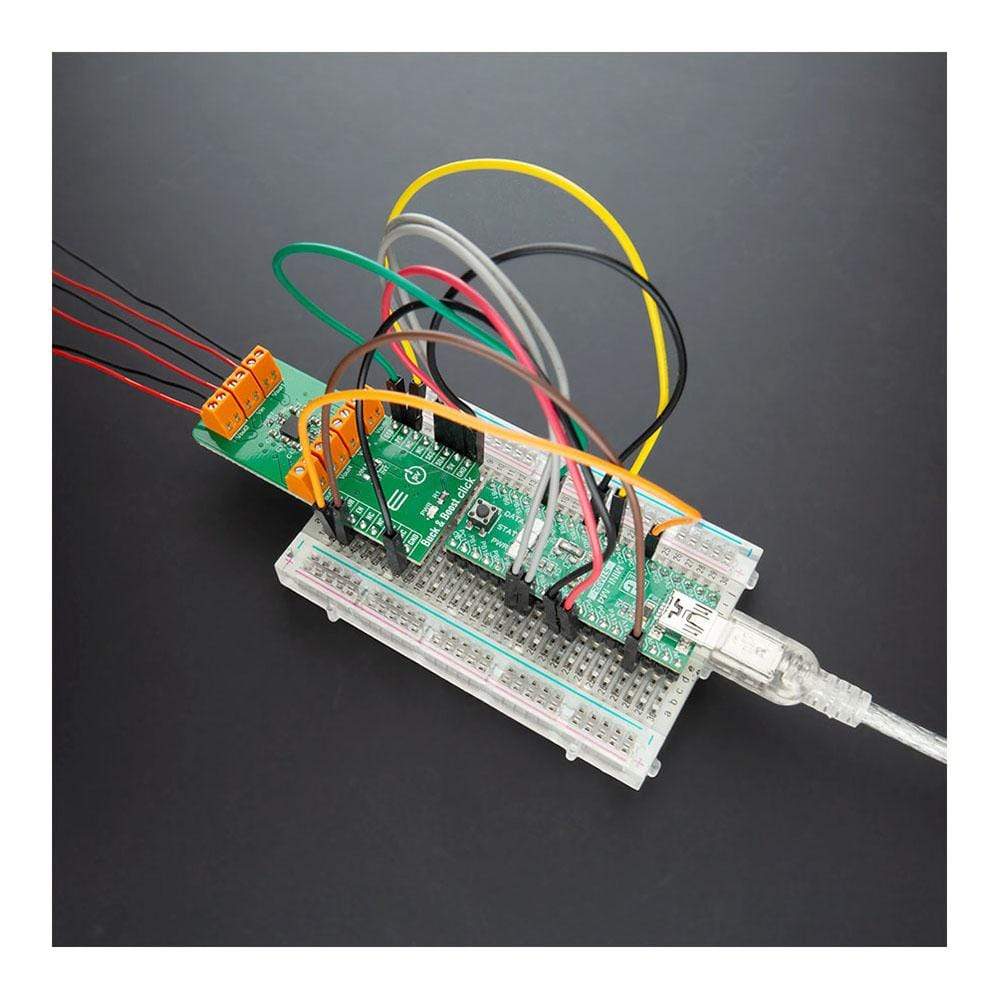

Buck- und Boost-Click-Platine

Buck- und Boost-Click-Platine

Enthält fünf Buck- und einen Boost-Regler

SKU: MIKROE-4354

Normaler Preis
£83.00 exc VAT
£99.60 inc VAT
Normaler Preis £83.00 GBP Verkaufspreis
£83.00 exc VAT
£99.60 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

The Buck & Boost Click Board™ is a compact add-on board that contains a configurable power management device. This board features the MIC7401, a highly-integrated power-management IC featuring five synchronous buck regulators, one boost regulator, and a high-speed I2C interface with an internal EEPROM memory from Microchip. The MIC7401 offers two distinct modes of operation (Standby and Normal) and includes a global enable pin to shut down the device for additional power savings. Some features of this Click Board™ like an energy-optimized solution, flexibility, and high-performance make it an excellent choice for portable handheld and infotainment applications.

The Buck & Boost Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click Board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

Das Buck & Boost Click Board™ ist eine kompakte Zusatzplatine, die ein konfigurierbares Energiemanagementgerät enthält. Diese Platine verfügt über den MIC7401, einen hochintegrierten Energiemanagement-IC mit fünf synchronen Abwärtsreglern, einem Aufwärtsregler und einer Hochgeschwindigkeits-I2C-Schnittstelle mit einem internen EEPROM-Speicher von Microchip. Der MIC7401 bietet zwei verschiedene Betriebsmodi (Standby und Normal) und verfügt über einen globalen Aktivierungsstift zum Herunterfahren des Geräts für zusätzliche Energieeinsparungen. Einige Funktionen dieses Click Board™ wie eine energieoptimierte Lösung, Flexibilität und hohe Leistung machen es zu einer ausgezeichneten Wahl für tragbare Handheld- und Infotainment-Anwendungen.

Buck & Boost Click wird von einer mikroSDK-kompatiblen Bibliothek unterstützt, die Funktionen enthält, die die Softwareentwicklung vereinfachen. Dieses Click Board™ wird als vollständig getestetes Produkt geliefert und ist bereit für den Einsatz auf einem System, das mit der mikroBUS™-Buchse ausgestattet ist.

Overview
CategoryBuck-Boost
ApplicationsCan be used for portable handheld and infotainment applications.
Key components
On-board modulesBuck & Boost Click is based on the MIC7401, a powerful highly-integrated configurable power management (PMIC) featuring buck and boost regulators and a high-speed I2C interface with an internal EEPROM memory and micro-power shutdown function from Microchip.
Features
Key featuresHigh-density five buck channels, one independent boost channel, 93% peak efficiency, fast transient response, short-to-ground fault detection, and more.
Interfaces
InterfaceI2C
CompatibilitymikroBUS™
Electrical
Input voltage5V, External
Physical
Click board sizeL (57.15 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-4354
ManufacturerMikroelektronika doo
EAN8606027380921
Warranty12 Monate
Shipping weight0.024 kg
  • 1 × Buck- und Boost-Click-Platine

Contact us to confirm the full contents of the box.
