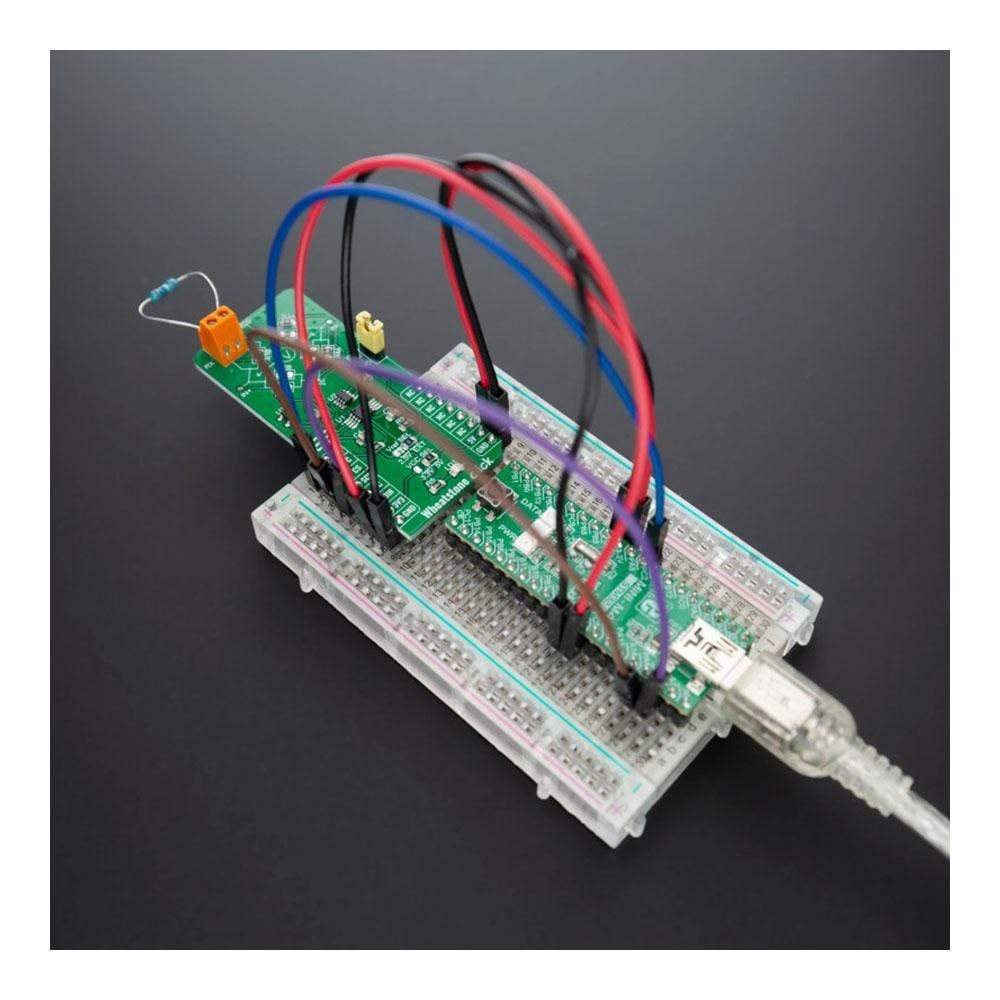

Wheatstone Click-Platine

Wheatstone Click-Platine

SKU: MIKROE-4124

Normaler Preis
£34.00 exc VAT
£40.80 inc VAT
Normaler Preis £34.00 GBP Verkaufspreis
£34.00 exc VAT
£40.80 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Key Features

extrem niedriger Offset/Drift, Spread-Spectrum, Auto-Zero, geringer Offset-Spannungsdrift und mehr
Basierend auf dem MAX4208 – einem Präzisionsinstrumentenverstärker mit extrem niedrigem Offset/Drift von Maxim Integrated TPL0501 onboard – 256-Taps, einkanaliges digitales Potentiometer mit SPI-Schnittstelle von Texas Instruments
Wheatstone Click eignet sich ideal für den Einsatz in verschiedenen Anwendungen, darunter Sensorablesungen und präzise Widerstandsmessungen.
mikroBUS: SPI und analoge Schnittstellen

Overview

The Wheatstone Click Board™ utilizes a Wheatstone Bridge circuit onboard, in order to precisely measure the resistance of an external element. Besides the Wheatstone Bridge circuit, this Click Board™ also utilizes MAX4208 – an ultra-low offset/drift, precision instrumentation amplifier, from Maxim Integrated.

Having features such as Spread-Spectrum, Auto-Zero, Low Offset Voltage Drift and more makes the mentioned IC ideal for accurate detection of very small voltage changes and conversion into a digital form. Having these features in mind, the Wheatstone Click Board™ is ideal for using in various applications which may include sensor readings and precise resistance measurements.

Der Wheatstone Click Board™ verwendet eine Wheatstone-Brückenschaltung an Bord, um den Widerstand eines externen Elements präzise zu messen. Neben der Wheatstone-Brückenschaltung verwendet dieses Click Board™ auch MAX4208 – einen Präzisionsinstrumentenverstärker mit extrem geringem Offset/Drift von Maxim Integrated.

Mit Funktionen wie Spread-Spectrum, Auto-Zero, Low Offset Voltage Drift und mehr ist der erwähnte IC ideal für die genaue Erkennung sehr kleiner Spannungsänderungen und deren Umwandlung in eine digitale Form. Mit diesen Funktionen im Hinterkopf ist der Wheatstone Click Board™ eignet sich ideal für den Einsatz in verschiedenen Anwendungen, darunter Sensorablesungen und präzise Widerstandsmessungen.

Overview
CategoryMeasurements
ApplicationsWheatstone click is ideal for using in various applications which may include sensor readings and precise resistance measurements.
Key components
On-board modulesMAX4208, an ultra-low offset/drift, precision instrumentation amplifier, from Maxim Integrated TPL0501 onboard - 256-Taps, Single-Channel, Digital Potentiometer With SPI Interface, from texas instruments
Features
Key featuresultra-low offset/drift, Spread-Spectrum, Auto-Zero, Low Offset Voltage Drift and more
Interfaces
InterfaceAnalog, SPI
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeL (57.15 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-4124
ManufacturerMikroelektronika doo
EAN8606018717750
Warranty12 Monate
Shipping weight0.021 kg
