Overview

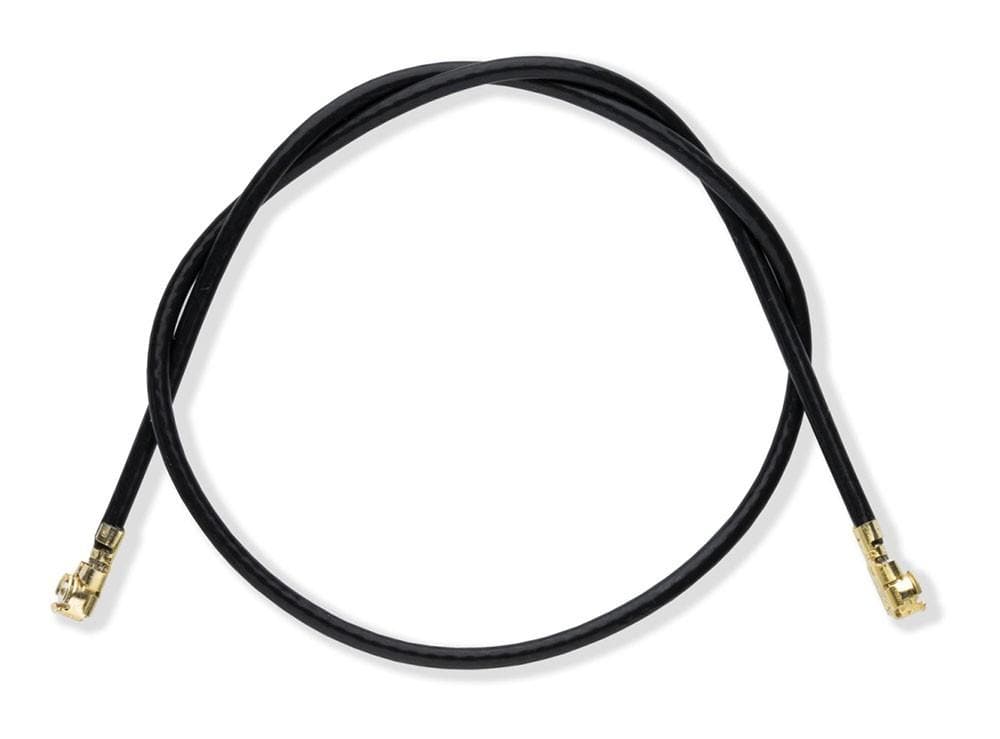

The UMCC - Ultraminiature Coax Connector is an ultra-low profile coax female to female to interconnect solution that meets the ever-growing demand for miniaturization in next-generation wireless applications. UMCC cable is available as double-ended jumpers and inter-series assemblies, and PCB jack receptacles for board mount applications.
Der UMCC (Ultraminiature Coax Connector) ist eine ultraflache Koax-Verbindungslösung von Buchse zu Buchse, die den ständig wachsenden Anforderungen an Miniaturisierung in drahtlosen Anwendungen der nächsten Generation gerecht wird. UMCC-Kabel sind als doppelseitige Jumper und Interserienbaugruppen sowie als PCB-Buchsenbuchsen für Anwendungen zur Platinenmontage erhältlich.
| Interfaces | |
|---|---|
| Connector type | UMCC (female to female) |
| Performance | |
| Frequency range | DC to 6 GHz |
| Characteristic impedance | 50 Ohms |
| VSWR (mated pair) | 1.30 max DC to 3 GHz; 1.5 max 3 to 6 GHz |
| Physical | |
| Length | 200 mm |
| Cable diameter | 1.37 mm |
| Mated height | 2.5 mm |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-3999 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606018718375 |
| Warranty | 12 Monate |
| Shipping weight | 0.002 kg |
-
1 ×
UMCC-Buchse-auf-Buchse-Kabeladapter
Contact us to confirm the full contents of the box.
