Overview

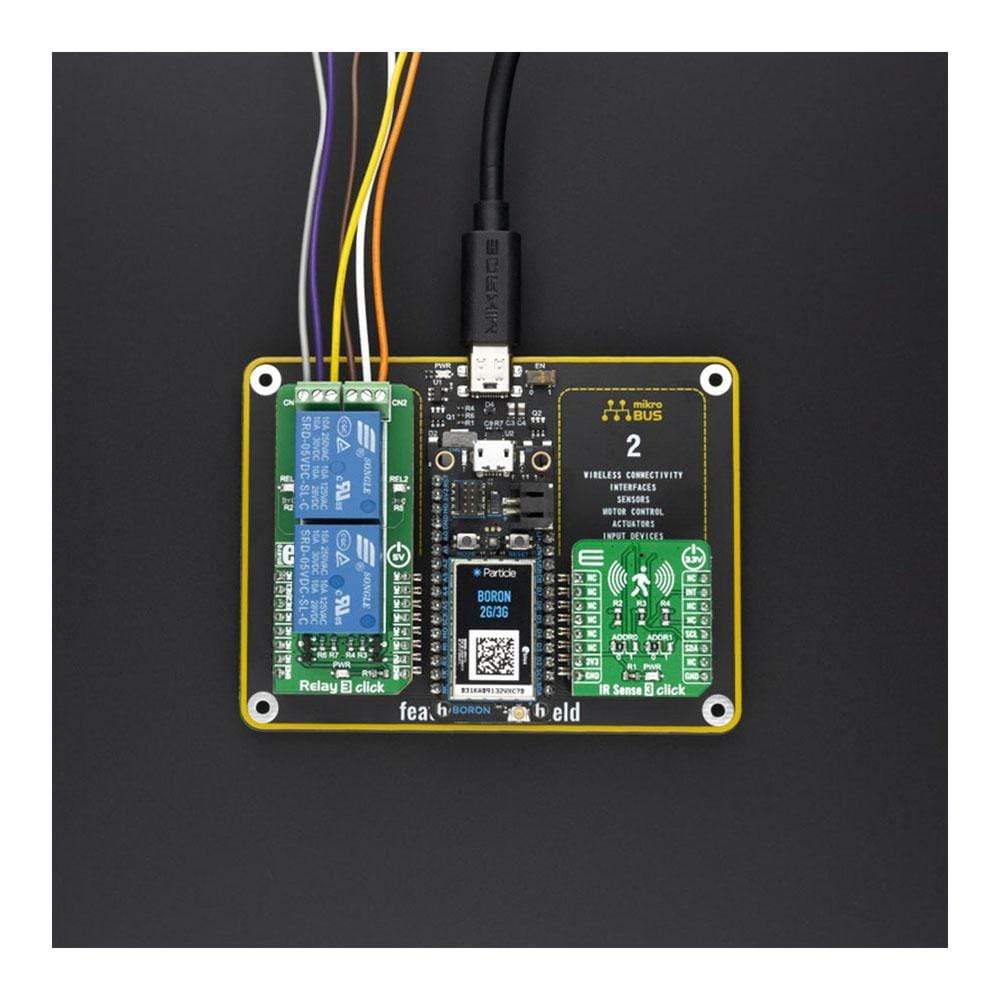

Our Adafruit Feather Click Board™ Shield with two mikroBUS sockets as wings is proving the needed expansion of your Feather boards by allowing your project to "fly" with more than 1100 Click Boards™. You name it, we have it! This number of Click Board™ boards gives you a versatile selection of peripheral devices that can be taken off the shelf and used for prototyping in no time.
The Feather is Adafruit’s standardized open-source development platform for IoT projects. The Adafruit Feather & FeatherWing system consist of a baseboard (Feather) and expansion boards (Wings). They are connected to each other over a standardized 28-pin connector (two rows of 16-pin and 12-pin connectors) and supports all interface needed for communication with any Click Board™. Please visit their page for information about Feather boards and standards.
Note: The Feather baseboard is not included in the package.
Unser Adafruit Feather Click Board™ Shield mit zwei MikroBUS-Buchsen als Flügel stellt die notwendige Erweiterung Ihrer Feather-Boards dar, indem es Ihr Projekt mit mehr als 1100 Click Boards™ „fliegen“ lässt. Sie nennen es, wir haben es! Diese Anzahl an Click Board™-Boards bietet Ihnen eine vielseitige Auswahl an Peripheriegeräten, die Sie sofort aus dem Regal nehmen und für das Prototyping verwenden können.
Feather ist Adafruits standardisierte Open-Source-Entwicklungsplattform für IoT-Projekte. Das Adafruit Feather & FeatherWing-System besteht aus einer Basisplatine (Feather) und Erweiterungsplatinen (Wings). Sie sind über einen standardisierten 28-poligen Stecker (zwei Reihen mit 16-poligen und 12-poligen Steckern) miteinander verbunden und unterstützen alle Schnittstellen, die für die Kommunikation mit jedem Click Board™ erforderlich sind. Weitere Informationen zu Feather-Platinen und -Standards finden Sie auf deren Seite.
Hinweis : Die Feather-Fußleiste ist nicht im Lieferumfang enthalten.
| Overview | |
|---|---|
| Category | Shield, Adapter |
| Applications | IoT applications with Feather boards which require additional peripheral devices |
| Key components | |
| On-board modules | Feather connector for connecting compatible Feather boards, power part for converting 5V USB to the 3.3V |
| Interfaces | |
| Interface | I2C, UART, SPI, Analog, GPIO, PWM |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V,5V |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-3725 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606018716753 |
| Warranty | 12 Monate |
| Shipping weight | 0.36 kg |
-
1 ×
Adafruit Feather Click Shield
Contact us to confirm the full contents of the box.
