Overview

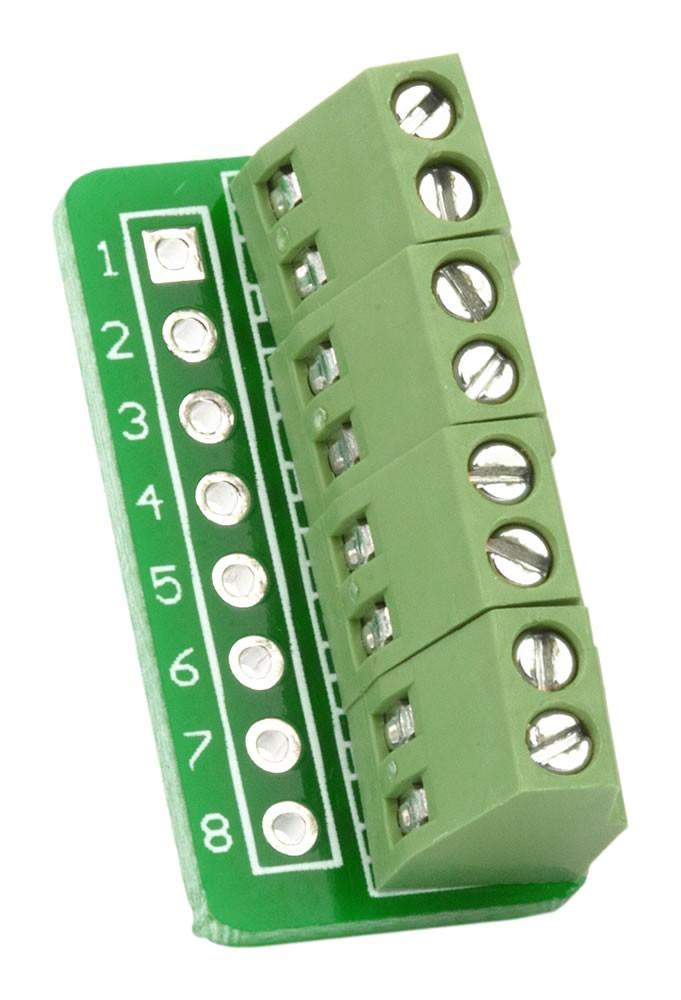

Introduce a simple and convenient way of connecting eight wires from the power supply, communication, analogue and/or GPIO lines to a breakout board using the PROTO Connect Board. This adapter board includes eight connection pads in standard 100mil spacing and eight screw terminals to meet the device requirements. It also has male header pins that can be soldered. This compact-sized board makes for a great choice for prototyping.
Mit dem PROTO Connect Board können Sie auf einfache und bequeme Weise acht Drähte von Stromversorgungs-, Kommunikations-, Analog- und/oder GPIO-Leitungen an eine Breakout-Platine anschließen. Diese Adapterplatine enthält acht Anschlusspads im Standardabstand von 100 mil und acht Schraubklemmen, um die Geräteanforderungen zu erfüllen. Sie verfügt außerdem über Stiftleisten, die gelötet werden können. Diese kompakte Platine ist eine hervorragende Wahl für das Prototyping.
| Overview | |
|---|---|
| Category | Add-on |
| Applications | Board is used for connecting eight wires from power supply, communication, analog or GPIO lines to the target breadboard |
| Product type | Adapter |
| Key components | |
| On-board modules | Eight screw terminals and eight connection pads in standard 100mil distance |
| Features | |
| Key features | Micro screw terminals for eight wire connections |
| Key benefits | Connection pads compatible with standard breadboards |
| Interfaces | |
| Interface | GPIO |
| Compatibility | Breadboard (PROTO) |
| Electrical | |
| Power supply | 3.3V or 5V |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-319 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606015071961 |
| Warranty | 12 Monate |
| Shipping weight | 0.004 kg |
-
1 ×
Proto Connect-Platine
Contact us to confirm the full contents of the box.
