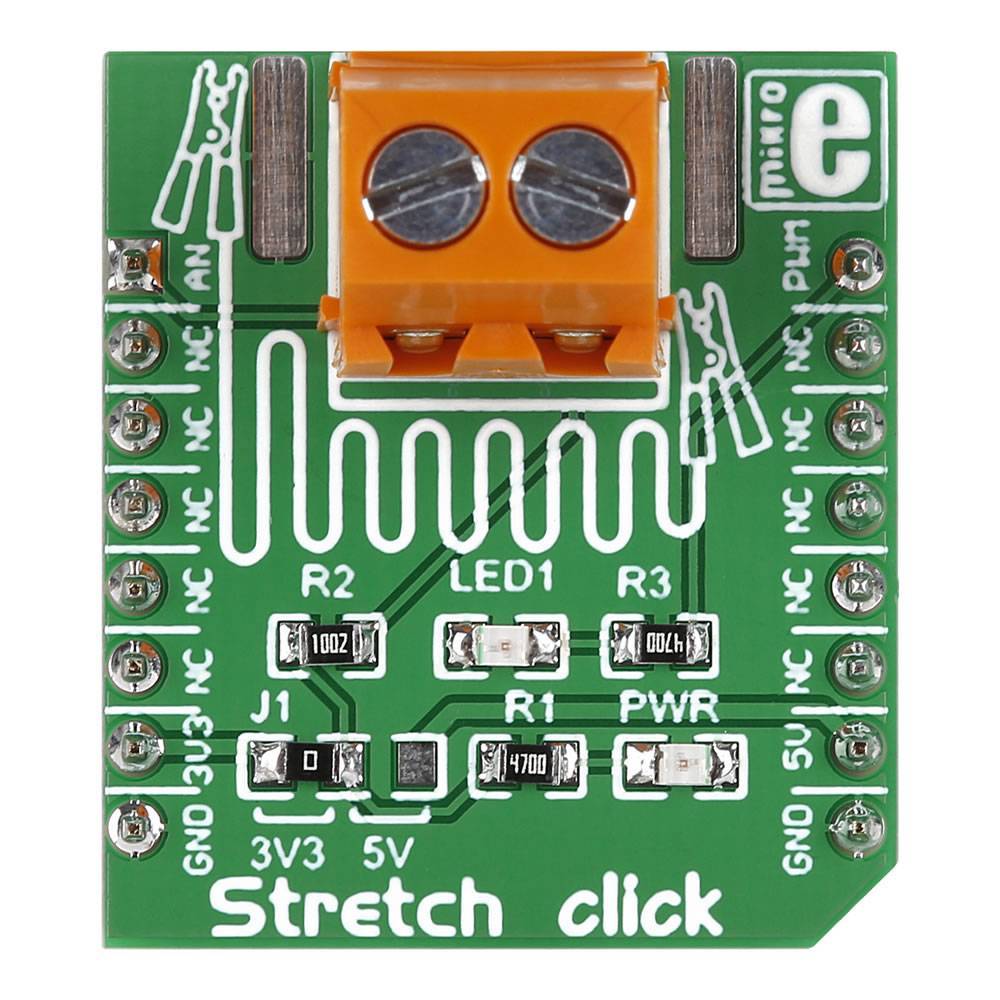

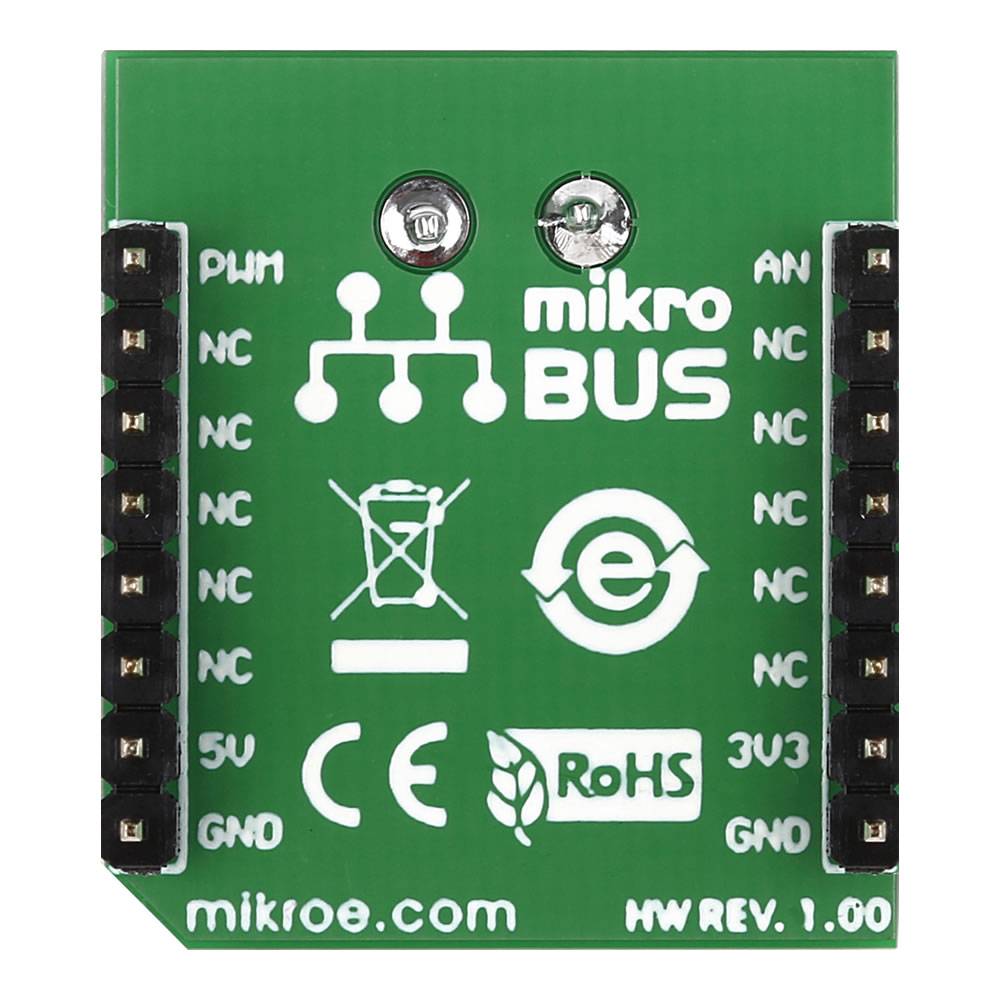

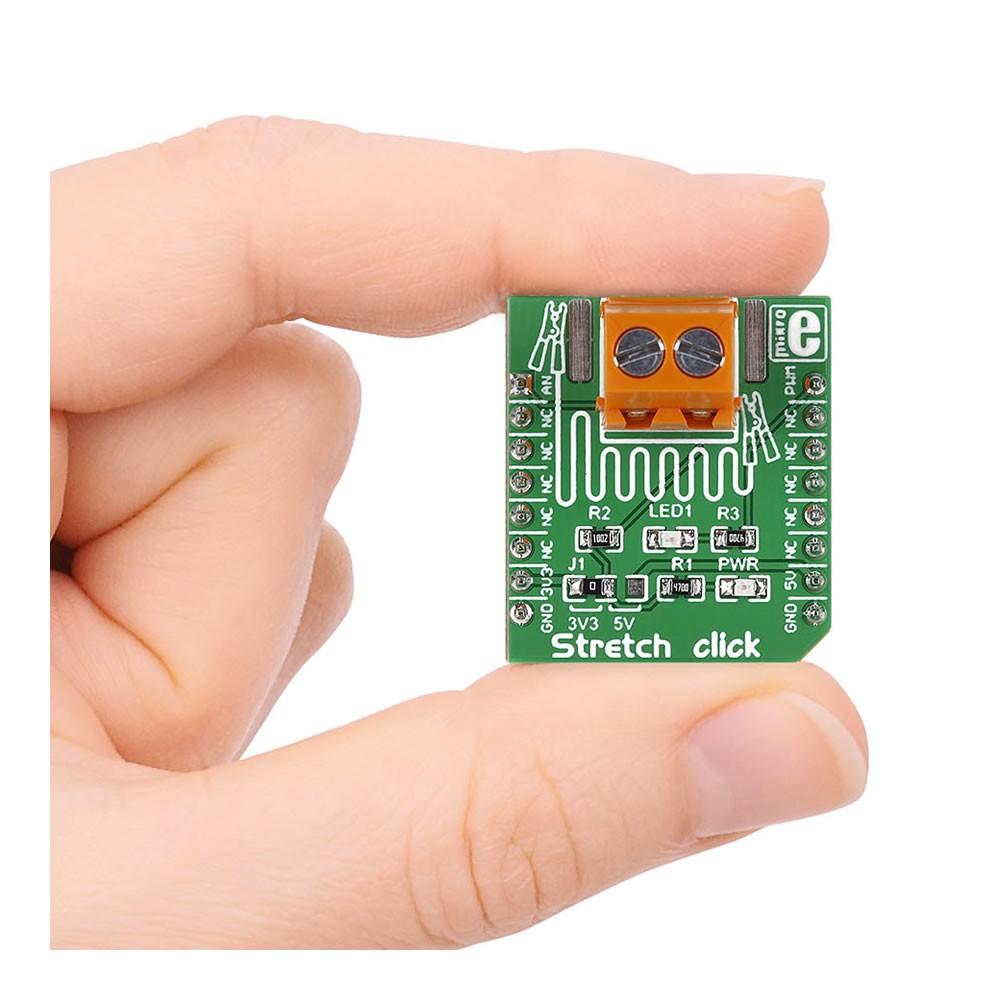

Das Stretch Click Board™ ist eine MikroBUS-Zusatzplatine mit Schaltkreisen zum Messen von Dehnungskräften mit leitfähigen Gummikabeln. Das Click Board™ verfügt über Schraubklemmen zum Anschließen eines leitfähigen Gummikabels mit 2 mm Durchmesser. Der Widerstand des Kabels erhöht sich beim Dehnen, was sich auf die am AN-Pin verfügbare Spannung auswirkt. Das Stretch Click Board™ ist für die Verwendung einer 3,3-V- oder 5-V-Stromversorgung ausgelegt.
The Stretch Click Board™ is a mikroBUS add-on board with circuitry for measuring stretch forces with conductive rubber cords. The Click Board™ has screw terminals for connecting 2mm-diameter conductive rubber cord. The resistance of the cord increases when stretched, impacting the voltage available on the AN pin. The Stretch Click Board™ is designed to use either a 3.3V or 5V power supply.In a relaxed state, the resistance is about 130 Ωs per centimeter. As you pull on it, the resistance increases (the particles get further apart). As you stretch it out, the resistance increases. So lets say you have a 15cm piece - thats about 2.1 Kohms.Stretch it to 25cm long and now it is 26/15*2.1K = 3.5 Kohms.
You can stretch the rubber about 50-70% longer than the resting length, so a 15cm piece shouldnt be stretched more than 25cm. Once the force is released, the rubber will shrink back, although its not very "fast" and it takes a minute or two to revert to its original length. Its not a true linear sensor, and the resistance may vary from batch to batch, so we consider it a way to measure stretching motion but isnt really precise.

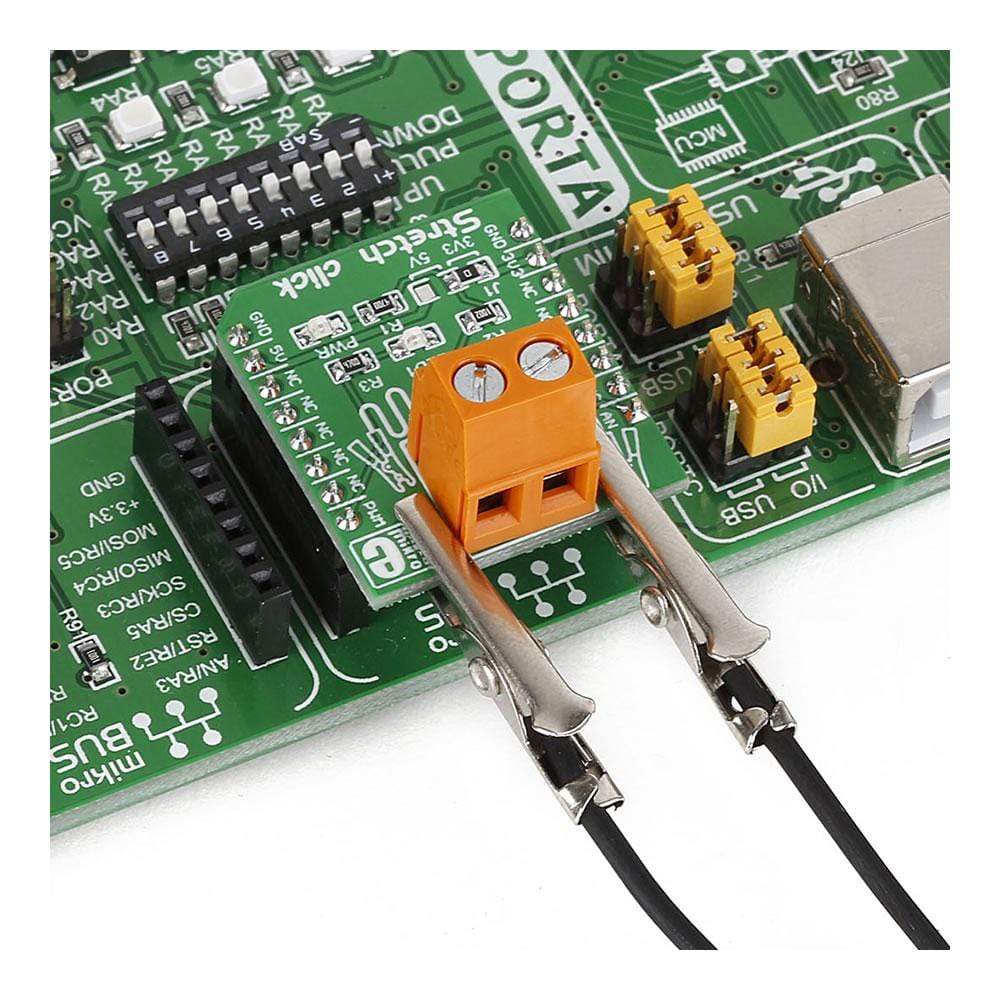

One metre of conductive rubber cord and two alligator clips are included in the package.
