Shake2Wake Click Example
Video notes

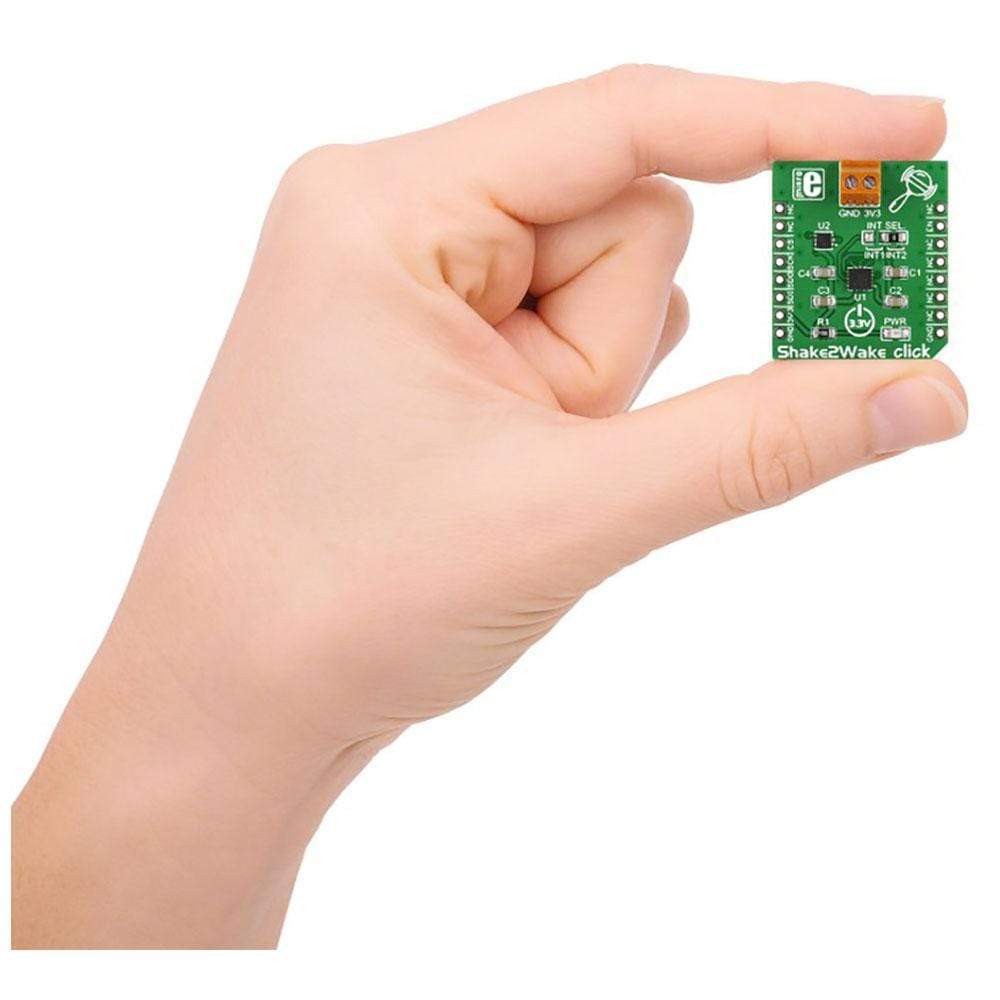

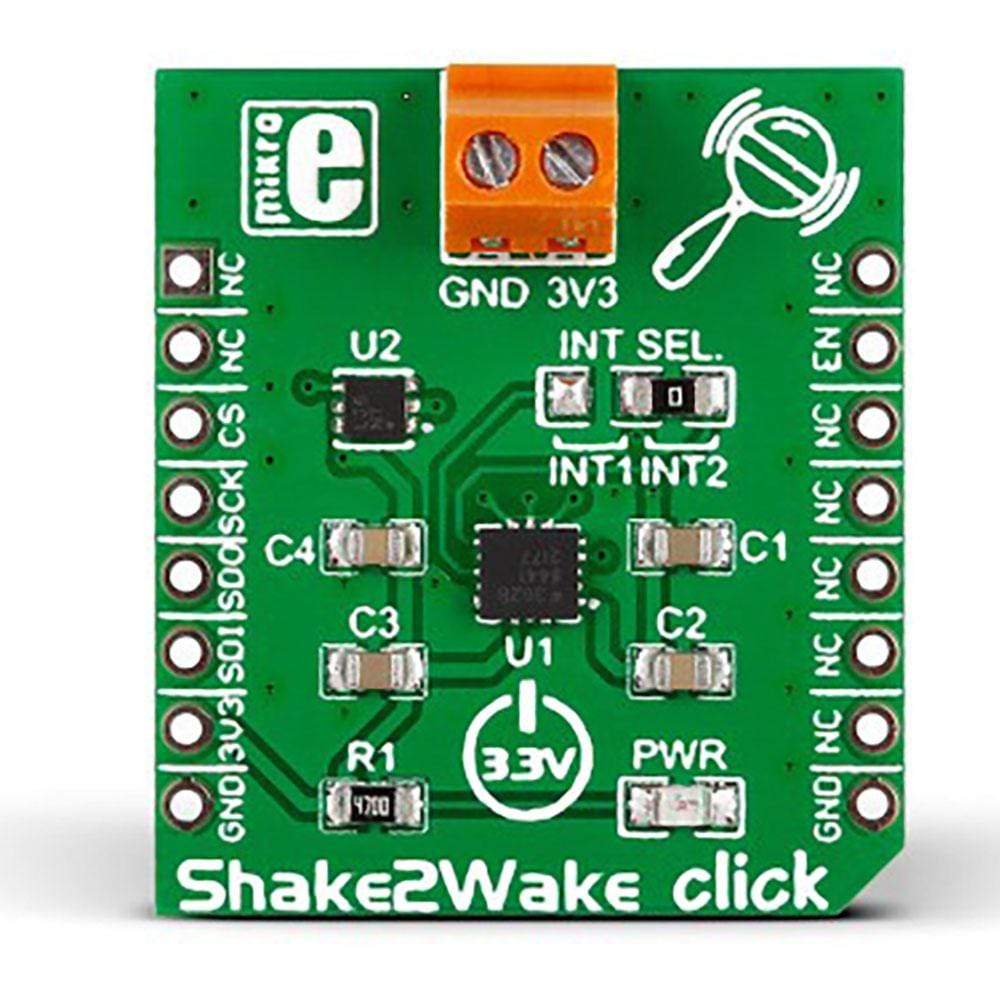

Introduce shake functionality to the device with the Shake2Wake Click Board™. The board features two chips from Analog Devices: an ADXL362 accelerometer that includes several activity detection modes, which is connected to an ADP195 power switch IC. This power switch IC is in turn connected to a screw terminal for controlling external devices. Upon shaking, the accelerometer sends an interrupt to the switch, which in turn, powers up the external components. The intensity and duration of shaking required for waking it up is programmable, as well as the period of inactivity, which leads to switching off the external device.

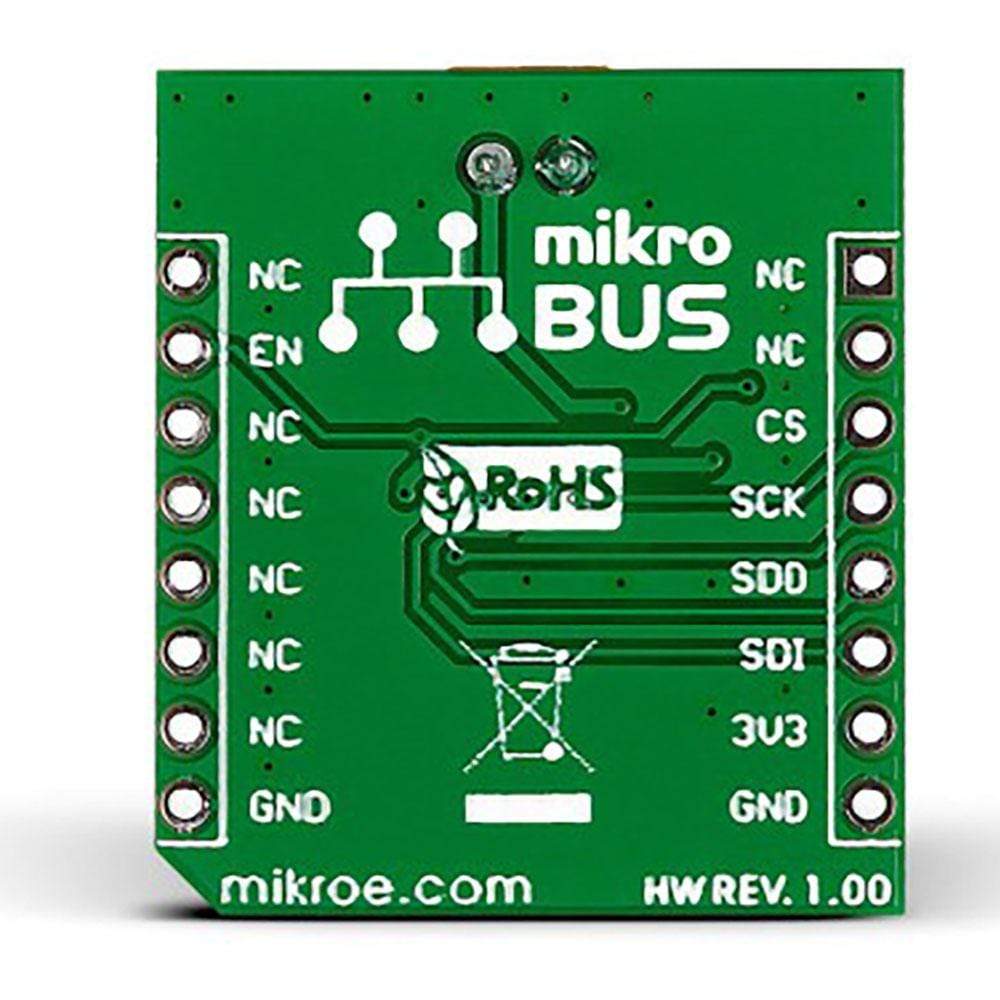

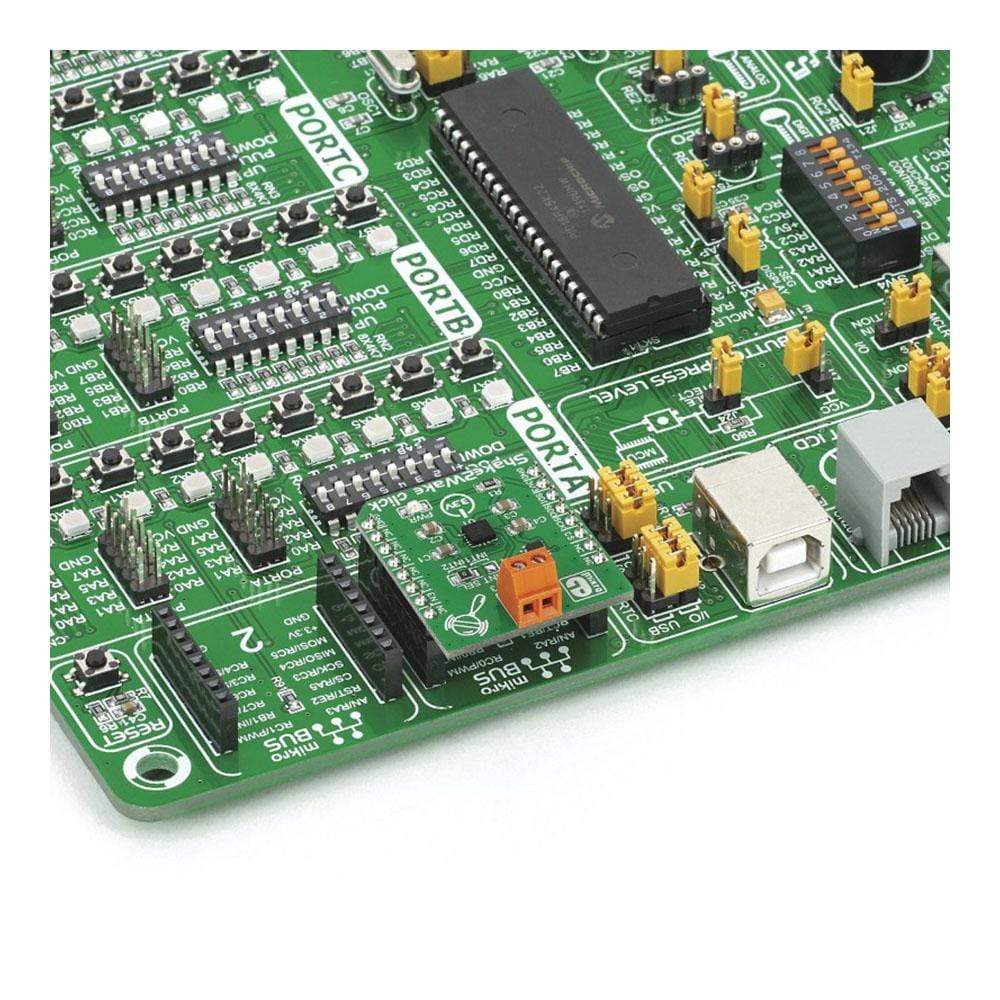

Shake2Wake Click Board™ can also function as a regular accelerometer, wherein the board uses the MikroBUS SPI interface for communication to the target microcontroller. This Click Board™ is designed to operate using a 3.3V power supply only. Shake2Wake Click Board™ works on two main operating modes:.
Video notes
Videos are hosted on YouTube and load only when you press play.
Mit dem Shake2Wake Click Board™ können Sie dem Gerät eine Schüttelfunktion hinzufügen. Das Board enthält zwei Chips von Analog Devices: einen ADXL362-Beschleunigungsmesser mit mehreren Aktivitätserkennungsmodi, der mit einem ADP195-Netzschalter-IC verbunden ist. Dieser Netzschalter-IC ist wiederum mit einer Schraubklemme zur Steuerung externer Geräte verbunden. Beim Schütteln sendet der Beschleunigungsmesser einen Interrupt an den Schalter, der wiederum die externen Komponenten einschaltet. Die Intensität und Dauer des Schüttelns, die zum Aufwecken erforderlich ist, ist programmierbar, ebenso wie die Dauer der Inaktivität, die zum Ausschalten des externen Geräts führt.
Shake2Wake Click Board™ kann auch als normaler Beschleunigungsmesser fungieren, wobei die Platine die MikroBUS SPI-Schnittstelle zur Kommunikation mit dem Zielmikrocontroller verwendet. Dieses Click Board™ ist nur für den Betrieb mit einer 3,3-V-Stromversorgung ausgelegt. Shake2Wake Click Board™ funktioniert in zwei Hauptbetriebsmodi:.
| Overview | |
|---|---|
| Category | Motion |
| Applications | Ideal for designing accelerometer-based motion activated devices |
| Key components | |
| On-board modules | ADXL362 ultralow power, 3-axis MEMS accelerometer from Analog Devices |
| Features | |
| Key features | ADP195 power switch IC |
| Interfaces | |
| Interface | SPI, GPIO |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |
| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1942 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606015077055 |
| Warranty | 12 Monate |
| Shipping weight | 0.025 kg |
