nRF S Click-Platine
nRF S Click-Platine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview

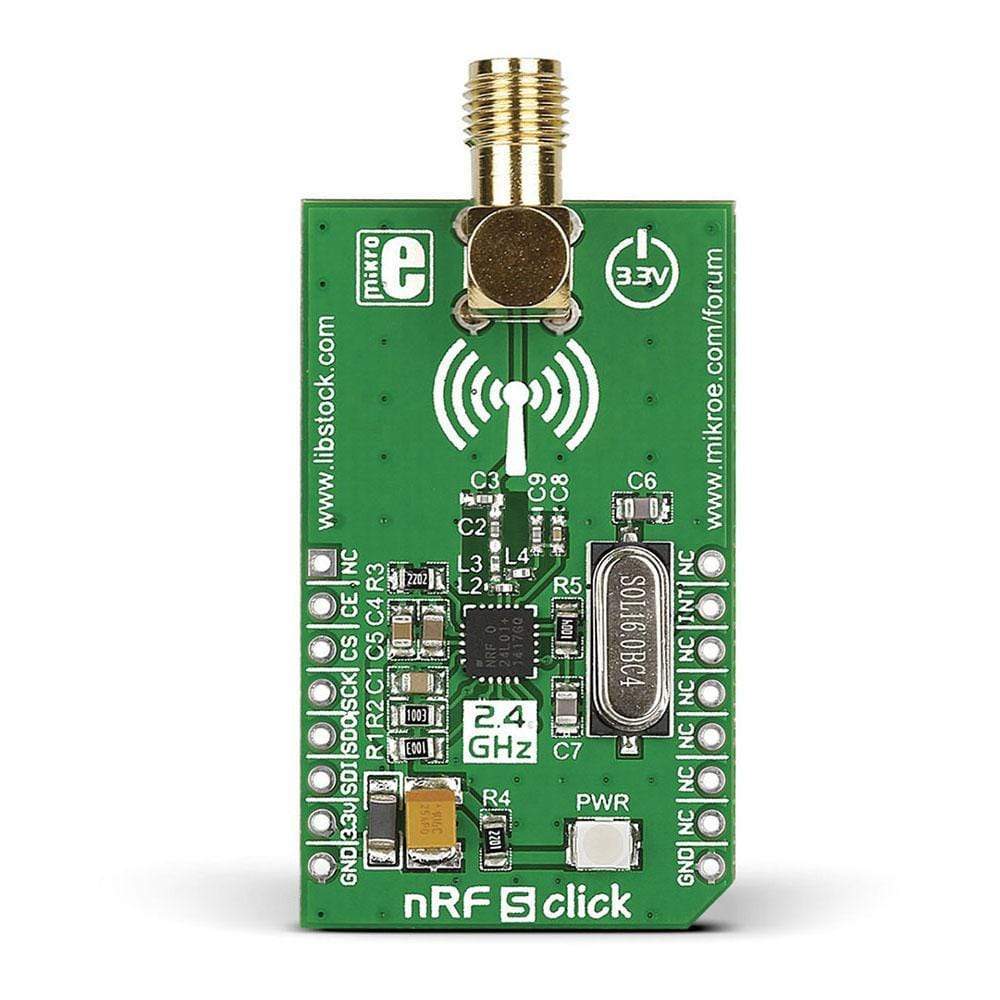

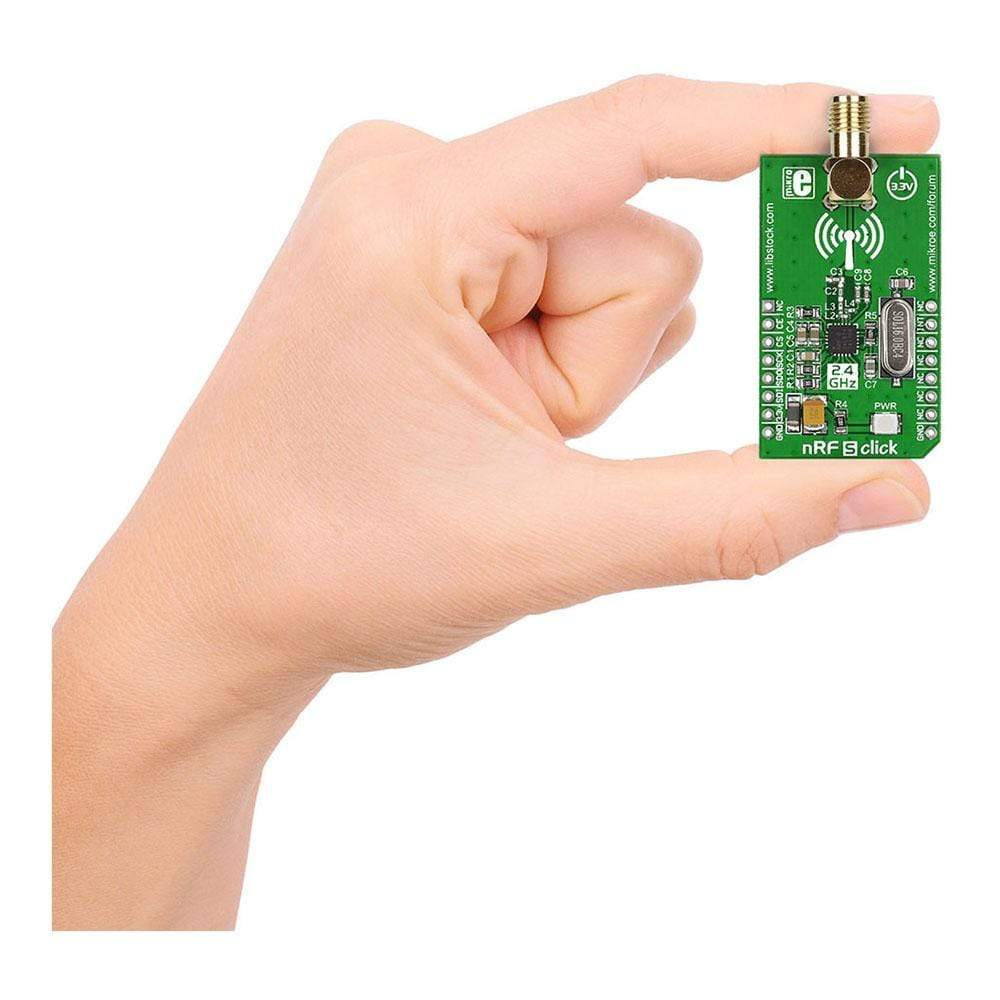

Integrieren Sie mit dem nRF S Click Board™ einen 2,4-GHz-Transceiver in Ihr Design! Nach der Einführung von nRF T und nRF C hat MikroElektronika eine kompakte Zusatzplatine eingeführt, die das 2,4-GHz-Transceivermodul nRF24L01P mit einer eingebetteten Basisband-Protokoll-Engine enthält. Es verfügt über einen SMA-Antennenanschluss, der das Click Board™ grundsätzlich von den beiden anderen nRFs unterscheidet. Das Modul unterstützt Luftdatenraten von 250 Kbit/s, 1 Mbit/s und 2 Mbit/s und ist für den Betrieb im weltweiten ISM-Frequenzband bei 2.400 ausgelegt.

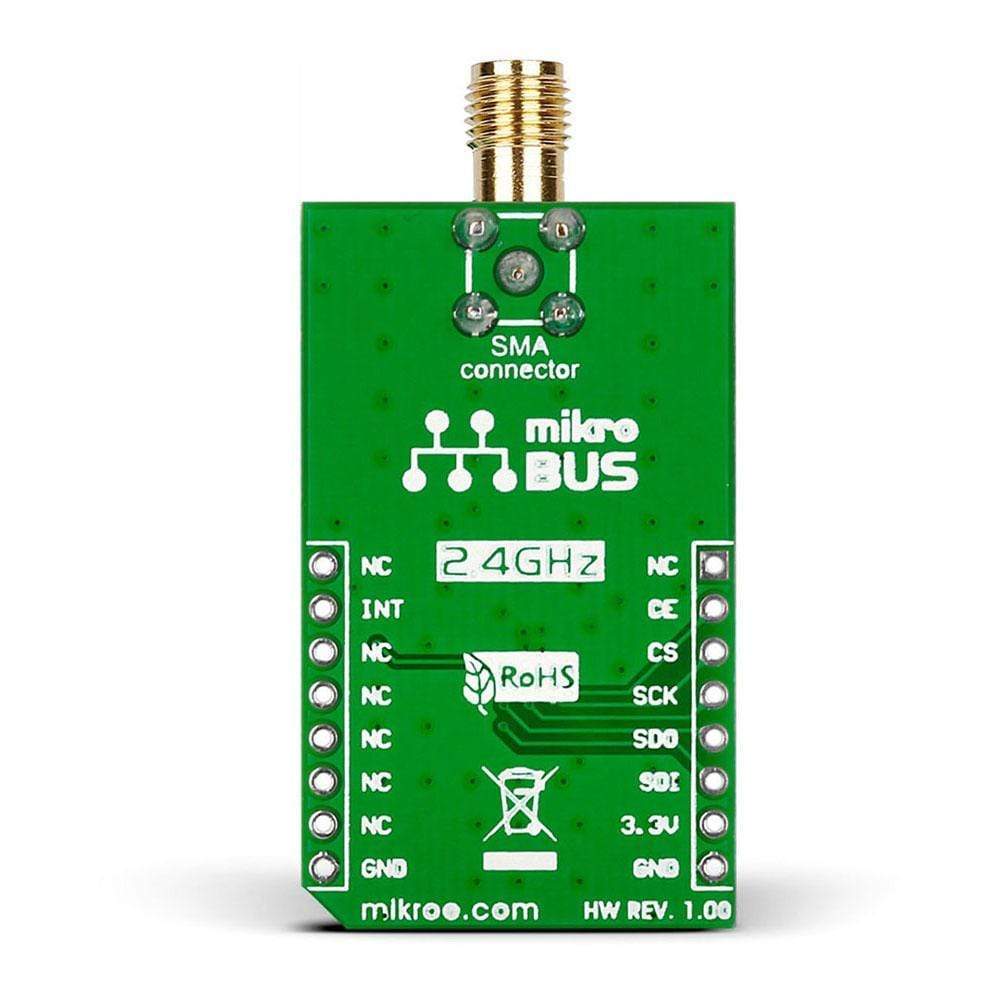

The nRF S Click Board™ is a compact and easy solution for adding a 2.4 GHz transceiver to your design. It features nRF24L01P 2.4 GHz transceiver module with an embedded baseband protocol engine as well as an SMA antenna connector (antenna sold separately). The board supports an air data rate of 250 Kbps, 1 Mbps and 2 Mbps and it is suitable for ultra low power designs. Typical applications include wireless PC peripherals, remotes, VoIP headsets, game controllers, sensors, home and commercial automation, active RFID, toys, etc. The nRF S Click Board™ communicates with target board microcontroller via mikroBUS SPI (SDI, SDO, SCK, CS#), CE and INT lines. The board is designed to use a 3.3V power supply only.
IC/Module: nRF24L01P 2.4 GHz Transceiver Module
nRF24L01P is a highly integrated, ultra low-power transceiver IC for the 2.4GHz ISM band. It supports 250kbps, 1Mbps and 2Mbps on air data rates. The module provides automatic packet handling with a 1.9 to 3.6V supply range. The only way it is different to nRF24L01 is a 250Kbps data rate.
Alternative Antenna Options
Two other nRF Click Board™s (nRF T Click Board™ and nRF C Click Board™) with on-board nRF24L01P chip are also available that differ only with the type of antenna. The nRF T Click Board™ comes with a PCB trace antenna and nRF C Click Board™ comes with an SMD chip antenna.
