Mikroelektronika d.o.o.

Proximity 2 Click-Platine

Proximity 2 Click-Platine

SKU: MIKROE-1818

Normaler Preis
£23.00 exc VAT
£27.60 inc VAT
Normaler Preis Verkaufspreis
£23.00 exc VAT
£27.60 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

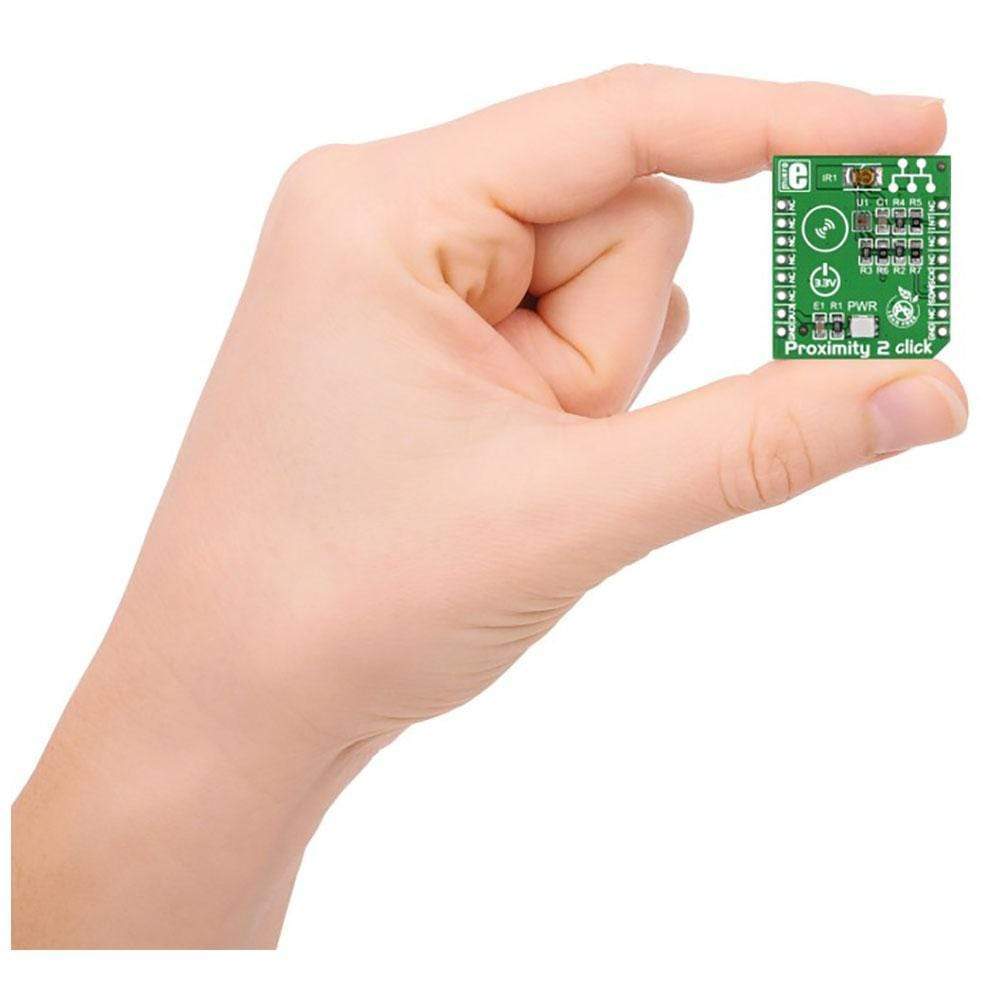

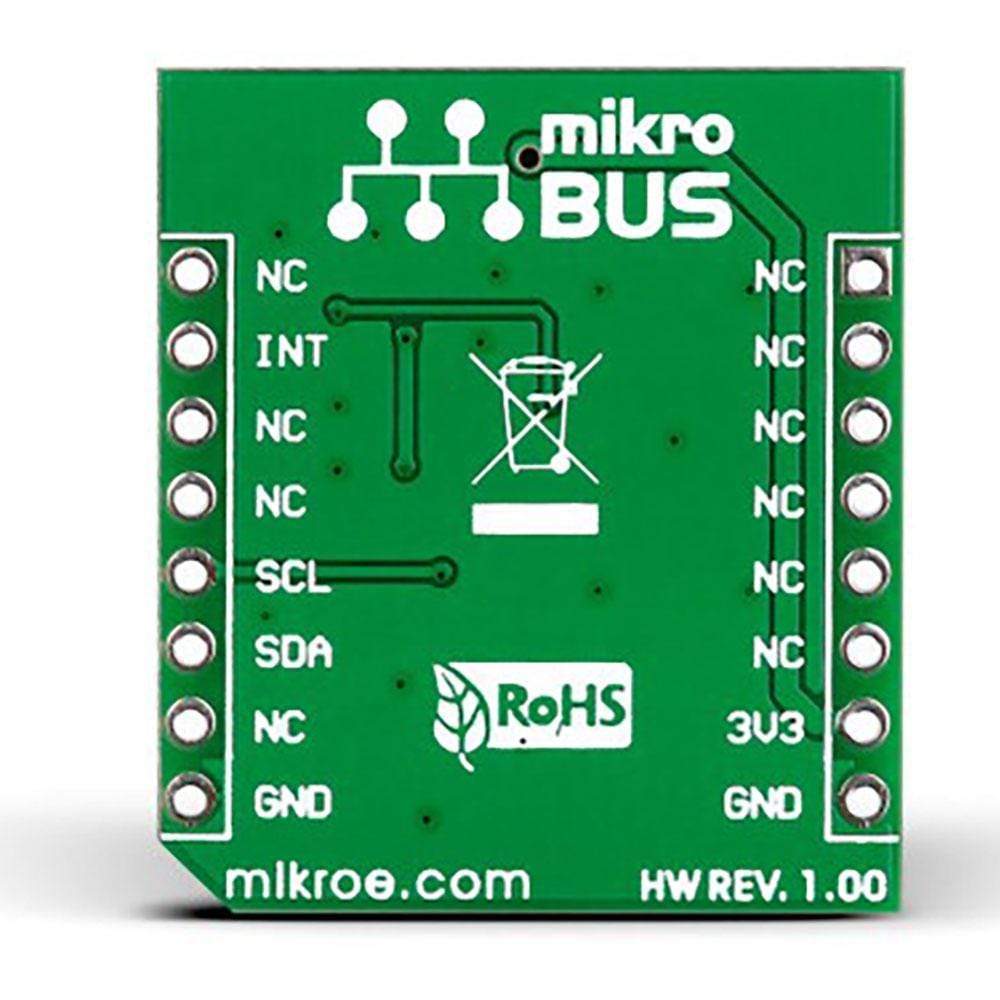

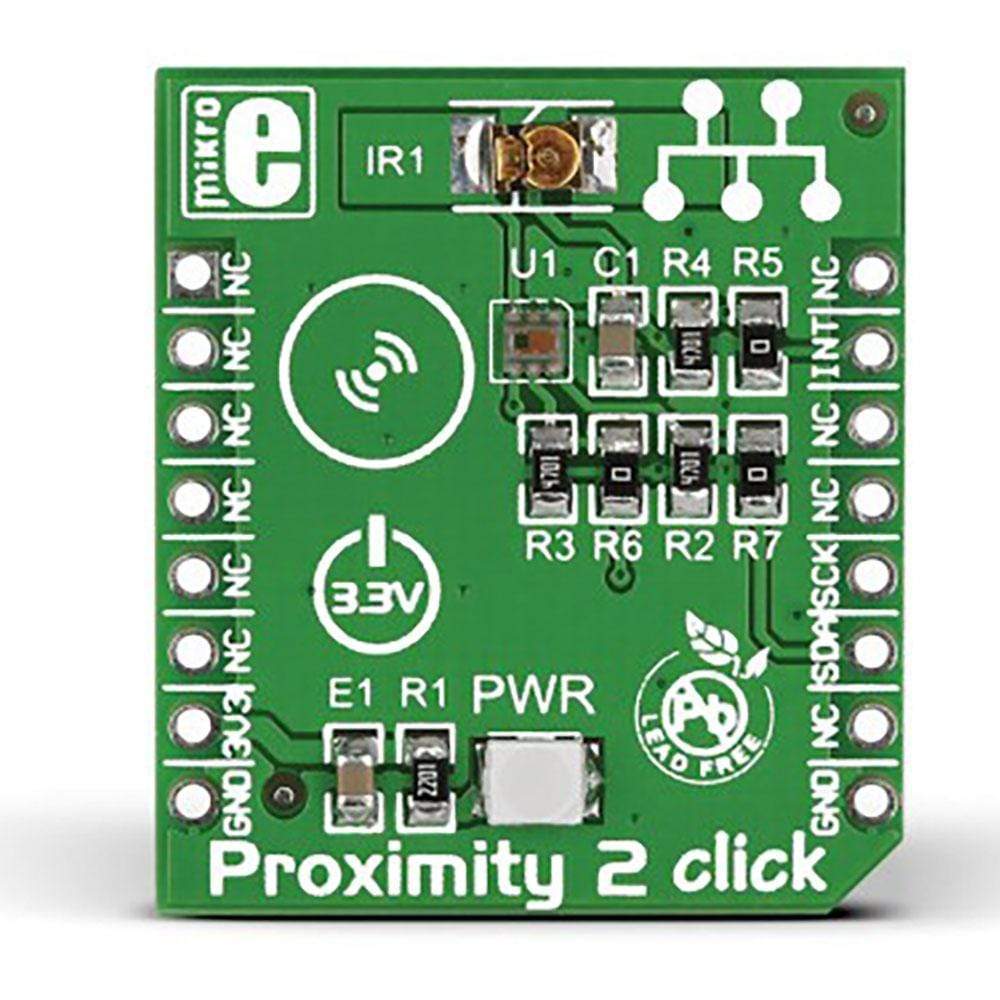

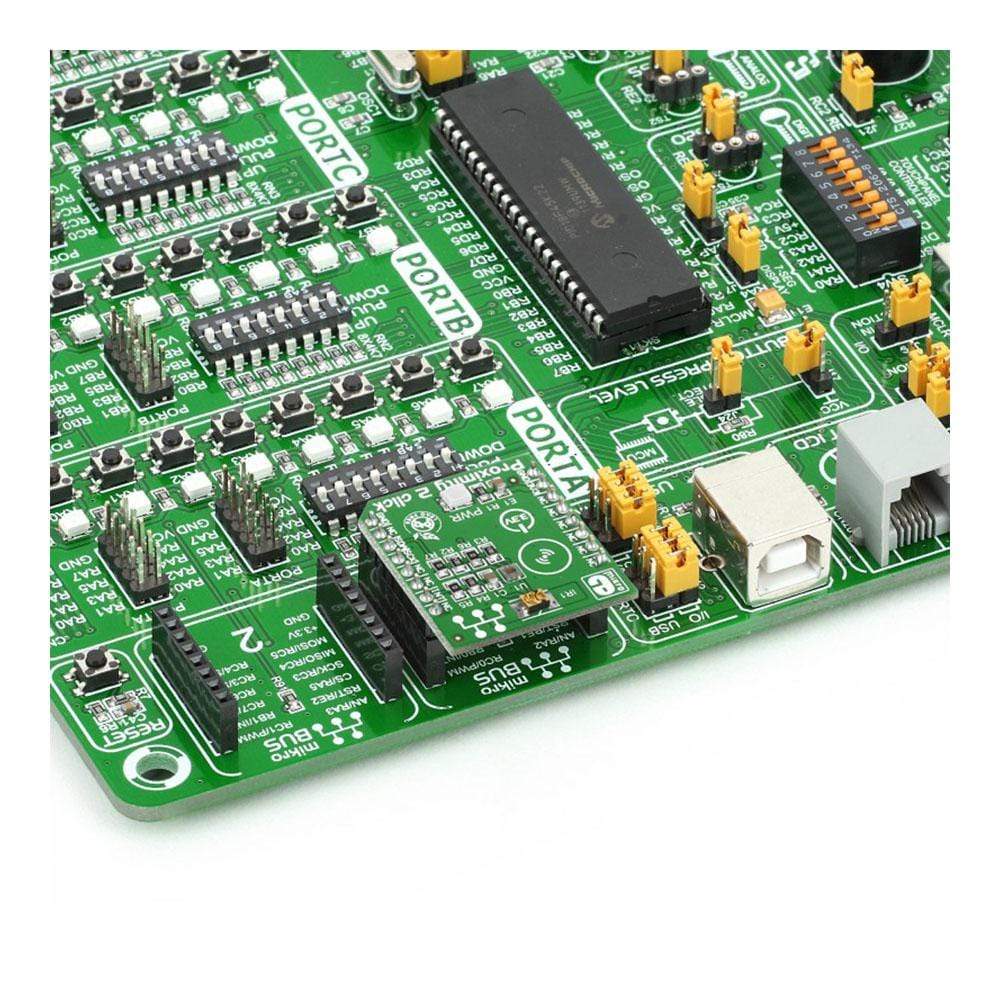

The Proximity 2 Click Board™ is an accessory board featured with a tiny footprint MAX44000 IC. The chip features an integrated ambient light sensor as well as a proximity sensor. It comprises a group of photodiodes that work by converting light into current. The internal circuitry then converts the resulting current into a digital value. Proximity 2 Click Board™ has an onboard ambient light sensor with a dynamic range of 0.03 to 65.535 lux. The IR proximity detector, with a sensing range of approximately 12cm, is matched with an integrated IR LED driver. The Proximity 2 Click Board™ communicates to the target board microcontroller via MikroBUS I2C (SCL, SDA), and INT lines. All readings are available on an I2C communication bus. It also has a programmable interrupt pin.

The Proximity 2 Click Board™ supports a 3.3V power supply only.

Due to its small size, it is an ideal choice for industrial sensors, presence detection, tablet PC applications, and smartphones.

Das Proximity 2 Click Board™ ist eine Zubehörplatine mit einem winzigen MAX44000 IC. Der Chip verfügt über einen integrierten Umgebungslichtsensor sowie einen Näherungssensor. Er besteht aus einer Gruppe von Fotodioden, die Licht in Strom umwandeln. Die interne Schaltung wandelt den resultierenden Strom dann in einen digitalen Wert um. Das Proximity 2 Click Board™ verfügt über einen integrierten Umgebungslichtsensor mit einem Dynamikbereich von 0,03 bis 65,535 Lux. Der IR-Näherungssensor mit einer Erfassungsreichweite von ca. 12 cm ist mit einem integrierten IR-LED-Treiber ausgestattet. Das Proximity 2 Click Board™ kommuniziert über MikroBUS I2C (SCL, SDA) und INT-Leitungen mit dem Mikrocontroller der Zielplatine. Alle Messwerte sind auf einem I2C-Kommunikationsbus verfügbar. Es verfügt außerdem über einen programmierbaren Interrupt-Pin.

Das Proximity 2 Click Board™ unterstützt nur eine 3,3-V-Stromversorgung.

Aufgrund seiner geringen Größe ist es die ideale Wahl für Industriesensoren, Anwesenheitserkennung, Tablet-PC-Anwendungen und Smartphones.

Overview
CategoryProximity
ApplicationsConsumer and industrial applications, mobile phones, digital camera, tablet PC application and many more
Key components
On-board modulesMAX44000
Features
Key features2cm range of proximity sensor. Interrupt function
Interfaces
InterfaceI2C, GPIO
CompatibilitymikroBUS™
Electrical
Input voltage3.3V
Physical
Click board sizeS (28.6 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1818
ManufacturerMikroelektronika doo
EAN8606015076423
Warranty12 Monate
Shipping weight0.024 kg
  • 1 × Proximity 2 Click-Platine

Contact us to confirm the full contents of the box.
