Mikroelektronika d.o.o.

UV-Klickplatte

UV-Klickplatte

SKU: MIKROE-1677

Normaler Preis
£31.95 exc VAT
£38.34 inc VAT
Normaler Preis Verkaufspreis
£31.95 exc VAT
£38.34 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

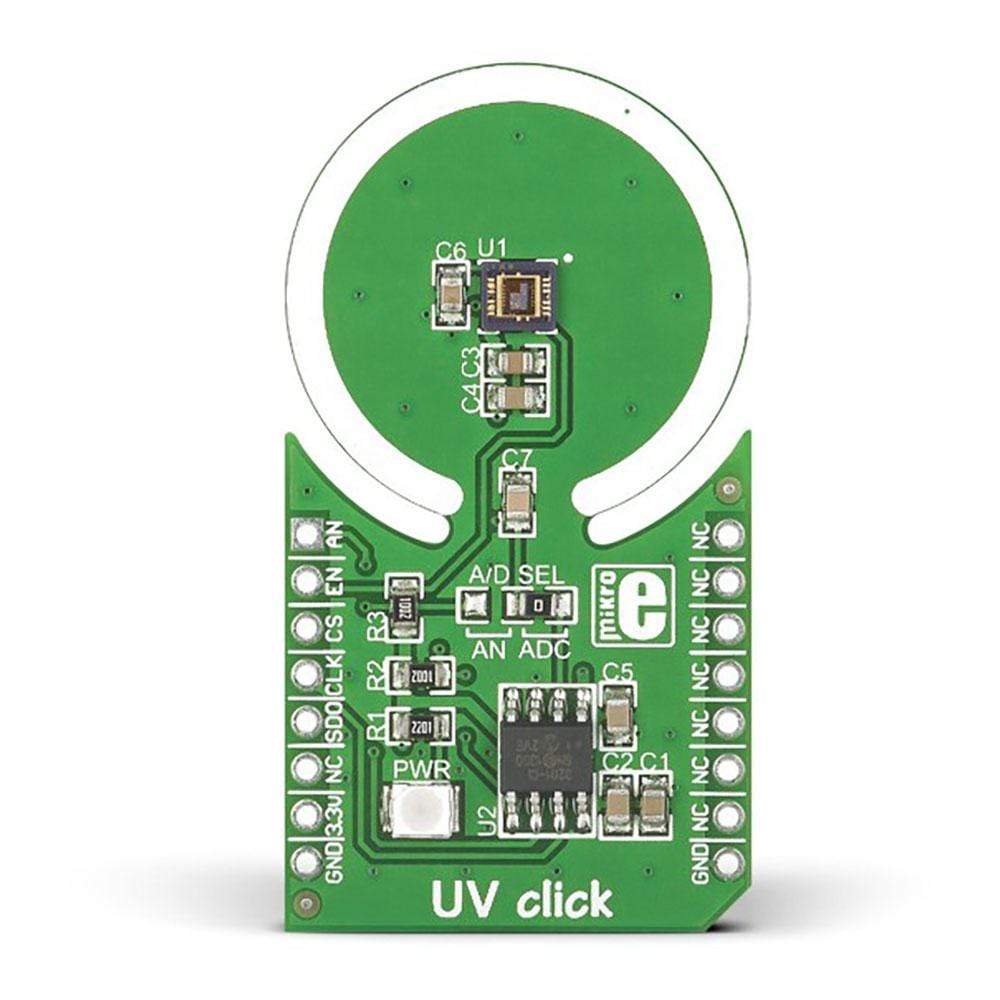

Introduce an ultraviolet light sensor to the design with the UV Click Board™! The UV Click Board™ features an easy-to-use ML8511 IC UV sensor that is designed to warn the user of excessive ultraviolet radiation levels and outputs either analogue or digital signals that is linearly proportional to the UV intensity it detects. It also features an onboard MCP3201 ADC, which converts the signal, however, one can bypass it and get an analogue output by soldering the A/D SEL jumper in the AN position. ML8511 IC UV sensor is sensitive to UV-A (95 per cent of Ultraviolet light) and UV-B rays (the one causing sunburn).

The UV Click Board™ makes an ideal choice for making devices that notify the user of sunburn or identify the UV index as it relates to weather conditions. It also finds great use in mobile computing devices, such as a smartphone, a mobile phone, and a watch, at low power and a compact package (QFN).

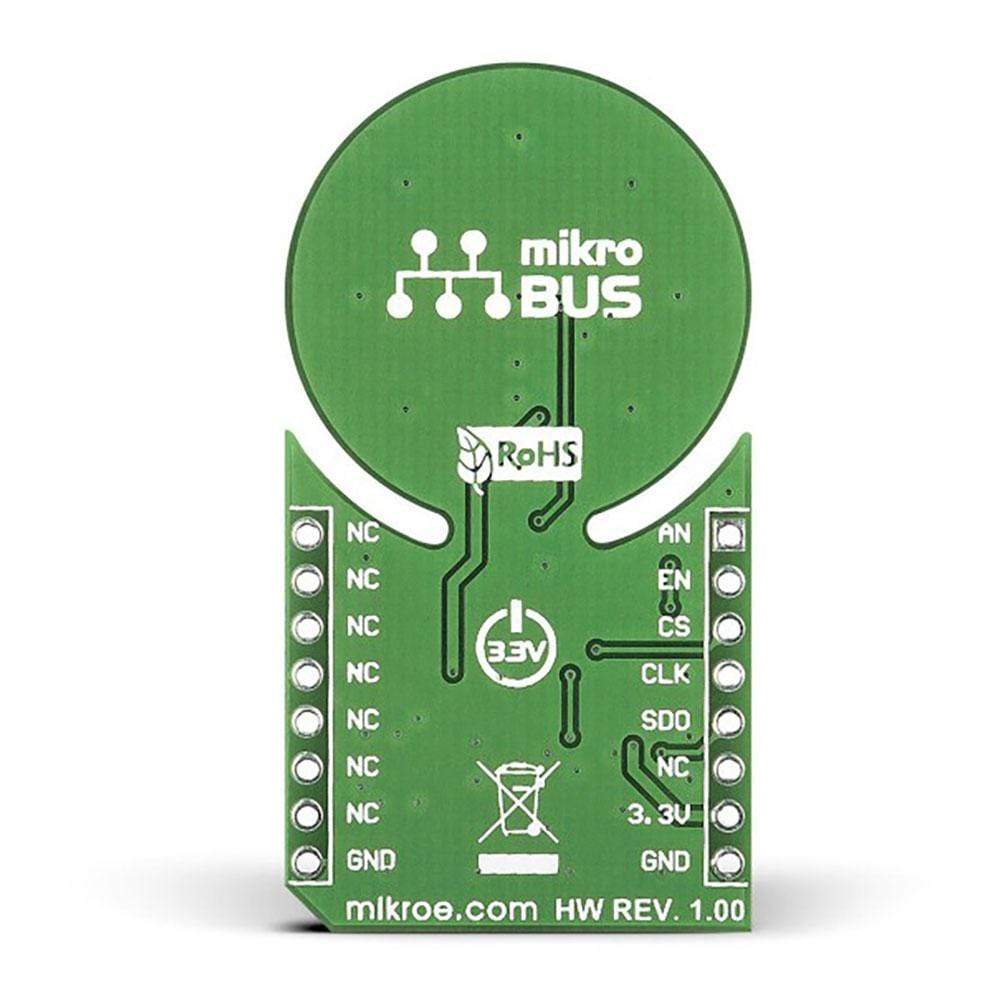

The UV Click Board™ communicates with the target board through MikroBUS SPI (CS, SCK, MISO) or AN lines. It is designed to use a 3.3V power supply only.

Videos

UV Click Example

MikroElektronika · 0:31 · 2015

Video notes

UV Click uses the ML8511 sensor for UV-A and UV-B light, with either an analogue output or an SPI ADC. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

Integrieren Sie mit dem UV Click Board™ einen UV-Lichtsensor in das Design! Das UV Click Board™ verfügt über einen einfach zu verwendenden ML8511 IC UV-Sensor, der den Benutzer vor übermäßiger UV-Strahlung warnt und entweder analoge oder digitale Signale ausgibt, die linear proportional zur erkannten UV-Intensität sind. Es verfügt außerdem über einen integrierten MCP3201 ADC, der das Signal umwandelt. Man kann ihn jedoch umgehen und einen analogen Ausgang erhalten, indem man den A/D SEL-Jumper in die Position AN lötet. Der ML8511 IC UV-Sensor ist empfindlich gegenüber UV-A- (95 Prozent des UV-Lichts) und UV-B-Strahlen (die Sonnenbrand verursachen).

Das UV Click Board™ ist die ideale Wahl für die Herstellung von Geräten, die den Benutzer vor Sonnenbrand warnen oder den UV-Index in Bezug auf die Wetterbedingungen ermitteln. Es eignet sich auch hervorragend für mobile Computergeräte wie Smartphones, Mobiltelefone und Uhren, da es einen geringen Stromverbrauch und ein kompaktes Gehäuse (QFN) aufweist.

Das UV Click Board™ kommuniziert mit der Zielplatine über MikroBUS SPI (CS, SCK, MISO) oder AN-Leitungen. Es ist ausschließlich für die Verwendung einer 3,3-V-Stromversorgung ausgelegt.

Ordering information
Part number (SKU)MIKROE-1677
ManufacturerMikroelektronika doo
EAN8606015075624
Warranty12 Monate
Shipping weight0.031 kg
  • 1 × UV-Klickplatte

Contact us to confirm the full contents of the box.
