OLED-C-Click-Platine
OLED-C-Click-Platine
SKU: MIKROE-1585
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview

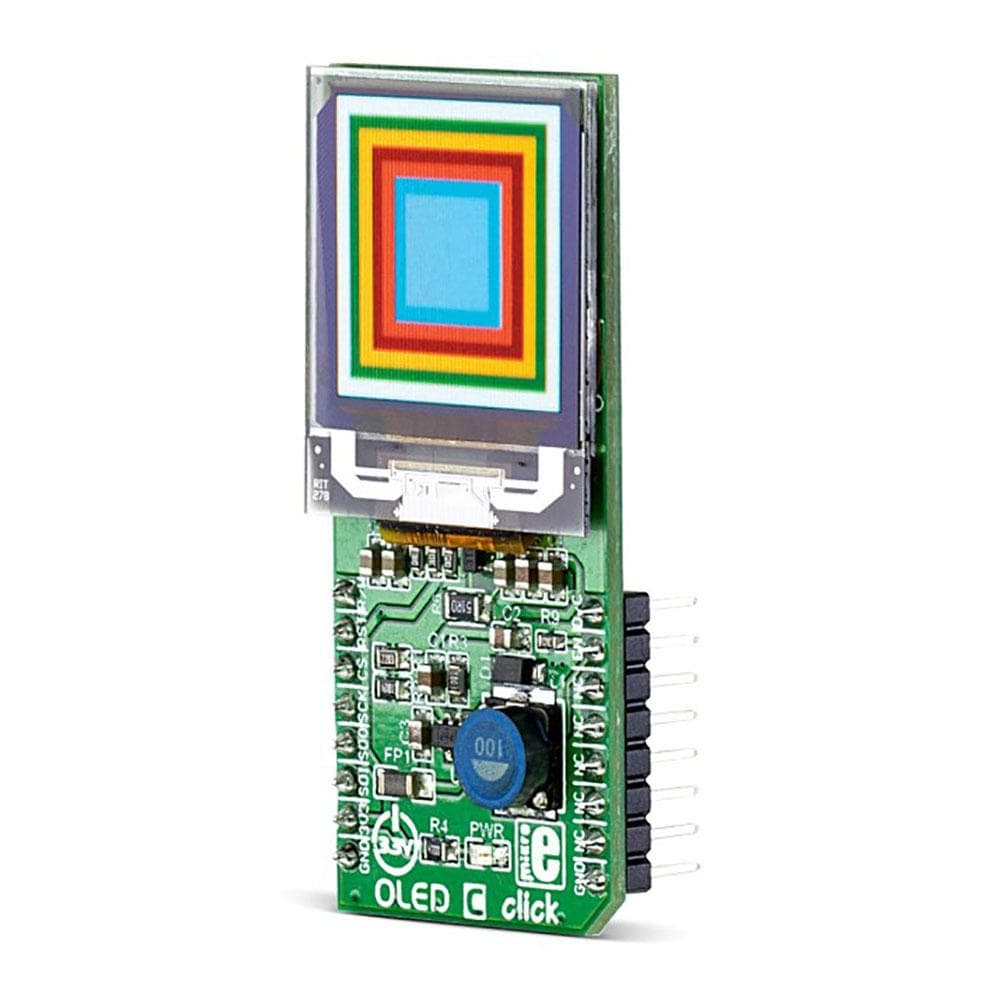

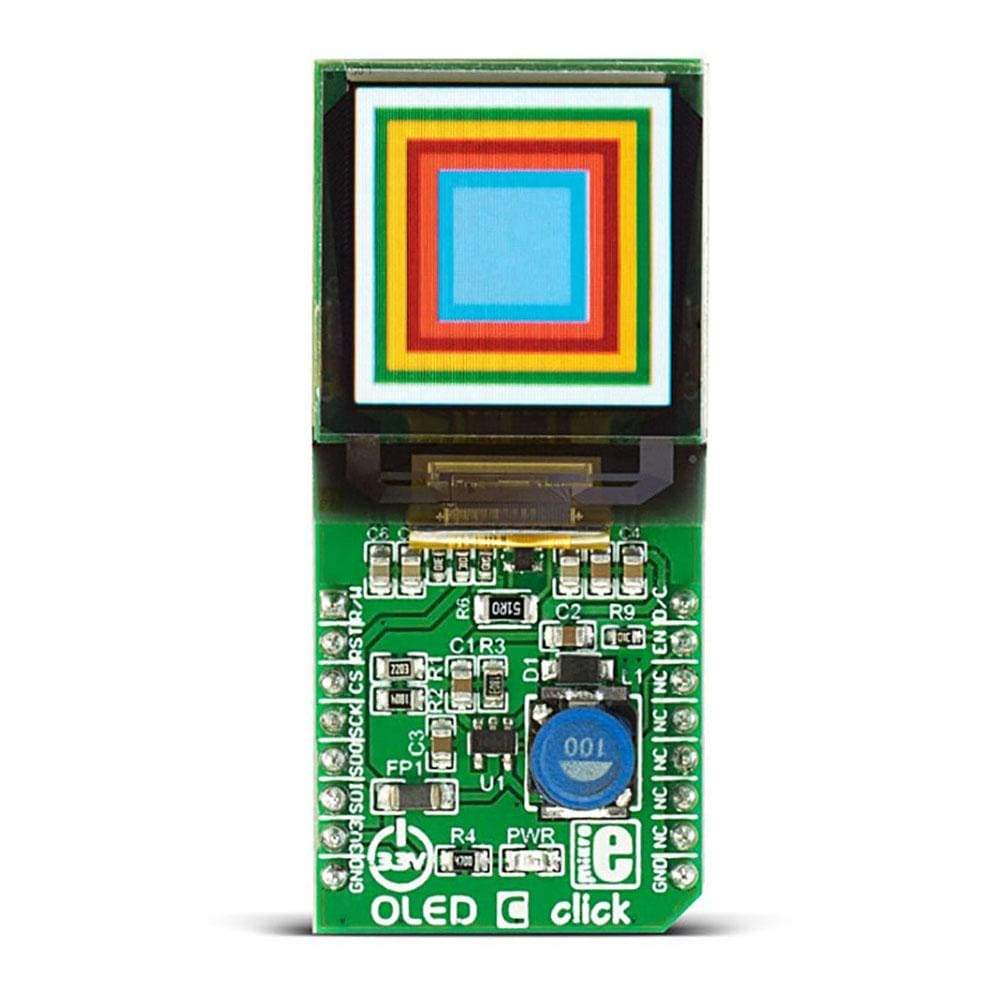

The OLED C Click Board™ is equipped with the 96x96 high-color OLED display. It can display up to 65K/262K different colors and shades on a compact 1.12 inch size display, based on the OLED technology. The OLED technology provides a very good brightness-to-contrast ratio, doesn’t require any backlight - since the pixel elements emit light on their own, better angle of viewing - compared to traditional TFT screens, better power consumption, better picture quality, better response times and more. The OLED technology is constantly being perfected and it is slowly taking over the existing liquid crystal technology (TFT).
Das OLED C Click Board™ ist mit einem 96x96-Farbdisplay mit hoher Auflösung ausgestattet. Es kann bis zu 65K/262K verschiedene Farben und Schattierungen auf einem kompakten 1,12-Zoll-Display anzeigen, basierend auf der OLED-Technologie. Die OLED-Technologie bietet eine sehr gute Helligkeits-Kontrast-Verhältnis, benötigt keine Hintergrundbeleuchtung - da die Pixelelemente selbst Licht abgeben, besserer Betrachtungswinkel - im Vergleich zu herkömmlichen TFT-Bildschirmen, geringerer Stromverbrauch, bessere Bildqualität, bessere Reaktionszeiten und mehr. Die Die OLED-Technologie wird ständig perfektioniert und löst langsam die bestehende Flüssigkristalltechnologie (TFT) ab.
| Overview | |
|---|---|
| Category | OLED |

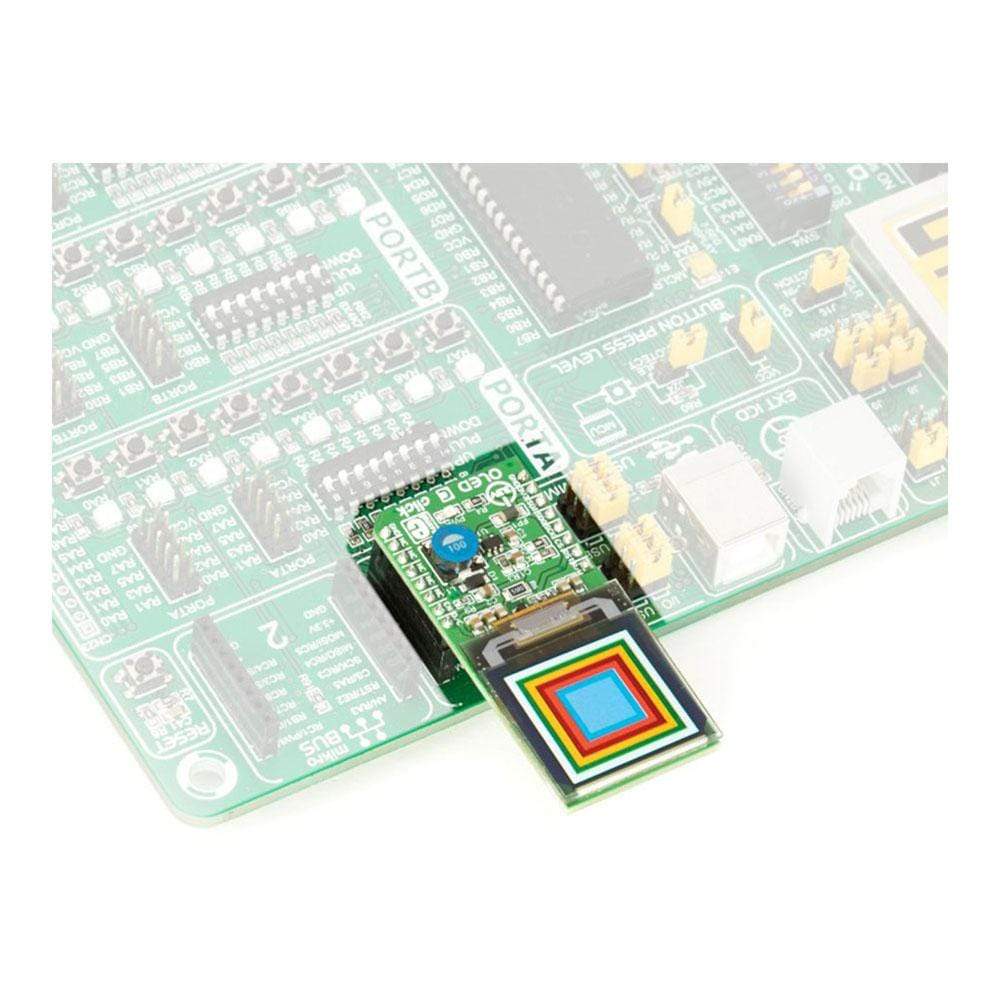

| Applications | OLED C click can be used to display images or any kind of graphics in 96x96 pixels resolution, with 65K/262K colors. It is a perfect solution to add display functionality to small development systems, such as the Clicker or Clicker 2 systems. |
| Key components | |
| On-board modules | PSP27801 OLED display, with the resolution of 96x96 pixels, and SSD1351 COF display driver IC from Solomon Systech |
| Features | |
| Key features | Compact OLED color display with the resolution of 96x96 pixels, with inherently high contrast ratio, integrated SSD driver IC which provides 5:6:5 and 6:6:6 color formats, wide viewing angle and high-speed SPI communication with low pins count |
| Interfaces | |
| Interface | SPI |

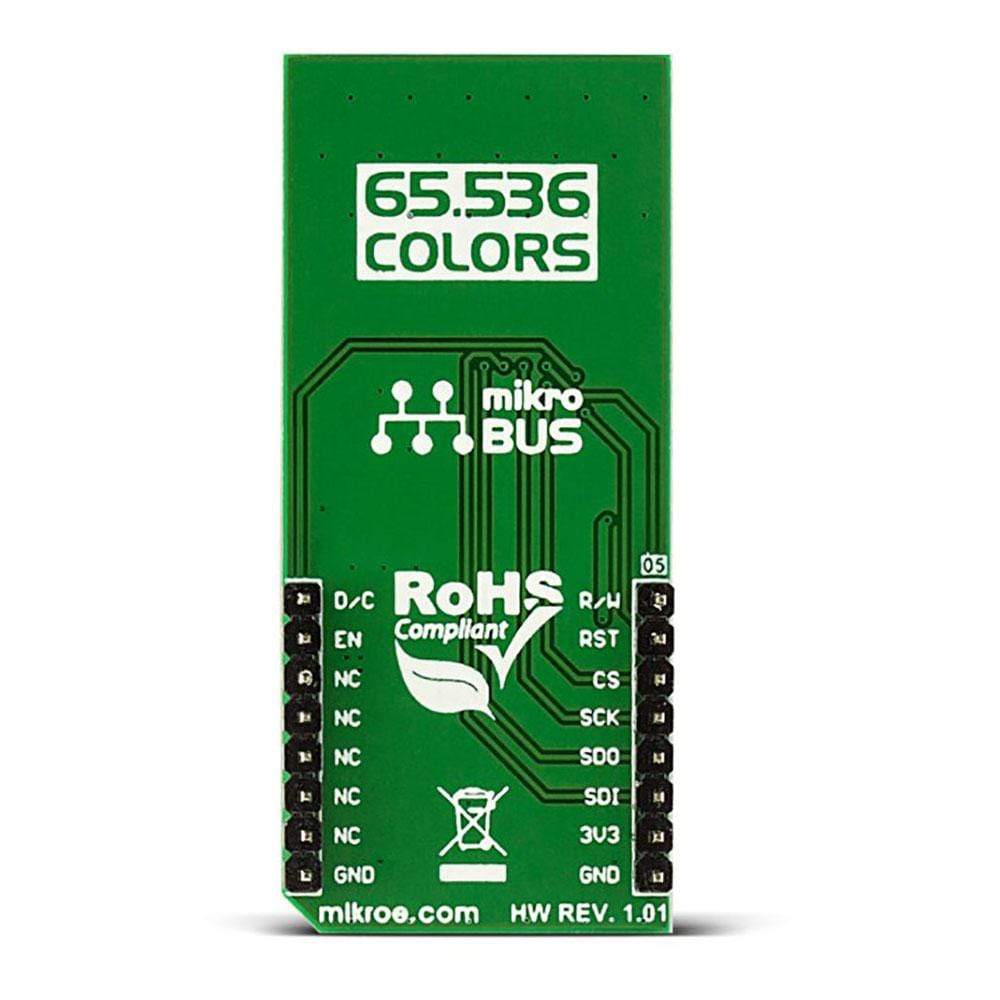

| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |
| Click board size | L (57.15 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1585 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606015075310 |
| Warranty | 12 Monate |
| Shipping weight | 0.035 kg |
-
1 ×
OLED-C-Click-Platine
Contact us to confirm the full contents of the box.
