Overview

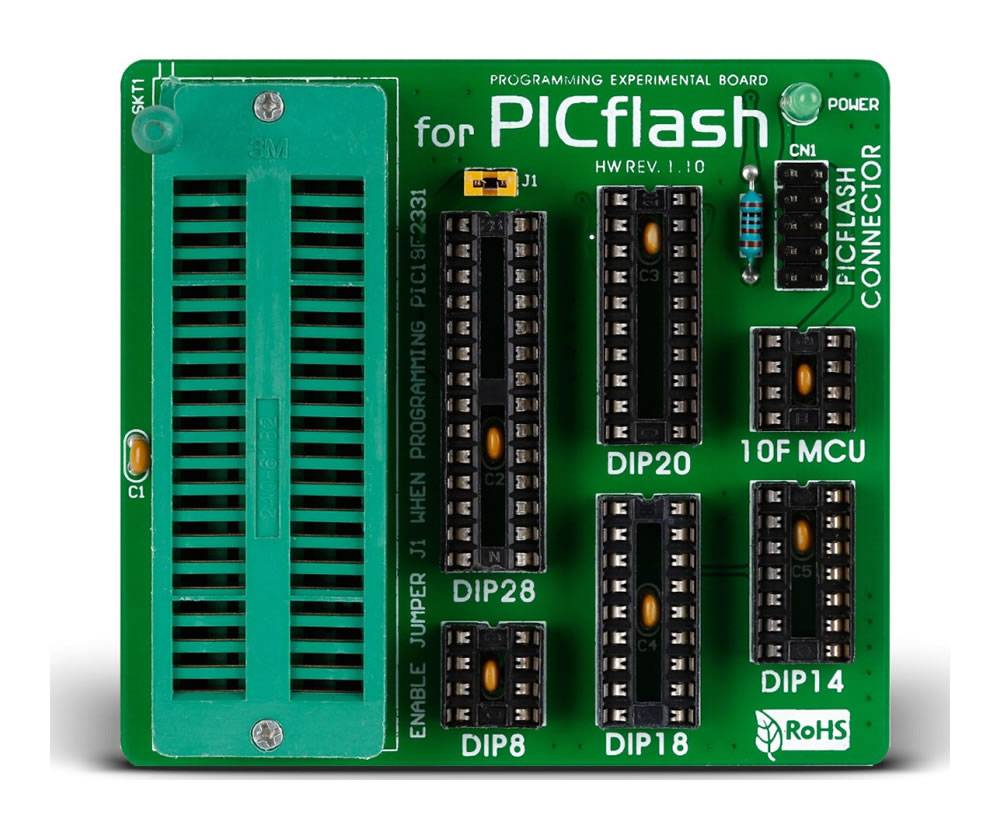

The PICFlash Experimental Board makes the process of programming MCUs easier. There are 8-, 10-, 14-, 18-, 28- and 40-pin DIP sockets provided on the board. There is also an on-board 40-pin ZIF Socket for easy handling of a microcontroller.
Das PICFlash Experimental Board vereinfacht die Programmierung von MCUs. Auf dem Board sind 8-, 10-, 14-, 18-, 28- und 40-polige DIP-Sockel vorhanden. Außerdem ist ein integrierter 40-poliger ZIF-Sockel für die einfache Handhabung eines Mikrocontrollers vorhanden.
| Overview | |
|---|---|
| Applications | Professional experimental board that allows easy and fast PIC programming |
| Product type | Adapter |
| Key components | |
| On-board modules | 8-, 10-, 14-, 18-, 28- and 40-pin DIP sockets |
| Features | |
| Integration | mikroProg for PIC, dsPIC and PIC32 connector |
| Key features | This board can be easily connected to the programmer via IDC10 connector. 40-pin ZIF Socket for easy microcontroller handling |
| Key benefits | When the programming procedure is finished, you can pull the microcontroller out of the adapter |
| Electrical | |
| Power supply | 5V |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-149 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606015071886 |
| Warranty | 12 Monate |
| Shipping weight | 0.055 kg |
-
1 ×
PICFlash Experimentierboard
Contact us to confirm the full contents of the box.
