Mikroelektronika d.o.o.

MikroBuffer-Platine

MikroBuffer-Platine

SKU: MIKROE-323

Normaler Preis
£3.95 exc VAT
£4.74 inc VAT
Normaler Preis Verkaufspreis
£3.95 exc VAT
£4.74 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

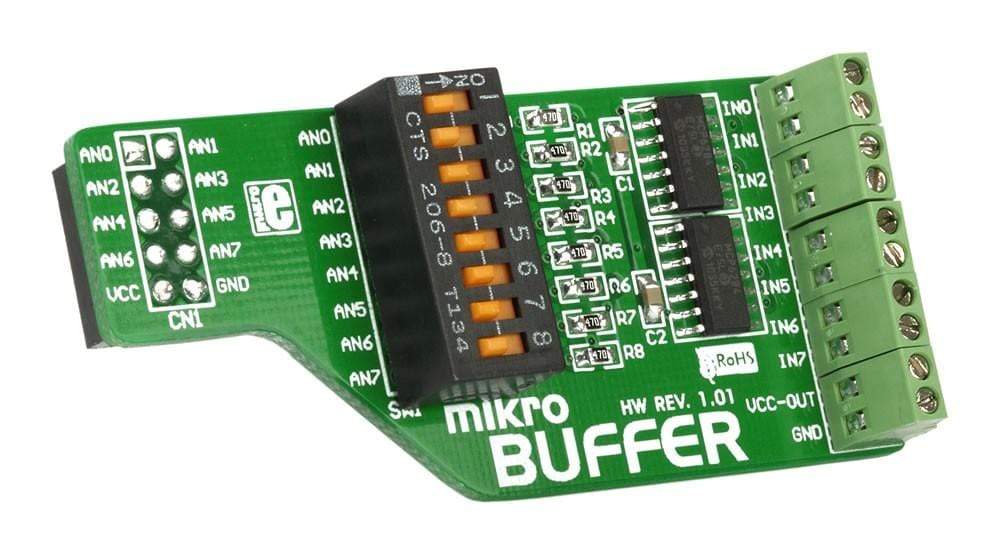

The MikroBuffer Board is an accessory board that lets the user buffer the analogue signals connected to prototype device inputs. This device amplifies an analogue voltage signal by using a unity gain operational amplifier. It comprises two MCP6284 operational amplifiers that are put together featuring 8 inputs. This additional board comes equipped with an IDC10 female header. Compatible with MikroElektronika development boards, and DIP switches for selecting input lines, the IDC10 connector CN1 gets the MikroBuffer board easily connected to a microcontroller. The amplified signal then gets delivered to the microcontroller analogue inputs.

This economical, low power consuming MikroBuffer Board makes use of CN2, CN3, CN4, and CN5 connectors for establishing a connection with the analogue signal generating device.

Die MikroBuffer-Platine ist eine Zusatzplatine, mit der der Benutzer die analogen Signale puffern kann, die an die Eingänge von Prototypgeräten angeschlossen sind. Dieses Gerät verstärkt ein analoges Spannungssignal mithilfe eines Operationsverstärkers mit Einheitsverstärkung. Es besteht aus zwei MCP6284-Operationsverstärkern, die zusammen 8 Eingänge ergeben. Diese Zusatzplatine ist mit einer IDC10-Buchsenleiste ausgestattet. Mit dem IDC10-Anschluss CN1 ist die MikroBuffer-Platine kompatibel mit Entwicklungsplatinen von MikroElektronika und DIP-Schaltern zur Auswahl von Eingangsleitungen. Die MikroBuffer-Platine lässt sich über den IDC10-Anschluss CN1 einfach an einen Mikrocontroller anschließen. Das verstärkte Signal wird dann an die analogen Eingänge des Mikrocontrollers übermittelt.

Dieses wirtschaftliche MikroBuffer-Board mit geringem Stromverbrauch verwendet die Anschlüsse CN2, CN3, CN4 und CN5, um eine Verbindung mit dem analogen Signalerzeugungsgerät herzustellen.

Ordering information
Part number (SKU)MIKROE-323
ManufacturerMikroelektronika doo
EAN8606015071565
Warranty12 Monate
Shipping weight0.1 kg
  • 1 × MikroBuffer-Platine

Contact us to confirm the full contents of the box.
