Overview

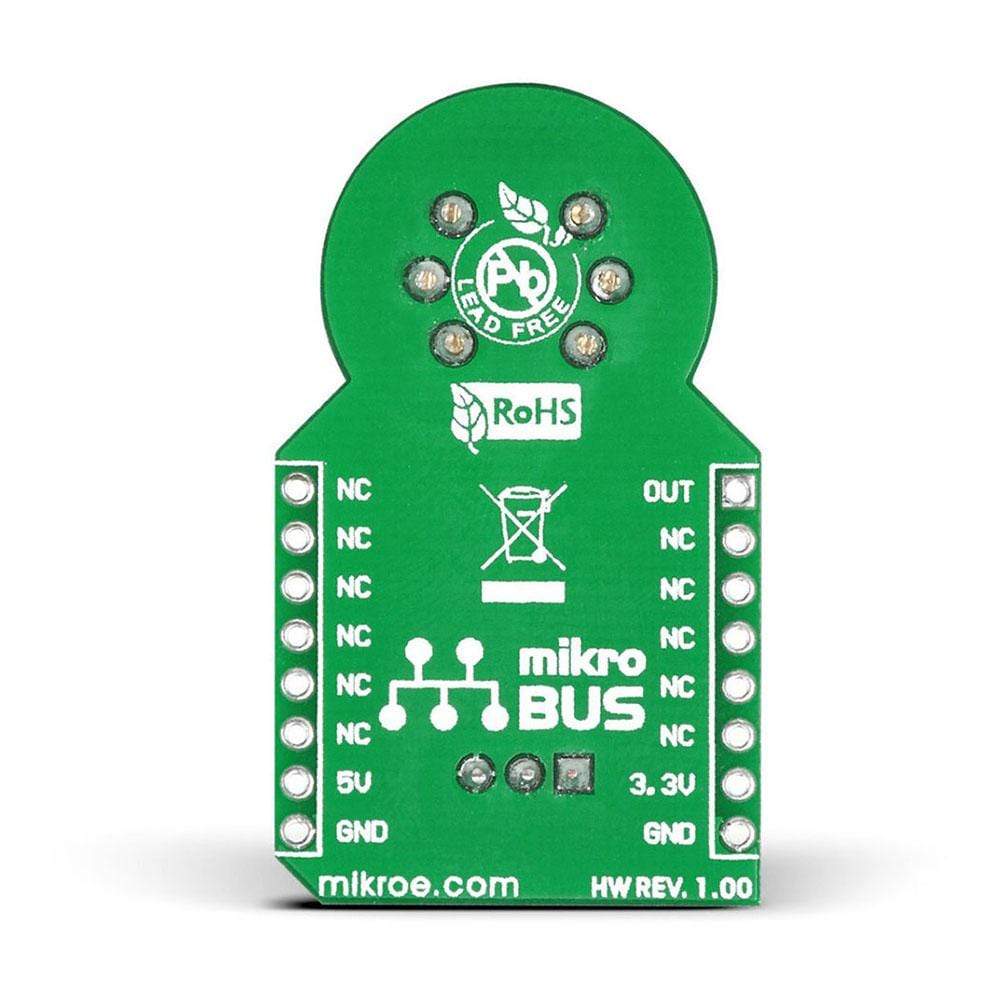

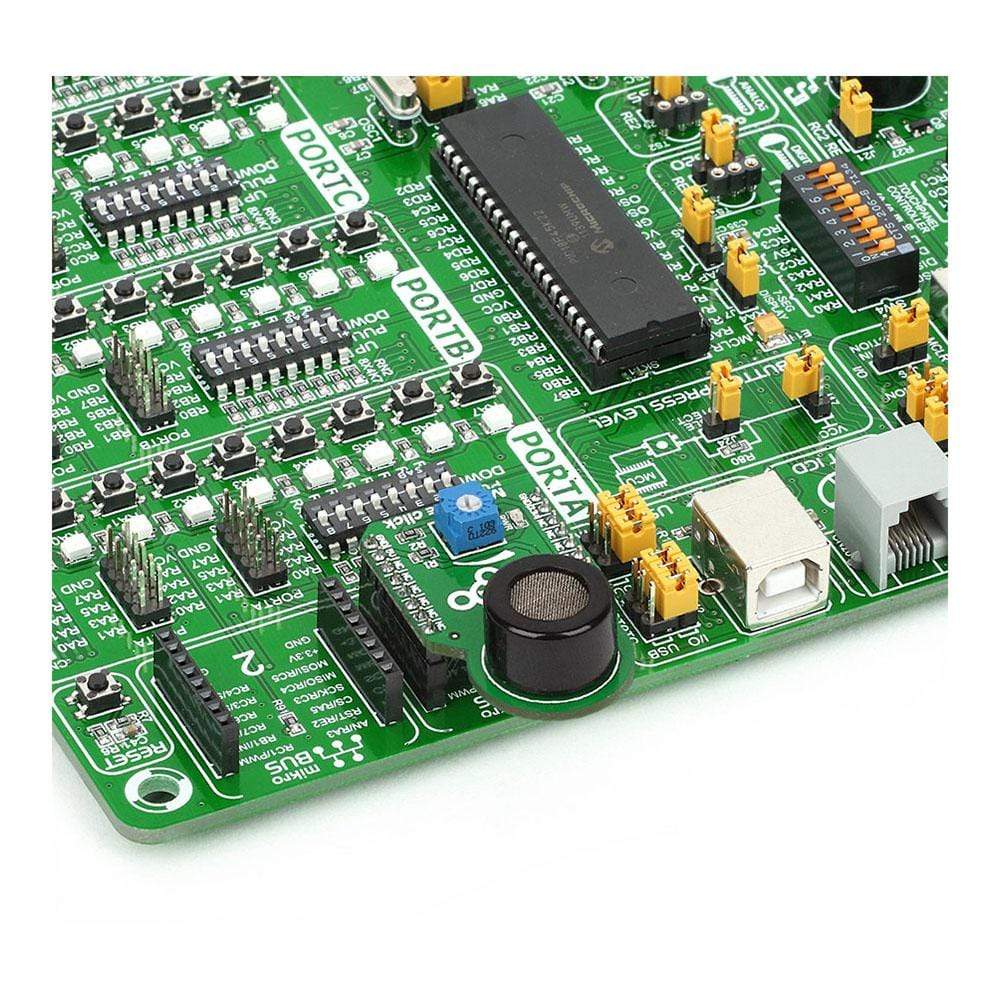

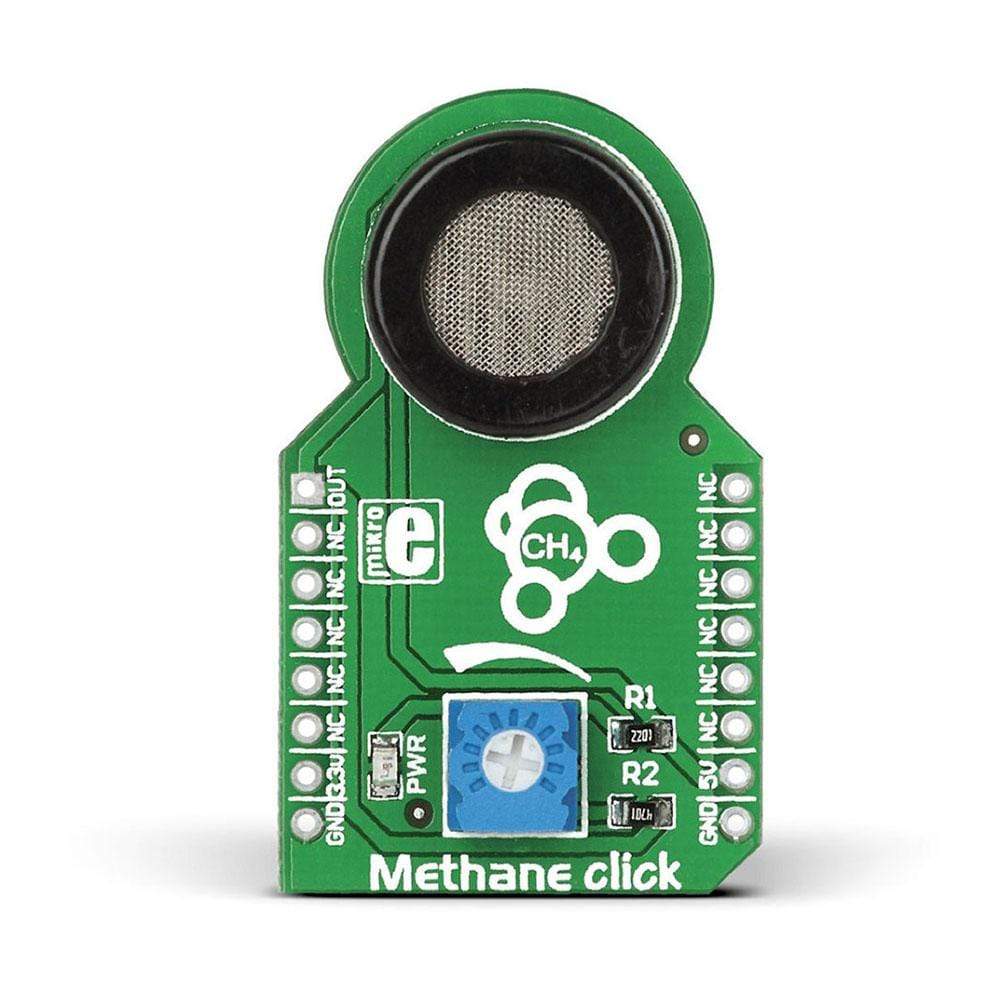

The Methane Click Board™ makes it simple for the user to add a highly sensitive methane (CH4) sensor to his design. This add-on board comes equipped with an MQ-4 sensor for measuring methane, two jumpers and a power indicator LED. It has also got a calibration potentiometer and a MikroBUS host socket. The range in which the Methane Click Board™ can precisely detect the methane levels is from 200 to 10000ppm of concentrations. The MQ-4 sensor features a gas sensing layer constructed of tin dioxide which is an inorganic compound with the formula SnO2. Tin dioxide is known to have lower conductivity in clean air. As the percentage of methane increases in the environment, the conductivity rises too. The potentiometer enables the user to adjust the load resistance of the sensor circuit so that methane Click Board™ may be calibrated for the intended surroundings. As the concentration of the target gas changes, the resistance of the sensor component also gets changed.

The Methane Click Board™ finds its application in designing of gas leakage equipment. Being suitable for detecting methane concentration, Methane Click Board™ can be used in the devices like domestic gas leakage detectors, industrial combustible gas detectors and portable gas detectors.

Videos

Methane Click Example

MikroElektronika · 0:31 · 2015

Video notes

Methane Click carries an MQ-4 gas sensor for methane with an analogue output and a calibration potentiometer. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

Mit dem Methane Click Board™ kann der Benutzer sein Design ganz einfach um einen hochempfindlichen Methansensor (CH4) erweitern. Diese Zusatzplatine ist mit einem MQ-4-Sensor zur Methanmessung, zwei Jumpern und einer Betriebsanzeige-LED ausgestattet. Sie verfügt außerdem über ein Kalibrierungspotentiometer und eine MikroBUS-Host-Buchse. Der Bereich, in dem das Methane Click Board™ Methanwerte präzise erkennen kann, reicht von Konzentrationen zwischen 200 und 10.000 ppm. Der MQ-4-Sensor verfügt über eine gasempfindliche Schicht aus Zinndioxid, einer anorganischen Verbindung mit der Formel SnO2. Zinndioxid hat in sauberer Luft bekanntermaßen eine geringere Leitfähigkeit. Mit zunehmendem Methananteil in der Umgebung steigt auch die Leitfähigkeit. Mit dem Potentiometer kann der Benutzer den Lastwiderstand des Sensorkreises anpassen, sodass das Methane Click Board™ für die vorgesehene Umgebung kalibriert werden kann. Mit der Konzentration des Zielgases ändert sich auch der Widerstand der Sensorkomponente.

Das Methane Click Board™ findet Anwendung bei der Entwicklung von Geräten zur Erkennung von Gaslecks. Da es zur Erkennung von Methankonzentrationen geeignet ist, kann das Methane Click Board™ in Geräten wie Gasleckdetektoren für den Hausgebrauch, industriellen Detektoren für brennbare Gase und tragbaren Gasdetektoren verwendet werden.

Overview
CategoryGas
ApplicationsMethane detection, gas leakage.
Key components
On-board modulesMQ-4 sensor
Features
Key featuresPotentiometer for calibration
Interfaces
InterfaceAnalog
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeM (42.9 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1628
ManufacturerMikroelektronika doo
EAN8606015075464
Warranty12 Monate
Shipping weight0.033 kg
