Mikroelektronika d.o.o.

LPG-Klick-Platine

LPG-Klick-Platine

Sensorplatine für Flüssiggas

SKU: MIKROE-1587

Normaler Preis
£18.00 exc VAT
£21.60 inc VAT
Normaler Preis Verkaufspreis
£18.00 exc VAT
£21.60 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

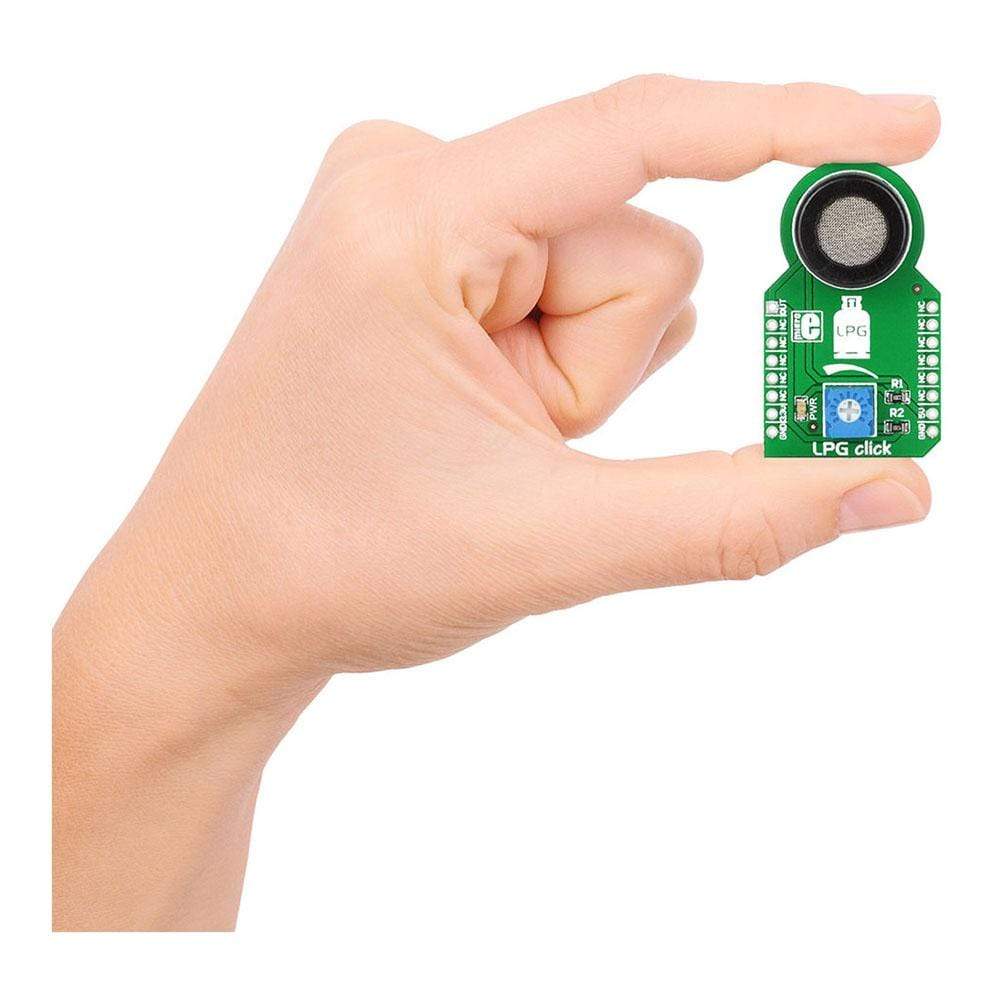

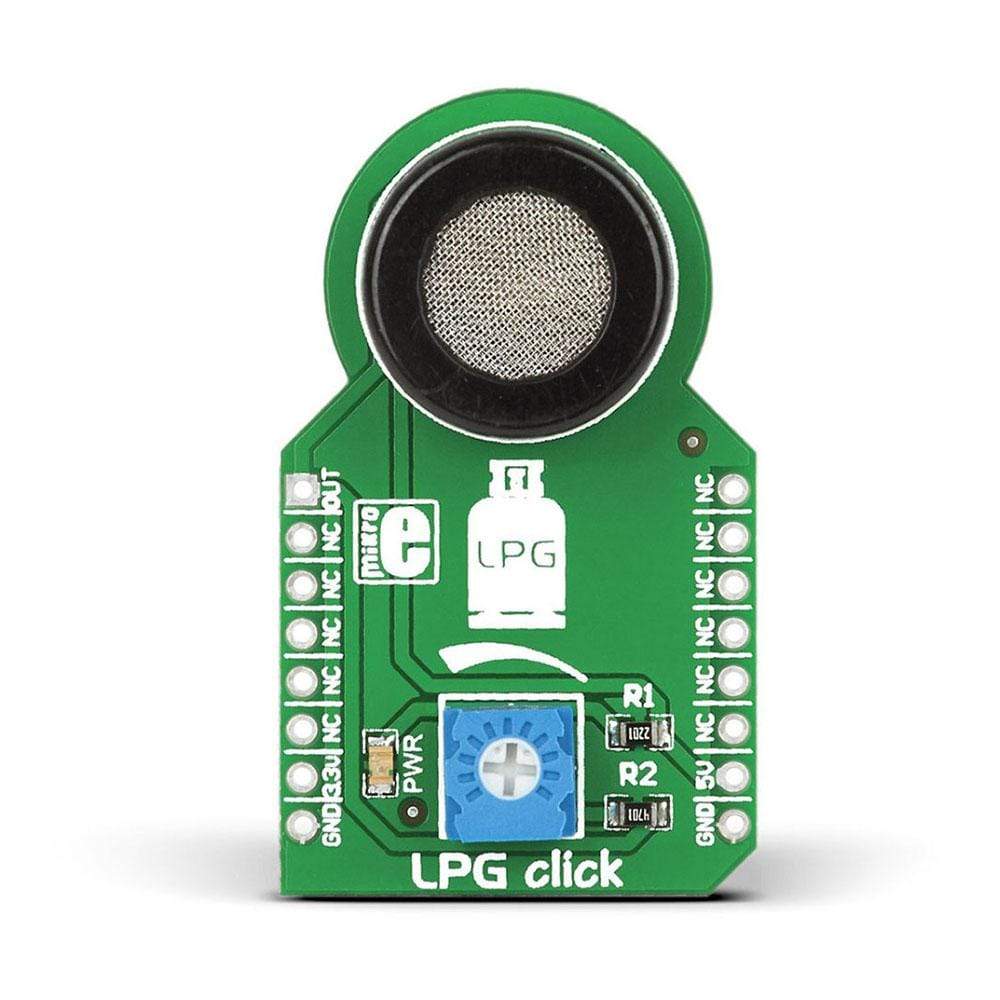

The LPG Click Board™ is a highly sensitive liquified petroleum gas leakage sensing device. Users can easily add this accessory board to their design of LPG leakage equipment. LPG Click Board™ features a powerful MQ-5 sensor for detecting LPG. It has also got two jumpers, a power indicator LED, a MikroBUS host socket and a calibration potentiometer. LPG Click Board™ can precisely detect the LPG levels in the range of 200 to 10000ppm of concentrations.

The MQ-5 sensor features a gas sensing layer constructed of tin dioxide (SnO2) which is an inorganic compound. Since tin dioxide has lower conductivity in clean air, as the percentage of LPG increases in the environment the conductivity rises too. The potentiometer enables the user to adjust the load resistance of the sensor circuit so that the LPG Click Board™ may be calibrated for the targeted surroundings.

The LPG Click Board™ is great for use as an LPG checker for detecting LPG concentration in the air. It can be used in the devices like domestic gas leakage detectors, industrial combustible gas detectors and portable gas detectors.

Das LPG Click Board™ ist ein hochempfindliches Gerät zur Erkennung von Flüssiggaslecks. Benutzer können diese Zusatzplatine problemlos zu ihrem Design von LPG-Leckgeräten hinzufügen. Das LPG Click Board™ verfügt über einen leistungsstarken MQ-5-Sensor zur Erkennung von Flüssiggas. Es verfügt außerdem über zwei Jumper, eine LED-Betriebsanzeige, eine MikroBUS-Hostbuchse und ein Kalibrierungspotentiometer. Das LPG Click Board™ kann die Flüssiggaswerte im Konzentrationsbereich von 200 bis 10000 ppm präzise erkennen.

Der MQ-5-Sensor verfügt über eine Gassensorschicht aus Zinndioxid (SnO2), einer anorganischen Verbindung. Da Zinndioxid in sauberer Luft eine geringere Leitfähigkeit aufweist, steigt mit zunehmendem LPG-Anteil in der Umgebung auch die Leitfähigkeit. Mit dem Potentiometer kann der Benutzer den Lastwiderstand des Sensorkreises anpassen, sodass das LPG Click Board™ für die Zielumgebung kalibriert werden kann.

Das LPG Click Board™ eignet sich hervorragend als LPG-Checker zur Erkennung der LPG-Konzentration in der Luft. Es kann in Geräten wie Gasleckdetektoren für den Hausgebrauch, industriellen brennbaren Gasdetektoren und tragbaren Gasdetektoren verwendet werden.

Overview
CategoryGas
ApplicationsMeasuring gas leakage, designing safety alarms
Key components
On-board modulesMQ-5 sensor
Features
Key featuresPotentiometer for calibration
Interfaces
InterfaceAnalog
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeM (42.9 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1587
ManufacturerMikroelektronika doo
EAN8606015075440
Warranty12 Monate
Shipping weight0.032 kg
  • 1 × LPG-Klick-Platine

Contact us to confirm the full contents of the box.
