Artila Matrix-514 Automatisierungscontroller
Artila Matrix-514 Automatisierungscontroller
Normaler Preis
£356.19 GBP
ohne MwSt
Normaler Preis
£495.95 GBP
Verkaufspreis
Grundpreis
pro
£356.19 GBP
ohne MwSt
Once stock is sold, this product will no longer be available

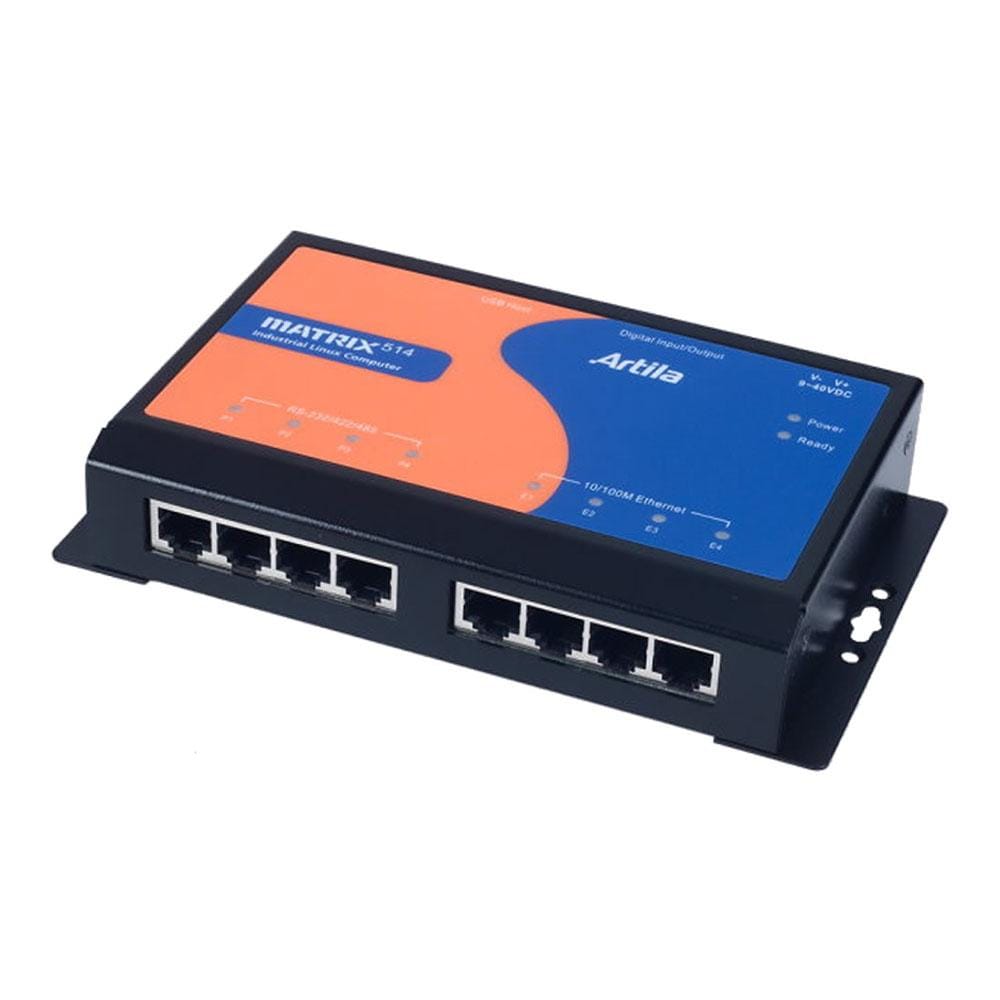

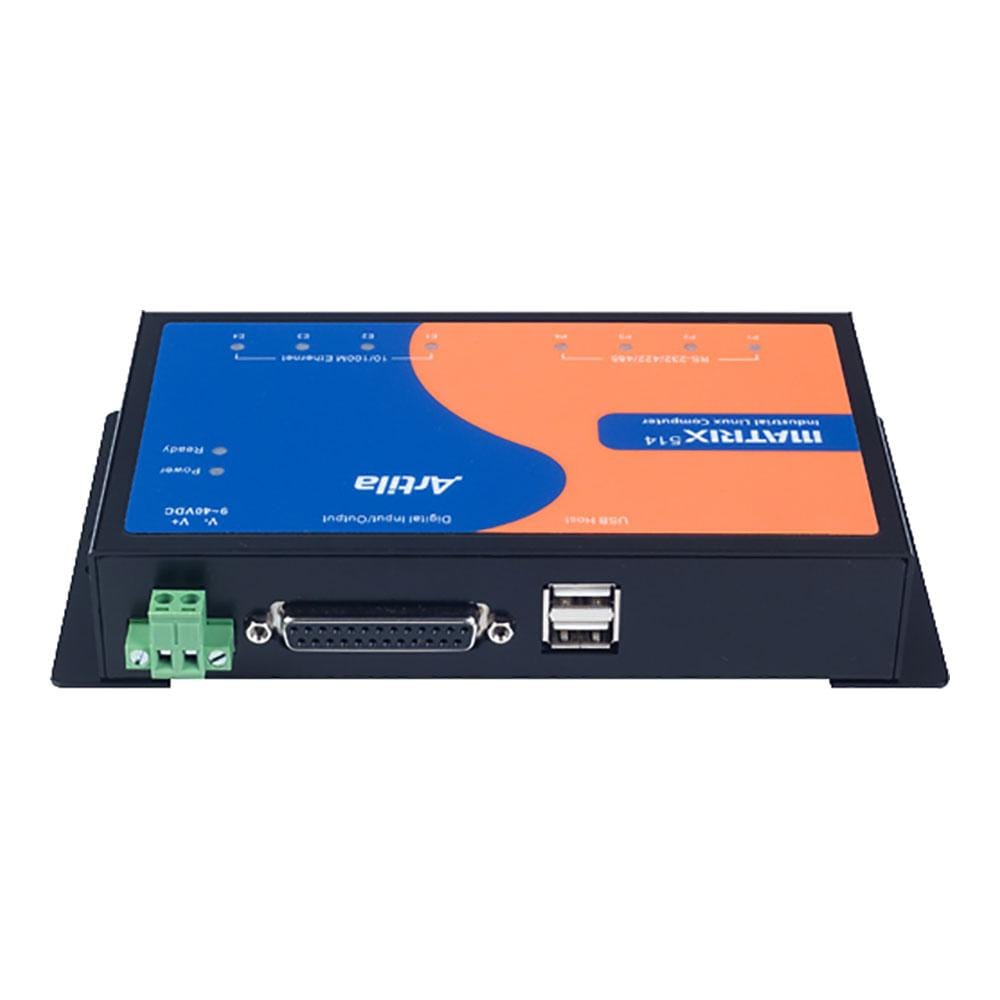

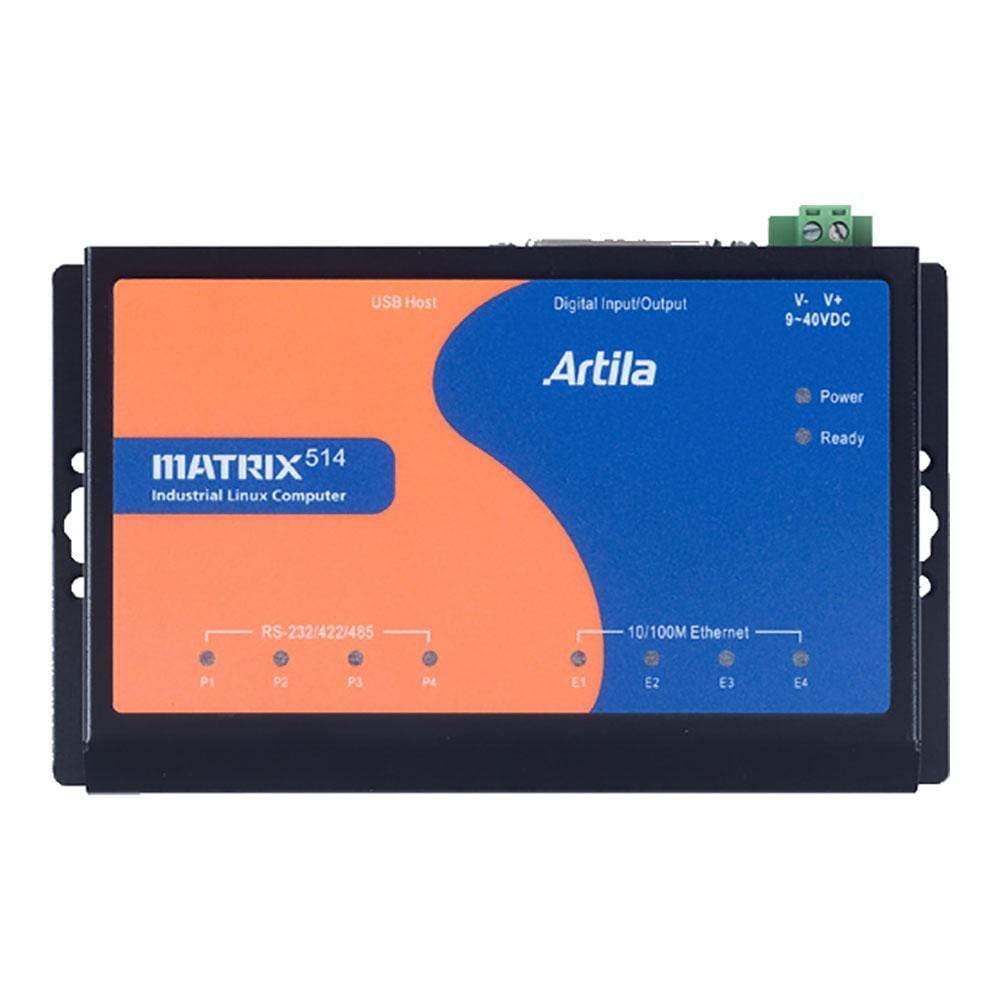

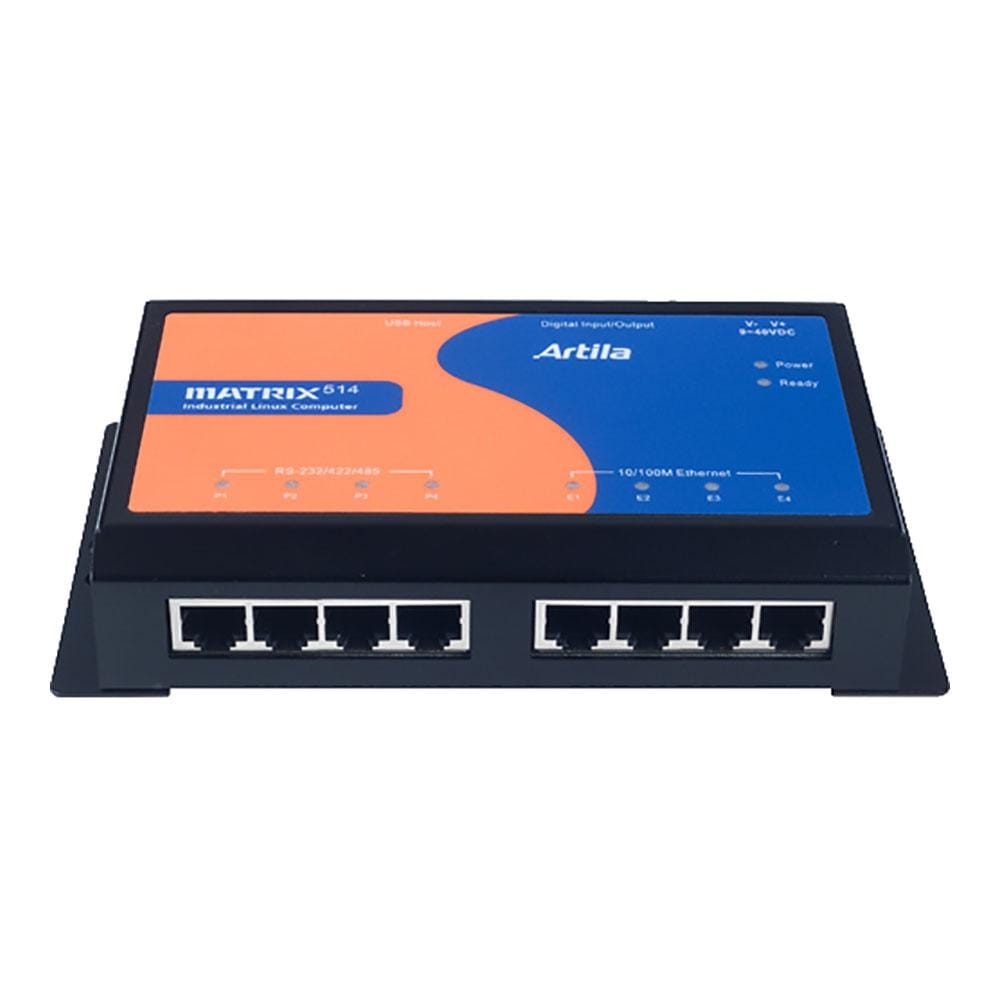

Artila Matrix-514 ist eine leistungsstarke Mini-Computerplattform auf Linux-Basis mit ARM9 für eingebettete Headless-Run-Only-Anwendungen.
Four 921.6Kbps TTY Ports
Also, the Matrix-514 provides four 921.6Kbps RS-232/422 /485 TTY ports. Port 2 features full RS-232 supporting for modem connection. Port 1, Port 3 and Port 4 support standard RS-232
- Linux 2.6.14 computing platform with file system
- CPU: ATMEL AT91RM9200, 180MHz
- Flash: 16MB, NOR type
- SDRAM: 64MB
- SD socket: 2GB max.
- Ethernet: 4 x 10/100Mbps
- TTY: 4 x RS-232 / 422 / 485
- USB Host: 2 x USB 2.0 compliant
- GPIO: 21 pins, CMOS / TTL-level
- Power input: 9~40VDC, 300mA@12V
- GNU C/C++ tool chain for Linux and Windows
